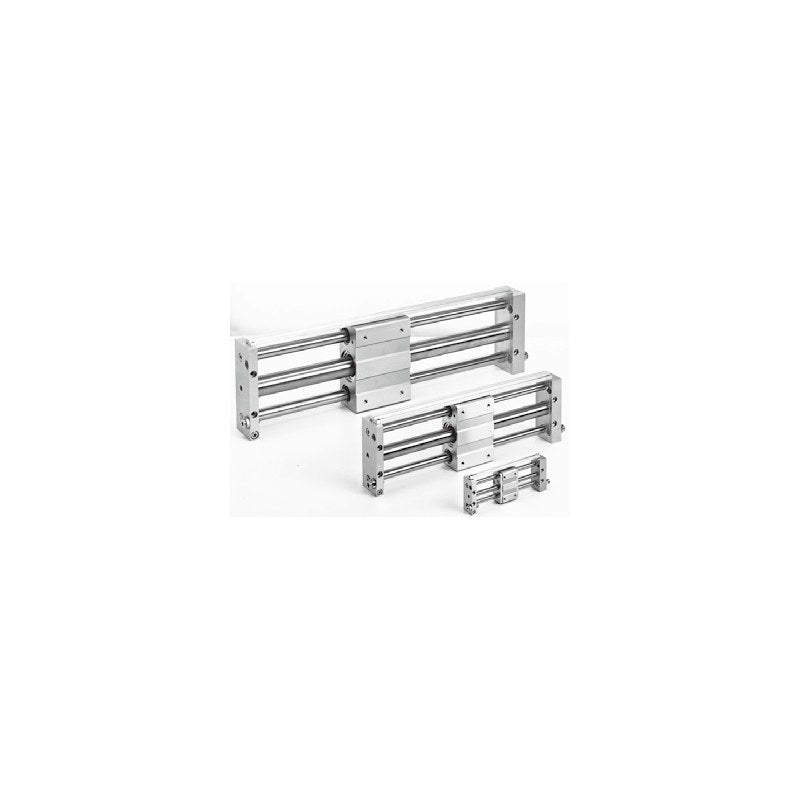

SMC CY1H Magnetic Rodless Cylinder (Linear Guide, 1-Axis/2-Axis CY1HT)

SMC CY1H Magnetic Rodless Cylinder (Linear Guide, 1-Axis/2-Axis CY1HT)

SMC CY1H series magnetically coupled rodless cylinder with integrated linear guide, 1-axis type in ø10 to ø25 and 2-axis type CY1HT in ø25 and ø32.

Key features

  • Linear guide type: single-axis guide (ø10-ø25) or twin-axis guide CY1HT (ø25, ø32) for higher moment loads
  • Centralized piping; urethane dampers on both ends with adjusting bolts as standard
  • Shock absorber options: B (both ends) or BS (port side only); adjusting bolt also fitted
  • Stroke adjustable by adjusting bolt up to 15 mm (ø10-ø20) or 30 mm (ø25, ø32) per side
  • Magnet built in; auto switches (D-Y59/Y69/Y7 types, D-Z7/Z80) ordered separately
  • Made-to-order: -XB10 intermediate stroke, -XB11 long stroke, -XB22 RJ soft shock absorber, -X168 helical insert

Specifications

Fluid Air
Action Double acting, magnetic coupling
Max. operating pressure 0.7 MPa
Min. operating pressure 0.2 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 70 to 1000 mm/s
Cushion Urethane dampers both ends (standard), shock absorber (option)
Lubrication Not required (non-lube)
Stroke tolerance 0 to +1.8 mm
Holding force ø10 53.9 N, ø15 137 N, ø20 231 N, ø25 363 N, ø32 588 N
Source SMC Korea catalog CY1H (SMCKR_CY1.pdf), p. 1528-1529 (PDF p. 18-19)
CY1H10-100 Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1H10-100B Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1H10-100BS Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 100 mm | Adjustment: Shock absorber, port side x1 | Port: M5x0.8
CY1H10-200 Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1H10-200B Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1H10-200BS Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 200 mm | Adjustment: Shock absorber, port side x1 | Port: M5x0.8
CY1H10-300 Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1H10-300B Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1H10-300BS Guide: 1-axis linear guide | Bore: ø10 mm | Stroke: 300 mm | Adjustment: Shock absorber, port side x1 | Port: M5x0.8
CY1H15-100 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1H15-100B Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1H15-100BS Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 100 mm | Adjustment: Shock absorber, port side x1 | Port: M5x0.8
CY1H15-200 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1H15-200B Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1H15-200BS Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 200 mm | Adjustment: Shock absorber, port side x1 | Port: M5x0.8
CY1H15-300 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1H15-300B Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1H15-300BS Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 300 mm | Adjustment: Shock absorber, port side x1 | Port: M5x0.8
CY1H15-400 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1H15-400B Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1H15-400BS Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 400 mm | Adjustment: Shock absorber, port side x1 | Port: M5x0.8
CY1H15-500 Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1H15-500B Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1H15-500BS Guide: 1-axis linear guide | Bore: ø15 mm | Stroke: 500 mm | Adjustment: Shock absorber, port side x1 | Port: M5x0.8
CY1H20-100 Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H20-100B Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H20-100BS Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 100 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H20-200 Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H20-200B Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H20-200BS Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 200 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H20-300 Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H20-300B Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H20-300BS Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 300 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H20-400 Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H20-400B Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H20-400BS Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 400 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H20-500 Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H20-500B Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H20-500BS Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 500 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H20-600 Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H20-600B Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H20-600BS Guide: 1-axis linear guide | Bore: ø20 mm | Stroke: 600 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H25-100 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H25-100B Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H25-100BS Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 100 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H25-200 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H25-200B Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H25-200BS Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 200 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H25-300 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H25-300B Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H25-300BS Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 300 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H25-400 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H25-400B Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H25-400BS Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 400 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H25-500 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H25-500B Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H25-500BS Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 500 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H25-600 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H25-600B Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H25-600BS Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 600 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1H25-800 Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1H25-800B Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1H25-800BS Guide: 1-axis linear guide | Bore: ø25 mm | Stroke: 800 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT25-100 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT25-100B Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT25-100BS Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 100 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT25-200 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT25-200B Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT25-200BS Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 200 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT25-300 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT25-300B Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT25-300BS Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 300 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT25-400 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT25-400B Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT25-400BS Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 400 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT25-500 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT25-500B Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT25-500BS Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 500 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT25-600 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT25-600B Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT25-600BS Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 600 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT25-800 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT25-800B Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT25-800BS Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 800 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT25-1000 Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 1000 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT25-1000B Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 1000 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT25-1000BS Guide: 2-axis linear guide | Bore: ø25 mm | Stroke: 1000 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT32-100 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT32-100B Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT32-100BS Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 100 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT32-200 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT32-200B Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT32-200BS Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 200 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT32-300 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT32-300B Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT32-300BS Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 300 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT32-400 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT32-400B Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT32-400BS Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 400 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT32-500 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT32-500B Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT32-500BS Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 500 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT32-600 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT32-600B Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT32-600BS Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 600 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT32-800 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT32-800B Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT32-800BS Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 800 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
CY1HT32-1000 Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 1000 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1HT32-1000B Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 1000 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1HT32-1000BS Guide: 2-axis linear guide | Bore: ø32 mm | Stroke: 1000 mm | Adjustment: Shock absorber, port side x1 | Port: Rc1/8
