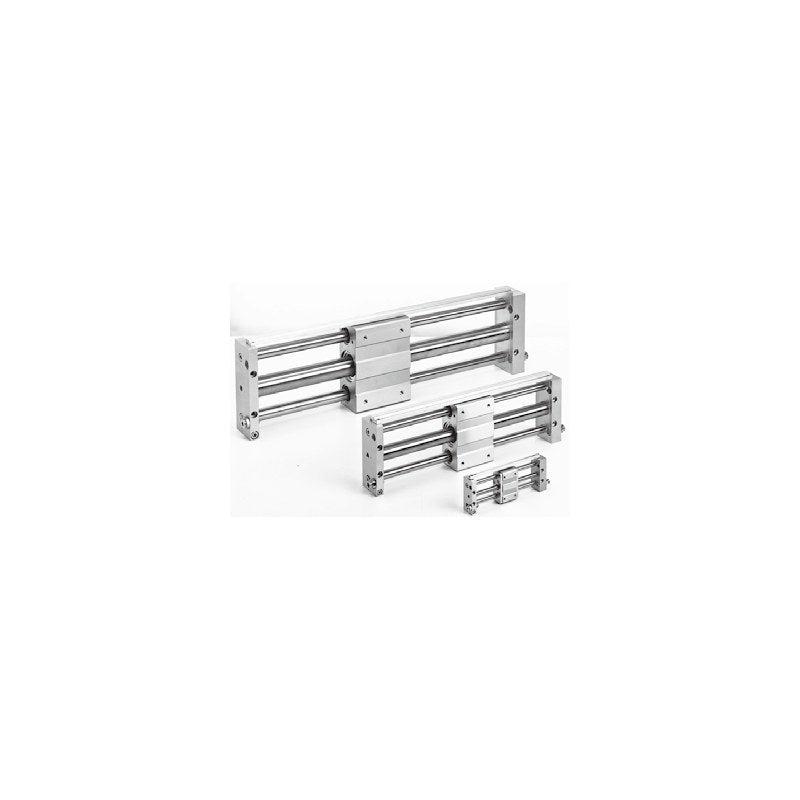

SMC CY1L Magnetic Rodless Cylinder (Slider, Ball Bushing, ø6-ø40)

SMC CY1L Magnetic Rodless Cylinder (Slider, Ball Bushing, ø6-ø40)

SMC CY1L series magnetically coupled rodless cylinder with a slider guided on two shafts by ball bushing bearings, in bores ø6 to ø40.

Key features

  • Slider type with ball bushing bearings on twin guide shafts; magnet built in for auto switches
  • Two magnetic holding force types: H (high) and L (low, ø15 and larger)
  • Hollow shaft piping allows centralized piping on one side; auto switch rail standard
  • Stroke adjustment by adjusting bolt (standard) or shock absorber (B: both ends, BS: plate side)
  • Port thread Rc (ø20-ø40) or M5 (ø6-ø15); NPT (TN) and G (TF) available for ø20 and larger
  • Auto switches (D-F7/J7/A7/A8 types) and made-to-order options (-XB9, -XB13, -XB22, -X116, -X168) ordered separately

Specifications

Fluid Air
Action Double acting, magnetic coupling
Max. operating pressure 0.7 MPa
Min. operating pressure 0.18 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Cushion Rubber cushion / shock absorber
Lubrication Not required (non-lube)
Stroke tolerance 0-250st +1.0, 251-1000st +1.4, 1001st and up +1.8 mm
Intermediate strokes Available in 1 mm increments (max. 300 to 1500 mm by bore)
Source SMC Korea catalog CY1L (SMCKR_CY1.pdf), p. 1516-1517 (PDF p. 6-7)
CY1L6H-50 Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 50 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L6H-50B Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 50 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L6H-50BS Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 50 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L6H-100 Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L6H-100B Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L6H-100BS Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L6H-150 Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L6H-150B Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L6H-150BS Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L6H-200 Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L6H-200B Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L6H-200BS Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-50 Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 50 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-50B Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 50 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-50BS Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 50 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-100 Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-100B Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-100BS Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-150 Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-150B Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-150BS Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-200 Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-200B Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-200BS Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-250 Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-250B Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-250BS Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-300 Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-300B Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-300BS Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-50 Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 50 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-50B Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 50 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-50BS Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 50 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-100 Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-100B Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-100BS Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-150 Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-150B Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-150BS Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-200 Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-200B Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-200BS Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-250 Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-250B Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-250BS Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-300 Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-300B Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-300BS Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-350 Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-350B Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-350BS Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-400 Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-400B Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-400BS Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-450 Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-450B Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-450BS Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-500 Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-500B Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-500BS Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-50 Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 50 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-50B Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 50 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-50BS Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 50 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-100 Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-100B Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-100BS Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-150 Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-150B Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-150BS Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-200 Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-200B Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-200BS Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-250 Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-250B Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-250BS Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-300 Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-300B Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-300BS Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-350 Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-350B Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-350BS Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-400 Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-400B Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-400BS Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-450 Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-450B Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-450BS Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-500 Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-500B Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-500BS Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L20H-100 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-100B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-100BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-150 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-150B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-150BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-200 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-200B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-200BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-250 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-250B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-250BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-300 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-300B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-300BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-350 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-350B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-350BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-400 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-400B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-400BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-450 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-450B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-450BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-500 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-500B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-500BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-600 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-600B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-600BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-700 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-700B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-700BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-800 Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-800B Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-800BS Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-100 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-100B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-100BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-150 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-150B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-150BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-200 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-200B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-200BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-250 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-250B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-250BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-300 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-300B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-300BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-350 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-350B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-350BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-400 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-400B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-400BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-450 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-450B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-450BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-500 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-500B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-500BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-600 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-600B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-600BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-700 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-700B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-700BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-800 Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-800B Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-800BS Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-100 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-100B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-100BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-150 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-150B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-150BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-200 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-200B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-200BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-250 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-250B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-250BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-300 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-300B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-300BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-350 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-350B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-350BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-400 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-400B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-400BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-450 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-450B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-450BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-500 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-500B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-500BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-600 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-600B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-600BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-700 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-700B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-700BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-800 Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-800B Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-800BS Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-100 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-100B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-100BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-150 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-150B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-150BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-200 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-200B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-200BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-250 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-250B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-250BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-300 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-300B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-300BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-350 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-350B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-350BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-400 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-400B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-400BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-450 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-450B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-450BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-500 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-500B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-500BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-600 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-600B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-600BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-700 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-700B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-700BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-800 Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-800B Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-800BS Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-100 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-100B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-100BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-150 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-150B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-150BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-200 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-200B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-200BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-250 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-250B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-250BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-300 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-300B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-300BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-350 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-350B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-350BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-400 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-400B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-400BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-450 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-450B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-450BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-500 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-500B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-500BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-600 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-600B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-600BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-700 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-700B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-700BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-800 Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-800B Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-800BS Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-100 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-100B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-100BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-150 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-150B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-150BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-200 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-200B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-200BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-250 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-250B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-250BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-300 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-300B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-300BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-350 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-350B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-350BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-400 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-400B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-400BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-450 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-450B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-450BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-500 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-500B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-500BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-600 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-600B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-600BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-700 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-700B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-700BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-800 Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-800B Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-800BS Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-100 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-100B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-100BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-150 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-150B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-150BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-200 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-200B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-200BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-250 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-250B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-250BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-300 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-300B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-300BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-350 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-350B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-350BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-400 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-400B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-400BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-450 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-450B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-450BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-500 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-500B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-500BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-600 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-600B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-600BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-700 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-700B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-700BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-800 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-800B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-800BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-900 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 900 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-900B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 900 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-900BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 900 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-1000 Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 1000 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-1000B Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 1000 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-1000BS Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 1000 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-100 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-100B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-100BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-150 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-150B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-150BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-200 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-200B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-200BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-250 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-250B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-250BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-300 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-300B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-300BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-350 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-350B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-350BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-400 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-400B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-400BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-450 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-450B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-450BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-500 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-500B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-500BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-600 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-600B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-600BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-700 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-700B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-700BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-800 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-800B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-800BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-900 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 900 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-900B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 900 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-900BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 900 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-1000 Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 1000 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-1000B Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 1000 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-1000BS Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 1000 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
Rodless CylindersSMC
390 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CY1L Magnetic Rodless Cylinder (Slider, Ball Bushing, ø6-ø40)

Brand SMC·Rodless Cylinders

Available part numbers (390)

CY1L6H-50, CY1L6H-50B, CY1L6H-50BS, CY1L6H-100, CY1L6H-100B, CY1L6H-100BS, CY1L6H-150, CY1L6H-150B, CY1L6H-150BS, CY1L6H-200 + 380 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CY1L6H-50Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 50 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L6H-50BBore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 50 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L6H-50BSBore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 50 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L6H-100Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L6H-100BBore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L6H-100BSBore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L6H-150Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L6H-150BBore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L6H-150BSBore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L6H-200Bore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L6H-200BBore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L6H-200BSBore: ø6 mm | Holding force: H type (19.6 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-50Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 50 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-50BBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 50 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-50BSBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 50 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-100Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-100BBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-100BSBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-150Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-150BBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-150BSBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-200Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-200BBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-200BSBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-250Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-250BBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-250BSBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L10H-300Bore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L10H-300BBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L10H-300BSBore: ø10 mm | Holding force: H type (53.9 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-50Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 50 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-50BBore: ø15 mm | Holding force: H type (137 N) | Stroke: 50 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-50BSBore: ø15 mm | Holding force: H type (137 N) | Stroke: 50 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-100Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-100BBore: ø15 mm | Holding force: H type (137 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-100BSBore: ø15 mm | Holding force: H type (137 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-150Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-150BBore: ø15 mm | Holding force: H type (137 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-150BSBore: ø15 mm | Holding force: H type (137 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-200Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-200BBore: ø15 mm | Holding force: H type (137 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-200BSBore: ø15 mm | Holding force: H type (137 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-250Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-250BBore: ø15 mm | Holding force: H type (137 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-250BSBore: ø15 mm | Holding force: H type (137 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-300Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-300BBore: ø15 mm | Holding force: H type (137 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-300BSBore: ø15 mm | Holding force: H type (137 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-350Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-350BBore: ø15 mm | Holding force: H type (137 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-350BSBore: ø15 mm | Holding force: H type (137 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-400Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-400BBore: ø15 mm | Holding force: H type (137 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-400BSBore: ø15 mm | Holding force: H type (137 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-450Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-450BBore: ø15 mm | Holding force: H type (137 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-450BSBore: ø15 mm | Holding force: H type (137 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15H-500Bore: ø15 mm | Holding force: H type (137 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15H-500BBore: ø15 mm | Holding force: H type (137 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15H-500BSBore: ø15 mm | Holding force: H type (137 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-50Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 50 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-50BBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 50 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-50BSBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 50 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-100Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-100BBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-100BSBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-150Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-150BBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-150BSBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-200Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-200BBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-200BSBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-250Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-250BBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-250BSBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-300Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-300BBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-300BSBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-350Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-350BBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-350BSBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-400Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-400BBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-400BSBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-450Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-450BBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-450BSBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L15L-500Bore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: M5x0.8
CY1L15L-500BBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: M5x0.8
CY1L15L-500BSBore: ø15 mm | Holding force: L type (81.4 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: M5x0.8
CY1L20H-100Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-100BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-100BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-150Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-150BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-150BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-200Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-200BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-200BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-250Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-250BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-250BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-300Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-300BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-300BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-350Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-350BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-350BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-400Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-400BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-400BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-450Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-450BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-450BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-500Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-500BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-500BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-600Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-600BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-600BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-700Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-700BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-700BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20H-800Bore: ø20 mm | Holding force: H type (231 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20H-800BBore: ø20 mm | Holding force: H type (231 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20H-800BSBore: ø20 mm | Holding force: H type (231 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-100Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-100BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-100BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-150Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-150BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-150BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-200Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-200BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-200BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-250Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-250BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-250BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-300Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-300BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-300BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-350Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-350BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-350BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-400Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-400BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-400BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-450Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-450BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-450BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-500Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-500BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-500BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-600Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-600BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-600BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-700Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-700BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-700BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L20L-800Bore: ø20 mm | Holding force: L type (154 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L20L-800BBore: ø20 mm | Holding force: L type (154 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L20L-800BSBore: ø20 mm | Holding force: L type (154 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-100Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-100BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-100BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-150Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-150BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-150BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-200Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-200BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-200BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-250Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-250BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-250BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-300Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-300BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-300BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-350Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-350BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-350BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-400Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-400BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-400BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-450Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-450BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-450BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-500Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-500BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-500BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-600Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-600BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-600BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-700Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-700BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-700BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25H-800Bore: ø25 mm | Holding force: H type (363 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25H-800BBore: ø25 mm | Holding force: H type (363 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25H-800BSBore: ø25 mm | Holding force: H type (363 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-100Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-100BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-100BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-150Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-150BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-150BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-200Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-200BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-200BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-250Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-250BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-250BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-300Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-300BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-300BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-350Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-350BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-350BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-400Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-400BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-400BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-450Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-450BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-450BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-500Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-500BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-500BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-600Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-600BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-600BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-700Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-700BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-700BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L25L-800Bore: ø25 mm | Holding force: L type (221 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L25L-800BBore: ø25 mm | Holding force: L type (221 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L25L-800BSBore: ø25 mm | Holding force: L type (221 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-100Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-100BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-100BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-150Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-150BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-150BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-200Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-200BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-200BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-250Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-250BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-250BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-300Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-300BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-300BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-350Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-350BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-350BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-400Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-400BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-400BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-450Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-450BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-450BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-500Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-500BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-500BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-600Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-600BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-600BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-700Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-700BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-700BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32H-800Bore: ø32 mm | Holding force: H type (588 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32H-800BBore: ø32 mm | Holding force: H type (588 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32H-800BSBore: ø32 mm | Holding force: H type (588 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-100Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-100BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-100BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-150Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-150BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-150BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-200Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-200BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-200BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-250Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-250BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-250BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-300Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-300BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-300BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-350Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-350BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-350BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-400Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-400BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-400BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-450Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-450BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-450BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-500Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-500BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-500BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-600Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-600BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-600BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-700Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-700BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-700BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L32L-800Bore: ø32 mm | Holding force: L type (358 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L32L-800BBore: ø32 mm | Holding force: L type (358 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L32L-800BSBore: ø32 mm | Holding force: L type (358 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-100Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-100BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-100BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-150Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-150BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-150BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-200Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-200BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-200BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-250Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-250BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-250BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-300Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-300BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-300BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-350Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-350BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-350BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-400Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-400BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-400BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-450Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-450BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-450BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-500Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-500BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-500BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-600Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-600BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-600BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-700Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-700BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-700BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-800Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-800BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-800BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-900Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 900 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-900BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 900 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-900BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 900 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40H-1000Bore: ø40 mm | Holding force: H type (922 N) | Stroke: 1000 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40H-1000BBore: ø40 mm | Holding force: H type (922 N) | Stroke: 1000 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40H-1000BSBore: ø40 mm | Holding force: H type (922 N) | Stroke: 1000 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-100Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 100 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-100BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 100 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-100BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 100 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-150Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 150 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-150BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 150 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-150BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 150 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-200Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 200 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-200BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 200 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-200BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 200 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-250Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 250 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-250BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 250 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-250BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 250 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-300Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 300 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-300BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 300 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-300BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 300 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-350Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 350 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-350BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 350 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-350BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 350 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-400Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 400 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-400BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 400 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-400BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 400 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-450Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 450 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-450BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 450 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-450BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 450 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-500Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 500 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-500BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 500 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-500BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 500 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-600Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 600 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-600BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 600 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-600BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 600 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-700Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 700 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-700BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 700 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-700BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 700 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-800Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 800 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-800BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 800 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-800BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 800 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-900Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 900 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-900BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 900 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-900BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 900 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8
CY1L40L-1000Bore: ø40 mm | Holding force: L type (569 N) | Stroke: 1000 mm | Adjustment: Adjusting bolt | Port: Rc1/8
CY1L40L-1000BBore: ø40 mm | Holding force: L type (569 N) | Stroke: 1000 mm | Adjustment: Shock absorber x2 | Port: Rc1/8
CY1L40L-1000BSBore: ø40 mm | Holding force: L type (569 N) | Stroke: 1000 mm | Adjustment: Shock absorber + plate (1) | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
