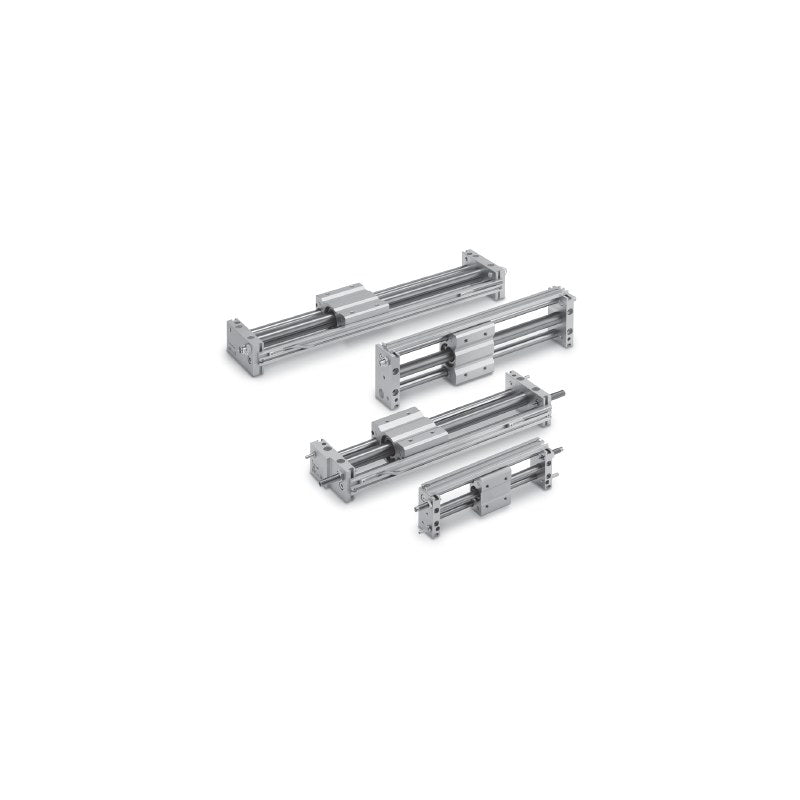

SMC CY1S Magnetically Coupled Rodless Cylinder (Slider, Slide Bearing)

SMC CY1S Magnetically Coupled Rodless Cylinder (Slider, Slide Bearing)

SMC CY1S-Z series magnetically coupled rodless cylinder, slider type with slide bearings and integral guide shafts, bores 6 to 40 mm.

Key features

  • Up to 15% lighter and up to 15 mm shorter overall length than the previous model
  • Lube-retainers on the tube inner and outer surfaces for improved durability
  • Stopper types: damper bolts both ends, shock absorber + adjustment bolt both ends (B), or one side (BS)
  • Both-end piping or centralized piping (G) on plate A side; switch rail and switch magnet standard
  • Standard strokes 50 to 1000 mm by bore; 1 mm increments on order; auto switches and -X options ordered as suffix

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.18 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50 to 400 mm/s
Cushion Shock absorber
Lubrication Not required (non-lube)
Magnetic holding force 19.6 N (ø6) to 922 N (ø40)
Port thread M thread (6-15), Rc (20-40); NPT (TN), G (TF) available
Source SMC Korea catalog CY1S series (SMCKR_CY1S-Z.pdf), p. 1199, 1214-1215 (PDF p. 1, 17-18)
CY1S6-50Z Piping: Both-end ports | Bore: 6 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1S6-50BZ Piping: Both-end ports | Bore: 6 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1S6-50BSZ Piping: Both-end ports | Bore: 6 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1S6-100Z Piping: Both-end ports | Bore: 6 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1S6-100BZ Piping: Both-end ports | Bore: 6 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1S6-100BSZ Piping: Both-end ports | Bore: 6 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1S6-150Z Piping: Both-end ports | Bore: 6 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1S6-150BZ Piping: Both-end ports | Bore: 6 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1S6-150BSZ Piping: Both-end ports | Bore: 6 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1S6-200Z Piping: Both-end ports | Bore: 6 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1S6-200BZ Piping: Both-end ports | Bore: 6 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1S6-200BSZ Piping: Both-end ports | Bore: 6 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1S10-50Z Piping: Both-end ports | Bore: 10 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-50BZ Piping: Both-end ports | Bore: 10 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-50BSZ Piping: Both-end ports | Bore: 10 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S10-100Z Piping: Both-end ports | Bore: 10 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-100BZ Piping: Both-end ports | Bore: 10 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-100BSZ Piping: Both-end ports | Bore: 10 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S10-150Z Piping: Both-end ports | Bore: 10 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-150BZ Piping: Both-end ports | Bore: 10 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-150BSZ Piping: Both-end ports | Bore: 10 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S10-200Z Piping: Both-end ports | Bore: 10 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-200BZ Piping: Both-end ports | Bore: 10 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-200BSZ Piping: Both-end ports | Bore: 10 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S10-250Z Piping: Both-end ports | Bore: 10 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-250BZ Piping: Both-end ports | Bore: 10 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-250BSZ Piping: Both-end ports | Bore: 10 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S10-300Z Piping: Both-end ports | Bore: 10 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-300BZ Piping: Both-end ports | Bore: 10 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-300BSZ Piping: Both-end ports | Bore: 10 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-50Z Piping: Both-end ports | Bore: 15 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-50BZ Piping: Both-end ports | Bore: 15 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-50BSZ Piping: Both-end ports | Bore: 15 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-100Z Piping: Both-end ports | Bore: 15 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-100BZ Piping: Both-end ports | Bore: 15 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-100BSZ Piping: Both-end ports | Bore: 15 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-150Z Piping: Both-end ports | Bore: 15 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-150BZ Piping: Both-end ports | Bore: 15 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-150BSZ Piping: Both-end ports | Bore: 15 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-200Z Piping: Both-end ports | Bore: 15 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-200BZ Piping: Both-end ports | Bore: 15 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-200BSZ Piping: Both-end ports | Bore: 15 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-250Z Piping: Both-end ports | Bore: 15 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-250BZ Piping: Both-end ports | Bore: 15 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-250BSZ Piping: Both-end ports | Bore: 15 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-300Z Piping: Both-end ports | Bore: 15 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-300BZ Piping: Both-end ports | Bore: 15 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-300BSZ Piping: Both-end ports | Bore: 15 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-350Z Piping: Both-end ports | Bore: 15 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-350BZ Piping: Both-end ports | Bore: 15 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-350BSZ Piping: Both-end ports | Bore: 15 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-400Z Piping: Both-end ports | Bore: 15 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-400BZ Piping: Both-end ports | Bore: 15 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-400BSZ Piping: Both-end ports | Bore: 15 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-450Z Piping: Both-end ports | Bore: 15 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-450BZ Piping: Both-end ports | Bore: 15 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-450BSZ Piping: Both-end ports | Bore: 15 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-500Z Piping: Both-end ports | Bore: 15 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-500BZ Piping: Both-end ports | Bore: 15 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-500BSZ Piping: Both-end ports | Bore: 15 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S20-100Z Piping: Both-end ports | Bore: 20 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-100BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-100BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-150Z Piping: Both-end ports | Bore: 20 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-150BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-150BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-200Z Piping: Both-end ports | Bore: 20 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-200BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-200BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-250Z Piping: Both-end ports | Bore: 20 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-250BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-250BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-300Z Piping: Both-end ports | Bore: 20 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-300BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-300BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-350Z Piping: Both-end ports | Bore: 20 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-350BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-350BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-400Z Piping: Both-end ports | Bore: 20 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-400BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-400BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-450Z Piping: Both-end ports | Bore: 20 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-450BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-450BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-500Z Piping: Both-end ports | Bore: 20 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-500BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-500BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-600Z Piping: Both-end ports | Bore: 20 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-600BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-600BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-700Z Piping: Both-end ports | Bore: 20 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-700BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-700BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-800Z Piping: Both-end ports | Bore: 20 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-800BZ Piping: Both-end ports | Bore: 20 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-800BSZ Piping: Both-end ports | Bore: 20 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-100Z Piping: Both-end ports | Bore: 25 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-100BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-100BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-150Z Piping: Both-end ports | Bore: 25 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-150BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-150BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-200Z Piping: Both-end ports | Bore: 25 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-200BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-200BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-250Z Piping: Both-end ports | Bore: 25 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-250BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-250BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-300Z Piping: Both-end ports | Bore: 25 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-300BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-300BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-350Z Piping: Both-end ports | Bore: 25 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-350BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-350BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-400Z Piping: Both-end ports | Bore: 25 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-400BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-400BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-450Z Piping: Both-end ports | Bore: 25 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-450BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-450BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-500Z Piping: Both-end ports | Bore: 25 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-500BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-500BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-600Z Piping: Both-end ports | Bore: 25 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-600BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-600BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-700Z Piping: Both-end ports | Bore: 25 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-700BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-700BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-800Z Piping: Both-end ports | Bore: 25 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-800BZ Piping: Both-end ports | Bore: 25 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-800BSZ Piping: Both-end ports | Bore: 25 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-100Z Piping: Both-end ports | Bore: 32 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-100BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-100BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-150Z Piping: Both-end ports | Bore: 32 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-150BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-150BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-200Z Piping: Both-end ports | Bore: 32 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-200BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-200BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-250Z Piping: Both-end ports | Bore: 32 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-250BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-250BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-300Z Piping: Both-end ports | Bore: 32 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-300BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-300BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-350Z Piping: Both-end ports | Bore: 32 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-350BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-350BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-400Z Piping: Both-end ports | Bore: 32 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-400BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-400BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-450Z Piping: Both-end ports | Bore: 32 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-450BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-450BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-500Z Piping: Both-end ports | Bore: 32 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-500BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-500BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-600Z Piping: Both-end ports | Bore: 32 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-600BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-600BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-700Z Piping: Both-end ports | Bore: 32 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-700BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-700BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-800Z Piping: Both-end ports | Bore: 32 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-800BZ Piping: Both-end ports | Bore: 32 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-800BSZ Piping: Both-end ports | Bore: 32 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S40-100Z Piping: Both-end ports | Bore: 40 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-100BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-100BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-150Z Piping: Both-end ports | Bore: 40 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-150BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-150BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-200Z Piping: Both-end ports | Bore: 40 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-200BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-200BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-250Z Piping: Both-end ports | Bore: 40 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-250BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-250BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-300Z Piping: Both-end ports | Bore: 40 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-300BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-300BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-350Z Piping: Both-end ports | Bore: 40 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-350BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-350BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-400Z Piping: Both-end ports | Bore: 40 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-400BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-400BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-450Z Piping: Both-end ports | Bore: 40 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-450BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-450BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-500Z Piping: Both-end ports | Bore: 40 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-500BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-500BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-600Z Piping: Both-end ports | Bore: 40 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-600BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-600BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-700Z Piping: Both-end ports | Bore: 40 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-700BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-700BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-800Z Piping: Both-end ports | Bore: 40 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-800BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-800BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-900Z Piping: Both-end ports | Bore: 40 mm | Stroke: 900 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-900BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 900 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-900BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 900 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-1000Z Piping: Both-end ports | Bore: 40 mm | Stroke: 1000 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-1000BZ Piping: Both-end ports | Bore: 40 mm | Stroke: 1000 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-1000BSZ Piping: Both-end ports | Bore: 40 mm | Stroke: 1000 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG6-50Z Piping: Centralized | Bore: 6 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1SG6-50BZ Piping: Centralized | Bore: 6 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1SG6-50BSZ Piping: Centralized | Bore: 6 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1SG6-100Z Piping: Centralized | Bore: 6 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1SG6-100BZ Piping: Centralized | Bore: 6 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1SG6-100BSZ Piping: Centralized | Bore: 6 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1SG6-150Z Piping: Centralized | Bore: 6 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1SG6-150BZ Piping: Centralized | Bore: 6 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1SG6-150BSZ Piping: Centralized | Bore: 6 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1SG6-200Z Piping: Centralized | Bore: 6 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1SG6-200BZ Piping: Centralized | Bore: 6 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1SG6-200BSZ Piping: Centralized | Bore: 6 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1SG10-50Z Piping: Centralized | Bore: 10 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-50BZ Piping: Centralized | Bore: 10 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-50BSZ Piping: Centralized | Bore: 10 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG10-100Z Piping: Centralized | Bore: 10 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-100BZ Piping: Centralized | Bore: 10 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-100BSZ Piping: Centralized | Bore: 10 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG10-150Z Piping: Centralized | Bore: 10 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-150BZ Piping: Centralized | Bore: 10 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-150BSZ Piping: Centralized | Bore: 10 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG10-200Z Piping: Centralized | Bore: 10 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-200BZ Piping: Centralized | Bore: 10 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-200BSZ Piping: Centralized | Bore: 10 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG10-250Z Piping: Centralized | Bore: 10 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-250BZ Piping: Centralized | Bore: 10 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-250BSZ Piping: Centralized | Bore: 10 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG10-300Z Piping: Centralized | Bore: 10 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-300BZ Piping: Centralized | Bore: 10 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-300BSZ Piping: Centralized | Bore: 10 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-50Z Piping: Centralized | Bore: 15 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-50BZ Piping: Centralized | Bore: 15 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-50BSZ Piping: Centralized | Bore: 15 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-100Z Piping: Centralized | Bore: 15 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-100BZ Piping: Centralized | Bore: 15 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-100BSZ Piping: Centralized | Bore: 15 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-150Z Piping: Centralized | Bore: 15 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-150BZ Piping: Centralized | Bore: 15 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-150BSZ Piping: Centralized | Bore: 15 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-200Z Piping: Centralized | Bore: 15 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-200BZ Piping: Centralized | Bore: 15 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-200BSZ Piping: Centralized | Bore: 15 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-250Z Piping: Centralized | Bore: 15 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-250BZ Piping: Centralized | Bore: 15 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-250BSZ Piping: Centralized | Bore: 15 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-300Z Piping: Centralized | Bore: 15 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-300BZ Piping: Centralized | Bore: 15 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-300BSZ Piping: Centralized | Bore: 15 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-350Z Piping: Centralized | Bore: 15 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-350BZ Piping: Centralized | Bore: 15 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-350BSZ Piping: Centralized | Bore: 15 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-400Z Piping: Centralized | Bore: 15 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-400BZ Piping: Centralized | Bore: 15 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-400BSZ Piping: Centralized | Bore: 15 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-450Z Piping: Centralized | Bore: 15 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-450BZ Piping: Centralized | Bore: 15 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-450BSZ Piping: Centralized | Bore: 15 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-500Z Piping: Centralized | Bore: 15 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-500BZ Piping: Centralized | Bore: 15 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-500BSZ Piping: Centralized | Bore: 15 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG20-100Z Piping: Centralized | Bore: 20 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-100BZ Piping: Centralized | Bore: 20 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-100BSZ Piping: Centralized | Bore: 20 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-150Z Piping: Centralized | Bore: 20 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-150BZ Piping: Centralized | Bore: 20 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-150BSZ Piping: Centralized | Bore: 20 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-200Z Piping: Centralized | Bore: 20 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-200BZ Piping: Centralized | Bore: 20 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-200BSZ Piping: Centralized | Bore: 20 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-250Z Piping: Centralized | Bore: 20 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-250BZ Piping: Centralized | Bore: 20 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-250BSZ Piping: Centralized | Bore: 20 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-300Z Piping: Centralized | Bore: 20 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-300BZ Piping: Centralized | Bore: 20 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-300BSZ Piping: Centralized | Bore: 20 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-350Z Piping: Centralized | Bore: 20 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-350BZ Piping: Centralized | Bore: 20 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-350BSZ Piping: Centralized | Bore: 20 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-400Z Piping: Centralized | Bore: 20 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-400BZ Piping: Centralized | Bore: 20 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-400BSZ Piping: Centralized | Bore: 20 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-450Z Piping: Centralized | Bore: 20 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-450BZ Piping: Centralized | Bore: 20 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-450BSZ Piping: Centralized | Bore: 20 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-500Z Piping: Centralized | Bore: 20 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-500BZ Piping: Centralized | Bore: 20 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-500BSZ Piping: Centralized | Bore: 20 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-600Z Piping: Centralized | Bore: 20 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-600BZ Piping: Centralized | Bore: 20 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-600BSZ Piping: Centralized | Bore: 20 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-700Z Piping: Centralized | Bore: 20 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-700BZ Piping: Centralized | Bore: 20 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-700BSZ Piping: Centralized | Bore: 20 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-800Z Piping: Centralized | Bore: 20 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-800BZ Piping: Centralized | Bore: 20 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-800BSZ Piping: Centralized | Bore: 20 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-100Z Piping: Centralized | Bore: 25 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-100BZ Piping: Centralized | Bore: 25 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-100BSZ Piping: Centralized | Bore: 25 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-150Z Piping: Centralized | Bore: 25 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-150BZ Piping: Centralized | Bore: 25 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-150BSZ Piping: Centralized | Bore: 25 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-200Z Piping: Centralized | Bore: 25 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-200BZ Piping: Centralized | Bore: 25 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-200BSZ Piping: Centralized | Bore: 25 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-250Z Piping: Centralized | Bore: 25 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-250BZ Piping: Centralized | Bore: 25 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-250BSZ Piping: Centralized | Bore: 25 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-300Z Piping: Centralized | Bore: 25 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-300BZ Piping: Centralized | Bore: 25 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-300BSZ Piping: Centralized | Bore: 25 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-350Z Piping: Centralized | Bore: 25 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-350BZ Piping: Centralized | Bore: 25 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-350BSZ Piping: Centralized | Bore: 25 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-400Z Piping: Centralized | Bore: 25 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-400BZ Piping: Centralized | Bore: 25 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-400BSZ Piping: Centralized | Bore: 25 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-450Z Piping: Centralized | Bore: 25 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-450BZ Piping: Centralized | Bore: 25 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-450BSZ Piping: Centralized | Bore: 25 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-500Z Piping: Centralized | Bore: 25 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-500BZ Piping: Centralized | Bore: 25 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-500BSZ Piping: Centralized | Bore: 25 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-600Z Piping: Centralized | Bore: 25 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-600BZ Piping: Centralized | Bore: 25 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-600BSZ Piping: Centralized | Bore: 25 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-700Z Piping: Centralized | Bore: 25 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-700BZ Piping: Centralized | Bore: 25 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-700BSZ Piping: Centralized | Bore: 25 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-800Z Piping: Centralized | Bore: 25 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-800BZ Piping: Centralized | Bore: 25 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-800BSZ Piping: Centralized | Bore: 25 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-100Z Piping: Centralized | Bore: 32 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-100BZ Piping: Centralized | Bore: 32 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-100BSZ Piping: Centralized | Bore: 32 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-150Z Piping: Centralized | Bore: 32 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-150BZ Piping: Centralized | Bore: 32 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-150BSZ Piping: Centralized | Bore: 32 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-200Z Piping: Centralized | Bore: 32 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-200BZ Piping: Centralized | Bore: 32 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-200BSZ Piping: Centralized | Bore: 32 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-250Z Piping: Centralized | Bore: 32 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-250BZ Piping: Centralized | Bore: 32 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-250BSZ Piping: Centralized | Bore: 32 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-300Z Piping: Centralized | Bore: 32 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-300BZ Piping: Centralized | Bore: 32 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-300BSZ Piping: Centralized | Bore: 32 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-350Z Piping: Centralized | Bore: 32 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-350BZ Piping: Centralized | Bore: 32 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-350BSZ Piping: Centralized | Bore: 32 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-400Z Piping: Centralized | Bore: 32 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-400BZ Piping: Centralized | Bore: 32 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-400BSZ Piping: Centralized | Bore: 32 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-450Z Piping: Centralized | Bore: 32 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-450BZ Piping: Centralized | Bore: 32 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-450BSZ Piping: Centralized | Bore: 32 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-500Z Piping: Centralized | Bore: 32 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-500BZ Piping: Centralized | Bore: 32 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-500BSZ Piping: Centralized | Bore: 32 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-600Z Piping: Centralized | Bore: 32 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-600BZ Piping: Centralized | Bore: 32 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-600BSZ Piping: Centralized | Bore: 32 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-700Z Piping: Centralized | Bore: 32 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-700BZ Piping: Centralized | Bore: 32 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-700BSZ Piping: Centralized | Bore: 32 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-800Z Piping: Centralized | Bore: 32 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-800BZ Piping: Centralized | Bore: 32 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-800BSZ Piping: Centralized | Bore: 32 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG40-100Z Piping: Centralized | Bore: 40 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-100BZ Piping: Centralized | Bore: 40 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-100BSZ Piping: Centralized | Bore: 40 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-150Z Piping: Centralized | Bore: 40 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-150BZ Piping: Centralized | Bore: 40 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-150BSZ Piping: Centralized | Bore: 40 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-200Z Piping: Centralized | Bore: 40 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-200BZ Piping: Centralized | Bore: 40 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-200BSZ Piping: Centralized | Bore: 40 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-250Z Piping: Centralized | Bore: 40 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-250BZ Piping: Centralized | Bore: 40 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-250BSZ Piping: Centralized | Bore: 40 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-300Z Piping: Centralized | Bore: 40 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-300BZ Piping: Centralized | Bore: 40 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-300BSZ Piping: Centralized | Bore: 40 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-350Z Piping: Centralized | Bore: 40 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-350BZ Piping: Centralized | Bore: 40 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-350BSZ Piping: Centralized | Bore: 40 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-400Z Piping: Centralized | Bore: 40 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-400BZ Piping: Centralized | Bore: 40 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-400BSZ Piping: Centralized | Bore: 40 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-450Z Piping: Centralized | Bore: 40 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-450BZ Piping: Centralized | Bore: 40 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-450BSZ Piping: Centralized | Bore: 40 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-500Z Piping: Centralized | Bore: 40 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-500BZ Piping: Centralized | Bore: 40 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-500BSZ Piping: Centralized | Bore: 40 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-600Z Piping: Centralized | Bore: 40 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-600BZ Piping: Centralized | Bore: 40 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-600BSZ Piping: Centralized | Bore: 40 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-700Z Piping: Centralized | Bore: 40 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-700BZ Piping: Centralized | Bore: 40 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-700BSZ Piping: Centralized | Bore: 40 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-800Z Piping: Centralized | Bore: 40 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-800BZ Piping: Centralized | Bore: 40 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-800BSZ Piping: Centralized | Bore: 40 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-900Z Piping: Centralized | Bore: 40 mm | Stroke: 900 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-900BZ Piping: Centralized | Bore: 40 mm | Stroke: 900 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-900BSZ Piping: Centralized | Bore: 40 mm | Stroke: 900 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-1000Z Piping: Centralized | Bore: 40 mm | Stroke: 1000 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-1000BZ Piping: Centralized | Bore: 40 mm | Stroke: 1000 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-1000BSZ Piping: Centralized | Bore: 40 mm | Stroke: 1000 mm | Stopper: Shock absorber one side | Port: Rc1/4
Rodless CylindersSMC
420 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CY1S Magnetically Coupled Rodless Cylinder (Slider, Slide Bearing)

Brand SMC·Rodless Cylinders

Available part numbers (420)

CY1S6-50Z, CY1S6-50BZ, CY1S6-50BSZ, CY1S6-100Z, CY1S6-100BZ, CY1S6-100BSZ, CY1S6-150Z, CY1S6-150BZ, CY1S6-150BSZ, CY1S6-200Z + 410 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CY1S6-50ZPiping: Both-end ports | Bore: 6 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1S6-50BZPiping: Both-end ports | Bore: 6 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1S6-50BSZPiping: Both-end ports | Bore: 6 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1S6-100ZPiping: Both-end ports | Bore: 6 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1S6-100BZPiping: Both-end ports | Bore: 6 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1S6-100BSZPiping: Both-end ports | Bore: 6 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1S6-150ZPiping: Both-end ports | Bore: 6 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1S6-150BZPiping: Both-end ports | Bore: 6 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1S6-150BSZPiping: Both-end ports | Bore: 6 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1S6-200ZPiping: Both-end ports | Bore: 6 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1S6-200BZPiping: Both-end ports | Bore: 6 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1S6-200BSZPiping: Both-end ports | Bore: 6 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1S10-50ZPiping: Both-end ports | Bore: 10 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-50BZPiping: Both-end ports | Bore: 10 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-50BSZPiping: Both-end ports | Bore: 10 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S10-100ZPiping: Both-end ports | Bore: 10 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-100BZPiping: Both-end ports | Bore: 10 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-100BSZPiping: Both-end ports | Bore: 10 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S10-150ZPiping: Both-end ports | Bore: 10 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-150BZPiping: Both-end ports | Bore: 10 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-150BSZPiping: Both-end ports | Bore: 10 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S10-200ZPiping: Both-end ports | Bore: 10 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-200BZPiping: Both-end ports | Bore: 10 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-200BSZPiping: Both-end ports | Bore: 10 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S10-250ZPiping: Both-end ports | Bore: 10 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-250BZPiping: Both-end ports | Bore: 10 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-250BSZPiping: Both-end ports | Bore: 10 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S10-300ZPiping: Both-end ports | Bore: 10 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S10-300BZPiping: Both-end ports | Bore: 10 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S10-300BSZPiping: Both-end ports | Bore: 10 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-50ZPiping: Both-end ports | Bore: 15 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-50BZPiping: Both-end ports | Bore: 15 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-50BSZPiping: Both-end ports | Bore: 15 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-100ZPiping: Both-end ports | Bore: 15 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-100BZPiping: Both-end ports | Bore: 15 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-100BSZPiping: Both-end ports | Bore: 15 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-150ZPiping: Both-end ports | Bore: 15 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-150BZPiping: Both-end ports | Bore: 15 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-150BSZPiping: Both-end ports | Bore: 15 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-200ZPiping: Both-end ports | Bore: 15 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-200BZPiping: Both-end ports | Bore: 15 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-200BSZPiping: Both-end ports | Bore: 15 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-250ZPiping: Both-end ports | Bore: 15 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-250BZPiping: Both-end ports | Bore: 15 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-250BSZPiping: Both-end ports | Bore: 15 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-300ZPiping: Both-end ports | Bore: 15 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-300BZPiping: Both-end ports | Bore: 15 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-300BSZPiping: Both-end ports | Bore: 15 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-350ZPiping: Both-end ports | Bore: 15 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-350BZPiping: Both-end ports | Bore: 15 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-350BSZPiping: Both-end ports | Bore: 15 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-400ZPiping: Both-end ports | Bore: 15 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-400BZPiping: Both-end ports | Bore: 15 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-400BSZPiping: Both-end ports | Bore: 15 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-450ZPiping: Both-end ports | Bore: 15 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-450BZPiping: Both-end ports | Bore: 15 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-450BSZPiping: Both-end ports | Bore: 15 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S15-500ZPiping: Both-end ports | Bore: 15 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1S15-500BZPiping: Both-end ports | Bore: 15 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1S15-500BSZPiping: Both-end ports | Bore: 15 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1S20-100ZPiping: Both-end ports | Bore: 20 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-100BZPiping: Both-end ports | Bore: 20 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-100BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-150ZPiping: Both-end ports | Bore: 20 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-150BZPiping: Both-end ports | Bore: 20 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-150BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-200ZPiping: Both-end ports | Bore: 20 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-200BZPiping: Both-end ports | Bore: 20 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-200BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-250ZPiping: Both-end ports | Bore: 20 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-250BZPiping: Both-end ports | Bore: 20 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-250BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-300ZPiping: Both-end ports | Bore: 20 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-300BZPiping: Both-end ports | Bore: 20 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-300BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-350ZPiping: Both-end ports | Bore: 20 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-350BZPiping: Both-end ports | Bore: 20 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-350BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-400ZPiping: Both-end ports | Bore: 20 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-400BZPiping: Both-end ports | Bore: 20 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-400BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-450ZPiping: Both-end ports | Bore: 20 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-450BZPiping: Both-end ports | Bore: 20 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-450BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-500ZPiping: Both-end ports | Bore: 20 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-500BZPiping: Both-end ports | Bore: 20 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-500BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-600ZPiping: Both-end ports | Bore: 20 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-600BZPiping: Both-end ports | Bore: 20 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-600BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-700ZPiping: Both-end ports | Bore: 20 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-700BZPiping: Both-end ports | Bore: 20 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-700BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S20-800ZPiping: Both-end ports | Bore: 20 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S20-800BZPiping: Both-end ports | Bore: 20 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S20-800BSZPiping: Both-end ports | Bore: 20 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-100ZPiping: Both-end ports | Bore: 25 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-100BZPiping: Both-end ports | Bore: 25 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-100BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-150ZPiping: Both-end ports | Bore: 25 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-150BZPiping: Both-end ports | Bore: 25 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-150BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-200ZPiping: Both-end ports | Bore: 25 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-200BZPiping: Both-end ports | Bore: 25 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-200BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-250ZPiping: Both-end ports | Bore: 25 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-250BZPiping: Both-end ports | Bore: 25 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-250BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-300ZPiping: Both-end ports | Bore: 25 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-300BZPiping: Both-end ports | Bore: 25 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-300BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-350ZPiping: Both-end ports | Bore: 25 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-350BZPiping: Both-end ports | Bore: 25 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-350BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-400ZPiping: Both-end ports | Bore: 25 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-400BZPiping: Both-end ports | Bore: 25 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-400BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-450ZPiping: Both-end ports | Bore: 25 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-450BZPiping: Both-end ports | Bore: 25 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-450BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-500ZPiping: Both-end ports | Bore: 25 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-500BZPiping: Both-end ports | Bore: 25 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-500BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-600ZPiping: Both-end ports | Bore: 25 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-600BZPiping: Both-end ports | Bore: 25 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-600BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-700ZPiping: Both-end ports | Bore: 25 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-700BZPiping: Both-end ports | Bore: 25 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-700BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S25-800ZPiping: Both-end ports | Bore: 25 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S25-800BZPiping: Both-end ports | Bore: 25 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S25-800BSZPiping: Both-end ports | Bore: 25 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-100ZPiping: Both-end ports | Bore: 32 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-100BZPiping: Both-end ports | Bore: 32 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-100BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-150ZPiping: Both-end ports | Bore: 32 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-150BZPiping: Both-end ports | Bore: 32 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-150BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-200ZPiping: Both-end ports | Bore: 32 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-200BZPiping: Both-end ports | Bore: 32 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-200BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-250ZPiping: Both-end ports | Bore: 32 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-250BZPiping: Both-end ports | Bore: 32 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-250BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-300ZPiping: Both-end ports | Bore: 32 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-300BZPiping: Both-end ports | Bore: 32 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-300BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-350ZPiping: Both-end ports | Bore: 32 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-350BZPiping: Both-end ports | Bore: 32 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-350BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-400ZPiping: Both-end ports | Bore: 32 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-400BZPiping: Both-end ports | Bore: 32 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-400BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-450ZPiping: Both-end ports | Bore: 32 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-450BZPiping: Both-end ports | Bore: 32 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-450BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-500ZPiping: Both-end ports | Bore: 32 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-500BZPiping: Both-end ports | Bore: 32 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-500BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-600ZPiping: Both-end ports | Bore: 32 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-600BZPiping: Both-end ports | Bore: 32 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-600BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-700ZPiping: Both-end ports | Bore: 32 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-700BZPiping: Both-end ports | Bore: 32 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-700BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S32-800ZPiping: Both-end ports | Bore: 32 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1S32-800BZPiping: Both-end ports | Bore: 32 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1S32-800BSZPiping: Both-end ports | Bore: 32 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1S40-100ZPiping: Both-end ports | Bore: 40 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-100BZPiping: Both-end ports | Bore: 40 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-100BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-150ZPiping: Both-end ports | Bore: 40 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-150BZPiping: Both-end ports | Bore: 40 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-150BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-200ZPiping: Both-end ports | Bore: 40 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-200BZPiping: Both-end ports | Bore: 40 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-200BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-250ZPiping: Both-end ports | Bore: 40 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-250BZPiping: Both-end ports | Bore: 40 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-250BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-300ZPiping: Both-end ports | Bore: 40 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-300BZPiping: Both-end ports | Bore: 40 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-300BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-350ZPiping: Both-end ports | Bore: 40 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-350BZPiping: Both-end ports | Bore: 40 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-350BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-400ZPiping: Both-end ports | Bore: 40 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-400BZPiping: Both-end ports | Bore: 40 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-400BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-450ZPiping: Both-end ports | Bore: 40 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-450BZPiping: Both-end ports | Bore: 40 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-450BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-500ZPiping: Both-end ports | Bore: 40 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-500BZPiping: Both-end ports | Bore: 40 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-500BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-600ZPiping: Both-end ports | Bore: 40 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-600BZPiping: Both-end ports | Bore: 40 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-600BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-700ZPiping: Both-end ports | Bore: 40 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-700BZPiping: Both-end ports | Bore: 40 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-700BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-800ZPiping: Both-end ports | Bore: 40 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-800BZPiping: Both-end ports | Bore: 40 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-800BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-900ZPiping: Both-end ports | Bore: 40 mm | Stroke: 900 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-900BZPiping: Both-end ports | Bore: 40 mm | Stroke: 900 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-900BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 900 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1S40-1000ZPiping: Both-end ports | Bore: 40 mm | Stroke: 1000 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1S40-1000BZPiping: Both-end ports | Bore: 40 mm | Stroke: 1000 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1S40-1000BSZPiping: Both-end ports | Bore: 40 mm | Stroke: 1000 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG6-50ZPiping: Centralized | Bore: 6 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1SG6-50BZPiping: Centralized | Bore: 6 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1SG6-50BSZPiping: Centralized | Bore: 6 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1SG6-100ZPiping: Centralized | Bore: 6 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1SG6-100BZPiping: Centralized | Bore: 6 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1SG6-100BSZPiping: Centralized | Bore: 6 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1SG6-150ZPiping: Centralized | Bore: 6 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1SG6-150BZPiping: Centralized | Bore: 6 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1SG6-150BSZPiping: Centralized | Bore: 6 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1SG6-200ZPiping: Centralized | Bore: 6 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M3x0.5
CY1SG6-200BZPiping: Centralized | Bore: 6 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M3x0.5
CY1SG6-200BSZPiping: Centralized | Bore: 6 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M3x0.5
CY1SG10-50ZPiping: Centralized | Bore: 10 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-50BZPiping: Centralized | Bore: 10 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-50BSZPiping: Centralized | Bore: 10 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG10-100ZPiping: Centralized | Bore: 10 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-100BZPiping: Centralized | Bore: 10 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-100BSZPiping: Centralized | Bore: 10 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG10-150ZPiping: Centralized | Bore: 10 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-150BZPiping: Centralized | Bore: 10 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-150BSZPiping: Centralized | Bore: 10 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG10-200ZPiping: Centralized | Bore: 10 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-200BZPiping: Centralized | Bore: 10 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-200BSZPiping: Centralized | Bore: 10 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG10-250ZPiping: Centralized | Bore: 10 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-250BZPiping: Centralized | Bore: 10 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-250BSZPiping: Centralized | Bore: 10 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG10-300ZPiping: Centralized | Bore: 10 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG10-300BZPiping: Centralized | Bore: 10 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG10-300BSZPiping: Centralized | Bore: 10 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-50ZPiping: Centralized | Bore: 15 mm | Stroke: 50 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-50BZPiping: Centralized | Bore: 15 mm | Stroke: 50 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-50BSZPiping: Centralized | Bore: 15 mm | Stroke: 50 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-100ZPiping: Centralized | Bore: 15 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-100BZPiping: Centralized | Bore: 15 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-100BSZPiping: Centralized | Bore: 15 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-150ZPiping: Centralized | Bore: 15 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-150BZPiping: Centralized | Bore: 15 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-150BSZPiping: Centralized | Bore: 15 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-200ZPiping: Centralized | Bore: 15 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-200BZPiping: Centralized | Bore: 15 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-200BSZPiping: Centralized | Bore: 15 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-250ZPiping: Centralized | Bore: 15 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-250BZPiping: Centralized | Bore: 15 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-250BSZPiping: Centralized | Bore: 15 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-300ZPiping: Centralized | Bore: 15 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-300BZPiping: Centralized | Bore: 15 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-300BSZPiping: Centralized | Bore: 15 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-350ZPiping: Centralized | Bore: 15 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-350BZPiping: Centralized | Bore: 15 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-350BSZPiping: Centralized | Bore: 15 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-400ZPiping: Centralized | Bore: 15 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-400BZPiping: Centralized | Bore: 15 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-400BSZPiping: Centralized | Bore: 15 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-450ZPiping: Centralized | Bore: 15 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-450BZPiping: Centralized | Bore: 15 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-450BSZPiping: Centralized | Bore: 15 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG15-500ZPiping: Centralized | Bore: 15 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: M5x0.8
CY1SG15-500BZPiping: Centralized | Bore: 15 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: M5x0.8
CY1SG15-500BSZPiping: Centralized | Bore: 15 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: M5x0.8
CY1SG20-100ZPiping: Centralized | Bore: 20 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-100BZPiping: Centralized | Bore: 20 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-100BSZPiping: Centralized | Bore: 20 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-150ZPiping: Centralized | Bore: 20 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-150BZPiping: Centralized | Bore: 20 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-150BSZPiping: Centralized | Bore: 20 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-200ZPiping: Centralized | Bore: 20 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-200BZPiping: Centralized | Bore: 20 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-200BSZPiping: Centralized | Bore: 20 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-250ZPiping: Centralized | Bore: 20 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-250BZPiping: Centralized | Bore: 20 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-250BSZPiping: Centralized | Bore: 20 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-300ZPiping: Centralized | Bore: 20 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-300BZPiping: Centralized | Bore: 20 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-300BSZPiping: Centralized | Bore: 20 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-350ZPiping: Centralized | Bore: 20 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-350BZPiping: Centralized | Bore: 20 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-350BSZPiping: Centralized | Bore: 20 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-400ZPiping: Centralized | Bore: 20 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-400BZPiping: Centralized | Bore: 20 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-400BSZPiping: Centralized | Bore: 20 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-450ZPiping: Centralized | Bore: 20 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-450BZPiping: Centralized | Bore: 20 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-450BSZPiping: Centralized | Bore: 20 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-500ZPiping: Centralized | Bore: 20 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-500BZPiping: Centralized | Bore: 20 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-500BSZPiping: Centralized | Bore: 20 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-600ZPiping: Centralized | Bore: 20 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-600BZPiping: Centralized | Bore: 20 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-600BSZPiping: Centralized | Bore: 20 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-700ZPiping: Centralized | Bore: 20 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-700BZPiping: Centralized | Bore: 20 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-700BSZPiping: Centralized | Bore: 20 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG20-800ZPiping: Centralized | Bore: 20 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG20-800BZPiping: Centralized | Bore: 20 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG20-800BSZPiping: Centralized | Bore: 20 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-100ZPiping: Centralized | Bore: 25 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-100BZPiping: Centralized | Bore: 25 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-100BSZPiping: Centralized | Bore: 25 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-150ZPiping: Centralized | Bore: 25 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-150BZPiping: Centralized | Bore: 25 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-150BSZPiping: Centralized | Bore: 25 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-200ZPiping: Centralized | Bore: 25 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-200BZPiping: Centralized | Bore: 25 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-200BSZPiping: Centralized | Bore: 25 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-250ZPiping: Centralized | Bore: 25 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-250BZPiping: Centralized | Bore: 25 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-250BSZPiping: Centralized | Bore: 25 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-300ZPiping: Centralized | Bore: 25 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-300BZPiping: Centralized | Bore: 25 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-300BSZPiping: Centralized | Bore: 25 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-350ZPiping: Centralized | Bore: 25 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-350BZPiping: Centralized | Bore: 25 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-350BSZPiping: Centralized | Bore: 25 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-400ZPiping: Centralized | Bore: 25 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-400BZPiping: Centralized | Bore: 25 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-400BSZPiping: Centralized | Bore: 25 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-450ZPiping: Centralized | Bore: 25 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-450BZPiping: Centralized | Bore: 25 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-450BSZPiping: Centralized | Bore: 25 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-500ZPiping: Centralized | Bore: 25 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-500BZPiping: Centralized | Bore: 25 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-500BSZPiping: Centralized | Bore: 25 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-600ZPiping: Centralized | Bore: 25 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-600BZPiping: Centralized | Bore: 25 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-600BSZPiping: Centralized | Bore: 25 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-700ZPiping: Centralized | Bore: 25 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-700BZPiping: Centralized | Bore: 25 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-700BSZPiping: Centralized | Bore: 25 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG25-800ZPiping: Centralized | Bore: 25 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG25-800BZPiping: Centralized | Bore: 25 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG25-800BSZPiping: Centralized | Bore: 25 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-100ZPiping: Centralized | Bore: 32 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-100BZPiping: Centralized | Bore: 32 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-100BSZPiping: Centralized | Bore: 32 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-150ZPiping: Centralized | Bore: 32 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-150BZPiping: Centralized | Bore: 32 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-150BSZPiping: Centralized | Bore: 32 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-200ZPiping: Centralized | Bore: 32 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-200BZPiping: Centralized | Bore: 32 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-200BSZPiping: Centralized | Bore: 32 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-250ZPiping: Centralized | Bore: 32 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-250BZPiping: Centralized | Bore: 32 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-250BSZPiping: Centralized | Bore: 32 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-300ZPiping: Centralized | Bore: 32 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-300BZPiping: Centralized | Bore: 32 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-300BSZPiping: Centralized | Bore: 32 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-350ZPiping: Centralized | Bore: 32 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-350BZPiping: Centralized | Bore: 32 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-350BSZPiping: Centralized | Bore: 32 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-400ZPiping: Centralized | Bore: 32 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-400BZPiping: Centralized | Bore: 32 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-400BSZPiping: Centralized | Bore: 32 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-450ZPiping: Centralized | Bore: 32 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-450BZPiping: Centralized | Bore: 32 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-450BSZPiping: Centralized | Bore: 32 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-500ZPiping: Centralized | Bore: 32 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-500BZPiping: Centralized | Bore: 32 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-500BSZPiping: Centralized | Bore: 32 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-600ZPiping: Centralized | Bore: 32 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-600BZPiping: Centralized | Bore: 32 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-600BSZPiping: Centralized | Bore: 32 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-700ZPiping: Centralized | Bore: 32 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-700BZPiping: Centralized | Bore: 32 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-700BSZPiping: Centralized | Bore: 32 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG32-800ZPiping: Centralized | Bore: 32 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/8
CY1SG32-800BZPiping: Centralized | Bore: 32 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/8
CY1SG32-800BSZPiping: Centralized | Bore: 32 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/8
CY1SG40-100ZPiping: Centralized | Bore: 40 mm | Stroke: 100 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-100BZPiping: Centralized | Bore: 40 mm | Stroke: 100 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-100BSZPiping: Centralized | Bore: 40 mm | Stroke: 100 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-150ZPiping: Centralized | Bore: 40 mm | Stroke: 150 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-150BZPiping: Centralized | Bore: 40 mm | Stroke: 150 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-150BSZPiping: Centralized | Bore: 40 mm | Stroke: 150 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-200ZPiping: Centralized | Bore: 40 mm | Stroke: 200 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-200BZPiping: Centralized | Bore: 40 mm | Stroke: 200 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-200BSZPiping: Centralized | Bore: 40 mm | Stroke: 200 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-250ZPiping: Centralized | Bore: 40 mm | Stroke: 250 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-250BZPiping: Centralized | Bore: 40 mm | Stroke: 250 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-250BSZPiping: Centralized | Bore: 40 mm | Stroke: 250 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-300ZPiping: Centralized | Bore: 40 mm | Stroke: 300 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-300BZPiping: Centralized | Bore: 40 mm | Stroke: 300 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-300BSZPiping: Centralized | Bore: 40 mm | Stroke: 300 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-350ZPiping: Centralized | Bore: 40 mm | Stroke: 350 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-350BZPiping: Centralized | Bore: 40 mm | Stroke: 350 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-350BSZPiping: Centralized | Bore: 40 mm | Stroke: 350 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-400ZPiping: Centralized | Bore: 40 mm | Stroke: 400 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-400BZPiping: Centralized | Bore: 40 mm | Stroke: 400 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-400BSZPiping: Centralized | Bore: 40 mm | Stroke: 400 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-450ZPiping: Centralized | Bore: 40 mm | Stroke: 450 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-450BZPiping: Centralized | Bore: 40 mm | Stroke: 450 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-450BSZPiping: Centralized | Bore: 40 mm | Stroke: 450 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-500ZPiping: Centralized | Bore: 40 mm | Stroke: 500 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-500BZPiping: Centralized | Bore: 40 mm | Stroke: 500 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-500BSZPiping: Centralized | Bore: 40 mm | Stroke: 500 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-600ZPiping: Centralized | Bore: 40 mm | Stroke: 600 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-600BZPiping: Centralized | Bore: 40 mm | Stroke: 600 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-600BSZPiping: Centralized | Bore: 40 mm | Stroke: 600 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-700ZPiping: Centralized | Bore: 40 mm | Stroke: 700 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-700BZPiping: Centralized | Bore: 40 mm | Stroke: 700 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-700BSZPiping: Centralized | Bore: 40 mm | Stroke: 700 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-800ZPiping: Centralized | Bore: 40 mm | Stroke: 800 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-800BZPiping: Centralized | Bore: 40 mm | Stroke: 800 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-800BSZPiping: Centralized | Bore: 40 mm | Stroke: 800 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-900ZPiping: Centralized | Bore: 40 mm | Stroke: 900 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-900BZPiping: Centralized | Bore: 40 mm | Stroke: 900 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-900BSZPiping: Centralized | Bore: 40 mm | Stroke: 900 mm | Stopper: Shock absorber one side | Port: Rc1/4
CY1SG40-1000ZPiping: Centralized | Bore: 40 mm | Stroke: 1000 mm | Stopper: Damper bolt, both ends | Port: Rc1/4
CY1SG40-1000BZPiping: Centralized | Bore: 40 mm | Stroke: 1000 mm | Stopper: Shock absorber, both ends | Port: Rc1/4
CY1SG40-1000BSZPiping: Centralized | Bore: 40 mm | Stroke: 1000 mm | Stopper: Shock absorber one side | Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
