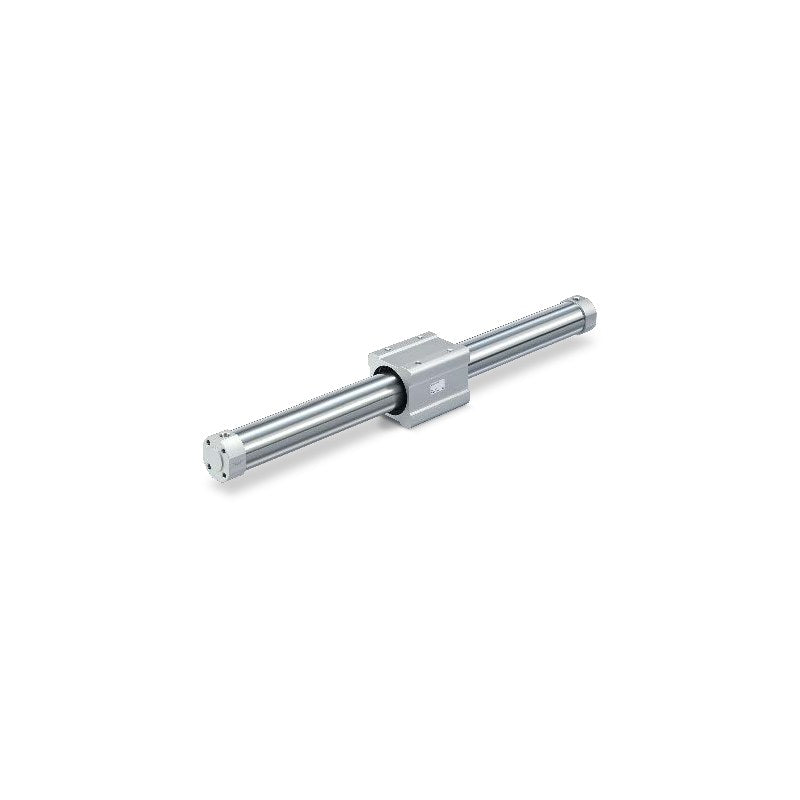

SMC CY3B Magnetically Coupled Rodless Cylinder (Basic, ø6-ø63)

SMC CY3B Magnetically Coupled Rodless Cylinder (Basic, ø6-ø63)

SMC CY3B-Z series magnetically coupled rodless cylinder, basic type, with a lightweight body and lube-retainer piston in bores 6 to 63 mm.

Key features

  • Magnetic coupling transfers thrust through the cylinder tube with no external leakage path
  • Lube-retainer on the piston keeps a lubricating film; body wear ring up to 30% longer for smooth operation
  • Lighter body, head cover and magnet coupling; specifications, holding force and mounting dimensions same as previous CY3B
  • Standard strokes 50 to 1000 mm by bore; 1 mm increments and long stroke (-XB11) on order
  • Port thread Rc (M thread for bores 6 to 15); NPT (TN) and G (TF) available; -XB6, -XB9, -XB13, -XC24, -XC57 and -X1xx options

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.16 MPa (6-20), 0.15 (25), 0.14 (32), 0.12 MPa (40-63)
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Cushion Rubber cushion
Lubrication Not required (non-lube)
Mounting orientation Horizontal, inclined, vertical
Mounting nuts 2 pcs supplied (bore 6-40)
Source SMC Korea catalog CAT.KS20-277A (SMCKR_CY3B-Z.pdf), p. 1, 6, 8 (PDF p. 2, 8, 10)
CY3B6-50Z Bore: 6 mm | Stroke: 50 mm | Port: M3x0.5 | Holding force: 19.6 N
CY3B6-100Z Bore: 6 mm | Stroke: 100 mm | Port: M3x0.5 | Holding force: 19.6 N
CY3B6-150Z Bore: 6 mm | Stroke: 150 mm | Port: M3x0.5 | Holding force: 19.6 N
CY3B6-200Z Bore: 6 mm | Stroke: 200 mm | Port: M3x0.5 | Holding force: 19.6 N
CY3B10-50Z Bore: 10 mm | Stroke: 50 mm | Port: M5x0.8 | Holding force: 53.9 N
CY3B10-100Z Bore: 10 mm | Stroke: 100 mm | Port: M5x0.8 | Holding force: 53.9 N
CY3B10-150Z Bore: 10 mm | Stroke: 150 mm | Port: M5x0.8 | Holding force: 53.9 N
CY3B10-200Z Bore: 10 mm | Stroke: 200 mm | Port: M5x0.8 | Holding force: 53.9 N
CY3B10-250Z Bore: 10 mm | Stroke: 250 mm | Port: M5x0.8 | Holding force: 53.9 N
CY3B10-300Z Bore: 10 mm | Stroke: 300 mm | Port: M5x0.8 | Holding force: 53.9 N
CY3B15-50Z Bore: 15 mm | Stroke: 50 mm | Port: M5x0.8 | Holding force: 137 N
CY3B15-100Z Bore: 15 mm | Stroke: 100 mm | Port: M5x0.8 | Holding force: 137 N
CY3B15-150Z Bore: 15 mm | Stroke: 150 mm | Port: M5x0.8 | Holding force: 137 N
CY3B15-200Z Bore: 15 mm | Stroke: 200 mm | Port: M5x0.8 | Holding force: 137 N
CY3B15-250Z Bore: 15 mm | Stroke: 250 mm | Port: M5x0.8 | Holding force: 137 N
CY3B15-300Z Bore: 15 mm | Stroke: 300 mm | Port: M5x0.8 | Holding force: 137 N
CY3B15-350Z Bore: 15 mm | Stroke: 350 mm | Port: M5x0.8 | Holding force: 137 N
CY3B15-400Z Bore: 15 mm | Stroke: 400 mm | Port: M5x0.8 | Holding force: 137 N
CY3B15-450Z Bore: 15 mm | Stroke: 450 mm | Port: M5x0.8 | Holding force: 137 N
CY3B15-500Z Bore: 15 mm | Stroke: 500 mm | Port: M5x0.8 | Holding force: 137 N
CY3B20-100Z Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8 | Holding force: 231 N
CY3B20-150Z Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8 | Holding force: 231 N
CY3B20-200Z Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8 | Holding force: 231 N
CY3B20-250Z Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8 | Holding force: 231 N
CY3B20-300Z Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8 | Holding force: 231 N
CY3B20-350Z Bore: 20 mm | Stroke: 350 mm | Port: Rc1/8 | Holding force: 231 N
CY3B20-400Z Bore: 20 mm | Stroke: 400 mm | Port: Rc1/8 | Holding force: 231 N
CY3B20-450Z Bore: 20 mm | Stroke: 450 mm | Port: Rc1/8 | Holding force: 231 N
CY3B20-500Z Bore: 20 mm | Stroke: 500 mm | Port: Rc1/8 | Holding force: 231 N
CY3B20-600Z Bore: 20 mm | Stroke: 600 mm | Port: Rc1/8 | Holding force: 231 N
CY3B20-700Z Bore: 20 mm | Stroke: 700 mm | Port: Rc1/8 | Holding force: 231 N
CY3B20-800Z Bore: 20 mm | Stroke: 800 mm | Port: Rc1/8 | Holding force: 231 N
CY3B25-100Z Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8 | Holding force: 363 N
CY3B25-150Z Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8 | Holding force: 363 N
CY3B25-200Z Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8 | Holding force: 363 N
CY3B25-250Z Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8 | Holding force: 363 N
CY3B25-300Z Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8 | Holding force: 363 N
CY3B25-350Z Bore: 25 mm | Stroke: 350 mm | Port: Rc1/8 | Holding force: 363 N
CY3B25-400Z Bore: 25 mm | Stroke: 400 mm | Port: Rc1/8 | Holding force: 363 N
CY3B25-450Z Bore: 25 mm | Stroke: 450 mm | Port: Rc1/8 | Holding force: 363 N
CY3B25-500Z Bore: 25 mm | Stroke: 500 mm | Port: Rc1/8 | Holding force: 363 N
CY3B25-600Z Bore: 25 mm | Stroke: 600 mm | Port: Rc1/8 | Holding force: 363 N
CY3B25-700Z Bore: 25 mm | Stroke: 700 mm | Port: Rc1/8 | Holding force: 363 N
CY3B25-800Z Bore: 25 mm | Stroke: 800 mm | Port: Rc1/8 | Holding force: 363 N
CY3B32-100Z Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8 | Holding force: 588 N
CY3B32-150Z Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8 | Holding force: 588 N
CY3B32-200Z Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8 | Holding force: 588 N
CY3B32-250Z Bore: 32 mm | Stroke: 250 mm | Port: Rc1/8 | Holding force: 588 N
CY3B32-300Z Bore: 32 mm | Stroke: 300 mm | Port: Rc1/8 | Holding force: 588 N
CY3B32-350Z Bore: 32 mm | Stroke: 350 mm | Port: Rc1/8 | Holding force: 588 N
CY3B32-400Z Bore: 32 mm | Stroke: 400 mm | Port: Rc1/8 | Holding force: 588 N
CY3B32-450Z Bore: 32 mm | Stroke: 450 mm | Port: Rc1/8 | Holding force: 588 N
CY3B32-500Z Bore: 32 mm | Stroke: 500 mm | Port: Rc1/8 | Holding force: 588 N
CY3B32-600Z Bore: 32 mm | Stroke: 600 mm | Port: Rc1/8 | Holding force: 588 N
CY3B32-700Z Bore: 32 mm | Stroke: 700 mm | Port: Rc1/8 | Holding force: 588 N
CY3B32-800Z Bore: 32 mm | Stroke: 800 mm | Port: Rc1/8 | Holding force: 588 N
CY3B40-100Z Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-150Z Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-200Z Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-250Z Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-300Z Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-350Z Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-400Z Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-450Z Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-500Z Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-600Z Bore: 40 mm | Stroke: 600 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-700Z Bore: 40 mm | Stroke: 700 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-800Z Bore: 40 mm | Stroke: 800 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-900Z Bore: 40 mm | Stroke: 900 mm | Port: Rc1/4 | Holding force: 922 N
CY3B40-1000Z Bore: 40 mm | Stroke: 1000 mm | Port: Rc1/4 | Holding force: 922 N
CY3B50-100Z Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-150Z Bore: 50 mm | Stroke: 150 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-200Z Bore: 50 mm | Stroke: 200 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-250Z Bore: 50 mm | Stroke: 250 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-300Z Bore: 50 mm | Stroke: 300 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-350Z Bore: 50 mm | Stroke: 350 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-400Z Bore: 50 mm | Stroke: 400 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-450Z Bore: 50 mm | Stroke: 450 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-500Z Bore: 50 mm | Stroke: 500 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-600Z Bore: 50 mm | Stroke: 600 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-700Z Bore: 50 mm | Stroke: 700 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-800Z Bore: 50 mm | Stroke: 800 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-900Z Bore: 50 mm | Stroke: 900 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B50-1000Z Bore: 50 mm | Stroke: 1000 mm | Port: Rc1/4 | Holding force: 1471 N
CY3B63-100Z Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-150Z Bore: 63 mm | Stroke: 150 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-200Z Bore: 63 mm | Stroke: 200 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-250Z Bore: 63 mm | Stroke: 250 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-300Z Bore: 63 mm | Stroke: 300 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-350Z Bore: 63 mm | Stroke: 350 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-400Z Bore: 63 mm | Stroke: 400 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-450Z Bore: 63 mm | Stroke: 450 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-500Z Bore: 63 mm | Stroke: 500 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-600Z Bore: 63 mm | Stroke: 600 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-700Z Bore: 63 mm | Stroke: 700 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-800Z Bore: 63 mm | Stroke: 800 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-900Z Bore: 63 mm | Stroke: 900 mm | Port: Rc1/4 | Holding force: 2256 N
CY3B63-1000Z Bore: 63 mm | Stroke: 1000 mm | Port: Rc1/4 | Holding force: 2256 N
