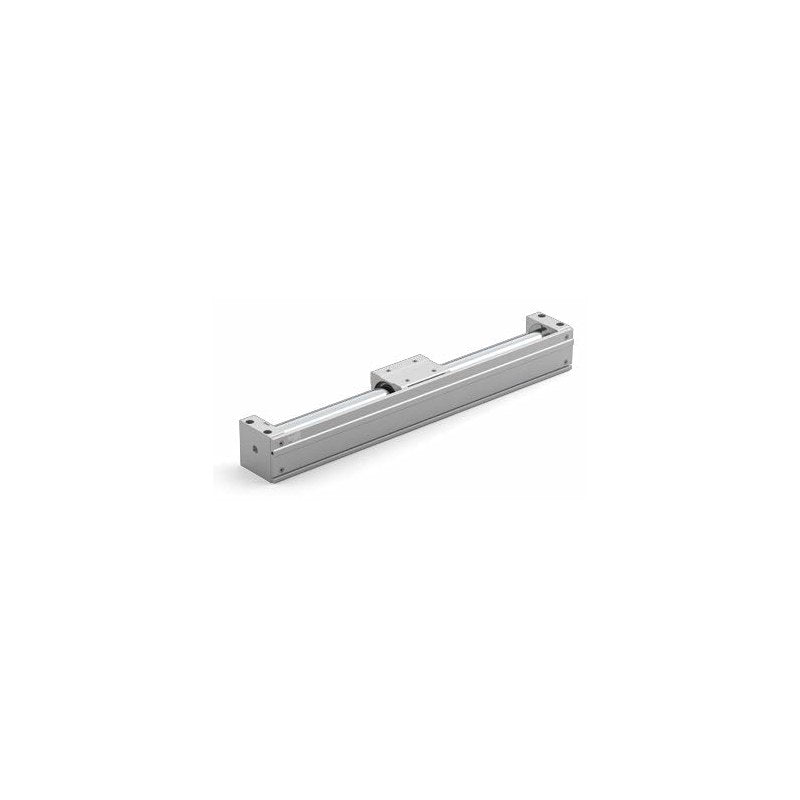

SMC CY3R Magnetically Coupled Rodless Cylinder (Direct Mount)

SMC CY3R Magnetically Coupled Rodless Cylinder (Direct Mount)

SMC CY3R series magnetically coupled rodless cylinder, direct mount type, with standard or left/right centralized piping and an optional switch rail, bores 6 to 63 mm.

Key features

  • Direct mount body; compact auto switches D-M9 and D-A9 mount directly on all sizes
  • Piping: standard both-end ports (CY3R), right-side centralized (CY3RF) or left-side centralized (CY3RG); bore 6 standard only
  • Switch rail standard or omitted (N, standard piping only); bore 15 keeps the switch magnet without the rail
  • Lube-retainer piston and longer wear ring; specifications, holding force and mounting dimensions same as previous CY3R
  • Standard strokes 50 to 1000 mm by bore, 1 mm increments on order; auto switches ordered as suffix

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.16 MPa (6-20), 0.15 (25), 0.14 (32), 0.12 MPa (40-63)
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Cushion Rubber cushion
Lubrication Not required (non-lube)
Mounting Direct mount; horizontal, inclined, vertical
Port thread M thread (6-15), Rc (20-63); NPT (TN), G (TF) available
Source SMC Korea catalog CAT.KS20-318A (SMCKR_CY3R.pdf), p. 1, 7-8, 10 (PDF p. 2, 8-9, 11)
CY3R6-50Z Piping: Standard (both ends) | Bore: 6 mm | Stroke: 50 mm | Switch rail: With | Port: M3x0.5
CY3R6-100Z Piping: Standard (both ends) | Bore: 6 mm | Stroke: 100 mm | Switch rail: With | Port: M3x0.5
CY3R6-150Z Piping: Standard (both ends) | Bore: 6 mm | Stroke: 150 mm | Switch rail: With | Port: M3x0.5
CY3R6-200Z Piping: Standard (both ends) | Bore: 6 mm | Stroke: 200 mm | Switch rail: With | Port: M3x0.5
CY3R6-50NZ Piping: Standard (both ends) | Bore: 6 mm | Stroke: 50 mm | Switch rail: Without | Port: M3x0.5
CY3R6-100NZ Piping: Standard (both ends) | Bore: 6 mm | Stroke: 100 mm | Switch rail: Without | Port: M3x0.5
CY3R6-150NZ Piping: Standard (both ends) | Bore: 6 mm | Stroke: 150 mm | Switch rail: Without | Port: M3x0.5
CY3R6-200NZ Piping: Standard (both ends) | Bore: 6 mm | Stroke: 200 mm | Switch rail: Without | Port: M3x0.5
CY3R10-50Z Piping: Standard (both ends) | Bore: 10 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3R10-100Z Piping: Standard (both ends) | Bore: 10 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3R10-150Z Piping: Standard (both ends) | Bore: 10 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3R10-200Z Piping: Standard (both ends) | Bore: 10 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3R10-250Z Piping: Standard (both ends) | Bore: 10 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3R10-300Z Piping: Standard (both ends) | Bore: 10 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3R10-50NZ Piping: Standard (both ends) | Bore: 10 mm | Stroke: 50 mm | Switch rail: Without | Port: M5x0.8
CY3R10-100NZ Piping: Standard (both ends) | Bore: 10 mm | Stroke: 100 mm | Switch rail: Without | Port: M5x0.8
CY3R10-150NZ Piping: Standard (both ends) | Bore: 10 mm | Stroke: 150 mm | Switch rail: Without | Port: M5x0.8
CY3R10-200NZ Piping: Standard (both ends) | Bore: 10 mm | Stroke: 200 mm | Switch rail: Without | Port: M5x0.8
CY3R10-250NZ Piping: Standard (both ends) | Bore: 10 mm | Stroke: 250 mm | Switch rail: Without | Port: M5x0.8
CY3R10-300NZ Piping: Standard (both ends) | Bore: 10 mm | Stroke: 300 mm | Switch rail: Without | Port: M5x0.8
CY3R15-50Z Piping: Standard (both ends) | Bore: 15 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3R15-100Z Piping: Standard (both ends) | Bore: 15 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3R15-150Z Piping: Standard (both ends) | Bore: 15 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3R15-200Z Piping: Standard (both ends) | Bore: 15 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3R15-250Z Piping: Standard (both ends) | Bore: 15 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3R15-300Z Piping: Standard (both ends) | Bore: 15 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3R15-350Z Piping: Standard (both ends) | Bore: 15 mm | Stroke: 350 mm | Switch rail: With | Port: M5x0.8
CY3R15-400Z Piping: Standard (both ends) | Bore: 15 mm | Stroke: 400 mm | Switch rail: With | Port: M5x0.8
CY3R15-450Z Piping: Standard (both ends) | Bore: 15 mm | Stroke: 450 mm | Switch rail: With | Port: M5x0.8
CY3R15-500Z Piping: Standard (both ends) | Bore: 15 mm | Stroke: 500 mm | Switch rail: With | Port: M5x0.8
CY3R15-50NZ Piping: Standard (both ends) | Bore: 15 mm | Stroke: 50 mm | Switch rail: Without | Port: M5x0.8
CY3R15-100NZ Piping: Standard (both ends) | Bore: 15 mm | Stroke: 100 mm | Switch rail: Without | Port: M5x0.8
CY3R15-150NZ Piping: Standard (both ends) | Bore: 15 mm | Stroke: 150 mm | Switch rail: Without | Port: M5x0.8
CY3R15-200NZ Piping: Standard (both ends) | Bore: 15 mm | Stroke: 200 mm | Switch rail: Without | Port: M5x0.8
CY3R15-250NZ Piping: Standard (both ends) | Bore: 15 mm | Stroke: 250 mm | Switch rail: Without | Port: M5x0.8
CY3R15-300NZ Piping: Standard (both ends) | Bore: 15 mm | Stroke: 300 mm | Switch rail: Without | Port: M5x0.8
CY3R15-350NZ Piping: Standard (both ends) | Bore: 15 mm | Stroke: 350 mm | Switch rail: Without | Port: M5x0.8
CY3R15-400NZ Piping: Standard (both ends) | Bore: 15 mm | Stroke: 400 mm | Switch rail: Without | Port: M5x0.8
CY3R15-450NZ Piping: Standard (both ends) | Bore: 15 mm | Stroke: 450 mm | Switch rail: Without | Port: M5x0.8
CY3R15-500NZ Piping: Standard (both ends) | Bore: 15 mm | Stroke: 500 mm | Switch rail: Without | Port: M5x0.8
CY3R20-100Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3R20-150Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3R20-200Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3R20-250Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3R20-300Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3R20-350Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3R20-400Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3R20-450Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3R20-500Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3R20-600Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3R20-700Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3R20-800Z Piping: Standard (both ends) | Bore: 20 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3R20-100NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/8
CY3R20-150NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/8
CY3R20-200NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/8
CY3R20-250NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/8
CY3R20-300NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/8
CY3R20-350NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/8
CY3R20-400NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/8
CY3R20-450NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/8
CY3R20-500NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/8
CY3R20-600NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/8
CY3R20-700NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/8
CY3R20-800NZ Piping: Standard (both ends) | Bore: 20 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/8
CY3R25-100Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3R25-150Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3R25-200Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3R25-250Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3R25-300Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3R25-350Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3R25-400Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3R25-450Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3R25-500Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3R25-600Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3R25-700Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3R25-800Z Piping: Standard (both ends) | Bore: 25 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3R25-100NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/8
CY3R25-150NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/8
CY3R25-200NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/8
CY3R25-250NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/8
CY3R25-300NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/8
CY3R25-350NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/8
CY3R25-400NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/8
CY3R25-450NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/8
CY3R25-500NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/8
CY3R25-600NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/8
CY3R25-700NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/8
CY3R25-800NZ Piping: Standard (both ends) | Bore: 25 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/8
CY3R32-100Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3R32-150Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3R32-200Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3R32-250Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3R32-300Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3R32-350Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3R32-400Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3R32-450Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3R32-500Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3R32-600Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3R32-700Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3R32-800Z Piping: Standard (both ends) | Bore: 32 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3R32-100NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/8
CY3R32-150NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/8
CY3R32-200NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/8
CY3R32-250NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/8
CY3R32-300NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/8
CY3R32-350NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/8
CY3R32-400NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/8
CY3R32-450NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/8
CY3R32-500NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/8
CY3R32-600NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/8
CY3R32-700NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/8
CY3R32-800NZ Piping: Standard (both ends) | Bore: 32 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/8
CY3R40-100Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3R40-150Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3R40-200Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3R40-250Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3R40-300Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3R40-350Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3R40-400Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3R40-450Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3R40-500Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3R40-600Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3R40-700Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3R40-800Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3R40-900Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3R40-1000Z Piping: Standard (both ends) | Bore: 40 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3R40-100NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/4
CY3R40-150NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/4
CY3R40-200NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/4
CY3R40-250NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/4
CY3R40-300NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/4
CY3R40-350NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/4
CY3R40-400NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/4
CY3R40-450NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/4
CY3R40-500NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/4
CY3R40-600NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/4
CY3R40-700NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/4
CY3R40-800NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/4
CY3R40-900NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 900 mm | Switch rail: Without | Port: Rc1/4
CY3R40-1000NZ Piping: Standard (both ends) | Bore: 40 mm | Stroke: 1000 mm | Switch rail: Without | Port: Rc1/4
CY3R50-100Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3R50-150Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3R50-200Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3R50-250Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3R50-300Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3R50-350Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3R50-400Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3R50-450Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3R50-500Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3R50-600Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3R50-700Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3R50-800Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3R50-900Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3R50-1000Z Piping: Standard (both ends) | Bore: 50 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3R50-100NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/4
CY3R50-150NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/4
CY3R50-200NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/4
CY3R50-250NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/4
CY3R50-300NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/4
CY3R50-350NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/4
CY3R50-400NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/4
CY3R50-450NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/4
CY3R50-500NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/4
CY3R50-600NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/4
CY3R50-700NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/4
CY3R50-800NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/4
CY3R50-900NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 900 mm | Switch rail: Without | Port: Rc1/4
CY3R50-1000NZ Piping: Standard (both ends) | Bore: 50 mm | Stroke: 1000 mm | Switch rail: Without | Port: Rc1/4
CY3R63-100Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3R63-150Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3R63-200Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3R63-250Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3R63-300Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3R63-350Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3R63-400Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3R63-450Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3R63-500Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3R63-600Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3R63-700Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3R63-800Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3R63-900Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3R63-1000Z Piping: Standard (both ends) | Bore: 63 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3R63-100NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/4
CY3R63-150NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/4
CY3R63-200NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/4
CY3R63-250NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/4
CY3R63-300NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/4
CY3R63-350NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/4
CY3R63-400NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/4
CY3R63-450NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/4
CY3R63-500NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/4
CY3R63-600NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/4
CY3R63-700NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/4
CY3R63-800NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/4
CY3R63-900NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 900 mm | Switch rail: Without | Port: Rc1/4
CY3R63-1000NZ Piping: Standard (both ends) | Bore: 63 mm | Stroke: 1000 mm | Switch rail: Without | Port: Rc1/4
CY3RF10-50Z Piping: Right-side centralized | Bore: 10 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3RF10-100Z Piping: Right-side centralized | Bore: 10 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3RF10-150Z Piping: Right-side centralized | Bore: 10 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3RF10-200Z Piping: Right-side centralized | Bore: 10 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3RF10-250Z Piping: Right-side centralized | Bore: 10 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3RF10-300Z Piping: Right-side centralized | Bore: 10 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3RF15-50Z Piping: Right-side centralized | Bore: 15 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3RF15-100Z Piping: Right-side centralized | Bore: 15 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3RF15-150Z Piping: Right-side centralized | Bore: 15 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3RF15-200Z Piping: Right-side centralized | Bore: 15 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3RF15-250Z Piping: Right-side centralized | Bore: 15 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3RF15-300Z Piping: Right-side centralized | Bore: 15 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3RF15-350Z Piping: Right-side centralized | Bore: 15 mm | Stroke: 350 mm | Switch rail: With | Port: M5x0.8
CY3RF15-400Z Piping: Right-side centralized | Bore: 15 mm | Stroke: 400 mm | Switch rail: With | Port: M5x0.8
CY3RF15-450Z Piping: Right-side centralized | Bore: 15 mm | Stroke: 450 mm | Switch rail: With | Port: M5x0.8
CY3RF15-500Z Piping: Right-side centralized | Bore: 15 mm | Stroke: 500 mm | Switch rail: With | Port: M5x0.8
CY3RF20-100Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RF20-150Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RF20-200Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RF20-250Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RF20-300Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RF20-350Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RF20-400Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RF20-450Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RF20-500Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RF20-600Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RF20-700Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RF20-800Z Piping: Right-side centralized | Bore: 20 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RF25-100Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RF25-150Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RF25-200Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RF25-250Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RF25-300Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RF25-350Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RF25-400Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RF25-450Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RF25-500Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RF25-600Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RF25-700Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RF25-800Z Piping: Right-side centralized | Bore: 25 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RF32-100Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RF32-150Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RF32-200Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RF32-250Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RF32-300Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RF32-350Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RF32-400Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RF32-450Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RF32-500Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RF32-600Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RF32-700Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RF32-800Z Piping: Right-side centralized | Bore: 32 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RF40-100Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RF40-150Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RF40-200Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RF40-250Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RF40-300Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RF40-350Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RF40-400Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RF40-450Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RF40-500Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RF40-600Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RF40-700Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RF40-800Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RF40-900Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RF40-1000Z Piping: Right-side centralized | Bore: 40 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3RF50-100Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RF50-150Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RF50-200Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RF50-250Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RF50-300Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RF50-350Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RF50-400Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RF50-450Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RF50-500Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RF50-600Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RF50-700Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RF50-800Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RF50-900Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RF50-1000Z Piping: Right-side centralized | Bore: 50 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3RF63-100Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RF63-150Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RF63-200Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RF63-250Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RF63-300Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RF63-350Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RF63-400Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RF63-450Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RF63-500Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RF63-600Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RF63-700Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RF63-800Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RF63-900Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RF63-1000Z Piping: Right-side centralized | Bore: 63 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3RG10-50Z Piping: Left-side centralized | Bore: 10 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3RG10-100Z Piping: Left-side centralized | Bore: 10 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3RG10-150Z Piping: Left-side centralized | Bore: 10 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3RG10-200Z Piping: Left-side centralized | Bore: 10 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3RG10-250Z Piping: Left-side centralized | Bore: 10 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3RG10-300Z Piping: Left-side centralized | Bore: 10 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3RG15-50Z Piping: Left-side centralized | Bore: 15 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3RG15-100Z Piping: Left-side centralized | Bore: 15 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3RG15-150Z Piping: Left-side centralized | Bore: 15 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3RG15-200Z Piping: Left-side centralized | Bore: 15 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3RG15-250Z Piping: Left-side centralized | Bore: 15 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3RG15-300Z Piping: Left-side centralized | Bore: 15 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3RG15-350Z Piping: Left-side centralized | Bore: 15 mm | Stroke: 350 mm | Switch rail: With | Port: M5x0.8
CY3RG15-400Z Piping: Left-side centralized | Bore: 15 mm | Stroke: 400 mm | Switch rail: With | Port: M5x0.8
CY3RG15-450Z Piping: Left-side centralized | Bore: 15 mm | Stroke: 450 mm | Switch rail: With | Port: M5x0.8
CY3RG15-500Z Piping: Left-side centralized | Bore: 15 mm | Stroke: 500 mm | Switch rail: With | Port: M5x0.8
CY3RG20-100Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RG20-150Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RG20-200Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RG20-250Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RG20-300Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RG20-350Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RG20-400Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RG20-450Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RG20-500Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RG20-600Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RG20-700Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RG20-800Z Piping: Left-side centralized | Bore: 20 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RG25-100Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RG25-150Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RG25-200Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RG25-250Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RG25-300Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RG25-350Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RG25-400Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RG25-450Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RG25-500Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RG25-600Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RG25-700Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RG25-800Z Piping: Left-side centralized | Bore: 25 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RG32-100Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RG32-150Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RG32-200Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RG32-250Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RG32-300Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RG32-350Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RG32-400Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RG32-450Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RG32-500Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RG32-600Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RG32-700Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RG32-800Z Piping: Left-side centralized | Bore: 32 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RG40-100Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RG40-150Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RG40-200Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RG40-250Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RG40-300Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RG40-350Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RG40-400Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RG40-450Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RG40-500Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RG40-600Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RG40-700Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RG40-800Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RG40-900Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RG40-1000Z Piping: Left-side centralized | Bore: 40 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3RG50-100Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RG50-150Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RG50-200Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RG50-250Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RG50-300Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RG50-350Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RG50-400Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RG50-450Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RG50-500Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RG50-600Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RG50-700Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RG50-800Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RG50-900Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RG50-1000Z Piping: Left-side centralized | Bore: 50 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3RG63-100Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RG63-150Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RG63-200Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RG63-250Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RG63-300Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RG63-350Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RG63-400Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RG63-450Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RG63-500Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RG63-600Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RG63-700Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RG63-800Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RG63-900Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RG63-1000Z Piping: Left-side centralized | Bore: 63 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
Rodless CylindersSMC
384 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CY3R Magnetically Coupled Rodless Cylinder (Direct Mount)

Brand SMC·Rodless Cylinders

Available part numbers (384)

CY3R6-50Z, CY3R6-100Z, CY3R6-150Z, CY3R6-200Z, CY3R6-50NZ, CY3R6-100NZ, CY3R6-150NZ, CY3R6-200NZ, CY3R10-50Z, CY3R10-100Z + 374 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CY3R6-50ZPiping: Standard (both ends) | Bore: 6 mm | Stroke: 50 mm | Switch rail: With | Port: M3x0.5
CY3R6-100ZPiping: Standard (both ends) | Bore: 6 mm | Stroke: 100 mm | Switch rail: With | Port: M3x0.5
CY3R6-150ZPiping: Standard (both ends) | Bore: 6 mm | Stroke: 150 mm | Switch rail: With | Port: M3x0.5
CY3R6-200ZPiping: Standard (both ends) | Bore: 6 mm | Stroke: 200 mm | Switch rail: With | Port: M3x0.5
CY3R6-50NZPiping: Standard (both ends) | Bore: 6 mm | Stroke: 50 mm | Switch rail: Without | Port: M3x0.5
CY3R6-100NZPiping: Standard (both ends) | Bore: 6 mm | Stroke: 100 mm | Switch rail: Without | Port: M3x0.5
CY3R6-150NZPiping: Standard (both ends) | Bore: 6 mm | Stroke: 150 mm | Switch rail: Without | Port: M3x0.5
CY3R6-200NZPiping: Standard (both ends) | Bore: 6 mm | Stroke: 200 mm | Switch rail: Without | Port: M3x0.5
CY3R10-50ZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3R10-100ZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3R10-150ZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3R10-200ZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3R10-250ZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3R10-300ZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3R10-50NZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 50 mm | Switch rail: Without | Port: M5x0.8
CY3R10-100NZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 100 mm | Switch rail: Without | Port: M5x0.8
CY3R10-150NZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 150 mm | Switch rail: Without | Port: M5x0.8
CY3R10-200NZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 200 mm | Switch rail: Without | Port: M5x0.8
CY3R10-250NZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 250 mm | Switch rail: Without | Port: M5x0.8
CY3R10-300NZPiping: Standard (both ends) | Bore: 10 mm | Stroke: 300 mm | Switch rail: Without | Port: M5x0.8
CY3R15-50ZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3R15-100ZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3R15-150ZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3R15-200ZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3R15-250ZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3R15-300ZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3R15-350ZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 350 mm | Switch rail: With | Port: M5x0.8
CY3R15-400ZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 400 mm | Switch rail: With | Port: M5x0.8
CY3R15-450ZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 450 mm | Switch rail: With | Port: M5x0.8
CY3R15-500ZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 500 mm | Switch rail: With | Port: M5x0.8
CY3R15-50NZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 50 mm | Switch rail: Without | Port: M5x0.8
CY3R15-100NZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 100 mm | Switch rail: Without | Port: M5x0.8
CY3R15-150NZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 150 mm | Switch rail: Without | Port: M5x0.8
CY3R15-200NZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 200 mm | Switch rail: Without | Port: M5x0.8
CY3R15-250NZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 250 mm | Switch rail: Without | Port: M5x0.8
CY3R15-300NZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 300 mm | Switch rail: Without | Port: M5x0.8
CY3R15-350NZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 350 mm | Switch rail: Without | Port: M5x0.8
CY3R15-400NZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 400 mm | Switch rail: Without | Port: M5x0.8
CY3R15-450NZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 450 mm | Switch rail: Without | Port: M5x0.8
CY3R15-500NZPiping: Standard (both ends) | Bore: 15 mm | Stroke: 500 mm | Switch rail: Without | Port: M5x0.8
CY3R20-100ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3R20-150ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3R20-200ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3R20-250ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3R20-300ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3R20-350ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3R20-400ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3R20-450ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3R20-500ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3R20-600ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3R20-700ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3R20-800ZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3R20-100NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/8
CY3R20-150NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/8
CY3R20-200NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/8
CY3R20-250NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/8
CY3R20-300NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/8
CY3R20-350NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/8
CY3R20-400NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/8
CY3R20-450NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/8
CY3R20-500NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/8
CY3R20-600NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/8
CY3R20-700NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/8
CY3R20-800NZPiping: Standard (both ends) | Bore: 20 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/8
CY3R25-100ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3R25-150ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3R25-200ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3R25-250ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3R25-300ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3R25-350ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3R25-400ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3R25-450ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3R25-500ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3R25-600ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3R25-700ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3R25-800ZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3R25-100NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/8
CY3R25-150NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/8
CY3R25-200NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/8
CY3R25-250NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/8
CY3R25-300NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/8
CY3R25-350NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/8
CY3R25-400NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/8
CY3R25-450NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/8
CY3R25-500NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/8
CY3R25-600NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/8
CY3R25-700NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/8
CY3R25-800NZPiping: Standard (both ends) | Bore: 25 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/8
CY3R32-100ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3R32-150ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3R32-200ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3R32-250ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3R32-300ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3R32-350ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3R32-400ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3R32-450ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3R32-500ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3R32-600ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3R32-700ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3R32-800ZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3R32-100NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/8
CY3R32-150NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/8
CY3R32-200NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/8
CY3R32-250NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/8
CY3R32-300NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/8
CY3R32-350NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/8
CY3R32-400NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/8
CY3R32-450NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/8
CY3R32-500NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/8
CY3R32-600NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/8
CY3R32-700NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/8
CY3R32-800NZPiping: Standard (both ends) | Bore: 32 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/8
CY3R40-100ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3R40-150ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3R40-200ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3R40-250ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3R40-300ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3R40-350ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3R40-400ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3R40-450ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3R40-500ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3R40-600ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3R40-700ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3R40-800ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3R40-900ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3R40-1000ZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3R40-100NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/4
CY3R40-150NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/4
CY3R40-200NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/4
CY3R40-250NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/4
CY3R40-300NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/4
CY3R40-350NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/4
CY3R40-400NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/4
CY3R40-450NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/4
CY3R40-500NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/4
CY3R40-600NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/4
CY3R40-700NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/4
CY3R40-800NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/4
CY3R40-900NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 900 mm | Switch rail: Without | Port: Rc1/4
CY3R40-1000NZPiping: Standard (both ends) | Bore: 40 mm | Stroke: 1000 mm | Switch rail: Without | Port: Rc1/4
CY3R50-100ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3R50-150ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3R50-200ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3R50-250ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3R50-300ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3R50-350ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3R50-400ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3R50-450ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3R50-500ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3R50-600ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3R50-700ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3R50-800ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3R50-900ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3R50-1000ZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3R50-100NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/4
CY3R50-150NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/4
CY3R50-200NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/4
CY3R50-250NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/4
CY3R50-300NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/4
CY3R50-350NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/4
CY3R50-400NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/4
CY3R50-450NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/4
CY3R50-500NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/4
CY3R50-600NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/4
CY3R50-700NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/4
CY3R50-800NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/4
CY3R50-900NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 900 mm | Switch rail: Without | Port: Rc1/4
CY3R50-1000NZPiping: Standard (both ends) | Bore: 50 mm | Stroke: 1000 mm | Switch rail: Without | Port: Rc1/4
CY3R63-100ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3R63-150ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3R63-200ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3R63-250ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3R63-300ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3R63-350ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3R63-400ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3R63-450ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3R63-500ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3R63-600ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3R63-700ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3R63-800ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3R63-900ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3R63-1000ZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3R63-100NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 100 mm | Switch rail: Without | Port: Rc1/4
CY3R63-150NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 150 mm | Switch rail: Without | Port: Rc1/4
CY3R63-200NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 200 mm | Switch rail: Without | Port: Rc1/4
CY3R63-250NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 250 mm | Switch rail: Without | Port: Rc1/4
CY3R63-300NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 300 mm | Switch rail: Without | Port: Rc1/4
CY3R63-350NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 350 mm | Switch rail: Without | Port: Rc1/4
CY3R63-400NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 400 mm | Switch rail: Without | Port: Rc1/4
CY3R63-450NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 450 mm | Switch rail: Without | Port: Rc1/4
CY3R63-500NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 500 mm | Switch rail: Without | Port: Rc1/4
CY3R63-600NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 600 mm | Switch rail: Without | Port: Rc1/4
CY3R63-700NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 700 mm | Switch rail: Without | Port: Rc1/4
CY3R63-800NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 800 mm | Switch rail: Without | Port: Rc1/4
CY3R63-900NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 900 mm | Switch rail: Without | Port: Rc1/4
CY3R63-1000NZPiping: Standard (both ends) | Bore: 63 mm | Stroke: 1000 mm | Switch rail: Without | Port: Rc1/4
CY3RF10-50ZPiping: Right-side centralized | Bore: 10 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3RF10-100ZPiping: Right-side centralized | Bore: 10 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3RF10-150ZPiping: Right-side centralized | Bore: 10 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3RF10-200ZPiping: Right-side centralized | Bore: 10 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3RF10-250ZPiping: Right-side centralized | Bore: 10 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3RF10-300ZPiping: Right-side centralized | Bore: 10 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3RF15-50ZPiping: Right-side centralized | Bore: 15 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3RF15-100ZPiping: Right-side centralized | Bore: 15 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3RF15-150ZPiping: Right-side centralized | Bore: 15 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3RF15-200ZPiping: Right-side centralized | Bore: 15 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3RF15-250ZPiping: Right-side centralized | Bore: 15 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3RF15-300ZPiping: Right-side centralized | Bore: 15 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3RF15-350ZPiping: Right-side centralized | Bore: 15 mm | Stroke: 350 mm | Switch rail: With | Port: M5x0.8
CY3RF15-400ZPiping: Right-side centralized | Bore: 15 mm | Stroke: 400 mm | Switch rail: With | Port: M5x0.8
CY3RF15-450ZPiping: Right-side centralized | Bore: 15 mm | Stroke: 450 mm | Switch rail: With | Port: M5x0.8
CY3RF15-500ZPiping: Right-side centralized | Bore: 15 mm | Stroke: 500 mm | Switch rail: With | Port: M5x0.8
CY3RF20-100ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RF20-150ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RF20-200ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RF20-250ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RF20-300ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RF20-350ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RF20-400ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RF20-450ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RF20-500ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RF20-600ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RF20-700ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RF20-800ZPiping: Right-side centralized | Bore: 20 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RF25-100ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RF25-150ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RF25-200ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RF25-250ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RF25-300ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RF25-350ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RF25-400ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RF25-450ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RF25-500ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RF25-600ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RF25-700ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RF25-800ZPiping: Right-side centralized | Bore: 25 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RF32-100ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RF32-150ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RF32-200ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RF32-250ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RF32-300ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RF32-350ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RF32-400ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RF32-450ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RF32-500ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RF32-600ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RF32-700ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RF32-800ZPiping: Right-side centralized | Bore: 32 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RF40-100ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RF40-150ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RF40-200ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RF40-250ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RF40-300ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RF40-350ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RF40-400ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RF40-450ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RF40-500ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RF40-600ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RF40-700ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RF40-800ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RF40-900ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RF40-1000ZPiping: Right-side centralized | Bore: 40 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3RF50-100ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RF50-150ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RF50-200ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RF50-250ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RF50-300ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RF50-350ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RF50-400ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RF50-450ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RF50-500ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RF50-600ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RF50-700ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RF50-800ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RF50-900ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RF50-1000ZPiping: Right-side centralized | Bore: 50 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3RF63-100ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RF63-150ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RF63-200ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RF63-250ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RF63-300ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RF63-350ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RF63-400ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RF63-450ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RF63-500ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RF63-600ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RF63-700ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RF63-800ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RF63-900ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RF63-1000ZPiping: Right-side centralized | Bore: 63 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3RG10-50ZPiping: Left-side centralized | Bore: 10 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3RG10-100ZPiping: Left-side centralized | Bore: 10 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3RG10-150ZPiping: Left-side centralized | Bore: 10 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3RG10-200ZPiping: Left-side centralized | Bore: 10 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3RG10-250ZPiping: Left-side centralized | Bore: 10 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3RG10-300ZPiping: Left-side centralized | Bore: 10 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3RG15-50ZPiping: Left-side centralized | Bore: 15 mm | Stroke: 50 mm | Switch rail: With | Port: M5x0.8
CY3RG15-100ZPiping: Left-side centralized | Bore: 15 mm | Stroke: 100 mm | Switch rail: With | Port: M5x0.8
CY3RG15-150ZPiping: Left-side centralized | Bore: 15 mm | Stroke: 150 mm | Switch rail: With | Port: M5x0.8
CY3RG15-200ZPiping: Left-side centralized | Bore: 15 mm | Stroke: 200 mm | Switch rail: With | Port: M5x0.8
CY3RG15-250ZPiping: Left-side centralized | Bore: 15 mm | Stroke: 250 mm | Switch rail: With | Port: M5x0.8
CY3RG15-300ZPiping: Left-side centralized | Bore: 15 mm | Stroke: 300 mm | Switch rail: With | Port: M5x0.8
CY3RG15-350ZPiping: Left-side centralized | Bore: 15 mm | Stroke: 350 mm | Switch rail: With | Port: M5x0.8
CY3RG15-400ZPiping: Left-side centralized | Bore: 15 mm | Stroke: 400 mm | Switch rail: With | Port: M5x0.8
CY3RG15-450ZPiping: Left-side centralized | Bore: 15 mm | Stroke: 450 mm | Switch rail: With | Port: M5x0.8
CY3RG15-500ZPiping: Left-side centralized | Bore: 15 mm | Stroke: 500 mm | Switch rail: With | Port: M5x0.8
CY3RG20-100ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RG20-150ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RG20-200ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RG20-250ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RG20-300ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RG20-350ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RG20-400ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RG20-450ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RG20-500ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RG20-600ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RG20-700ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RG20-800ZPiping: Left-side centralized | Bore: 20 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RG25-100ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RG25-150ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RG25-200ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RG25-250ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RG25-300ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RG25-350ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RG25-400ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RG25-450ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RG25-500ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RG25-600ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RG25-700ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RG25-800ZPiping: Left-side centralized | Bore: 25 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RG32-100ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/8
CY3RG32-150ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/8
CY3RG32-200ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/8
CY3RG32-250ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/8
CY3RG32-300ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/8
CY3RG32-350ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/8
CY3RG32-400ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/8
CY3RG32-450ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/8
CY3RG32-500ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/8
CY3RG32-600ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/8
CY3RG32-700ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/8
CY3RG32-800ZPiping: Left-side centralized | Bore: 32 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/8
CY3RG40-100ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RG40-150ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RG40-200ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RG40-250ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RG40-300ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RG40-350ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RG40-400ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RG40-450ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RG40-500ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RG40-600ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RG40-700ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RG40-800ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RG40-900ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RG40-1000ZPiping: Left-side centralized | Bore: 40 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3RG50-100ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RG50-150ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RG50-200ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RG50-250ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RG50-300ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RG50-350ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RG50-400ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RG50-450ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RG50-500ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RG50-600ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RG50-700ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RG50-800ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RG50-900ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RG50-1000ZPiping: Left-side centralized | Bore: 50 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4
CY3RG63-100ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 100 mm | Switch rail: With | Port: Rc1/4
CY3RG63-150ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 150 mm | Switch rail: With | Port: Rc1/4
CY3RG63-200ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 200 mm | Switch rail: With | Port: Rc1/4
CY3RG63-250ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 250 mm | Switch rail: With | Port: Rc1/4
CY3RG63-300ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 300 mm | Switch rail: With | Port: Rc1/4
CY3RG63-350ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 350 mm | Switch rail: With | Port: Rc1/4
CY3RG63-400ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 400 mm | Switch rail: With | Port: Rc1/4
CY3RG63-450ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 450 mm | Switch rail: With | Port: Rc1/4
CY3RG63-500ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 500 mm | Switch rail: With | Port: Rc1/4
CY3RG63-600ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 600 mm | Switch rail: With | Port: Rc1/4
CY3RG63-700ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 700 mm | Switch rail: With | Port: Rc1/4
CY3RG63-800ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 800 mm | Switch rail: With | Port: Rc1/4
CY3RG63-900ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 900 mm | Switch rail: With | Port: Rc1/4
CY3RG63-1000ZPiping: Left-side centralized | Bore: 63 mm | Stroke: 1000 mm | Switch rail: With | Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
