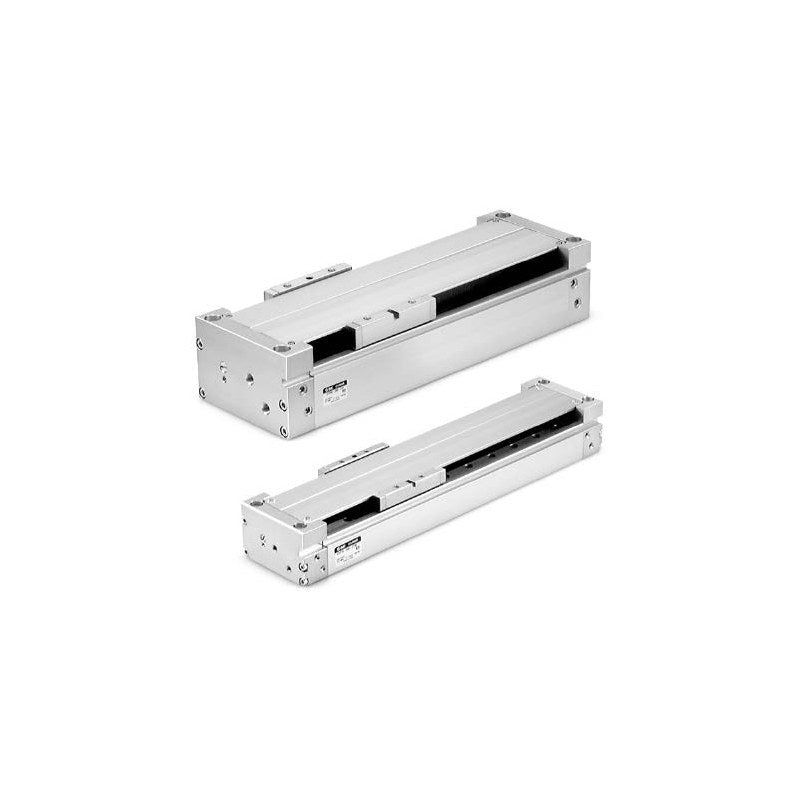

SMC CYP Clean Rodless Cylinder (Magnetic Coupling, ø15/ø32)

SMC CYP Clean Rodless Cylinder (Magnetic Coupling, ø15/ø32)

SMC CYP series magnetically coupled rodless cylinder designed for low particle generation in clean-room transfer applications, bores ø15 and ø32, strokes up to 700 mm.

Key features

  • Non-contact structure between the cylinder tube outer surface and the slide table for low particle generation
  • Special aluminum extruded cylinder tube fixed directly to the rail; combined with a linear guide
  • Sine cushion (air cushion) for smooth acceleration and deceleration at stroke ends
  • Stroke fine adjustment ±1 mm per side by adjusting screws
  • Four piping port position patterns (standard, L, R, S); unused ports are plugged
  • Magnet built in; auto switches (D-Y59/Y69/Y7 types, D-Z7/Z80) ordered separately

Specifications

Fluid Air
Action Double acting
Operating pressure range 0.05 to 0.3 MPa
Proof pressure 0.5 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed (max.) 50 to 300 mm/s
Lubrication Not required (non-lube)
Stroke adjustment ±1 mm per side (±2 mm total)
Cushion Sine cushion (air cushion)
Magnetic holding force ø15 59 N, ø32 268 N
Source SMC Korea catalog CYP (SMCKR_CYP.pdf), p. 1281-1282 (PDF p. 7-8)
CYP15-100 Bore: ø15 mm | Stroke: 100 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-100L Bore: ø15 mm | Stroke: 100 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-100R Bore: ø15 mm | Stroke: 100 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-100S Bore: ø15 mm | Stroke: 100 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-150 Bore: ø15 mm | Stroke: 150 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-150L Bore: ø15 mm | Stroke: 150 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-150R Bore: ø15 mm | Stroke: 150 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-150S Bore: ø15 mm | Stroke: 150 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-200 Bore: ø15 mm | Stroke: 200 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-200L Bore: ø15 mm | Stroke: 200 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-200R Bore: ø15 mm | Stroke: 200 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-200S Bore: ø15 mm | Stroke: 200 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-250 Bore: ø15 mm | Stroke: 250 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-250L Bore: ø15 mm | Stroke: 250 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-250R Bore: ø15 mm | Stroke: 250 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-250S Bore: ø15 mm | Stroke: 250 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-300 Bore: ø15 mm | Stroke: 300 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-300L Bore: ø15 mm | Stroke: 300 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-300R Bore: ø15 mm | Stroke: 300 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-300S Bore: ø15 mm | Stroke: 300 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-350 Bore: ø15 mm | Stroke: 350 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-350L Bore: ø15 mm | Stroke: 350 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-350R Bore: ø15 mm | Stroke: 350 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-350S Bore: ø15 mm | Stroke: 350 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-400 Bore: ø15 mm | Stroke: 400 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-400L Bore: ø15 mm | Stroke: 400 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-400R Bore: ø15 mm | Stroke: 400 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-400S Bore: ø15 mm | Stroke: 400 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-450 Bore: ø15 mm | Stroke: 450 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-450L Bore: ø15 mm | Stroke: 450 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-450R Bore: ø15 mm | Stroke: 450 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-450S Bore: ø15 mm | Stroke: 450 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-500 Bore: ø15 mm | Stroke: 500 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-500L Bore: ø15 mm | Stroke: 500 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-500R Bore: ø15 mm | Stroke: 500 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-500S Bore: ø15 mm | Stroke: 500 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-600 Bore: ø15 mm | Stroke: 600 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-600L Bore: ø15 mm | Stroke: 600 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-600R Bore: ø15 mm | Stroke: 600 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-600S Bore: ø15 mm | Stroke: 600 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-700 Bore: ø15 mm | Stroke: 700 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-700L Bore: ø15 mm | Stroke: 700 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-700R Bore: ø15 mm | Stroke: 700 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-700S Bore: ø15 mm | Stroke: 700 mm | Port position: S (g/h) | Port: M5x0.8
CYP32-100 Bore: ø32 mm | Stroke: 100 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-100L Bore: ø32 mm | Stroke: 100 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-100R Bore: ø32 mm | Stroke: 100 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-100S Bore: ø32 mm | Stroke: 100 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-150 Bore: ø32 mm | Stroke: 150 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-150L Bore: ø32 mm | Stroke: 150 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-150R Bore: ø32 mm | Stroke: 150 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-150S Bore: ø32 mm | Stroke: 150 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-200 Bore: ø32 mm | Stroke: 200 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-200L Bore: ø32 mm | Stroke: 200 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-200R Bore: ø32 mm | Stroke: 200 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-200S Bore: ø32 mm | Stroke: 200 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-250 Bore: ø32 mm | Stroke: 250 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-250L Bore: ø32 mm | Stroke: 250 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-250R Bore: ø32 mm | Stroke: 250 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-250S Bore: ø32 mm | Stroke: 250 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-300 Bore: ø32 mm | Stroke: 300 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-300L Bore: ø32 mm | Stroke: 300 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-300R Bore: ø32 mm | Stroke: 300 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-300S Bore: ø32 mm | Stroke: 300 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-350 Bore: ø32 mm | Stroke: 350 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-350L Bore: ø32 mm | Stroke: 350 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-350R Bore: ø32 mm | Stroke: 350 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-350S Bore: ø32 mm | Stroke: 350 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-400 Bore: ø32 mm | Stroke: 400 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-400L Bore: ø32 mm | Stroke: 400 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-400R Bore: ø32 mm | Stroke: 400 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-400S Bore: ø32 mm | Stroke: 400 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-450 Bore: ø32 mm | Stroke: 450 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-450L Bore: ø32 mm | Stroke: 450 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-450R Bore: ø32 mm | Stroke: 450 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-450S Bore: ø32 mm | Stroke: 450 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-500 Bore: ø32 mm | Stroke: 500 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-500L Bore: ø32 mm | Stroke: 500 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-500R Bore: ø32 mm | Stroke: 500 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-500S Bore: ø32 mm | Stroke: 500 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-600 Bore: ø32 mm | Stroke: 600 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-600L Bore: ø32 mm | Stroke: 600 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-600R Bore: ø32 mm | Stroke: 600 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-600S Bore: ø32 mm | Stroke: 600 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-700 Bore: ø32 mm | Stroke: 700 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-700L Bore: ø32 mm | Stroke: 700 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-700R Bore: ø32 mm | Stroke: 700 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-700S Bore: ø32 mm | Stroke: 700 mm | Port position: S (g/h) | Port: Rc1/8
Rodless CylindersSMC
88 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CYP Clean Rodless Cylinder (Magnetic Coupling, ø15/ø32)

Brand SMC·Rodless Cylinders

Available part numbers (88)

CYP15-100, CYP15-100L, CYP15-100R, CYP15-100S, CYP15-150, CYP15-150L, CYP15-150R, CYP15-150S, CYP15-200, CYP15-200L + 78 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CYP15-100Bore: ø15 mm | Stroke: 100 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-100LBore: ø15 mm | Stroke: 100 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-100RBore: ø15 mm | Stroke: 100 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-100SBore: ø15 mm | Stroke: 100 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-150Bore: ø15 mm | Stroke: 150 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-150LBore: ø15 mm | Stroke: 150 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-150RBore: ø15 mm | Stroke: 150 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-150SBore: ø15 mm | Stroke: 150 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-200Bore: ø15 mm | Stroke: 200 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-200LBore: ø15 mm | Stroke: 200 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-200RBore: ø15 mm | Stroke: 200 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-200SBore: ø15 mm | Stroke: 200 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-250Bore: ø15 mm | Stroke: 250 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-250LBore: ø15 mm | Stroke: 250 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-250RBore: ø15 mm | Stroke: 250 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-250SBore: ø15 mm | Stroke: 250 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-300Bore: ø15 mm | Stroke: 300 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-300LBore: ø15 mm | Stroke: 300 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-300RBore: ø15 mm | Stroke: 300 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-300SBore: ø15 mm | Stroke: 300 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-350Bore: ø15 mm | Stroke: 350 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-350LBore: ø15 mm | Stroke: 350 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-350RBore: ø15 mm | Stroke: 350 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-350SBore: ø15 mm | Stroke: 350 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-400Bore: ø15 mm | Stroke: 400 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-400LBore: ø15 mm | Stroke: 400 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-400RBore: ø15 mm | Stroke: 400 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-400SBore: ø15 mm | Stroke: 400 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-450Bore: ø15 mm | Stroke: 450 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-450LBore: ø15 mm | Stroke: 450 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-450RBore: ø15 mm | Stroke: 450 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-450SBore: ø15 mm | Stroke: 450 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-500Bore: ø15 mm | Stroke: 500 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-500LBore: ø15 mm | Stroke: 500 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-500RBore: ø15 mm | Stroke: 500 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-500SBore: ø15 mm | Stroke: 500 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-600Bore: ø15 mm | Stroke: 600 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-600LBore: ø15 mm | Stroke: 600 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-600RBore: ø15 mm | Stroke: 600 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-600SBore: ø15 mm | Stroke: 600 mm | Port position: S (g/h) | Port: M5x0.8
CYP15-700Bore: ø15 mm | Stroke: 700 mm | Port position: Standard (a/b) | Port: M5x0.8
CYP15-700LBore: ø15 mm | Stroke: 700 mm | Port position: L (c/d) | Port: M5x0.8
CYP15-700RBore: ø15 mm | Stroke: 700 mm | Port position: R (e/f) | Port: M5x0.8
CYP15-700SBore: ø15 mm | Stroke: 700 mm | Port position: S (g/h) | Port: M5x0.8
CYP32-100Bore: ø32 mm | Stroke: 100 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-100LBore: ø32 mm | Stroke: 100 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-100RBore: ø32 mm | Stroke: 100 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-100SBore: ø32 mm | Stroke: 100 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-150Bore: ø32 mm | Stroke: 150 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-150LBore: ø32 mm | Stroke: 150 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-150RBore: ø32 mm | Stroke: 150 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-150SBore: ø32 mm | Stroke: 150 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-200Bore: ø32 mm | Stroke: 200 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-200LBore: ø32 mm | Stroke: 200 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-200RBore: ø32 mm | Stroke: 200 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-200SBore: ø32 mm | Stroke: 200 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-250Bore: ø32 mm | Stroke: 250 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-250LBore: ø32 mm | Stroke: 250 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-250RBore: ø32 mm | Stroke: 250 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-250SBore: ø32 mm | Stroke: 250 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-300Bore: ø32 mm | Stroke: 300 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-300LBore: ø32 mm | Stroke: 300 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-300RBore: ø32 mm | Stroke: 300 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-300SBore: ø32 mm | Stroke: 300 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-350Bore: ø32 mm | Stroke: 350 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-350LBore: ø32 mm | Stroke: 350 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-350RBore: ø32 mm | Stroke: 350 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-350SBore: ø32 mm | Stroke: 350 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-400Bore: ø32 mm | Stroke: 400 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-400LBore: ø32 mm | Stroke: 400 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-400RBore: ø32 mm | Stroke: 400 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-400SBore: ø32 mm | Stroke: 400 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-450Bore: ø32 mm | Stroke: 450 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-450LBore: ø32 mm | Stroke: 450 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-450RBore: ø32 mm | Stroke: 450 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-450SBore: ø32 mm | Stroke: 450 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-500Bore: ø32 mm | Stroke: 500 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-500LBore: ø32 mm | Stroke: 500 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-500RBore: ø32 mm | Stroke: 500 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-500SBore: ø32 mm | Stroke: 500 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-600Bore: ø32 mm | Stroke: 600 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-600LBore: ø32 mm | Stroke: 600 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-600RBore: ø32 mm | Stroke: 600 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-600SBore: ø32 mm | Stroke: 600 mm | Port position: S (g/h) | Port: Rc1/8
CYP32-700Bore: ø32 mm | Stroke: 700 mm | Port position: Standard (a/b) | Port: Rc1/8
CYP32-700LBore: ø32 mm | Stroke: 700 mm | Port position: L (c/d) | Port: Rc1/8
CYP32-700RBore: ø32 mm | Stroke: 700 mm | Port position: R (e/f) | Port: Rc1/8
CYP32-700SBore: ø32 mm | Stroke: 700 mm | Port position: S (g/h) | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
