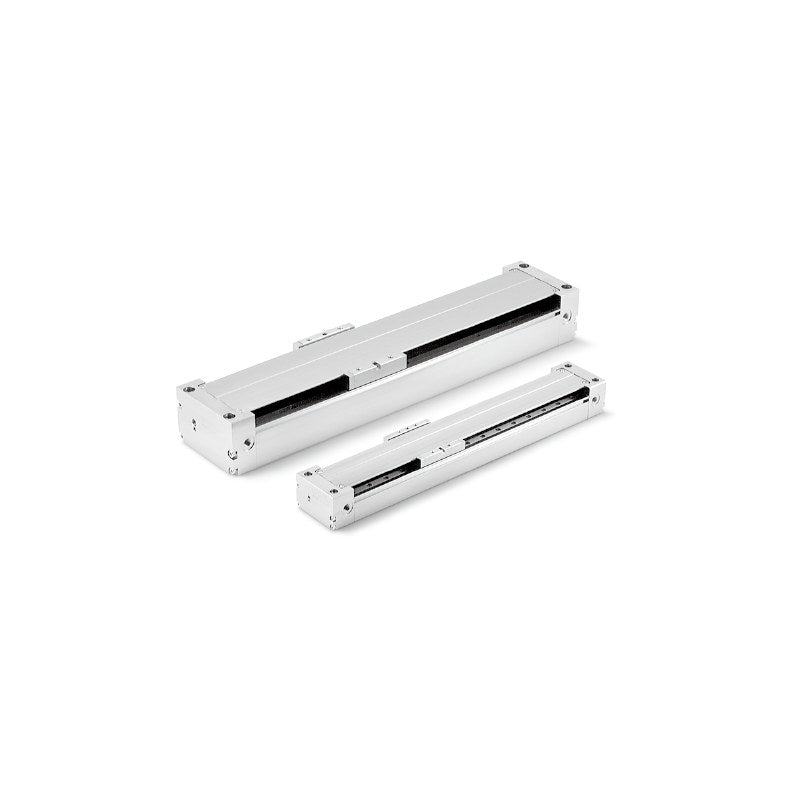

SMC CYV Vacuum Rodless Cylinder (Bore 15, 32 mm)

SMC CYV Vacuum Rodless Cylinder (Bore 15, 32 mm)

SMC CYV magnetically coupled rodless air cylinder that can be installed and used for transfer inside a vacuum environment down to 1.3x10^-4 Pa.

Key features

  • Magnetic rodless design: no sliding external leakage; leakage 1.3x10^-7 Pa m3/s
  • O-ring seals isolate the vacuum side from atmosphere
  • Low outgassing surface treatment, no Ni plating; TiN coated external magnet
  • Stroke end fine adjustment 0 to -2 mm each end
  • Linear guide with vacuum grease

Specifications

Operating environment Atmospheric to 1.3x10^-4 Pa(abs)
Action Double acting
Proof pressure 0.5 MPa
Operating pressure 0.05-0.3 MPa
Max. baking temperature 100 C
Ambient/fluid temperature -10 to 60 C
Piston speed 50-300 mm/s
Cushion Rubber bumper
Piping port 5/16-24UNF (15), 7/16-20UNF (32)
Source SMC Korea CYV catalog (SMCKR_CYV.pdf), p. 7
CYV15-100 Bore: 15 mm | Stroke: 100 mm
CYV15-150 Bore: 15 mm | Stroke: 150 mm
CYV15-200 Bore: 15 mm | Stroke: 200 mm
CYV15-250 Bore: 15 mm | Stroke: 250 mm
CYV15-300 Bore: 15 mm | Stroke: 300 mm
CYV15-350 Bore: 15 mm | Stroke: 350 mm
CYV15-400 Bore: 15 mm | Stroke: 400 mm
CYV15-450 Bore: 15 mm | Stroke: 450 mm
CYV15-500 Bore: 15 mm | Stroke: 500 mm
CYV15-600 Bore: 15 mm | Stroke: 600 mm
CYV15-700 Bore: 15 mm | Stroke: 700 mm
CYV32-100 Bore: 32 mm | Stroke: 100 mm
CYV32-150 Bore: 32 mm | Stroke: 150 mm
CYV32-200 Bore: 32 mm | Stroke: 200 mm
CYV32-250 Bore: 32 mm | Stroke: 250 mm
CYV32-300 Bore: 32 mm | Stroke: 300 mm
CYV32-350 Bore: 32 mm | Stroke: 350 mm
CYV32-400 Bore: 32 mm | Stroke: 400 mm
CYV32-450 Bore: 32 mm | Stroke: 450 mm
CYV32-500 Bore: 32 mm | Stroke: 500 mm
CYV32-600 Bore: 32 mm | Stroke: 600 mm
CYV32-700 Bore: 32 mm | Stroke: 700 mm
