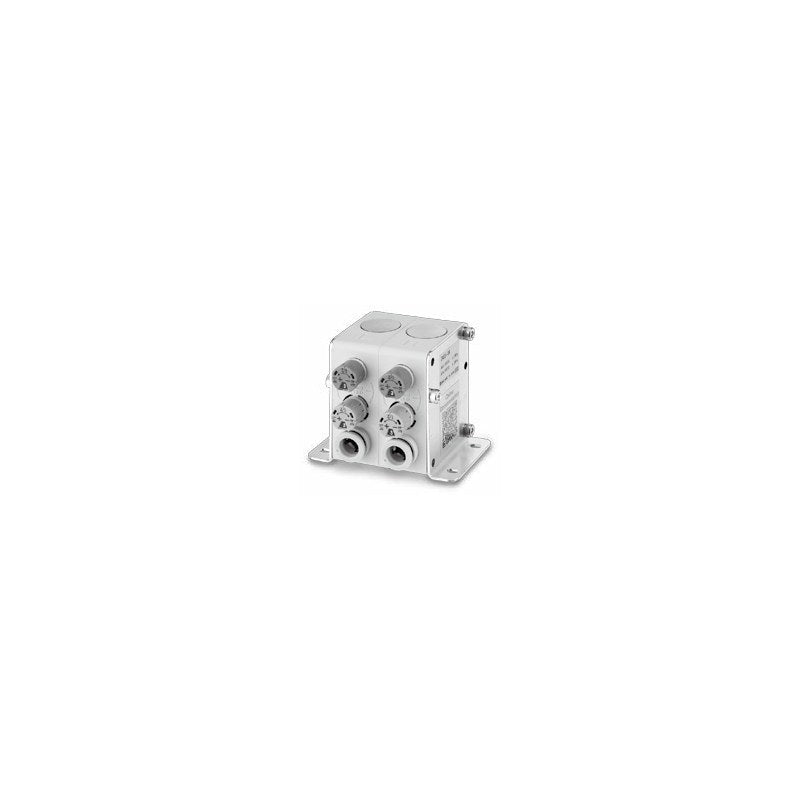

SMC DAS Deceleration Controller (Cylinder Speed Reduction)

SMC DAS Deceleration Controller (Cylinder Speed Reduction)

SMC DAS series deceleration controller installed between valve and cylinder, switching a cylinder from high speed to a second, slower speed near stroke end to soften impact.

Key features

  • High-speed drive followed by deceleration; adjustable deceleration position (timer handle) and second speed (cushion handle)
  • Shock reduction where shock absorbers are difficult to install, e.g. door opening/closing
  • Not affected by supply pressure fluctuation; deceleration air supplied from drive air
  • Installed between valve and cylinder, easy to add to existing equipment
  • Both-side (L+R) or one-side (L or R) types; metric (light grey) and inch (orange) release bushings

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.2 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Applicable cylinder stroke 50 mm min.
Source SMC Korea catalog CAT.KS20-290A (SMCKR_DAS.pdf), p. 1-6
DAS5-04 Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø4 mm
DAS5-06 Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø6 mm
DAS5-08 Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø8 mm
DAS5-03 Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø5/32 in
DAS5-07 Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø1/4 in
DAS5-09 Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø5/16 in
DAS5L-04 Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø4 mm
DAS5L-06 Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø6 mm
DAS5L-08 Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø8 mm
DAS5L-03 Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø5/32 in
DAS5L-07 Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø1/4 in
DAS5L-09 Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø5/16 in
DAS5R-04 Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø4 mm
DAS5R-06 Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø6 mm
DAS5R-08 Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø8 mm
DAS5R-03 Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø5/32 in
DAS5R-07 Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø1/4 in
DAS5R-09 Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø5/16 in
DAS7-08 Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø8 mm
DAS7-10 Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø10 mm
DAS7-12 Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø12 mm
DAS7-09 Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø5/16 in
DAS7-11 Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø3/8 in
DAS7-13 Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø1/2 in
DAS7L-08 Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø8 mm
DAS7L-10 Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø10 mm
DAS7L-12 Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø12 mm
DAS7L-09 Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø5/16 in
DAS7L-11 Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø3/8 in
DAS7L-13 Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø1/2 in
DAS7R-08 Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø8 mm
DAS7R-10 Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø10 mm
DAS7R-12 Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø12 mm
DAS7R-09 Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø5/16 in
DAS7R-11 Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø3/8 in
DAS7R-13 Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø1/2 in
Speed ControllersSMC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC DAS Deceleration Controller (Cylinder Speed Reduction)

Brand SMC·Speed Controllers

Available part numbers (36)

DAS5-04, DAS5-06, DAS5-08, DAS5-03, DAS5-07, DAS5-09, DAS5L-04, DAS5L-06, DAS5L-08, DAS5L-03 + 26 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DAS5-04Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø4 mm
DAS5-06Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø6 mm
DAS5-08Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø8 mm
DAS5-03Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø5/32 in
DAS5-07Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø1/4 in
DAS5-09Body size: DAS5 (bore ø10-ø40) | Installation: Both sides | Tube OD: ø5/16 in
DAS5L-04Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø4 mm
DAS5L-06Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø6 mm
DAS5L-08Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø8 mm
DAS5L-03Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø5/32 in
DAS5L-07Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø1/4 in
DAS5L-09Body size: DAS5 (bore ø10-ø40) | Installation: One side, left (L) | Tube OD: ø5/16 in
DAS5R-04Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø4 mm
DAS5R-06Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø6 mm
DAS5R-08Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø8 mm
DAS5R-03Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø5/32 in
DAS5R-07Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø1/4 in
DAS5R-09Body size: DAS5 (bore ø10-ø40) | Installation: One side, right (R) | Tube OD: ø5/16 in
DAS7-08Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø8 mm
DAS7-10Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø10 mm
DAS7-12Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø12 mm
DAS7-09Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø5/16 in
DAS7-11Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø3/8 in
DAS7-13Body size: DAS7 (bore up to ø100) | Installation: Both sides | Tube OD: ø1/2 in
DAS7L-08Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø8 mm
DAS7L-10Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø10 mm
DAS7L-12Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø12 mm
DAS7L-09Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø5/16 in
DAS7L-11Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø3/8 in
DAS7L-13Body size: DAS7 (bore up to ø100) | Installation: One side, left (L) | Tube OD: ø1/2 in
DAS7R-08Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø8 mm
DAS7R-10Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø10 mm
DAS7R-12Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø12 mm
DAS7R-09Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø5/16 in
DAS7R-11Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø3/8 in
DAS7R-13Body size: DAS7 (bore up to ø100) | Installation: One side, right (R) | Tube OD: ø1/2 in
