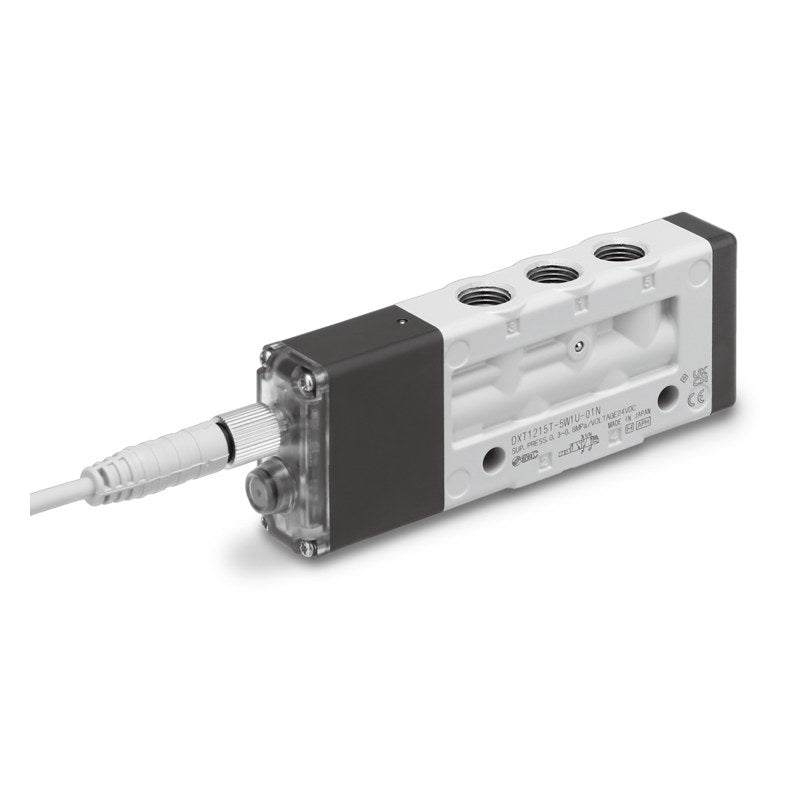

SMC DXT1215 High-Speed Pilot Operated 5-Port Solenoid Valve

SMC DXT1215 High-Speed Pilot Operated 5-Port Solenoid Valve

SMC DXT1215 series high-speed response pilot-operated 5-port solenoid valve with 2.5 ms ON / 3 ms OFF response, IP67 M8 connector and 1.5 W power-saving coil.

Key features

  • High-speed response: ON 2.5 ms / OFF 3 ms, max. operating frequency 200 Hz, for high-speed air blow and actuator drive
  • High flow 330 L/min (ANR) at 0.6 MPa supply, 0.1 MPa differential; C = 1.3 dm³/(s·bar)
  • Compact body 16 x 34 x 91.5 mm, 96 g; Rc1/8 ports on all 1, 2, 3, 4, 5 ports
  • Power-saving circuit (PWM, non-polar): 6 W start, 1.5 W hold; LED indicator and diode surge suppressor
  • IP67 M8 connector, with cable (W1 to W7, 300 to 5000 mm) or without cable (WO); 3-port version (2(B) plugged) as made-to-order -X1; G (F) and NPT (N) threads on order

Specifications

Valve type 2-position single, internal pilot, rubber seal
Fluid Air
Operating pressure 0.3 to 0.6 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Response time ON 2.5 ms / OFF 3 ms
Coil rated voltage DC24V
Power consumption 1.5 W (start 6 W, hold 1.5 W)
Port size Rc1/8 (1, 2, 3, 4, 5 ports)
Pilot exhaust Common exhaust
Electrical entry M8 connector, straight
Enclosure IP67
Weight 96 g
Source SMC Korea catalog DXT1215 (SMCKR_DXT1215.pdf), p. 1-4
DXT1215T-5WOU-01 Connector cable: No connector cable
DXT1215T-5W1U-01 Connector cable: 300 mm
DXT1215T-5W2U-01 Connector cable: 500 mm
DXT1215T-5W3U-01 Connector cable: 1000 mm
DXT1215T-5W4U-01 Connector cable: 2000 mm
DXT1215T-5W5U-01 Connector cable: 3000 mm
DXT1215T-5W6U-01 Connector cable: 4000 mm
DXT1215T-5W7U-01 Connector cable: 5000 mm
