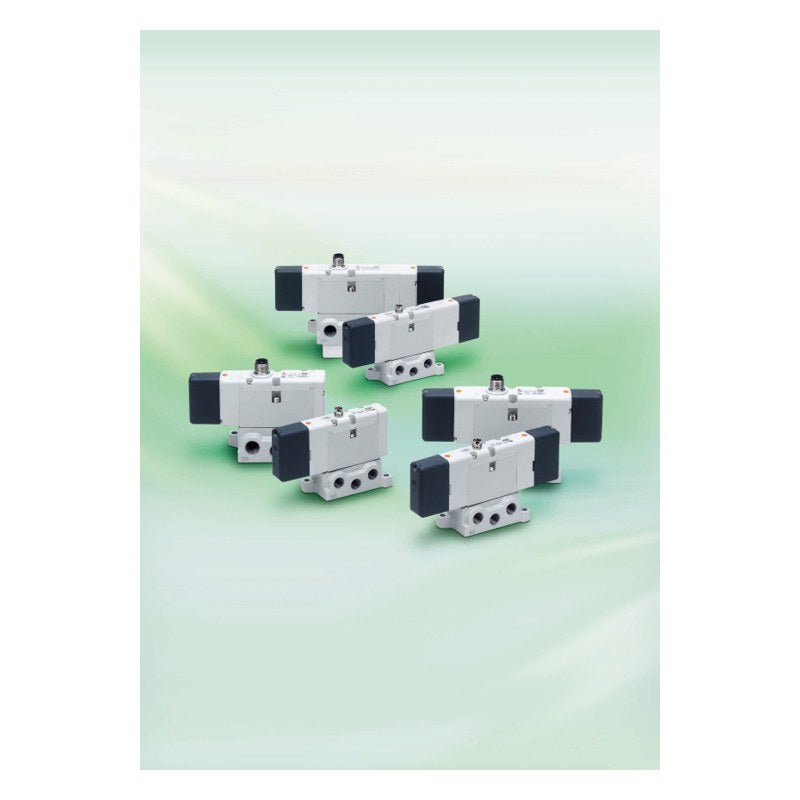

SMC EVS1-01/1-02 ISO 15407-1 Solenoid Valve (M Connector)

SMC EVS1-01/1-02 ISO 15407-1 Solenoid Valve (M Connector)

SMC EVS1-01 (size 01) and EVS1-02 (size 02) 5-port solenoid valve with ISO 15407-1 interface and M12/M8 connector, IP65, metal or rubber seal.

Key features

  • Interface conforms to ISO 15407-1, sizes 01 and 02; light weight (3-position 0.26 kg / 0.18 kg)
  • Large flow: up to 1000 L/min (ANR) size 01, 400 L/min (ANR) size 02
  • Switching: 2-position single/double, 3-position closed, exhaust and pressure center
  • M12 connector (size 01) or M8 connector (size 02); IP65 dust/splash-proof
  • Listed codes: Rc thread, no indicator light; indicator light with surge suppressor (Z), other voltages (9), G/NPTF threads on order; sub-plate VS1-01/02 also sold separately

Specifications

Fluid Air, inert gas
Max. operating pressure 1.0 MPa
Min. operating pressure Metal 0.1 MPa; rubber 0.15 MPa single, 0.2 MPa 3-pos
Ambient and fluid temperature -10 to 60°C (rubber seal -5 to 60°C)
Lubrication Not required
Manual override Push type (tool required)
Enclosure IP65 (dust/splash-proof)
Power consumption 1 W DC
Allowable voltage fluctuation ±10% of rated voltage
Source SMC catalog EVS1-01/1-02 (SMCKR_EVS1_P-EX01-2A_.pdf), p. 1-4
EVS1-01-FG-S-3M0 Size: 01 | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS1-01-FG-S-3A01M0 Size: 01 | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-01-FG-S-3A02M0 Size: 01 | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS1-01-FG-S-3RM0 Size: 01 | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS1-01-FG-S-3RA01M0 Size: 01 | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-01-FG-S-3RA02M0 Size: 01 | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS1-01-FG-S-4M0 Size: 01 | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS1-01-FG-S-4A01M0 Size: 01 | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-01-FG-S-4A02M0 Size: 01 | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS1-01-FG-S-4RM0 Size: 01 | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS1-01-FG-S-4RA01M0 Size: 01 | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-01-FG-S-4RA02M0 Size: 01 | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS1-01-FG-D-3M0 Size: 01 | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS1-01-FG-D-3A01M0 Size: 01 | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-01-FG-D-3A02M0 Size: 01 | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS1-01-FG-D-3RM0 Size: 01 | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS1-01-FG-D-3RA01M0 Size: 01 | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-01-FG-D-3RA02M0 Size: 01 | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS1-01-FG-D-4M0 Size: 01 | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS1-01-FG-D-4A01M0 Size: 01 | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-01-FG-D-4A02M0 Size: 01 | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS1-01-FG-D-4RM0 Size: 01 | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS1-01-FG-D-4RA01M0 Size: 01 | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-01-FG-D-4RA02M0 Size: 01 | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS1-01-FHG-D-3M0 Size: 01 | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS1-01-FHG-D-3A01M0 Size: 01 | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-01-FHG-D-3A02M0 Size: 01 | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS1-01-FHG-D-3RM0 Size: 01 | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS1-01-FHG-D-3RA01M0 Size: 01 | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-01-FHG-D-3RA02M0 Size: 01 | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS1-01-FHG-D-4M0 Size: 01 | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS1-01-FHG-D-4A01M0 Size: 01 | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-01-FHG-D-4A02M0 Size: 01 | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS1-01-FHG-D-4RM0 Size: 01 | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS1-01-FHG-D-4RA01M0 Size: 01 | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-01-FHG-D-4RA02M0 Size: 01 | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS1-01-FJG-D-3M0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS1-01-FJG-D-3A01M0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-01-FJG-D-3A02M0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS1-01-FJG-D-3RM0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS1-01-FJG-D-3RA01M0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-01-FJG-D-3RA02M0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS1-01-FJG-D-4M0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS1-01-FJG-D-4A01M0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-01-FJG-D-4A02M0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS1-01-FJG-D-4RM0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS1-01-FJG-D-4RA01M0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-01-FJG-D-4RA02M0 Size: 01 | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS1-01-FIG-D-3M0 Size: 01 | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS1-01-FIG-D-3A01M0 Size: 01 | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-01-FIG-D-3A02M0 Size: 01 | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS1-01-FIG-D-3RM0 Size: 01 | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS1-01-FIG-D-3RA01M0 Size: 01 | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-01-FIG-D-3RA02M0 Size: 01 | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS1-01-FIG-D-4M0 Size: 01 | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS1-01-FIG-D-4A01M0 Size: 01 | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-01-FIG-D-4A02M0 Size: 01 | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS1-01-FIG-D-4RM0 Size: 01 | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS1-01-FIG-D-4RA01M0 Size: 01 | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-01-FIG-D-4RA02M0 Size: 01 | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS1-02-FG-S-3M0 Size: 02 | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS1-02-FG-S-3A01M0 Size: 02 | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-02-FG-S-3RM0 Size: 02 | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS1-02-FG-S-3RA01M0 Size: 02 | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-02-FG-S-4M0 Size: 02 | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS1-02-FG-S-4A01M0 Size: 02 | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-02-FG-S-4RM0 Size: 02 | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS1-02-FG-S-4RA01M0 Size: 02 | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-02-FG-D-3M0 Size: 02 | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS1-02-FG-D-3A01M0 Size: 02 | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-02-FG-D-3RM0 Size: 02 | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS1-02-FG-D-3RA01M0 Size: 02 | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-02-FG-D-4M0 Size: 02 | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS1-02-FG-D-4A01M0 Size: 02 | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-02-FG-D-4RM0 Size: 02 | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS1-02-FG-D-4RA01M0 Size: 02 | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-02-FHG-D-3M0 Size: 02 | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS1-02-FHG-D-3A01M0 Size: 02 | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-02-FHG-D-3RM0 Size: 02 | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS1-02-FHG-D-3RA01M0 Size: 02 | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-02-FHG-D-4M0 Size: 02 | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS1-02-FHG-D-4A01M0 Size: 02 | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-02-FHG-D-4RM0 Size: 02 | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS1-02-FHG-D-4RA01M0 Size: 02 | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-02-FJG-D-3M0 Size: 02 | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS1-02-FJG-D-3A01M0 Size: 02 | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-02-FJG-D-3RM0 Size: 02 | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS1-02-FJG-D-3RA01M0 Size: 02 | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-02-FJG-D-4M0 Size: 02 | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS1-02-FJG-D-4A01M0 Size: 02 | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-02-FJG-D-4RM0 Size: 02 | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS1-02-FJG-D-4RA01M0 Size: 02 | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-02-FIG-D-3M0 Size: 02 | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS1-02-FIG-D-3A01M0 Size: 02 | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-02-FIG-D-3RM0 Size: 02 | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS1-02-FIG-D-3RA01M0 Size: 02 | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
EVS1-02-FIG-D-4M0 Size: 02 | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS1-02-FIG-D-4A01M0 Size: 02 | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/8
EVS1-02-FIG-D-4RM0 Size: 02 | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS1-02-FIG-D-4RA01M0 Size: 02 | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/8
