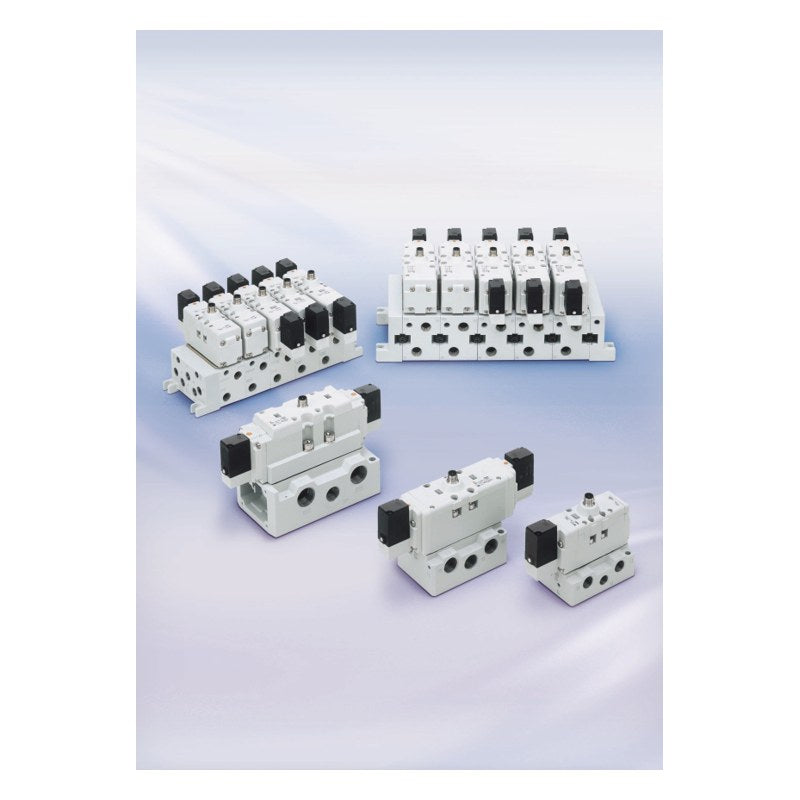

SMC EVS7-6/7-8/7-10 ISO 5599-1 Solenoid Valve (M12 Connector)

SMC EVS7-6/7-8/7-10 ISO 5599-1 Solenoid Valve (M12 Connector)

SMC EVS7 series 5-port solenoid valve with M12 connector and ISO 5599/1 interface in sizes 1, 2 and 3 (EVS7-6, 7-8, 7-10), IP65, metal or rubber seal.

Key features

  • ISO 5599/1 interface: size 1 (EVS7-6), size 2 (EVS7-8), size 3 (EVS7-10)
  • Large flow: 1200, 3000 and 5500 L/min (ANR); drives cylinders up to ø100, ø160, ø200
  • Switching: 2-position single/double, 3-position closed, exhaust, pressure center; perfect type (FPG) for 7-6 and 7-8
  • M12 connector, IP65 dust/splash-proof; side or bottom ported sub-plate or valve only
  • Listed codes: Rc thread, no indicator light; light/surge suppressor (Z), other voltages (9), G/NPTF on order; VV71/VV72 manifolds available

Specifications

Fluid Air, inert gas
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa (rubber seal size 2/3 single 0.15 MPa)
Ambient and fluid temperature -10 to 60°C (rubber seal -5 to 60°C)
Lubrication Not required
Manual override Push type (tool required)
Impact/vibration resistance 150/50 m/s²
Enclosure IP65 (dust/splash-proof)
Power consumption 1.8 W DC
Allowable voltage fluctuation -15% to +10% of rated voltage
Source SMC catalog EVS7 (SMCKR_EVS7__E_.pdf), p. 1-5
EVS7-6-FG-S-3M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FG-S-3A02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-S-3A03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-S-3B02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-S-3B03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-S-3RM0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FG-S-3RA02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-S-3RA03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-S-3RB02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-S-3RB03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-S-4M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FG-S-4A02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-S-4A03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-S-4B02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-S-4B03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-S-4RM0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FG-S-4RA02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-S-4RA03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-S-4RB02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-S-4RB03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-D-3M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FG-D-3A02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-D-3A03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-D-3B02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-D-3B03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-D-3RM0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FG-D-3RA02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-D-3RA03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-D-3RB02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-D-3RB03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-D-4M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FG-D-4A02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-D-4A03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-D-4B02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-D-4B03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-D-4RM0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FG-D-4RA02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-D-4RA03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-D-4RB02M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-D-4RB03M0 Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FHG-D-3M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FHG-D-3A02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FHG-D-3A03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FHG-D-3B02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FHG-D-3B03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FHG-D-3RM0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FHG-D-3RA02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FHG-D-3RA03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FHG-D-3RB02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FHG-D-3RB03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FHG-D-4M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FHG-D-4A02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FHG-D-4A03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FHG-D-4B02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FHG-D-4B03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FHG-D-4RM0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FHG-D-4RA02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FHG-D-4RA03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FHG-D-4RB02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FHG-D-4RB03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FJG-D-3M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FJG-D-3A02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FJG-D-3A03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FJG-D-3B02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FJG-D-3B03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FJG-D-3RM0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FJG-D-3RA02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FJG-D-3RA03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FJG-D-3RB02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FJG-D-3RB03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FJG-D-4M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FJG-D-4A02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FJG-D-4A03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FJG-D-4B02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FJG-D-4B03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FJG-D-4RM0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FJG-D-4RA02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FJG-D-4RA03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FJG-D-4RB02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FJG-D-4RB03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FIG-D-3M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FIG-D-3A02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FIG-D-3A03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FIG-D-3B02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FIG-D-3B03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FIG-D-3RM0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FIG-D-3RA02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FIG-D-3RA03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FIG-D-3RB02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FIG-D-3RB03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FIG-D-4M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FIG-D-4A02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FIG-D-4A03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FIG-D-4B02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FIG-D-4B03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FIG-D-4RM0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FIG-D-4RA02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FIG-D-4RA03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FIG-D-4RB02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FIG-D-4RB03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FPG-D-3M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FPG-D-3A02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FPG-D-3A03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FPG-D-3B02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FPG-D-3B03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FPG-D-3RM0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FPG-D-3RA02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FPG-D-3RA03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FPG-D-3RB02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FPG-D-3RB03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FPG-D-4M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FPG-D-4A02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FPG-D-4A03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FPG-D-4B02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FPG-D-4B03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FPG-D-4RM0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FPG-D-4RA02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FPG-D-4RA03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FPG-D-4RB02M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FPG-D-4RB03M0 Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-S-3M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FG-S-3A03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-S-3A04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-S-3A06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-S-3B03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-S-3B04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-S-3B06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-S-3RM0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FG-S-3RA03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-S-3RA04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-S-3RA06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-S-3RB03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-S-3RB04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-S-3RB06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-S-4M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FG-S-4A03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-S-4A04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-S-4A06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-S-4B03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-S-4B04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-S-4B06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-S-4RM0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FG-S-4RA03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-S-4RA04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-S-4RA06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-S-4RB03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-S-4RB04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-S-4RB06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-D-3M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FG-D-3A03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-D-3A04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-D-3A06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-D-3B03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-D-3B04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-D-3B06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-D-3RM0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FG-D-3RA03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-D-3RA04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-D-3RA06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-D-3RB03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-D-3RB04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-D-3RB06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-D-4M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FG-D-4A03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-D-4A04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-D-4A06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-D-4B03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-D-4B04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-D-4B06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-D-4RM0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FG-D-4RA03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-D-4RA04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-D-4RA06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-D-4RB03M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-D-4RB04M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-D-4RB06M0 Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FHG-D-3M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FHG-D-3A03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FHG-D-3A04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FHG-D-3A06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FHG-D-3B03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FHG-D-3B04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FHG-D-3B06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FHG-D-3RM0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FHG-D-3RA03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FHG-D-3RA04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FHG-D-3RA06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FHG-D-3RB03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FHG-D-3RB04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FHG-D-3RB06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FHG-D-4M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FHG-D-4A03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FHG-D-4A04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FHG-D-4A06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FHG-D-4B03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FHG-D-4B04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FHG-D-4B06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FHG-D-4RM0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FHG-D-4RA03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FHG-D-4RA04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FHG-D-4RA06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FHG-D-4RB03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FHG-D-4RB04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FHG-D-4RB06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FJG-D-3M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FJG-D-3A03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FJG-D-3A04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FJG-D-3A06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FJG-D-3B03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FJG-D-3B04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FJG-D-3B06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FJG-D-3RM0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FJG-D-3RA03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FJG-D-3RA04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FJG-D-3RA06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FJG-D-3RB03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FJG-D-3RB04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FJG-D-3RB06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FJG-D-4M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FJG-D-4A03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FJG-D-4A04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FJG-D-4A06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FJG-D-4B03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FJG-D-4B04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FJG-D-4B06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FJG-D-4RM0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FJG-D-4RA03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FJG-D-4RA04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FJG-D-4RA06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FJG-D-4RB03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FJG-D-4RB04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FJG-D-4RB06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FIG-D-3M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FIG-D-3A03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FIG-D-3A04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FIG-D-3A06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FIG-D-3B03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FIG-D-3B04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FIG-D-3B06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FIG-D-3RM0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FIG-D-3RA03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FIG-D-3RA04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FIG-D-3RA06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FIG-D-3RB03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FIG-D-3RB04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FIG-D-3RB06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FIG-D-4M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FIG-D-4A03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FIG-D-4A04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FIG-D-4A06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FIG-D-4B03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FIG-D-4B04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FIG-D-4B06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FIG-D-4RM0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FIG-D-4RA03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FIG-D-4RA04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FIG-D-4RA06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FIG-D-4RB03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FIG-D-4RB04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FIG-D-4RB06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FPG-D-3M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FPG-D-3A03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FPG-D-3A04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FPG-D-3A06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FPG-D-3B03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FPG-D-3B04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FPG-D-3B06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FPG-D-3RM0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FPG-D-3RA03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FPG-D-3RA04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FPG-D-3RA06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FPG-D-3RB03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FPG-D-3RB04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FPG-D-3RB06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FPG-D-4M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FPG-D-4A03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FPG-D-4A04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FPG-D-4A06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FPG-D-4B03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FPG-D-4B04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FPG-D-4B06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FPG-D-4RM0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FPG-D-4RA03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FPG-D-4RA04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FPG-D-4RA06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FPG-D-4RB03M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FPG-D-4RB04M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FPG-D-4RB06M0 Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-S-3M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-10-FG-S-3A04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-S-3A06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-S-3A10M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FG-S-3B04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-S-3B06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-S-3RM0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FG-S-3RA04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-S-3RA06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-S-3RA10M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FG-S-3RB04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-S-3RB06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-S-4M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-10-FG-S-4A04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-S-4A06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-S-4A10M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FG-S-4B04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-S-4B06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-S-4RM0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FG-S-4RA04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-S-4RA06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-S-4RA10M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FG-S-4RB04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-S-4RB06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-D-3M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-10-FG-D-3A04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-D-3A06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-D-3A10M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FG-D-3B04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-D-3B06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-D-3RM0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FG-D-3RA04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-D-3RA06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-D-3RA10M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FG-D-3RB04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-D-3RB06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-D-4M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-10-FG-D-4A04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-D-4A06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-D-4A10M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FG-D-4B04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-D-4B06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-D-4RM0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FG-D-4RA04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-D-4RA06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-D-4RA10M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FG-D-4RB04M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-D-4RB06M0 Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FHG-D-3M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-10-FHG-D-3A04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FHG-D-3A06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FHG-D-3A10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FHG-D-3B04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FHG-D-3B06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FHG-D-3RM0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FHG-D-3RA04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FHG-D-3RA06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FHG-D-3RA10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FHG-D-3RB04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FHG-D-3RB06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FHG-D-4M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-10-FHG-D-4A04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FHG-D-4A06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FHG-D-4A10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FHG-D-4B04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FHG-D-4B06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FHG-D-4RM0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FHG-D-4RA04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FHG-D-4RA06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FHG-D-4RA10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FHG-D-4RB04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FHG-D-4RB06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FJG-D-3M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-10-FJG-D-3A04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FJG-D-3A06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FJG-D-3A10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FJG-D-3B04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FJG-D-3B06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FJG-D-3RM0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FJG-D-3RA04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FJG-D-3RA06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FJG-D-3RA10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FJG-D-3RB04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FJG-D-3RB06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FJG-D-4M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-10-FJG-D-4A04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FJG-D-4A06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FJG-D-4A10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FJG-D-4B04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FJG-D-4B06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FJG-D-4RM0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FJG-D-4RA04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FJG-D-4RA06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FJG-D-4RA10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FJG-D-4RB04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FJG-D-4RB06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FIG-D-3M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-10-FIG-D-3A04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FIG-D-3A06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FIG-D-3A10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FIG-D-3B04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FIG-D-3B06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FIG-D-3RM0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FIG-D-3RA04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FIG-D-3RA06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FIG-D-3RA10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FIG-D-3RB04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FIG-D-3RB06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FIG-D-4M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-10-FIG-D-4A04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FIG-D-4A06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FIG-D-4A10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FIG-D-4B04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FIG-D-4B06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FIG-D-4RM0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FIG-D-4RA04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FIG-D-4RA06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FIG-D-4RA10M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FIG-D-4RB04M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FIG-D-4RB06M0 Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
5-Port Solenoid ValvesSMC
408 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC EVS7-6/7-8/7-10 ISO 5599-1 Solenoid Valve (M12 Connector)

Brand SMC·5-Port Solenoid Valves

Available part numbers (408)

EVS7-6-FG-S-3M0, EVS7-6-FG-S-3A02M0, EVS7-6-FG-S-3A03M0, EVS7-6-FG-S-3B02M0, EVS7-6-FG-S-3B03M0, EVS7-6-FG-S-3RM0, EVS7-6-FG-S-3RA02M0, EVS7-6-FG-S-3RA03M0, EVS7-6-FG-S-3RB02M0, EVS7-6-FG-S-3RB03M0 + 398 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EVS7-6-FG-S-3M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FG-S-3A02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-S-3A03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-S-3B02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-S-3B03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-S-3RM0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FG-S-3RA02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-S-3RA03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-S-3RB02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-S-3RB03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-S-4M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FG-S-4A02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-S-4A03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-S-4B02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-S-4B03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-S-4RM0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FG-S-4RA02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-S-4RA03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-S-4RB02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-S-4RB03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-D-3M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FG-D-3A02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-D-3A03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-D-3B02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-D-3B03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-D-3RM0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FG-D-3RA02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-D-3RA03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-D-3RB02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-D-3RB03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-D-4M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FG-D-4A02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-D-4A03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-D-4B02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-D-4B03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FG-D-4RM0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FG-D-4RA02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FG-D-4RA03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FG-D-4RB02M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FG-D-4RB03M0Size: EVS7-6 (ISO size 1) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FHG-D-3M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FHG-D-3A02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FHG-D-3A03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FHG-D-3B02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FHG-D-3B03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FHG-D-3RM0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FHG-D-3RA02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FHG-D-3RA03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FHG-D-3RB02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FHG-D-3RB03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FHG-D-4M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FHG-D-4A02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FHG-D-4A03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FHG-D-4B02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FHG-D-4B03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FHG-D-4RM0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FHG-D-4RA02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FHG-D-4RA03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FHG-D-4RB02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FHG-D-4RB03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FJG-D-3M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FJG-D-3A02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FJG-D-3A03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FJG-D-3B02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FJG-D-3B03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FJG-D-3RM0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FJG-D-3RA02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FJG-D-3RA03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FJG-D-3RB02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FJG-D-3RB03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FJG-D-4M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FJG-D-4A02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FJG-D-4A03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FJG-D-4B02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FJG-D-4B03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FJG-D-4RM0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FJG-D-4RA02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FJG-D-4RA03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FJG-D-4RB02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FJG-D-4RB03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FIG-D-3M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FIG-D-3A02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FIG-D-3A03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FIG-D-3B02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FIG-D-3B03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FIG-D-3RM0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FIG-D-3RA02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FIG-D-3RA03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FIG-D-3RB02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FIG-D-3RB03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FIG-D-4M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FIG-D-4A02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FIG-D-4A03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FIG-D-4B02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FIG-D-4B03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FIG-D-4RM0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FIG-D-4RA02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FIG-D-4RA03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FIG-D-4RB02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FIG-D-4RB03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FPG-D-3M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-6-FPG-D-3A02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FPG-D-3A03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FPG-D-3B02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FPG-D-3B03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FPG-D-3RM0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FPG-D-3RA02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FPG-D-3RA03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FPG-D-3RB02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FPG-D-3RB03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FPG-D-4M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-6-FPG-D-4A02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/4
EVS7-6-FPG-D-4A03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-6-FPG-D-4B02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FPG-D-4B03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-6-FPG-D-4RM0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-6-FPG-D-4RA02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/4
EVS7-6-FPG-D-4RA03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-6-FPG-D-4RB02M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/4
EVS7-6-FPG-D-4RB03M0Size: EVS7-6 (ISO size 1) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-S-3M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FG-S-3A03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-S-3A04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-S-3A06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-S-3B03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-S-3B04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-S-3B06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-S-3RM0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FG-S-3RA03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-S-3RA04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-S-3RA06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-S-3RB03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-S-3RB04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-S-3RB06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-S-4M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FG-S-4A03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-S-4A04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-S-4A06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-S-4B03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-S-4B04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-S-4B06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-S-4RM0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FG-S-4RA03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-S-4RA04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-S-4RA06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-S-4RB03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-S-4RB04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-S-4RB06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-D-3M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FG-D-3A03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-D-3A04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-D-3A06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-D-3B03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-D-3B04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-D-3B06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-D-3RM0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FG-D-3RA03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-D-3RA04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-D-3RA06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-D-3RB03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-D-3RB04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-D-3RB06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-D-4M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FG-D-4A03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-D-4A04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-D-4A06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-D-4B03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-D-4B04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-D-4B06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FG-D-4RM0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FG-D-4RA03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FG-D-4RA04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FG-D-4RA06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FG-D-4RB03M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FG-D-4RB04M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FG-D-4RB06M0Size: EVS7-8 (ISO size 2) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FHG-D-3M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FHG-D-3A03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FHG-D-3A04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FHG-D-3A06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FHG-D-3B03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FHG-D-3B04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FHG-D-3B06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FHG-D-3RM0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FHG-D-3RA03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FHG-D-3RA04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FHG-D-3RA06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FHG-D-3RB03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FHG-D-3RB04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FHG-D-3RB06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FHG-D-4M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FHG-D-4A03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FHG-D-4A04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FHG-D-4A06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FHG-D-4B03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FHG-D-4B04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FHG-D-4B06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FHG-D-4RM0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FHG-D-4RA03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FHG-D-4RA04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FHG-D-4RA06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FHG-D-4RB03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FHG-D-4RB04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FHG-D-4RB06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FJG-D-3M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FJG-D-3A03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FJG-D-3A04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FJG-D-3A06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FJG-D-3B03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FJG-D-3B04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FJG-D-3B06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FJG-D-3RM0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FJG-D-3RA03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FJG-D-3RA04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FJG-D-3RA06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FJG-D-3RB03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FJG-D-3RB04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FJG-D-3RB06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FJG-D-4M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FJG-D-4A03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FJG-D-4A04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FJG-D-4A06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FJG-D-4B03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FJG-D-4B04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FJG-D-4B06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FJG-D-4RM0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FJG-D-4RA03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FJG-D-4RA04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FJG-D-4RA06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FJG-D-4RB03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FJG-D-4RB04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FJG-D-4RB06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FIG-D-3M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FIG-D-3A03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FIG-D-3A04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FIG-D-3A06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FIG-D-3B03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FIG-D-3B04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FIG-D-3B06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FIG-D-3RM0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FIG-D-3RA03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FIG-D-3RA04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FIG-D-3RA06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FIG-D-3RB03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FIG-D-3RB04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FIG-D-3RB06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FIG-D-4M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FIG-D-4A03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FIG-D-4A04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FIG-D-4A06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FIG-D-4B03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FIG-D-4B04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FIG-D-4B06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FIG-D-4RM0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FIG-D-4RA03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FIG-D-4RA04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FIG-D-4RA06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FIG-D-4RB03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FIG-D-4RB04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FIG-D-4RB06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FPG-D-3M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-8-FPG-D-3A03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FPG-D-3A04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FPG-D-3A06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FPG-D-3B03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FPG-D-3B04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FPG-D-3B06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FPG-D-3RM0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FPG-D-3RA03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FPG-D-3RA04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FPG-D-3RA06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FPG-D-3RB03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FPG-D-3RB04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FPG-D-3RB06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FPG-D-4M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-8-FPG-D-4A03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/8
EVS7-8-FPG-D-4A04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-8-FPG-D-4A06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-8-FPG-D-4B03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FPG-D-4B04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FPG-D-4B06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-8-FPG-D-4RM0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-8-FPG-D-4RA03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/8
EVS7-8-FPG-D-4RA04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-8-FPG-D-4RA06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-8-FPG-D-4RB03M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/8
EVS7-8-FPG-D-4RB04M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-8-FPG-D-4RB06M0Size: EVS7-8 (ISO size 2) | Function: 3-pos perfect | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-S-3M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-10-FG-S-3A04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-S-3A06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-S-3A10M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FG-S-3B04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-S-3B06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-S-3RM0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FG-S-3RA04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-S-3RA06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-S-3RA10M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FG-S-3RB04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-S-3RB06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-S-4M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-10-FG-S-4A04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-S-4A06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-S-4A10M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FG-S-4B04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-S-4B06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-S-4RM0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FG-S-4RA04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-S-4RA06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-S-4RA10M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FG-S-4RB04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-S-4RB06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos single | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-D-3M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-10-FG-D-3A04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-D-3A06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-D-3A10M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FG-D-3B04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-D-3B06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-D-3RM0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FG-D-3RA04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-D-3RA06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-D-3RA10M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FG-D-3RB04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-D-3RB06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-D-4M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-10-FG-D-4A04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-D-4A06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-D-4A10M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FG-D-4B04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-D-4B06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FG-D-4RM0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FG-D-4RA04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FG-D-4RA06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FG-D-4RA10M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FG-D-4RB04M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FG-D-4RB06M0Size: EVS7-10 (ISO size 3) | Function: 2-pos double | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FHG-D-3M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-10-FHG-D-3A04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FHG-D-3A06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FHG-D-3A10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FHG-D-3B04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FHG-D-3B06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FHG-D-3RM0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FHG-D-3RA04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FHG-D-3RA06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FHG-D-3RA10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FHG-D-3RB04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FHG-D-3RB06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FHG-D-4M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-10-FHG-D-4A04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FHG-D-4A06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FHG-D-4A10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FHG-D-4B04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FHG-D-4B06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FHG-D-4RM0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FHG-D-4RA04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FHG-D-4RA06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FHG-D-4RA10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FHG-D-4RB04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FHG-D-4RB06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos closed center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FJG-D-3M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-10-FJG-D-3A04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FJG-D-3A06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FJG-D-3A10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FJG-D-3B04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FJG-D-3B06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FJG-D-3RM0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FJG-D-3RA04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FJG-D-3RA06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FJG-D-3RA10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FJG-D-3RB04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FJG-D-3RB06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FJG-D-4M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-10-FJG-D-4A04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FJG-D-4A06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FJG-D-4A10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FJG-D-4B04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FJG-D-4B06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FJG-D-4RM0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FJG-D-4RA04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FJG-D-4RA06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FJG-D-4RA10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FJG-D-4RB04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FJG-D-4RB06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos exhaust center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FIG-D-3M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: None
EVS7-10-FIG-D-3A04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FIG-D-3A06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FIG-D-3A10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FIG-D-3B04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FIG-D-3B06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FIG-D-3RM0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FIG-D-3RA04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FIG-D-3RA06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FIG-D-3RA10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FIG-D-3RB04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FIG-D-3RB06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC24V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FIG-D-4M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: None
EVS7-10-FIG-D-4A04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1/2
EVS7-10-FIG-D-4A06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc3/4
EVS7-10-FIG-D-4A10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Side ported Rc1
EVS7-10-FIG-D-4B04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FIG-D-4B06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Metal seal | Sub-plate: Bottom ported Rc3/4
EVS7-10-FIG-D-4RM0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: None
EVS7-10-FIG-D-4RA04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1/2
EVS7-10-FIG-D-4RA06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc3/4
EVS7-10-FIG-D-4RA10M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Side ported Rc1
EVS7-10-FIG-D-4RB04M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc1/2
EVS7-10-FIG-D-4RB06M0Size: EVS7-10 (ISO size 3) | Function: 3-pos pressure center | Voltage: DC12V | Seal: Rubber seal | Sub-plate: Bottom ported Rc3/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
