SMC EX120/121/122 SI Unit for Valve Manifolds (16 Outputs)

SMC EX120/121/122 SI Unit for Valve Manifolds (16 Outputs)

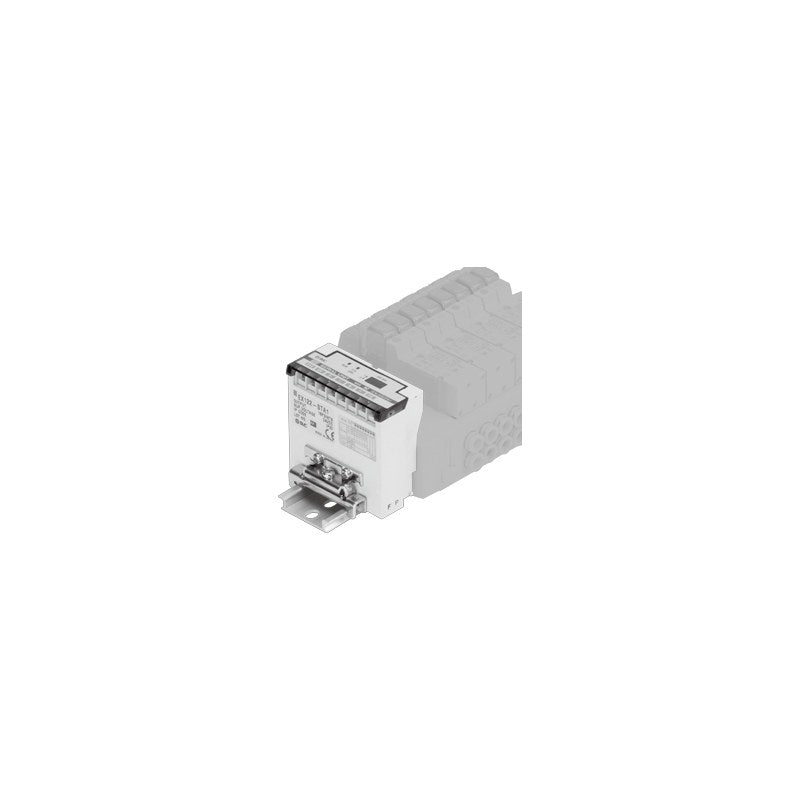

SMC EX120/121/122 series compact serial interface (SI) unit that drives up to 16 solenoid valve outputs on a manifold over DeviceNet, CC-Link or CompoNet.

Key features

  • Compact output-only SI unit with up to 16 solenoid outputs
  • EX120 plug-in type for SV1000-4000, VQ1000/2000 and SY3000/5000/7000 manifolds; EX121 flat-cable and EX122 plug-in DIN-rail types for SY3000/5000
  • Protocols: DeviceNet (16/16 or 0/16 occupied points), CC-Link Ver.1.10 and CompoNet in NPN or PNP output
  • Communication and power connectors supplied with DeviceNet types; CompoNet types include power connector EX9-CP2
  • DN1-X26 has no manifold part number set; DeviceNet PNP and S-LINK V versions available made to order
  • Communication connectors EX9-CCM1/CCM2 and T-branch power connector EX9-CP3 available as accessories

Specifications

Output points 16
Valve power supply 24 VDC +10%/-5%
Control power supply DeviceNet 11-25 VDC, CC-Link 15-30 VDC, CompoNet 14-26.4 VDC
Connected load 24 VDC, max. 2.1 W solenoid valve with surge suppressor (SMC)
Internal current consumption 100 mA or less
Terminating resistor Not included
Enclosure IP20
Ambient temperature 0 to 55°C (8 valves ON), 0 to 50°C (16 valves ON)
Ambient humidity 35 to 85% RH (no condensation)
Standards CE/UKCA marking
Weight EX120 110 g, EX121 140 g, EX122 130 g max. (DeviceNet/CC-Link)
Source SMC Korea catalog EX120/121/122 (SMCKR_EX1____.pdf), p. 1287-1294 (PDF p. 1-8)
EX120-SDN1 Unit: EX120 | Valve interface: Plug-in | Protocol: DeviceNet | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 16/16
EX120-SDN1-X26 Unit: EX120 | Valve interface: Plug-in | Protocol: DeviceNet | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 0/16
EX120-SMJ1 Unit: EX120 | Valve interface: Plug-in | Protocol: CC-Link | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 32/32 (1 station)
EX120-SCM1 Unit: EX120 | Valve interface: Plug-in | Protocol: CompoNet | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 0/16
EX120-SCM3 Unit: EX120 | Valve interface: Plug-in | Protocol: CompoNet | Output type: Source/PNP (-COM) | Occupied I/O (in/out): 0/16
EX121-SDN1 Unit: EX121 | Valve interface: Flat cable, DIN rail mount | Protocol: DeviceNet | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 16/16
EX121-SDN1-X26 Unit: EX121 | Valve interface: Flat cable, DIN rail mount | Protocol: DeviceNet | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 0/16
EX121-SMJ1 Unit: EX121 | Valve interface: Flat cable, DIN rail mount | Protocol: CC-Link | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 32/32 (1 station)
EX121-SCM1 Unit: EX121 | Valve interface: Flat cable, DIN rail mount | Protocol: CompoNet | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 0/16
EX121-SCM3 Unit: EX121 | Valve interface: Flat cable, DIN rail mount | Protocol: CompoNet | Output type: Source/PNP (-COM) | Occupied I/O (in/out): 0/16
EX122-SDN1 Unit: EX122 | Valve interface: Plug-in, DIN rail mount | Protocol: DeviceNet | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 16/16
EX122-SDN1-X26 Unit: EX122 | Valve interface: Plug-in, DIN rail mount | Protocol: DeviceNet | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 0/16
EX122-SMJ1 Unit: EX122 | Valve interface: Plug-in, DIN rail mount | Protocol: CC-Link | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 32/32 (1 station)
EX122-SCM1 Unit: EX122 | Valve interface: Plug-in, DIN rail mount | Protocol: CompoNet | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 0/16
EX122-SCM3 Unit: EX122 | Valve interface: Plug-in, DIN rail mount | Protocol: CompoNet | Output type: Source/PNP (-COM) | Occupied I/O (in/out): 0/16
