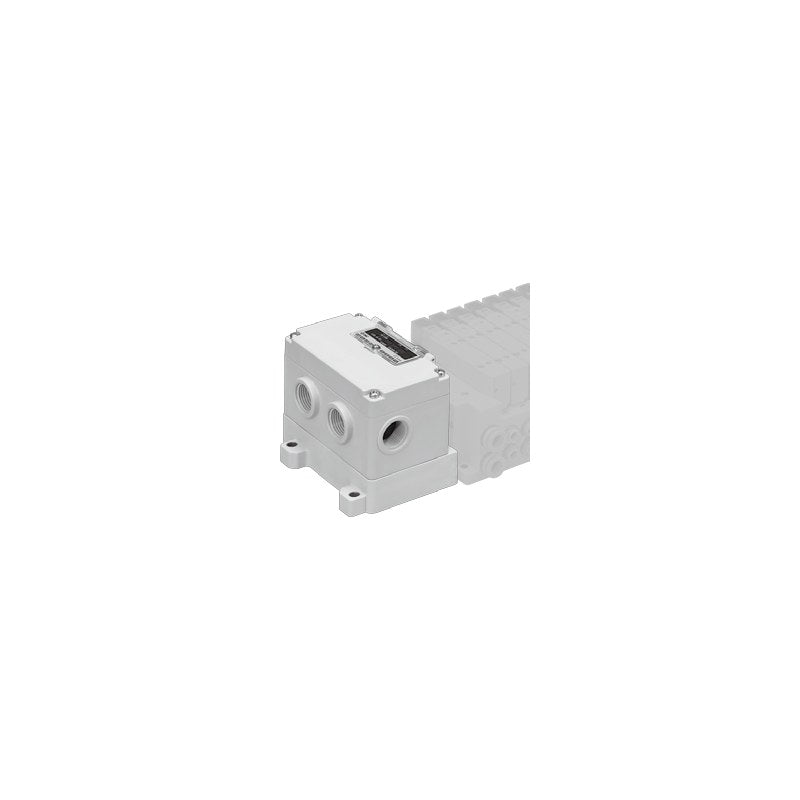

SMC EX124/126 SI Unit for Valve Manifolds (IP65/IP67, 16 Outputs)

SMC EX124/126 SI Unit for Valve Manifolds (IP65/IP67, 16 Outputs)

SMC EX124/126 series enclosed serial interface (SI) unit with separate control and valve power supplies, driving up to 16 manifold valve outputs over DeviceNet or CC-Link.

Key features

  • Protective structure IP65 (EX124, for VQ2000/4000/5000) or IP67 (EX126, for SY, SV and VQC manifolds)
  • Control power and valve power supplied separately; screw terminal block wiring through G1/2 cable entries
  • EX124 mounts on the U or D side of the manifold; EX126 on the D side
  • DeviceNet Release 2.0 (16/16 or 0/16 points) or CC-Link Ver.1.10 (32/32, 1 station)
  • Replaceable fuse EX9-FU20 and drip-proof plug assembly AXT100-B04A for unused cable entries
  • Made to order: DeviceNet PNP versions (-X2/-X77), CompoNet version and signal cut block EX9-SC1-8

Specifications

Output points 16
Output type Sink/NPN (+COM)
Valve power supply 24 VDC +10%/-5%
Control power supply DeviceNet 11-25 VDC, CC-Link 15-30 VDC
Connected load 24 VDC, max. 2.1 W solenoid valve with surge suppressor (SMC)
Internal current consumption 100 mA or less
Terminating resistor Not included
Ambient temperature 0 to 55°C (8 valves ON), 0 to 50°C (16 valves ON)
Weight 240 g or less
Accessories Unit mounting screws M4x10 (4 pcs)
Standards CE/UKCA marking
Source SMC Korea catalog EX124/126 (SMCKR_EX1____.pdf), p. 1295-1300 (PDF p. 9-14)
EX124U-SDN1 Unit: EX124 (IP65, VQ valves) | Mounting: U side of manifold | Protocol: DeviceNet | Occupied I/O (in/out): 16/16 | Output on comm. error: Clear
EX124U-SDN1-X26 Unit: EX124 (IP65, VQ valves) | Mounting: U side of manifold | Protocol: DeviceNet | Occupied I/O (in/out): 0/16 | Output on comm. error: Hold/Clear (switch)
EX124U-SMJ1 Unit: EX124 (IP65, VQ valves) | Mounting: U side of manifold | Protocol: CC-Link | Occupied I/O (in/out): 32/32 (1 station) | Output on comm. error: Clear
EX124D-SDN1 Unit: EX124 (IP65, VQ valves) | Mounting: D side of manifold | Protocol: DeviceNet | Occupied I/O (in/out): 16/16 | Output on comm. error: Clear
EX124D-SDN1-X26 Unit: EX124 (IP65, VQ valves) | Mounting: D side of manifold | Protocol: DeviceNet | Occupied I/O (in/out): 0/16 | Output on comm. error: Hold/Clear (switch)
EX124D-SMJ1 Unit: EX124 (IP65, VQ valves) | Mounting: D side of manifold | Protocol: CC-Link | Occupied I/O (in/out): 32/32 (1 station) | Output on comm. error: Clear
EX126D-SMJ1 Unit: EX126 (IP67, SY/SV/VQC) | Mounting: D side of manifold | Protocol: CC-Link | Occupied I/O (in/out): 32/32 (1 station) | Output on comm. error: Clear
