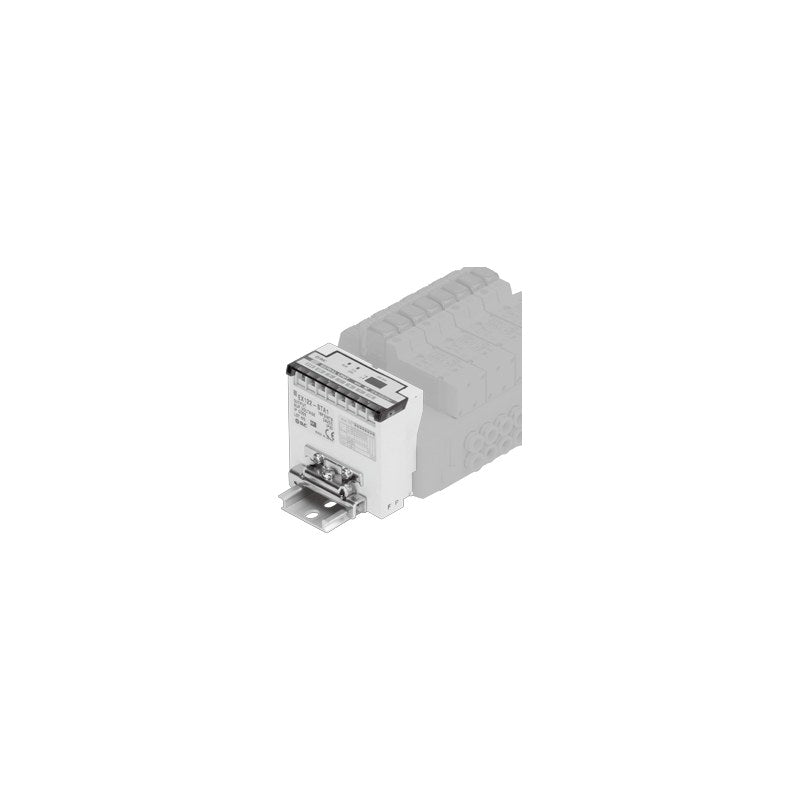

SMC EX180 Thin SI Unit for Valve Manifolds (Up to 32 Outputs)

SMC EX180 Thin SI Unit for Valve Manifolds (Up to 32 Outputs)

SMC EX180 series low-profile serial interface (SI) unit for SY, SJ and S0700 manifolds, driving up to 32 valve outputs over DeviceNet or CC-Link in NPN or PNP.

Key features

  • Thin unit with reduced height for SY3000/5000/7000, SJ2000/3000 and S0700 manifold valves
  • Up to 32 outputs; DeviceNet in 16 or 32 points, CC-Link 32 points, each in sink/NPN or source/PNP
  • Communication connector supplied as T-branch (standard) or straight (A) type; power connector included
  • CC-Link types have built-in switchable 110 ohm terminating resistor
  • CE/UKCA marked and UL (CSA) listed (S0700 excluded); AnyWireASLINK version made to order (EX180-SAW1-X237)

Specifications

Valve power supply 24 VDC +10%/-5%
Control power supply DeviceNet 11-25 VDC, CC-Link 24 VDC ±10%
Internal current consumption 0.1 A or less
Output on comm. error Hold/Clear (switch setting)
Enclosure IP20
Ambient temperature -10 to 50°C
Ambient humidity 35 to 85% RH (no condensation)
Weight 110 g or less (incl. accessories)
Standards CE/UKCA marking, UL (CSA)
Accessories Comm. connector 1 pc; power connector 1 pc (DeviceNet) or 2 pcs (CC-Link)
Source SMC Korea catalog EX180 (SMCKR_EX1____.pdf), p. 1305-1309 (PDF p. 19-23)
EX180-SDN3 Protocol: DeviceNet | Output points: 32 | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 0/32 | Comm. connector: T-branch
EX180-SDN3A Protocol: DeviceNet | Output points: 32 | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 0/32 | Comm. connector: Straight
EX180-SDN4 Protocol: DeviceNet | Output points: 16 | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 0/16 | Comm. connector: T-branch
EX180-SDN4A Protocol: DeviceNet | Output points: 16 | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 0/16 | Comm. connector: Straight
EX180-SDN5 Protocol: DeviceNet | Output points: 32 | Output type: Source/PNP (-COM) | Occupied I/O (in/out): 0/32 | Comm. connector: T-branch
EX180-SDN5A Protocol: DeviceNet | Output points: 32 | Output type: Source/PNP (-COM) | Occupied I/O (in/out): 0/32 | Comm. connector: Straight
EX180-SDN6 Protocol: DeviceNet | Output points: 16 | Output type: Source/PNP (-COM) | Occupied I/O (in/out): 0/16 | Comm. connector: T-branch
EX180-SDN6A Protocol: DeviceNet | Output points: 16 | Output type: Source/PNP (-COM) | Occupied I/O (in/out): 0/16 | Comm. connector: Straight
EX180-SMJ3 Protocol: CC-Link | Output points: 32 | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 32/32 (1 station) | Comm. connector: T-branch
EX180-SMJ3A Protocol: CC-Link | Output points: 32 | Output type: Sink/NPN (+COM) | Occupied I/O (in/out): 32/32 (1 station) | Comm. connector: Straight
EX180-SMJ5 Protocol: CC-Link | Output points: 32 | Output type: Source/PNP (-COM) | Occupied I/O (in/out): 32/32 (1 station) | Comm. connector: T-branch
EX180-SMJ5A Protocol: CC-Link | Output points: 32 | Output type: Source/PNP (-COM) | Occupied I/O (in/out): 32/32 (1 station) | Comm. connector: Straight
