SMC GZ46/GZ46E Vacuum Pressure Gauge (ø42.5, R1/8 and R1/4)

SMC GZ46/GZ46E Vacuum Pressure Gauge (ø42.5, R1/8 and R1/4)

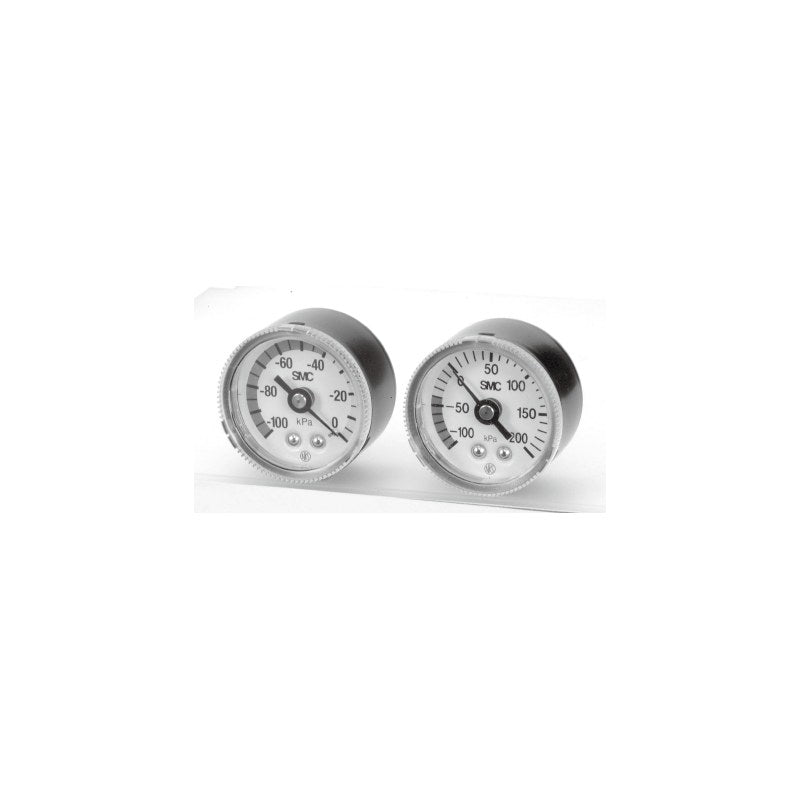

SMC GZ46 and GZ46E back-connection vacuum pressure gauges for vacuum systems, reading in kPa with ±3% accuracy.

Key features

  • Back connection type, R1/8 or R1/4 thread; option M adds an M5 female thread for direct fitting connection
  • GZ46E: oil-free degreased wetted parts and hard-coated cover
  • Display ranges -100 to 0 kPa, -100 to 200 kPa (stocked) and -100 to 100 kPa (made to order)
  • Stainless steel case with black melamine coating, polycarbonate transparent cover
  • Cover ring assembly for panel mounting (C, C1) is ordered as a suffix

Specifications

Fluid Air
Accuracy ±3%
Case Stainless steel (black melamine coating)
Bourdon tube Brass
Transparent cover Polycarbonate (GZ46E: hard coated)
Mass 0.078 kg (GZ46), 0.08 kg (GZ46E)
Cover ring assembly 1305104-1A (C), 1305104-3A (C1)
Source SMC Korea catalog vacuum system related equipment (SMCKR_vacuum-relation.pdf), p. 802-803 (PDF p. 10-11)
GZ46-K-01 Model: GZ46 (standard) | Display range: -100 to 0 kPa | Connection: R1/8 | Option: None
GZ46-K-01M Model: GZ46 (standard) | Display range: -100 to 0 kPa | Connection: R1/8 | Option: M5 female thread
GZ46-K-02 Model: GZ46 (standard) | Display range: -100 to 0 kPa | Connection: R1/4 | Option: None
GZ46-K-02M Model: GZ46 (standard) | Display range: -100 to 0 kPa | Connection: R1/4 | Option: M5 female thread
GZ46-K1K-01 Model: GZ46 (standard) | Display range: -100 to 100 kPa | Connection: R1/8 | Option: None
GZ46-K1K-01M Model: GZ46 (standard) | Display range: -100 to 100 kPa | Connection: R1/8 | Option: M5 female thread
GZ46-K1K-02 Model: GZ46 (standard) | Display range: -100 to 100 kPa | Connection: R1/4 | Option: None
GZ46-K1K-02M Model: GZ46 (standard) | Display range: -100 to 100 kPa | Connection: R1/4 | Option: M5 female thread
GZ46-K2K-01 Model: GZ46 (standard) | Display range: -100 to 200 kPa | Connection: R1/8 | Option: None
GZ46-K2K-01M Model: GZ46 (standard) | Display range: -100 to 200 kPa | Connection: R1/8 | Option: M5 female thread
GZ46-K2K-02 Model: GZ46 (standard) | Display range: -100 to 200 kPa | Connection: R1/4 | Option: None
GZ46-K2K-02M Model: GZ46 (standard) | Display range: -100 to 200 kPa | Connection: R1/4 | Option: M5 female thread
GZ46E-K-01 Model: GZ46E (oil-free wetted parts) | Display range: -100 to 0 kPa | Connection: R1/8 | Option: None
GZ46E-K-01M Model: GZ46E (oil-free wetted parts) | Display range: -100 to 0 kPa | Connection: R1/8 | Option: M5 female thread
GZ46E-K-02 Model: GZ46E (oil-free wetted parts) | Display range: -100 to 0 kPa | Connection: R1/4 | Option: None
GZ46E-K-02M Model: GZ46E (oil-free wetted parts) | Display range: -100 to 0 kPa | Connection: R1/4 | Option: M5 female thread
GZ46E-K1K-01 Model: GZ46E (oil-free wetted parts) | Display range: -100 to 100 kPa | Connection: R1/8 | Option: None
GZ46E-K1K-01M Model: GZ46E (oil-free wetted parts) | Display range: -100 to 100 kPa | Connection: R1/8 | Option: M5 female thread
GZ46E-K1K-02 Model: GZ46E (oil-free wetted parts) | Display range: -100 to 100 kPa | Connection: R1/4 | Option: None
GZ46E-K1K-02M Model: GZ46E (oil-free wetted parts) | Display range: -100 to 100 kPa | Connection: R1/4 | Option: M5 female thread
GZ46E-K2K-01 Model: GZ46E (oil-free wetted parts) | Display range: -100 to 200 kPa | Connection: R1/8 | Option: None
GZ46E-K2K-01M Model: GZ46E (oil-free wetted parts) | Display range: -100 to 200 kPa | Connection: R1/8 | Option: M5 female thread
GZ46E-K2K-02 Model: GZ46E (oil-free wetted parts) | Display range: -100 to 200 kPa | Connection: R1/4 | Option: None
GZ46E-K2K-02M Model: GZ46E (oil-free wetted parts) | Display range: -100 to 200 kPa | Connection: R1/4 | Option: M5 female thread
