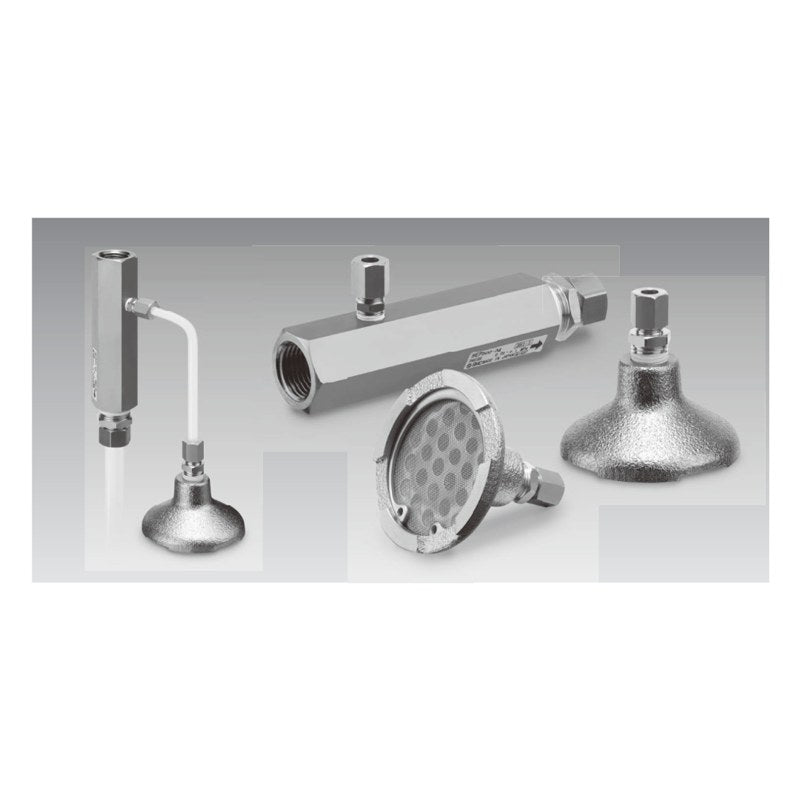

SMC HEP500 Liquid Collector (Ejector Type)

SMC HEP500-04 ejector-type liquid collector that recovers leaked water-soluble and non-water-soluble cutting and grinding fluid for reuse, driven by the existing coolant pump.

Key features

Recovers coolant leaking from pumps, workpieces and chips for reuse
Driven by the machine coolant pump: no additional power source required
Compact, simple to install and operate, maintenance-free
Strainer (60 mesh) included; connect collector and strainer with T0645 nylon tube (order separately)

Specifications

Fluid	Water-soluble or non-water-soluble cutting/grinding fluid
Drive fluid pressure range	0.02 to 0.1 MPa
Recovery flow	0.8 to 2.7 L/min (water-soluble), 0.01 to 1 L/min (non-water-soluble)
Port size	IN Rc1/2, OUT nylon tube ø12/ø9
Suction port / strainer fittings	H06-01S / H06-02S
Strainer filtration	60 mesh wire net
Material	Brass and cast iron, electroless nickel plated
Mass	Collector 500 g, strainer 200 g
Source	SMC Korea catalog HEP500-04 (SMCKR_HEP500.pdf), p. 1342-1343

HEP500-04

Model: HEP500-04 | Connection: IN Rc1/2, OUT tube ø12/ø9

Vacuum EjectorsSMC

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HEP500 Liquid Collector (Ejector Type)

Brand SMC·Vacuum Ejectors

Available part numbers (1)

HEP500-04

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
