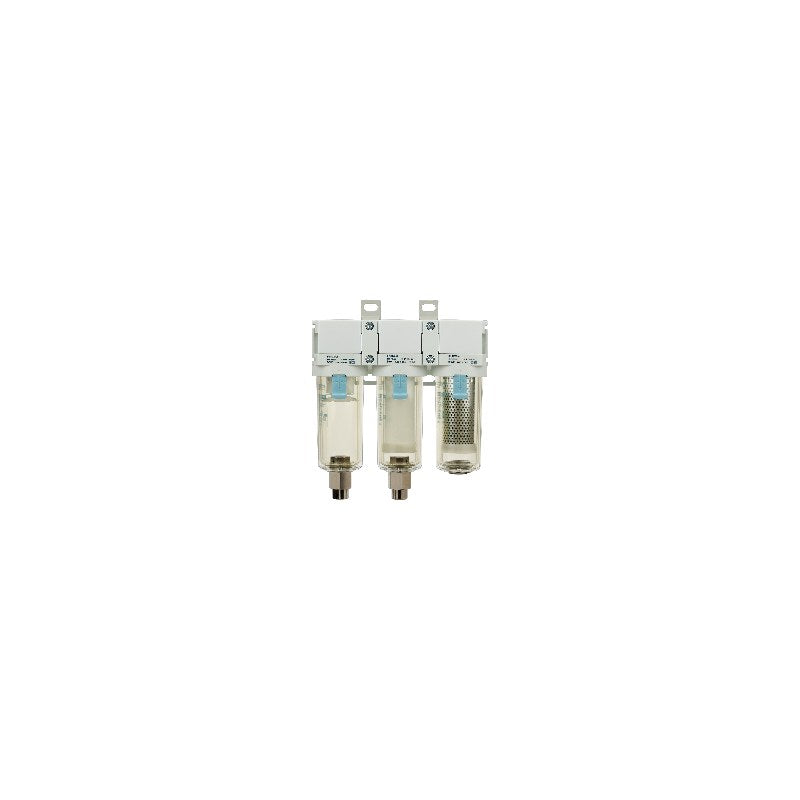

SMC HF2-BAC Hygienic Air Combination (Antibacterial Filter Sets)

SMC HF2-BAC series air combinations that pre-assemble HF2-BF antibacterial, deodorizing and sterilization filters in modular connection for hygienic compressed air in food production.

Key features

A: antibacterial 5 um + 0.1 um; B: adds a 0.01 um sterilization filter (LRV 9 or more)
C: antibacterial 5 um + 0.1 um + deodorizing filter; D: all four filters (5 um, 0.1 um, deodorizing, 0.01 um)
Rated flow 400 L/min (size 30) and 800 L/min (size 40) at 0.7 MPa inlet
FDA-compliant nylon cases and fluororubber seals, NSF-H1 lubricant, antibacterial case guards
HF2-BY300/400 spacers and HF2-BY300T/400T bracket spacers sold separately; semi-standard R reverse flow

Specifications

Fluid	Air, nitrogen, carbon dioxide (gas)
Max. operating pressure	1.0 MPa (N2, CO2 0.99 MPa)
Proof pressure	1.5 MPa
Ambient and fluid temperature	-5 to 60 C (B and D types 5 to 45 C)
Rated flow	400 L/min (size 30), 800 L/min (size 40) (ANR)
Antibacterial activity value	4 or more
Case material	Nylon (FDA / Food Sanitation Act compliant)
Seal material	Fluororubber (FDA compliant)
Mass	Size 30: 0.60-1.23 kg; size 40: 1.02-2.18 kg
Drain port	Rc1/8
Source	SMC Korea catalog CAT.KS120-8A (SMCKR_HF2-BF__.pdf), p. 13-16, 19 (PDF p. 14-17, 20)

HF2-BAC30A-02		Combination: HF2-BFA + HF2-BFB \| Final filtration: 0.1 um \| Body size: 30 \| Port size: Rc1/4
HF2-BAC30A-03		Combination: HF2-BFA + HF2-BFB \| Final filtration: 0.1 um \| Body size: 30 \| Port size: Rc3/8
HF2-BAC40A-02		Combination: HF2-BFA + HF2-BFB \| Final filtration: 0.1 um \| Body size: 40 \| Port size: Rc1/4
HF2-BAC40A-03		Combination: HF2-BFA + HF2-BFB \| Final filtration: 0.1 um \| Body size: 40 \| Port size: Rc3/8
HF2-BAC40A-04		Combination: HF2-BFA + HF2-BFB \| Final filtration: 0.1 um \| Body size: 40 \| Port size: Rc1/2
HF2-BAC30B-02		Combination: HF2-BFA + HF2-BFB + HF2-BFD \| Final filtration: 0.01 um \| Body size: 30 \| Port size: Rc1/4
HF2-BAC30B-03		Combination: HF2-BFA + HF2-BFB + HF2-BFD \| Final filtration: 0.01 um \| Body size: 30 \| Port size: Rc3/8
HF2-BAC40B-02		Combination: HF2-BFA + HF2-BFB + HF2-BFD \| Final filtration: 0.01 um \| Body size: 40 \| Port size: Rc1/4
HF2-BAC40B-03		Combination: HF2-BFA + HF2-BFB + HF2-BFD \| Final filtration: 0.01 um \| Body size: 40 \| Port size: Rc3/8
HF2-BAC40B-04		Combination: HF2-BFA + HF2-BFB + HF2-BFD \| Final filtration: 0.01 um \| Body size: 40 \| Port size: Rc1/2
HF2-BAC30C-02		Combination: HF2-BFA + HF2-BFB + HF2-BFC \| Final filtration: 0.1 um + odor removal \| Body size: 30 \| Port size: Rc1/4
HF2-BAC30C-03		Combination: HF2-BFA + HF2-BFB + HF2-BFC \| Final filtration: 0.1 um + odor removal \| Body size: 30 \| Port size: Rc3/8
HF2-BAC40C-02		Combination: HF2-BFA + HF2-BFB + HF2-BFC \| Final filtration: 0.1 um + odor removal \| Body size: 40 \| Port size: Rc1/4
HF2-BAC40C-03		Combination: HF2-BFA + HF2-BFB + HF2-BFC \| Final filtration: 0.1 um + odor removal \| Body size: 40 \| Port size: Rc3/8
HF2-BAC40C-04		Combination: HF2-BFA + HF2-BFB + HF2-BFC \| Final filtration: 0.1 um + odor removal \| Body size: 40 \| Port size: Rc1/2
HF2-BAC30D-02		Combination: HF2-BFA + HF2-BFB + HF2-BFC + HF2-BFD \| Final filtration: 0.01 um + odor removal \| Body size: 30 \| Port size: Rc1/4
HF2-BAC30D-03		Combination: HF2-BFA + HF2-BFB + HF2-BFC + HF2-BFD \| Final filtration: 0.01 um + odor removal \| Body size: 30 \| Port size: Rc3/8
HF2-BAC40D-02		Combination: HF2-BFA + HF2-BFB + HF2-BFC + HF2-BFD \| Final filtration: 0.01 um + odor removal \| Body size: 40 \| Port size: Rc1/4
HF2-BAC40D-03		Combination: HF2-BFA + HF2-BFB + HF2-BFC + HF2-BFD \| Final filtration: 0.01 um + odor removal \| Body size: 40 \| Port size: Rc3/8
HF2-BAC40D-04		Combination: HF2-BFA + HF2-BFB + HF2-BFC + HF2-BFD \| Final filtration: 0.01 um + odor removal \| Body size: 40 \| Port size: Rc1/2

FiltersSMC

20 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HF2-BAC Hygienic Air Combination (Antibacterial Filter Sets)

Brand SMC·Filters

Available part numbers (20)

HF2-BAC30A-02, HF2-BAC30A-03, HF2-BAC40A-02, HF2-BAC40A-03, HF2-BAC40A-04, HF2-BAC30B-02, HF2-BAC30B-03, HF2-BAC40B-02, HF2-BAC40B-03, HF2-BAC40B-04 + 10 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HF2-BAC30A-02	Combination: HF2-BFA + HF2-BFB \| Final filtration: 0.1 um \| Body size: 30 \| Port size: Rc1/4
	HF2-BAC30A-03	Combination: HF2-BFA + HF2-BFB \| Final filtration: 0.1 um \| Body size: 30 \| Port size: Rc3/8
	HF2-BAC40A-02	Combination: HF2-BFA + HF2-BFB \| Final filtration: 0.1 um \| Body size: 40 \| Port size: Rc1/4
	HF2-BAC40A-03	Combination: HF2-BFA + HF2-BFB \| Final filtration: 0.1 um \| Body size: 40 \| Port size: Rc3/8
	HF2-BAC40A-04	Combination: HF2-BFA + HF2-BFB \| Final filtration: 0.1 um \| Body size: 40 \| Port size: Rc1/2
	HF2-BAC30B-02	Combination: HF2-BFA + HF2-BFB + HF2-BFD \| Final filtration: 0.01 um \| Body size: 30 \| Port size: Rc1/4
	HF2-BAC30B-03	Combination: HF2-BFA + HF2-BFB + HF2-BFD \| Final filtration: 0.01 um \| Body size: 30 \| Port size: Rc3/8
	HF2-BAC40B-02	Combination: HF2-BFA + HF2-BFB + HF2-BFD \| Final filtration: 0.01 um \| Body size: 40 \| Port size: Rc1/4
	HF2-BAC40B-03	Combination: HF2-BFA + HF2-BFB + HF2-BFD \| Final filtration: 0.01 um \| Body size: 40 \| Port size: Rc3/8
	HF2-BAC40B-04	Combination: HF2-BFA + HF2-BFB + HF2-BFD \| Final filtration: 0.01 um \| Body size: 40 \| Port size: Rc1/2
	HF2-BAC30C-02	Combination: HF2-BFA + HF2-BFB + HF2-BFC \| Final filtration: 0.1 um + odor removal \| Body size: 30 \| Port size: Rc1/4
	HF2-BAC30C-03	Combination: HF2-BFA + HF2-BFB + HF2-BFC \| Final filtration: 0.1 um + odor removal \| Body size: 30 \| Port size: Rc3/8
	HF2-BAC40C-02	Combination: HF2-BFA + HF2-BFB + HF2-BFC \| Final filtration: 0.1 um + odor removal \| Body size: 40 \| Port size: Rc1/4
	HF2-BAC40C-03	Combination: HF2-BFA + HF2-BFB + HF2-BFC \| Final filtration: 0.1 um + odor removal \| Body size: 40 \| Port size: Rc3/8
	HF2-BAC40C-04	Combination: HF2-BFA + HF2-BFB + HF2-BFC \| Final filtration: 0.1 um + odor removal \| Body size: 40 \| Port size: Rc1/2
	HF2-BAC30D-02	Combination: HF2-BFA + HF2-BFB + HF2-BFC + HF2-BFD \| Final filtration: 0.01 um + odor removal \| Body size: 30 \| Port size: Rc1/4
	HF2-BAC30D-03	Combination: HF2-BFA + HF2-BFB + HF2-BFC + HF2-BFD \| Final filtration: 0.01 um + odor removal \| Body size: 30 \| Port size: Rc3/8
	HF2-BAC40D-02	Combination: HF2-BFA + HF2-BFB + HF2-BFC + HF2-BFD \| Final filtration: 0.01 um + odor removal \| Body size: 40 \| Port size: Rc1/4
	HF2-BAC40D-03	Combination: HF2-BFA + HF2-BFB + HF2-BFC + HF2-BFD \| Final filtration: 0.01 um + odor removal \| Body size: 40 \| Port size: Rc3/8
	HF2-BAC40D-04	Combination: HF2-BFA + HF2-BFB + HF2-BFC + HF2-BFD \| Final filtration: 0.01 um + odor removal \| Body size: 40 \| Port size: Rc1/2
