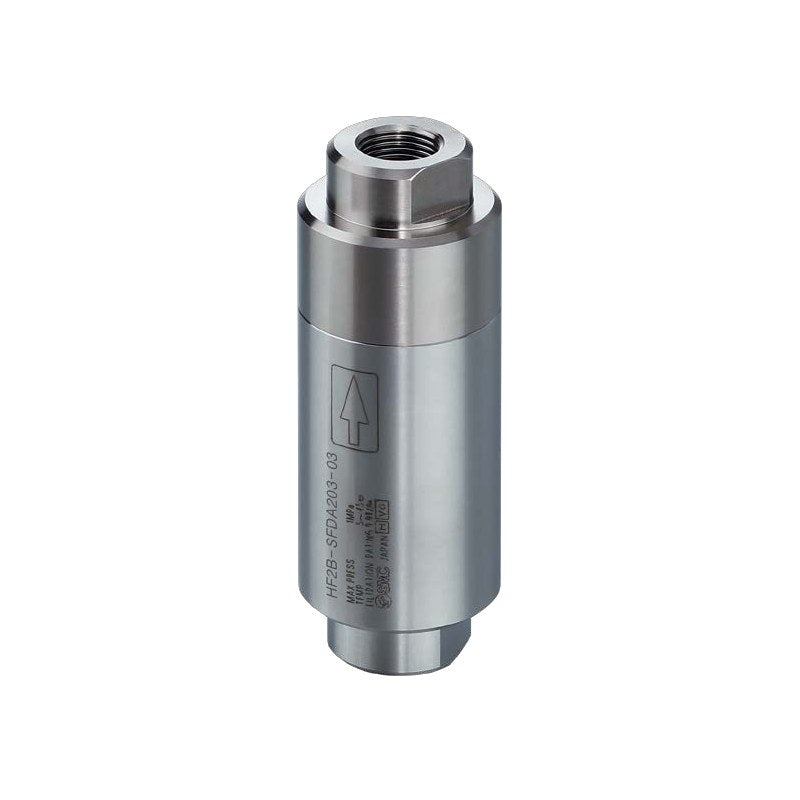

SMC HF2-BF Antibacterial, Deodorizing and Sterilization Filter

SMC HF2-BF series modular-connection filters for food and hygienic applications: antibacterial (5 um, 0.1 um), deodorizing and sterilization (0.01 um, LRV 9 or more) filters in body sizes 30 and 40.

Key features

HF2-BFA antibacterial 5 um and HF2-BFB antibacterial 0.1 um filters with antibacterial activity value 4 or more
HF2-BFC deodorizing filter: outlet oil content 0.003 mg/m3 or less; HF2-BFD sterilization filter: 0.01 um, bacteria capture LRV 9 or more
FDA / Food Sanitation Act compliant resin and rubber wetted parts, NSF-H1 lubricant, antibacterial-coated body and case guard
Modular connection type; combine units as HF2-BAC air combinations with HF2-BY spacers
Semi-standard R (reverse flow); NPT (N) and G (F) threads available

Specifications

Fluid	Compressed air, nitrogen, carbon dioxide (gas)
Max. operating pressure	1.0 MPa (N2, CO2 0.99 MPa)
Proof pressure	1.5 MPa
Ambient and fluid temperature	-5 to 60 C (HF2-BFD 5 to 45 C), no freezing
Case material	Nylon (FDA / Food Sanitation Act compliant)
Seal material	Fluororubber (FDA compliant)
Metal parts	Aluminum alloy, brass (electroless nickel plated)
Lubricant	NSF-H1 grade
Drain port	Rc1/8
Mass	Size 30: 0.20-0.28 kg; size 40: 0.41-0.46 kg
Source	SMC Korea catalog CAT.KS120-8A (SMCKR_HF2-BF__.pdf), p. 1-9 (PDF p. 2-10)

HF2-BFA30-02		Filter: Antibacterial filter \| Filtration: 5 um \| Body size: 30 \| Port size: Rc1/4 \| Rated flow: 400 L/min (ANR)
HF2-BFA30-03		Filter: Antibacterial filter \| Filtration: 5 um \| Body size: 30 \| Port size: Rc3/8 \| Rated flow: 400 L/min (ANR)
HF2-BFA40-02		Filter: Antibacterial filter \| Filtration: 5 um \| Body size: 40 \| Port size: Rc1/4 \| Rated flow: 800 L/min (ANR)
HF2-BFA40-03		Filter: Antibacterial filter \| Filtration: 5 um \| Body size: 40 \| Port size: Rc3/8 \| Rated flow: 800 L/min (ANR)
HF2-BFA40-04		Filter: Antibacterial filter \| Filtration: 5 um \| Body size: 40 \| Port size: Rc1/2 \| Rated flow: 800 L/min (ANR)
HF2-BFB30-02		Filter: Antibacterial filter \| Filtration: 0.1 um \| Body size: 30 \| Port size: Rc1/4 \| Rated flow: 400 L/min (ANR)
HF2-BFB30-03		Filter: Antibacterial filter \| Filtration: 0.1 um \| Body size: 30 \| Port size: Rc3/8 \| Rated flow: 400 L/min (ANR)
HF2-BFB40-02		Filter: Antibacterial filter \| Filtration: 0.1 um \| Body size: 40 \| Port size: Rc1/4 \| Rated flow: 800 L/min (ANR)
HF2-BFB40-03		Filter: Antibacterial filter \| Filtration: 0.1 um \| Body size: 40 \| Port size: Rc3/8 \| Rated flow: 800 L/min (ANR)
HF2-BFB40-04		Filter: Antibacterial filter \| Filtration: 0.1 um \| Body size: 40 \| Port size: Rc1/2 \| Rated flow: 800 L/min (ANR)
HF2-BFC30-02		Filter: Deodorizing filter \| Filtration: Odor removal \| Body size: 30 \| Port size: Rc1/4 \| Rated flow: 400 L/min (ANR)
HF2-BFC30-03		Filter: Deodorizing filter \| Filtration: Odor removal \| Body size: 30 \| Port size: Rc3/8 \| Rated flow: 400 L/min (ANR)
HF2-BFC40-02		Filter: Deodorizing filter \| Filtration: Odor removal \| Body size: 40 \| Port size: Rc1/4 \| Rated flow: 800 L/min (ANR)
HF2-BFC40-03		Filter: Deodorizing filter \| Filtration: Odor removal \| Body size: 40 \| Port size: Rc3/8 \| Rated flow: 800 L/min (ANR)
HF2-BFC40-04		Filter: Deodorizing filter \| Filtration: Odor removal \| Body size: 40 \| Port size: Rc1/2 \| Rated flow: 800 L/min (ANR)
HF2-BFD30-02		Filter: Sterilization filter \| Filtration: 0.01 um, LRV 9+ \| Body size: 30 \| Port size: Rc1/4 \| Rated flow: 400 L/min (ANR)
HF2-BFD30-03		Filter: Sterilization filter \| Filtration: 0.01 um, LRV 9+ \| Body size: 30 \| Port size: Rc3/8 \| Rated flow: 400 L/min (ANR)
HF2-BFD40-02		Filter: Sterilization filter \| Filtration: 0.01 um, LRV 9+ \| Body size: 40 \| Port size: Rc1/4 \| Rated flow: 800 L/min (ANR)
HF2-BFD40-03		Filter: Sterilization filter \| Filtration: 0.01 um, LRV 9+ \| Body size: 40 \| Port size: Rc3/8 \| Rated flow: 800 L/min (ANR)
HF2-BFD40-04		Filter: Sterilization filter \| Filtration: 0.01 um, LRV 9+ \| Body size: 40 \| Port size: Rc1/2 \| Rated flow: 800 L/min (ANR)

FiltersSMC

20 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HF2-BF Antibacterial, Deodorizing and Sterilization Filter

Brand SMC·Filters

Available part numbers (20)

HF2-BFA30-02, HF2-BFA30-03, HF2-BFA40-02, HF2-BFA40-03, HF2-BFA40-04, HF2-BFB30-02, HF2-BFB30-03, HF2-BFB40-02, HF2-BFB40-03, HF2-BFB40-04 + 10 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HF2-BFA30-02	Filter: Antibacterial filter \| Filtration: 5 um \| Body size: 30 \| Port size: Rc1/4 \| Rated flow: 400 L/min (ANR)
	HF2-BFA30-03	Filter: Antibacterial filter \| Filtration: 5 um \| Body size: 30 \| Port size: Rc3/8 \| Rated flow: 400 L/min (ANR)
	HF2-BFA40-02	Filter: Antibacterial filter \| Filtration: 5 um \| Body size: 40 \| Port size: Rc1/4 \| Rated flow: 800 L/min (ANR)
	HF2-BFA40-03	Filter: Antibacterial filter \| Filtration: 5 um \| Body size: 40 \| Port size: Rc3/8 \| Rated flow: 800 L/min (ANR)
	HF2-BFA40-04	Filter: Antibacterial filter \| Filtration: 5 um \| Body size: 40 \| Port size: Rc1/2 \| Rated flow: 800 L/min (ANR)
	HF2-BFB30-02	Filter: Antibacterial filter \| Filtration: 0.1 um \| Body size: 30 \| Port size: Rc1/4 \| Rated flow: 400 L/min (ANR)
	HF2-BFB30-03	Filter: Antibacterial filter \| Filtration: 0.1 um \| Body size: 30 \| Port size: Rc3/8 \| Rated flow: 400 L/min (ANR)
	HF2-BFB40-02	Filter: Antibacterial filter \| Filtration: 0.1 um \| Body size: 40 \| Port size: Rc1/4 \| Rated flow: 800 L/min (ANR)
	HF2-BFB40-03	Filter: Antibacterial filter \| Filtration: 0.1 um \| Body size: 40 \| Port size: Rc3/8 \| Rated flow: 800 L/min (ANR)
	HF2-BFB40-04	Filter: Antibacterial filter \| Filtration: 0.1 um \| Body size: 40 \| Port size: Rc1/2 \| Rated flow: 800 L/min (ANR)
	HF2-BFC30-02	Filter: Deodorizing filter \| Filtration: Odor removal \| Body size: 30 \| Port size: Rc1/4 \| Rated flow: 400 L/min (ANR)
	HF2-BFC30-03	Filter: Deodorizing filter \| Filtration: Odor removal \| Body size: 30 \| Port size: Rc3/8 \| Rated flow: 400 L/min (ANR)
	HF2-BFC40-02	Filter: Deodorizing filter \| Filtration: Odor removal \| Body size: 40 \| Port size: Rc1/4 \| Rated flow: 800 L/min (ANR)
	HF2-BFC40-03	Filter: Deodorizing filter \| Filtration: Odor removal \| Body size: 40 \| Port size: Rc3/8 \| Rated flow: 800 L/min (ANR)
	HF2-BFC40-04	Filter: Deodorizing filter \| Filtration: Odor removal \| Body size: 40 \| Port size: Rc1/2 \| Rated flow: 800 L/min (ANR)
	HF2-BFD30-02	Filter: Sterilization filter \| Filtration: 0.01 um, LRV 9+ \| Body size: 30 \| Port size: Rc1/4 \| Rated flow: 400 L/min (ANR)
	HF2-BFD30-03	Filter: Sterilization filter \| Filtration: 0.01 um, LRV 9+ \| Body size: 30 \| Port size: Rc3/8 \| Rated flow: 400 L/min (ANR)
	HF2-BFD40-02	Filter: Sterilization filter \| Filtration: 0.01 um, LRV 9+ \| Body size: 40 \| Port size: Rc1/4 \| Rated flow: 800 L/min (ANR)
	HF2-BFD40-03	Filter: Sterilization filter \| Filtration: 0.01 um, LRV 9+ \| Body size: 40 \| Port size: Rc3/8 \| Rated flow: 800 L/min (ANR)
	HF2-BFD40-04	Filter: Sterilization filter \| Filtration: 0.01 um, LRV 9+ \| Body size: 40 \| Port size: Rc1/2 \| Rated flow: 800 L/min (ANR)
