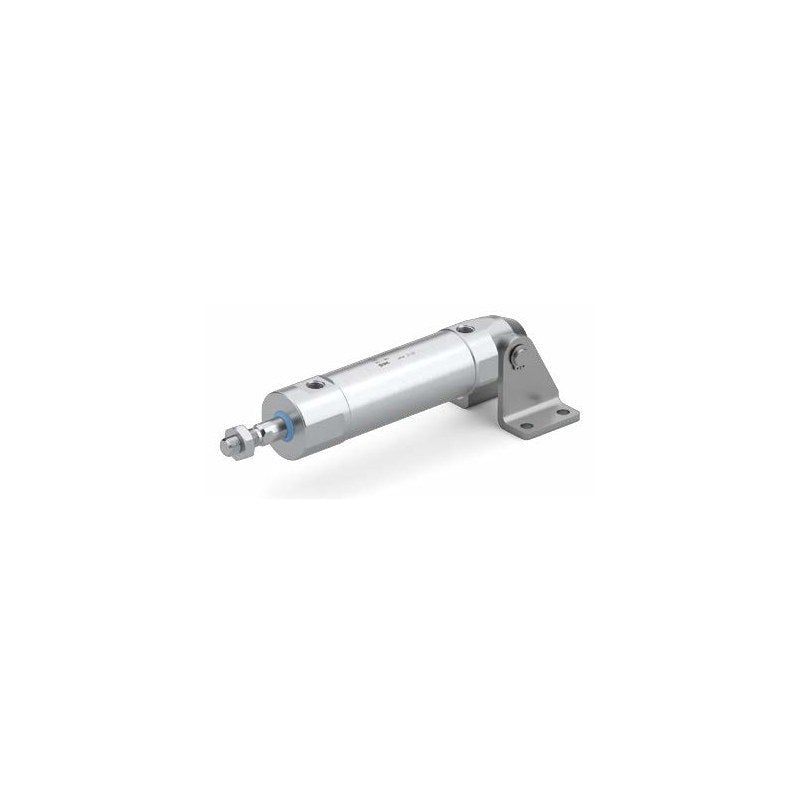

SMC HF2A-CG5 Stainless Steel Cylinder (Non-Adjustable Air Cushion)

SMC HF2A-CG5 Stainless Steel Cylinder (Non-Adjustable Air Cushion)

SMC HF2A-CG5 series all-stainless double acting cylinder, ø20 to ø40 mm, with adjustment-free air cushion and FDA-compliant materials for food manufacturing processes.

Key features

  • External parts in SUS304; water-resistant structure with blue FKM scraper and FKM tube gasket
  • Non-adjustable air cushion plus damper: smooth stroke-end stop with reduced impact and noise, no cushion adjustment
  • FDA-compliant materials (EC No.1935/2004 compliant) and NSF H1 grease; up to 4x durability vs. CG5-S in water-splash use
  • Mounting-compatible with CG5-S; outside dimension up to 4.5 mm smaller
  • HF2A-CDG5 versions with built-in magnet and switch rail for auto switches
  • Foot, flanges, pivot bracket, rail plugs and switch rail accessory available separately

Specifications

Action Double acting, single rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature -10 to 70°C (with auto switch -10 to 60°C)
Cushion Non-adjustable air cushion + damper
Piston speed 50 to 500 mm/s
Packing material FKM (scraper, tube gasket)
Lubrication Not required (non-lube)
Port thread ø20, ø25 M5x0.8; ø32, ø40 Rc (NPT TN, G TF on order)
Source SMC Korea catalog CAT.KS20-317A (SMCKR_HF2A-CG5.pdf), p. 4-5 (PDF p. 5-6)
HF2A-CG5BC20SV-25 Mounting: Basic | Bore: ø20 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-50 Mounting: Basic | Bore: ø20 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-75 Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-100 Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-125 Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-150 Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-200 Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-25 Mounting: Basic | Bore: ø25 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-50 Mounting: Basic | Bore: ø25 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-75 Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-100 Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-125 Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-150 Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-200 Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-250 Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-300 Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC32SV-25 Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-50 Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-75 Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-100 Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-125 Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-150 Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-200 Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-250 Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-300 Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-25 Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-50 Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-75 Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-100 Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-125 Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-150 Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-200 Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-250 Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-300 Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Port: Rc | Magnet: No
HF2A-CG5EC20SV-25 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-50 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-75 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-100 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-125 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-150 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-200 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-25 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-50 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-75 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-100 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-125 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-150 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-200 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-250 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 250 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-300 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 300 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC32SV-25 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 25 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-50 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 50 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-75 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 75 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-100 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 100 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-125 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 125 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-150 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 150 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-200 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 200 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-250 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 250 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-300 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 300 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-25 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 25 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-50 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 50 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-75 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 75 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-100 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 100 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-125 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 125 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-150 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 150 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-200 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 200 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-250 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 250 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-300 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 300 mm | Port: Rc | Magnet: No
HF2A-CDG5BC20SV-25 Mounting: Basic | Bore: ø20 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-50 Mounting: Basic | Bore: ø20 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-75 Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-100 Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-125 Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-150 Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-200 Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-25 Mounting: Basic | Bore: ø25 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-50 Mounting: Basic | Bore: ø25 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-75 Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-100 Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-125 Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-150 Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-200 Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-250 Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-300 Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC32SV-25 Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-50 Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-75 Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-100 Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-125 Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-150 Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-200 Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-250 Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-300 Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-25 Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-50 Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-75 Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-100 Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-125 Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-150 Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-200 Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-250 Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-300 Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC20SV-25 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-50 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-75 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-100 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-125 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-150 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-200 Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-25 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-50 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-75 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-100 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-125 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-150 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-200 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-250 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 250 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-300 Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 300 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC32SV-25 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 25 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-50 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 50 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-75 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 75 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-100 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 100 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-125 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 125 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-150 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 150 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-200 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 200 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-250 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 250 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-300 Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 300 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-25 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 25 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-50 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 50 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-75 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 75 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-100 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 100 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-125 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 125 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-150 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 150 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-200 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 200 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-250 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 250 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-300 Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 300 mm | Port: Rc | Magnet: Yes
Round Body CylindersSMC
136 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HF2A-CG5 Stainless Steel Cylinder (Non-Adjustable Air Cushion)

Brand SMC·Round Body Cylinders

Available part numbers (136)

HF2A-CG5BC20SV-25, HF2A-CG5BC20SV-50, HF2A-CG5BC20SV-75, HF2A-CG5BC20SV-100, HF2A-CG5BC20SV-125, HF2A-CG5BC20SV-150, HF2A-CG5BC20SV-200, HF2A-CG5BC25SV-25, HF2A-CG5BC25SV-50, HF2A-CG5BC25SV-75 + 126 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HF2A-CG5BC20SV-25Mounting: Basic | Bore: ø20 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-50Mounting: Basic | Bore: ø20 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-75Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-100Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-125Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-150Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC20SV-200Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-25Mounting: Basic | Bore: ø25 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-50Mounting: Basic | Bore: ø25 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-75Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-100Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-125Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-150Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-200Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-250Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC25SV-300Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5BC32SV-25Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-50Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-75Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-100Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-125Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-150Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-200Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-250Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Port: Rc | Magnet: No
HF2A-CG5BC32SV-300Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-25Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-50Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-75Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-100Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-125Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-150Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-200Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-250Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Port: Rc | Magnet: No
HF2A-CG5BC40SV-300Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Port: Rc | Magnet: No
HF2A-CG5EC20SV-25Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-50Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-75Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-100Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-125Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-150Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC20SV-200Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-25Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-50Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-75Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-100Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-125Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-150Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-200Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-250Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 250 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC25SV-300Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 300 mm | Port: M5x0.8 | Magnet: No
HF2A-CG5EC32SV-25Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 25 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-50Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 50 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-75Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 75 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-100Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 100 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-125Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 125 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-150Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 150 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-200Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 200 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-250Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 250 mm | Port: Rc | Magnet: No
HF2A-CG5EC32SV-300Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 300 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-25Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 25 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-50Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 50 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-75Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 75 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-100Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 100 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-125Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 125 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-150Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 150 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-200Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 200 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-250Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 250 mm | Port: Rc | Magnet: No
HF2A-CG5EC40SV-300Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 300 mm | Port: Rc | Magnet: No
HF2A-CDG5BC20SV-25Mounting: Basic | Bore: ø20 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-50Mounting: Basic | Bore: ø20 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-75Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-100Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-125Mounting: Basic | Bore: ø20 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-150Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC20SV-200Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-25Mounting: Basic | Bore: ø25 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-50Mounting: Basic | Bore: ø25 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-75Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-100Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-125Mounting: Basic | Bore: ø25 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-150Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-200Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-250Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC25SV-300Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5BC32SV-25Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-50Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-75Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-100Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-125Mounting: Basic | Bore: ø32 mm | Stroke: 125 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-150Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-200Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-250Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC32SV-300Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-25Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-50Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-75Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-100Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-125Mounting: Basic | Bore: ø40 mm | Stroke: 125 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-150Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-200Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-250Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Port: Rc | Magnet: Yes
HF2A-CDG5BC40SV-300Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC20SV-25Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-50Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-75Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-100Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-125Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-150Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC20SV-200Mounting: Integrated clevis | Bore: ø20 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-25Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 25 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-50Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 50 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-75Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 75 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-100Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 100 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-125Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 125 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-150Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 150 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-200Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 200 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-250Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 250 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC25SV-300Mounting: Integrated clevis | Bore: ø25 mm | Stroke: 300 mm | Port: M5x0.8 | Magnet: Yes
HF2A-CDG5EC32SV-25Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 25 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-50Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 50 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-75Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 75 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-100Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 100 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-125Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 125 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-150Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 150 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-200Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 200 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-250Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 250 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC32SV-300Mounting: Integrated clevis | Bore: ø32 mm | Stroke: 300 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-25Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 25 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-50Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 50 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-75Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 75 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-100Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 100 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-125Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 125 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-150Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 150 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-200Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 200 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-250Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 250 mm | Port: Rc | Magnet: Yes
HF2A-CDG5EC40SV-300Mounting: Integrated clevis | Bore: ø40 mm | Stroke: 300 mm | Port: Rc | Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
