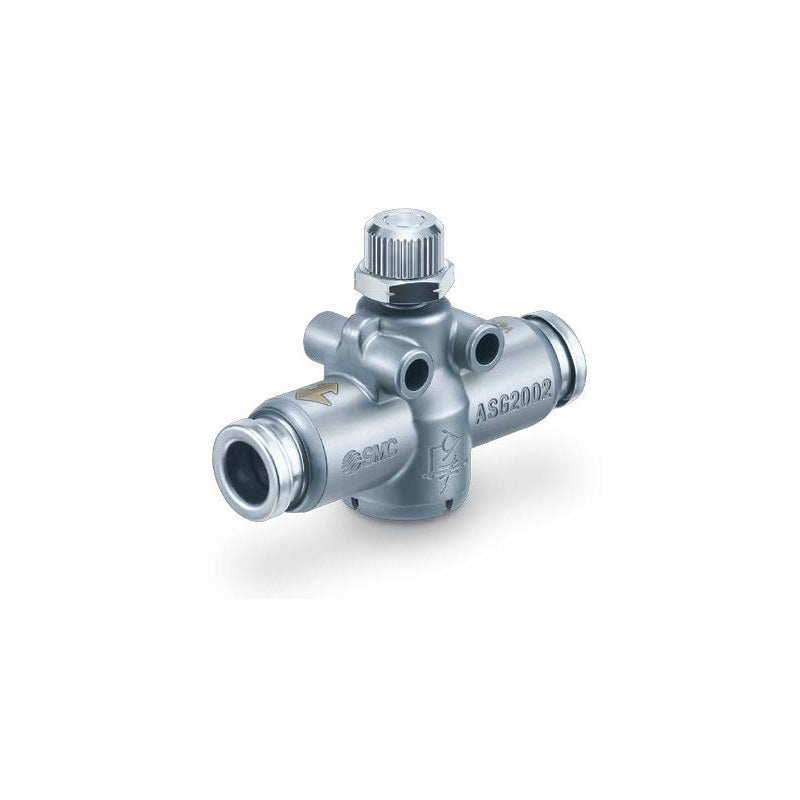

SMC HF2B-ASG-TV Stainless Orifice Valve with One-touch Fitting (Inline)

SMC HF2B-ASG-TV Stainless Orifice Valve with One-touch Fitting (Inline)

SMC HF2B-ASG-TV series inline stainless steel orifice valve (needle flow control, no check valve) with one-touch fittings, for air, N2 and water in food and hygienic applications.

Key features

  • Bidirectional needle flow control without check valve, inline tube to tube connection
  • Exterior metal parts SUS316, seals FKM, NSF H1 grease; copper and zinc free
  • Fluids: air, N2 and water; max. operating temperature 150°C (air, N2)
  • Five body sizes ASG1002 to ASG4002 for ø4 to ø12 mm and 5/32 to 1/2 in tubing
  • Direct mounting or L bracket mounting; inner sleeves (TJ series) for FEP / Super PFA tubing

Specifications

Fluid Air, N2, water
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0 MPa
Temperature (air, N2) 0 to 150°C (no freezing)
Temperature (water) 1 to 60°C (no freezing)
Applicable tubing FEP, PFA, nylon, soft nylon, PU, polyolefin
Type Inline orifice valve
Source SMC Korea catalog CAT.KS20-320A (SMCKR_HF2B-ASG.pdf), PDF p. 1-7
HF2B-ASG1002-03TV Body size: M5 class | Tube OD: ø5/32 in
HF2B-ASG1002-04TV Body size: M5 class | Tube OD: ø4 mm
HF2B-ASG2002-06TV Body size: 1/8 class | Tube OD: ø6 mm
HF2B-ASG2002-07TV Body size: 1/8 class | Tube OD: ø1/4 in
HF2B-ASG2052-08TV Body size: 1/4 class | Tube OD: ø8 mm
HF2B-ASG2052-09TV Body size: 1/4 class | Tube OD: ø5/16 in
HF2B-ASG3002-10TV Body size: 3/8 class | Tube OD: ø10 mm
HF2B-ASG3002-11TV Body size: 3/8 class | Tube OD: ø3/8 in
HF2B-ASG4002-12TV Body size: 1/2 class | Tube OD: ø12 mm
HF2B-ASG4002-13TV Body size: 1/2 class | Tube OD: ø1/2 in
