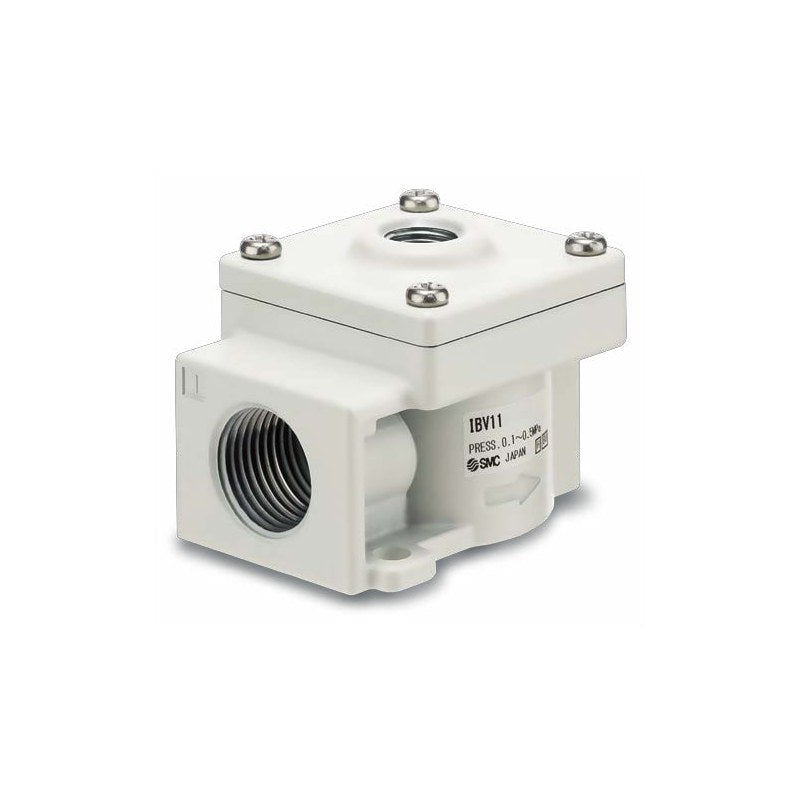

SMC IBV Impact Blow Valve (IBV10/11/12, Air Saving)

SMC IBV Impact Blow Valve (IBV10/11/12, Air Saving)

SMC IBV series impact blow valve that releases an instantaneous high peak-pressure blow, raising blow efficiency while cutting air consumption and work time.

Key features

  • Peak pressure 2 to 3 times or more than continuous blow; air consumption down 93%, work time down 97% (SMC test, 0.5 MPa)
  • IBV10 solenoid valve mounted (DC24V, 0.35 W), IBV11 air operated without pulse, IBV12 air operated with built-in pulse (1 to 8 Hz)
  • IBV10 electrical entry: L plug connector or M8 connector, lead wire outlet in 4 directions (0/90/180/270°)
  • Thread Rc standard (NPT "N" and G "F" available); tank-connected type X101 made to order
  • Long nozzles IBG1-12-10-(50 to 1000), silencer long nozzles (...S) and chip guard IBG1-12C ordered separately

Specifications

Fluid Air
Operating pressure range IBV10 0.15 to 0.7 MPa; IBV11 0.1 to 0.5 MPa; IBV12 0.3 to 0.7 MPa
Ambient and fluid temperature 5 to 50°C
Port size IN Rc3/8, OUT Rc1/4 (IBV11 pilot Rc1/8)
Rated voltage (IBV10) DC24V, ±10%
Power consumption (IBV10) 0.35 W
Diaphragm material IBV10 HNBR; IBV11/12 FKM
Dimensions IBV10 36x46x50; IBV11 36x46x37; IBV12 36x46x63.5 mm
Mass IBV10 100 g (L) / 110 g (M8); IBV11 75 g; IBV12 155 g
Standards CE/UKCA (IBV10)
Source SMC Korea catalog CAT.KS70-64B (SMCKR_IBV.pdf), p. 1-7 (PDF p. 1-8)
IBV12 Type: IBV12 air operated, pulse built-in | Electrical entry: None (air operated) | Lead wire direction: N/A
IBV11 Type: IBV11 air operated, no pulse | Electrical entry: None (air operated) | Lead wire direction: N/A
IBV10-5L Type: IBV10 solenoid valve mounted | Electrical entry: L plug connector, 300 mm lead | Lead wire direction: 0°
IBV10-5L-A Type: IBV10 solenoid valve mounted | Electrical entry: L plug connector, 300 mm lead | Lead wire direction: 90°
IBV10-5L-B Type: IBV10 solenoid valve mounted | Electrical entry: L plug connector, 300 mm lead | Lead wire direction: 180°
IBV10-5L-C Type: IBV10 solenoid valve mounted | Electrical entry: L plug connector, 300 mm lead | Lead wire direction: 270°
IBV10-5LO Type: IBV10 solenoid valve mounted | Electrical entry: L plug connector, no lead | Lead wire direction: 0°
IBV10-5LO-A Type: IBV10 solenoid valve mounted | Electrical entry: L plug connector, no lead | Lead wire direction: 90°
IBV10-5LO-B Type: IBV10 solenoid valve mounted | Electrical entry: L plug connector, no lead | Lead wire direction: 180°
IBV10-5LO-C Type: IBV10 solenoid valve mounted | Electrical entry: L plug connector, no lead | Lead wire direction: 270°
IBV10-5WA Type: IBV10 solenoid valve mounted | Electrical entry: M8 connector, 300 mm cable | Lead wire direction: 0°
IBV10-5WA-A Type: IBV10 solenoid valve mounted | Electrical entry: M8 connector, 300 mm cable | Lead wire direction: 90°
IBV10-5WA-B Type: IBV10 solenoid valve mounted | Electrical entry: M8 connector, 300 mm cable | Lead wire direction: 180°
IBV10-5WA-C Type: IBV10 solenoid valve mounted | Electrical entry: M8 connector, 300 mm cable | Lead wire direction: 270°
IBV10-5WAO Type: IBV10 solenoid valve mounted | Electrical entry: M8 connector, no cable | Lead wire direction: 0°
IBV10-5WAO-A Type: IBV10 solenoid valve mounted | Electrical entry: M8 connector, no cable | Lead wire direction: 90°
IBV10-5WAO-B Type: IBV10 solenoid valve mounted | Electrical entry: M8 connector, no cable | Lead wire direction: 180°
IBV10-5WAO-C Type: IBV10 solenoid valve mounted | Electrical entry: M8 connector, no cable | Lead wire direction: 270°
