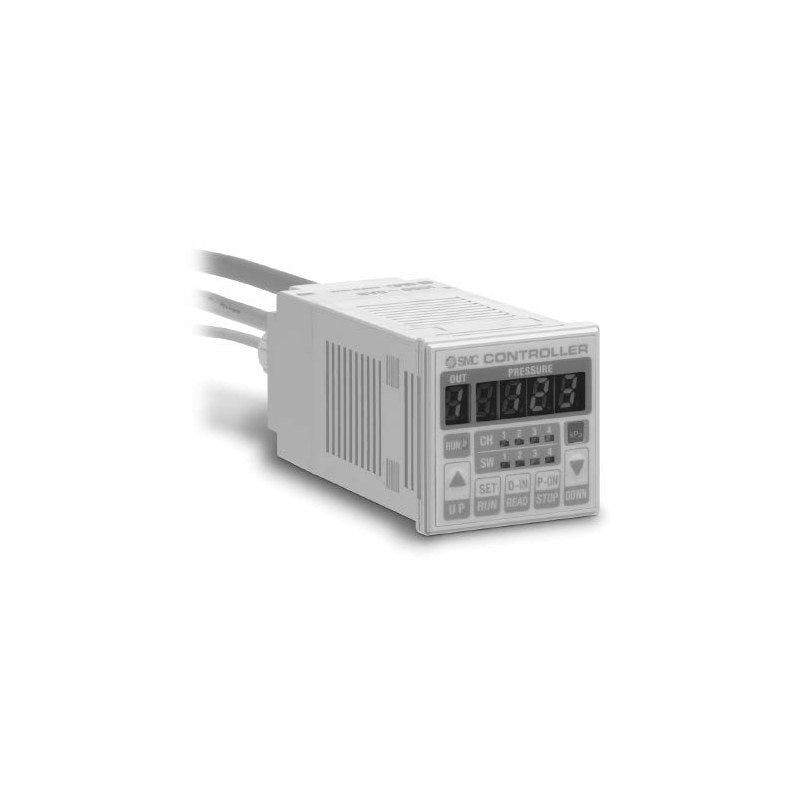

SMC IC Controller for Electro-Pneumatic Regulators

SMC IC Controller for Electro-Pneumatic Regulators

SMC IC series controller that drives an ITV electro-pneumatic regulator with 4-point preset, 20-step program or 10-bit parallel input, and adds pressure display and switch outputs.

Key features

  • 4-point preset output, 20-step programming with 1-999 s interval, 10-bit parallel input (1024 points)
  • Supplies the regulator: DC12V or DC24V, DC0-10V or DC4-20mA command output selectable from front panel
  • Four pressure switch outputs with upper/lower limits; built-in or external sensor (e.g. PSE530)
  • Main use: combination with the ITV0000 series, which has no display
  • Options: panel mounting adapter (A), protective cover (B), auto-restart -X2

Specifications

Supply voltage DC12-24V (15 W or more)
Command output DC0-10V or DC4-20mA, ±0.5% F.S.
Switch output 4 points, NPN/PNP, max. 30 V, 100 mA
Display 3 1/2 digit red LED, ±0.5% F.S. ±1 digit
Proof pressure 1.5 MPa
Fluid Air, non-corrosive gas
Pressure port M5 female (built-in sensor type)
Dimensions 48 x 48 x 100.5 mm
Operating temperature 0 to 50°C
Mass Approx. 330 g (built-in), 345 g (external)
Source SMC Korea catalog (SMCKR_IC.pdf), p. 1230-1231 (PDF p. 2-3)
IC10-0 Pressure range: 0.1 MPa | Switch output: NPN open collector | Sensor: Built-in sensor
IC10-1 Pressure range: 0.1 MPa | Switch output: NPN open collector | Sensor: External sensor
IC11-0 Pressure range: 0.1 MPa | Switch output: PNP open collector | Sensor: Built-in sensor
IC11-1 Pressure range: 0.1 MPa | Switch output: PNP open collector | Sensor: External sensor
IC30-0 Pressure range: 0.5 MPa | Switch output: NPN open collector | Sensor: Built-in sensor
IC30-1 Pressure range: 0.5 MPa | Switch output: NPN open collector | Sensor: External sensor
IC31-0 Pressure range: 0.5 MPa | Switch output: PNP open collector | Sensor: Built-in sensor
IC31-1 Pressure range: 0.5 MPa | Switch output: PNP open collector | Sensor: External sensor
IC50-0 Pressure range: 0.9 MPa | Switch output: NPN open collector | Sensor: Built-in sensor
IC50-1 Pressure range: 0.9 MPa | Switch output: NPN open collector | Sensor: External sensor
IC51-0 Pressure range: 0.9 MPa | Switch output: PNP open collector | Sensor: Built-in sensor
IC51-1 Pressure range: 0.9 MPa | Switch output: PNP open collector | Sensor: External sensor
IC90-0 Pressure range: -100 kPa | Switch output: NPN open collector | Sensor: Built-in sensor
IC90-1 Pressure range: -100 kPa | Switch output: NPN open collector | Sensor: External sensor
IC91-0 Pressure range: -100 kPa | Switch output: PNP open collector | Sensor: Built-in sensor
IC91-1 Pressure range: -100 kPa | Switch output: PNP open collector | Sensor: External sensor
