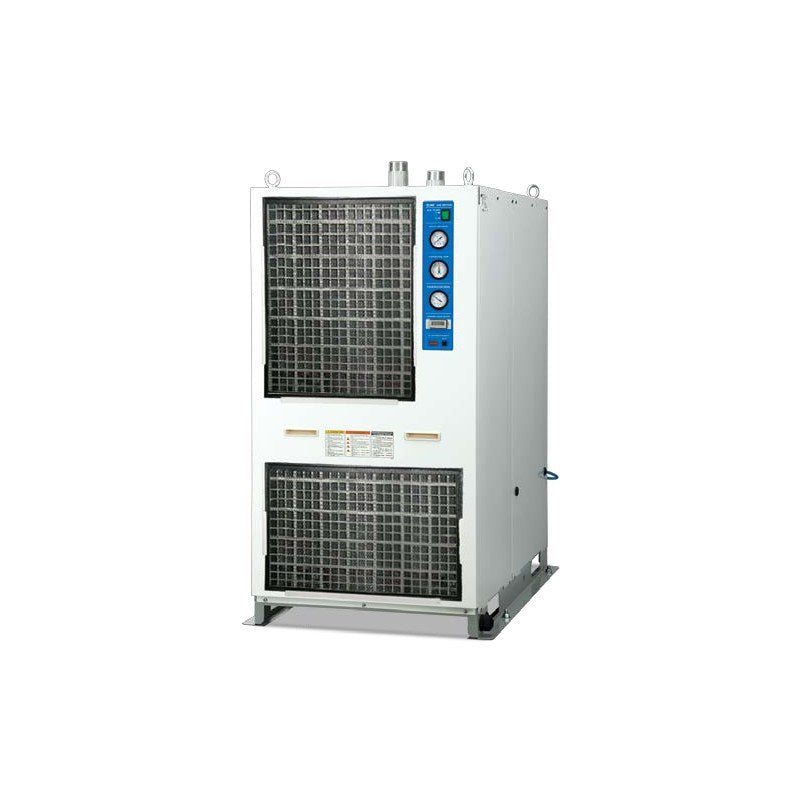

SMC IDF190D/240D/370D Large Refrigerated Air Dryer

SMC IDF190D/240D/370D Large Refrigerated Air Dryer

SMC IDF190D, IDF240D and IDF370D large-capacity refrigerated air dryer for 190 to 370 kW compressors, with flanged connections.

Key features

  • Air flow 32 to 65 m3/min (ANR); JIS 10K FF flange connections 80A to 150A
  • Voltage 3: 3-phase AC200V; voltage 9: 3-phase 220/240/380/400/415/440V with built-in transformer
  • IDF190D/240D air-cooled, water-cooled version (W) on 200V models; IDF370D water-cooled shell-and-tube condenser standard
  • Large-capacity auto drain (190D/240D) or motor auto drain (370D) and remote run/stop and alarm terminals standard
  • Options as suffix letters: C (copper tube anti-rust), L, M (motor auto drain), R (earth leakage breaker, voltage 3 only)

Specifications

Fluid Compressed air
Inlet air temperature 5 to 50°C
Inlet air pressure 0.15 to 0.97 MPa
Ambient temperature 2 to 40°C (190D/240D), 2 to 43°C (370D)
Rated conditions Inlet 0.7 MPa, 40°C (190D/240D) / 35°C (370D)
Outlet pressure dew point 10°C
Refrigerant R407C (HFC)
Power consumption 50/60Hz 4.9/5.9 kW (190D), 6.3/7.6 kW (240D), 11.6 kW (370D)
Mass 450 / 660 / 1100 kg
Source SMC Korea catalog CAT.KS30-8K (SMCKR_IDF_IDU.pdf), p. 19-20
IDF190D-3 Model: IDF190D | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-3-W Model: IDF190D | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-220V Model: IDF190D | Voltage: 3-phase 220V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-240V Model: IDF190D | Voltage: 3-phase 240V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-380V Model: IDF190D | Voltage: 3-phase 380V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-400V Model: IDF190D | Voltage: 3-phase 400V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-415V Model: IDF190D | Voltage: 3-phase 415V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-440V Model: IDF190D | Voltage: 3-phase 440V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF240D-3 Model: IDF240D | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-3-W Model: IDF240D | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-220V Model: IDF240D | Voltage: 3-phase 220V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-240V Model: IDF240D | Voltage: 3-phase 240V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-380V Model: IDF240D | Voltage: 3-phase 380V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-400V Model: IDF240D | Voltage: 3-phase 400V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-415V Model: IDF240D | Voltage: 3-phase 415V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-440V Model: IDF240D | Voltage: 3-phase 440V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF370D-3 Model: IDF370D | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-220V Model: IDF370D | Voltage: 3-phase 220V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-240V Model: IDF370D | Voltage: 3-phase 240V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-380V Model: IDF370D | Voltage: 3-phase 380V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-400V Model: IDF370D | Voltage: 3-phase 400V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-415V Model: IDF370D | Voltage: 3-phase 415V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-440V Model: IDF370D | Voltage: 3-phase 440V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
Air DryersSMC
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IDF190D/240D/370D Large Refrigerated Air Dryer

Brand SMC·Air Dryers

Available part numbers (23)

IDF190D-3, IDF190D-3-W, IDF190D-9-220V, IDF190D-9-240V, IDF190D-9-380V, IDF190D-9-400V, IDF190D-9-415V, IDF190D-9-440V, IDF240D-3, IDF240D-3-W + 13 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IDF190D-3Model: IDF190D | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-3-WModel: IDF190D | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-220VModel: IDF190D | Voltage: 3-phase 220V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-240VModel: IDF190D | Voltage: 3-phase 240V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-380VModel: IDF190D | Voltage: 3-phase 380V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-400VModel: IDF190D | Voltage: 3-phase 400V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-415VModel: IDF190D | Voltage: 3-phase 415V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF190D-9-440VModel: IDF190D | Voltage: 3-phase 440V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 32 / 38 m3/min | Port: 80A (3B) flange
IDF240D-3Model: IDF240D | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-3-WModel: IDF240D | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-220VModel: IDF240D | Voltage: 3-phase 220V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-240VModel: IDF240D | Voltage: 3-phase 240V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-380VModel: IDF240D | Voltage: 3-phase 380V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-400VModel: IDF240D | Voltage: 3-phase 400V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-415VModel: IDF240D | Voltage: 3-phase 415V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF240D-9-440VModel: IDF240D | Voltage: 3-phase 440V (built-in transformer) | Cooling: Air-cooled | Air flow 50/60Hz (ANR): 43 / 50 m3/min | Port: 100A (4B) flange
IDF370D-3Model: IDF370D | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-220VModel: IDF370D | Voltage: 3-phase 220V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-240VModel: IDF370D | Voltage: 3-phase 240V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-380VModel: IDF370D | Voltage: 3-phase 380V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-400VModel: IDF370D | Voltage: 3-phase 400V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-415VModel: IDF370D | Voltage: 3-phase 415V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
IDF370D-9-440VModel: IDF370D | Voltage: 3-phase 440V (built-in transformer) | Cooling: Water-cooled | Air flow 50/60Hz (ANR): 54 / 65 m3/min | Port: 150A (6B) flange
