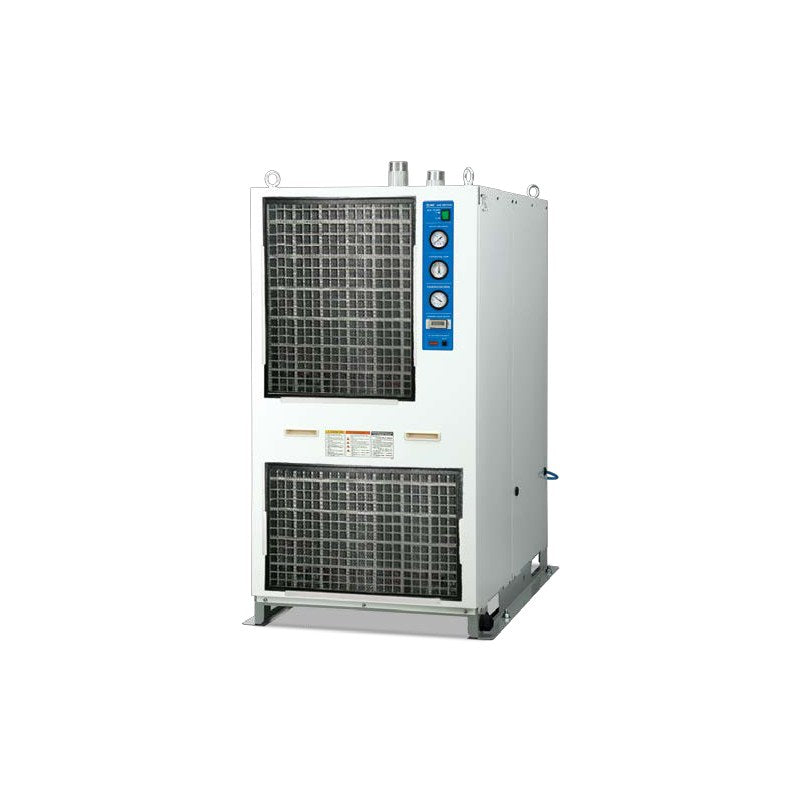

SMC IDF-E Refrigerated Air Dryer (IDF1E to IDF15E1)

SMC IDF-E Refrigerated Air Dryer (IDF1E to IDF15E1)

SMC IDF-E series compact air-cooled refrigerated air dryer, standard inlet air type, for compressors from 0.75 to 15 kW.

Key features

  • Eight sizes from IDF1E (0.1 m3/min) to IDF15E1 (3.1 m3/min at 60Hz, ANR)
  • Single-phase AC100V (10) on all sizes; AC200V (20) on IDF3E to IDF15E1
  • AC100V version supplied with plug-equipped power cord; AC200V version with terminal block connection
  • Float type auto drain built in; R134a refrigerant
  • Options as suffix letters: A, C, G, K (medium pressure 1.6 MPa), L, M (motor auto drain), R, S (power terminal block), T (run/alarm terminal)

Specifications

Fluid Compressed air
Inlet air temperature 5 to 50°C
Inlet air pressure 0.15 to 1.0 MPa (1.6 MPa with option K or L)
Ambient temperature 2 to 40°C (RH 85% or less)
Rated conditions Inlet 0.7 MPa, 35°C, ambient 32°C
Outlet pressure dew point 10°C
Condenser Air-cooled
Refrigerant R134a (HFC)
Auto drain Float type (1E-3E N.C., 4E-15E1 N.O.)
Mass 16 kg (IDF1E) to 46 kg (IDF15E1)
Source SMC Korea catalog CAT.KS30-8K (SMCKR_IDF_IDU.pdf), p. 9-10
IDF1E-10 Model: IDF1E | Compressor: 0.75 kW | Voltage: Single-phase AC100V 50Hz / 100-110V 60Hz | Air flow 50/60Hz (ANR): 0.10 / 0.12 m3/min | Port: Rc3/8
IDF2E-10 Model: IDF2E | Compressor: 1.5 kW | Voltage: Single-phase AC100V 50Hz / 100-110V 60Hz | Air flow 50/60Hz (ANR): 0.20 / 0.235 m3/min | Port: Rc3/8
IDF3E-10 Model: IDF3E | Compressor: 2.2 kW | Voltage: Single-phase AC100V 50Hz / 100-110V 60Hz | Air flow 50/60Hz (ANR): 0.32 / 0.37 m3/min | Port: Rc3/8
IDF3E-20 Model: IDF3E | Compressor: 2.2 kW | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 0.32 / 0.37 m3/min | Port: Rc3/8
IDF4E-10 Model: IDF4E | Compressor: 3.7 kW | Voltage: Single-phase AC100V 50Hz / 100-110V 60Hz | Air flow 50/60Hz (ANR): 0.52 / 0.57 m3/min | Port: Rc1/2
IDF4E-20 Model: IDF4E | Compressor: 3.7 kW | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 0.52 / 0.57 m3/min | Port: Rc1/2
IDF6E-10 Model: IDF6E | Compressor: 5.5 kW | Voltage: Single-phase AC100V 50Hz / 100-110V 60Hz | Air flow 50/60Hz (ANR): 0.75 / 0.82 m3/min | Port: Rc3/4
IDF6E-20 Model: IDF6E | Compressor: 5.5 kW | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 0.75 / 0.82 m3/min | Port: Rc3/4
IDF8E-10 Model: IDF8E | Compressor: 7.5 kW | Voltage: Single-phase AC100V 50Hz / 100-110V 60Hz | Air flow 50/60Hz (ANR): 1.22 / 1.32 m3/min | Port: Rc3/4
IDF8E-20 Model: IDF8E | Compressor: 7.5 kW | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 1.22 / 1.32 m3/min | Port: Rc3/4
IDF11E-10 Model: IDF11E | Compressor: 11 kW | Voltage: Single-phase AC100V 50Hz / 100-110V 60Hz | Air flow 50/60Hz (ANR): 1.65 / 1.82 m3/min | Port: Rc3/4
IDF11E-20 Model: IDF11E | Compressor: 11 kW | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 1.65 / 1.82 m3/min | Port: Rc3/4
IDF15E1-10 Model: IDF15E1 | Compressor: 15 kW | Voltage: Single-phase AC100V 50Hz / 100-110V 60Hz | Air flow 50/60Hz (ANR): 2.8 / 3.1 m3/min | Port: Rc1
IDF15E1-20 Model: IDF15E1 | Compressor: 15 kW | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 2.8 / 3.1 m3/min | Port: Rc1
