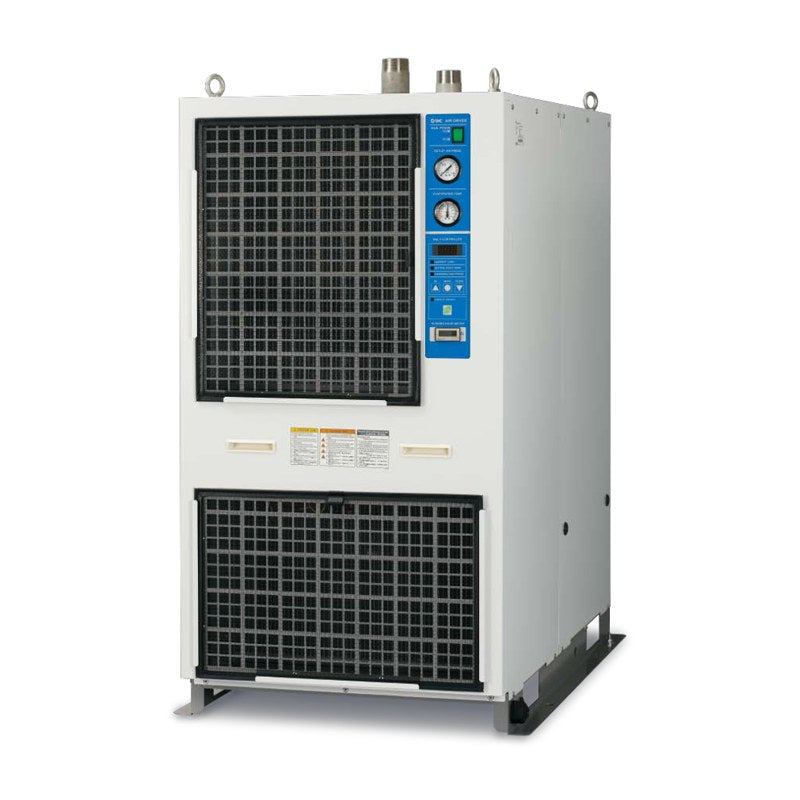

SMC IDF100FS/125FS/150FS Double Eco Refrigerated Air Dryer

SMC IDF100FS/125FS/150FS Double Eco Refrigerated Air Dryer

SMC IDF-FS Double Eco series refrigerated air dryer with digital scroll compressor and second reheater, for 100 to 150 kW compressors.

Key features

  • Digital scroll compressor plus second reheater: up to 76% lower power consumption and 25% less heat exhaust
  • ECO / normal operation switch; outlet dew point switchable from 10 to 30°C to suit season and environment
  • Ambient up to 45°C and inlet air up to 60°C; stainless steel heat exchanger, ozone-depletion-zero refrigerant
  • Exhaust direction selectable rear (standard), right (1), left (2) or top (3)
  • Options as suffix letters: C (copper tube anti-rust), K (medium pressure 1.6 MPa), P (metal nameplate), R (earth leakage breaker), V (timer solenoid auto drain)

Specifications

Fluid Compressed air
Inlet air temperature 5 to 60°C
Inlet air pressure 0.15 to 1.0 MPa (1.6 MPa with option K)
Ambient temperature 2 to 45°C (RH 85% or less)
Rated conditions Inlet 0.7 MPa, 40°C, ambient 32°C, dew point 10°C
Power supply 3-phase AC200V 50Hz / 200-220V 60Hz
Condenser Air-cooled
Refrigerant R407C (HFC)
Power consumption 50/60Hz 2.8/3.3 kW (100FS), 3.8/4.5 kW (125FS, 150FS)
Auto drain Large-capacity auto drain (N.O.)
Mass 228 / 255 / 340 kg
Source SMC Korea catalog IDF100FS/125FS/150FS (SMCKR_IDFFS.pdf), p. 77-78
IDF100FS-30 Model: IDF100FS | Compressor: 100 kW | Direction: Exhaust from rear | Air flow 50/60Hz (ANR): 16 / 18.8 m3/min | Port: R2
IDF100FS-30-1 Model: IDF100FS | Compressor: 100 kW | Direction: Exhaust from right side | Air flow 50/60Hz (ANR): 16 / 18.8 m3/min | Port: R2
IDF100FS-30-2 Model: IDF100FS | Compressor: 100 kW | Direction: Exhaust from left side | Air flow 50/60Hz (ANR): 16 / 18.8 m3/min | Port: R2
IDF100FS-30-3 Model: IDF100FS | Compressor: 100 kW | Direction: Exhaust from top | Air flow 50/60Hz (ANR): 16 / 18.8 m3/min | Port: R2
IDF125FS-30 Model: IDF125FS | Compressor: 125 kW | Direction: Exhaust from rear | Air flow 50/60Hz (ANR): 20.1 / 23.7 m3/min | Port: JIS flange 65A 10K
IDF125FS-30-1 Model: IDF125FS | Compressor: 125 kW | Direction: Exhaust from right side | Air flow 50/60Hz (ANR): 20.1 / 23.7 m3/min | Port: JIS flange 65A 10K
IDF125FS-30-2 Model: IDF125FS | Compressor: 125 kW | Direction: Exhaust from left side | Air flow 50/60Hz (ANR): 20.1 / 23.7 m3/min | Port: JIS flange 65A 10K
IDF125FS-30-3 Model: IDF125FS | Compressor: 125 kW | Direction: Exhaust from top | Air flow 50/60Hz (ANR): 20.1 / 23.7 m3/min | Port: JIS flange 65A 10K
IDF150FS-30 Model: IDF150FS | Compressor: 150 kW | Direction: Exhaust from rear | Air flow 50/60Hz (ANR): 25 / 27 m3/min | Port: JIS flange 80A 10K
IDF150FS-30-1 Model: IDF150FS | Compressor: 150 kW | Direction: Exhaust from right side | Air flow 50/60Hz (ANR): 25 / 27 m3/min | Port: JIS flange 80A 10K
IDF150FS-30-2 Model: IDF150FS | Compressor: 150 kW | Direction: Exhaust from left side | Air flow 50/60Hz (ANR): 25 / 27 m3/min | Port: JIS flange 80A 10K
IDF150FS-30-3 Model: IDF150FS | Compressor: 150 kW | Direction: Exhaust from top | Air flow 50/60Hz (ANR): 25 / 27 m3/min | Port: JIS flange 80A 10K
