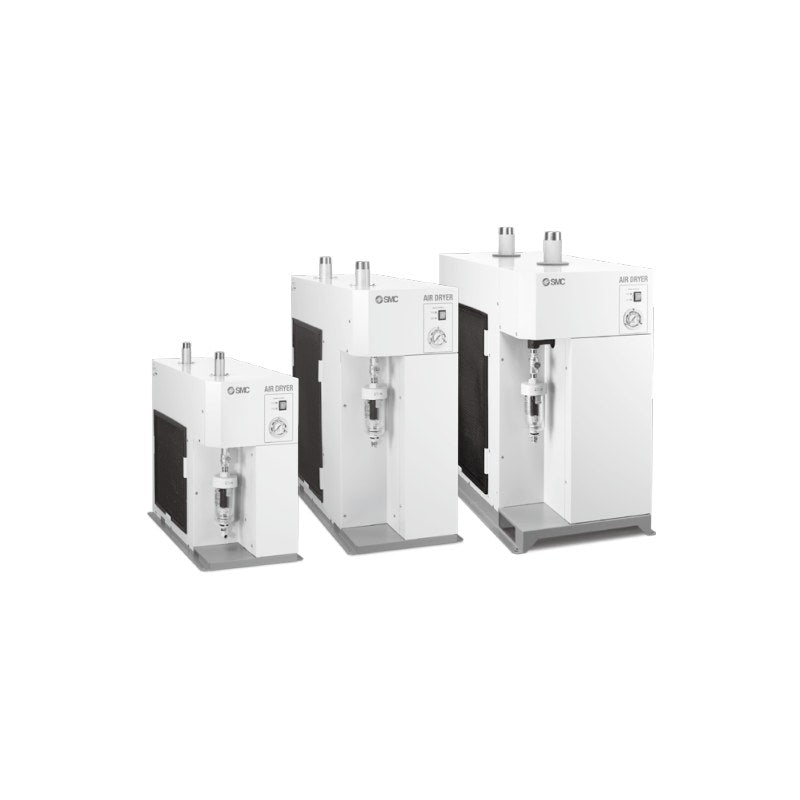

SMC IDF60/70/80/90 Refrigerated Air Dryer (High Temp. Type)

SMC IDF60/70/80/90 Refrigerated Air Dryer (High Temp. Type)

SMC IDF60 to IDF90 air-cooled refrigerated air dryer for mid-size compressors, rated for up to 45°C ambient and 65°C inlet air temperature.

Key features

  • Air flow up to 16.4 m3/min (IDF90, 60Hz, compressor suction condition), 24% more than the previous model
  • High-temperature environment: ambient up to 45°C, inlet air up to 65°C
  • Single-phase AC200V (20) or 3-phase AC200V (30) power supply; CE/UKCA marked (single-phase only)
  • Float type auto drain (N.O.) and dustproof filter standard; drain tube ø12 x 3.5 m supplied
  • Options as suffix letters: A (compressed air cooling), C (copper tube anti-rust), G (Chinese nameplate), L (large-capacity auto drain, 1.6 MPa), R (earth leakage breaker), T (run/alarm signal and remote terminal), V (timer solenoid auto drain, 1.6 MPa)

Specifications

Fluid Compressed air
Inlet air temperature 5 to 65°C
Inlet air pressure 0.15 to 1.0 MPa (1.6 MPa with option L or V)
Ambient temperature 2 to 45°C (RH 85% or less)
Rated conditions Inlet 0.7 MPa, 35°C (IDF60/70) / 40°C (IDF80/90), ambient 32°C
Outlet pressure dew point 10°C
Cooling method Air-cooled refrigeration
Refrigerant R410A (HFC)
Auto drain Float type, normally open (min. 0.1 MPa)
Mass IDF60 49 kg, IDF70 68 kg, IDF80 95 kg, IDF90 110 kg
Applicable compressor 22 to 75 kW
Source SMC Korea catalog CAT.KS30-19D (SMCKR_IDF.pdf), p. 5-7
IDF60-20 Model: IDF60 | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 5.3 / 6.1 m3/min | Port: R1
IDF60-30 Model: IDF60 | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 5.3 / 6.1 m3/min | Port: R1
IDF70-20 Model: IDF70 | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 7.5 / 8.6 m3/min | Port: R1 1/2
IDF70-30 Model: IDF70 | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 7.5 / 8.6 m3/min | Port: R1 1/2
IDF80-20 Model: IDF80 | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 10.9 / 12.8 m3/min | Port: R2
IDF80-30 Model: IDF80 | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 10.9 / 12.8 m3/min | Port: R2
IDF90-20 Model: IDF90 | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 13.5 / 15.5 m3/min | Port: R2
IDF90-30 Model: IDF90 | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 13.5 / 15.5 m3/min | Port: R2
Air DryersSMC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IDF60/70/80/90 Refrigerated Air Dryer (High Temp. Type)

Brand SMC·Air Dryers

Available part numbers (8)

IDF60-20, IDF60-30, IDF70-20, IDF70-30, IDF80-20, IDF80-30, IDF90-20, IDF90-30

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IDF60-20Model: IDF60 | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 5.3 / 6.1 m3/min | Port: R1
IDF60-30Model: IDF60 | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 5.3 / 6.1 m3/min | Port: R1
IDF70-20Model: IDF70 | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 7.5 / 8.6 m3/min | Port: R1 1/2
IDF70-30Model: IDF70 | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 7.5 / 8.6 m3/min | Port: R1 1/2
IDF80-20Model: IDF80 | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 10.9 / 12.8 m3/min | Port: R2
IDF80-30Model: IDF80 | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 10.9 / 12.8 m3/min | Port: R2
IDF90-20Model: IDF90 | Voltage: Single-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 13.5 / 15.5 m3/min | Port: R2
IDF90-30Model: IDF90 | Voltage: 3-phase AC200V 50Hz / 200-220V 60Hz | Air flow 50/60Hz (ANR): 13.5 / 15.5 m3/min | Port: R2
