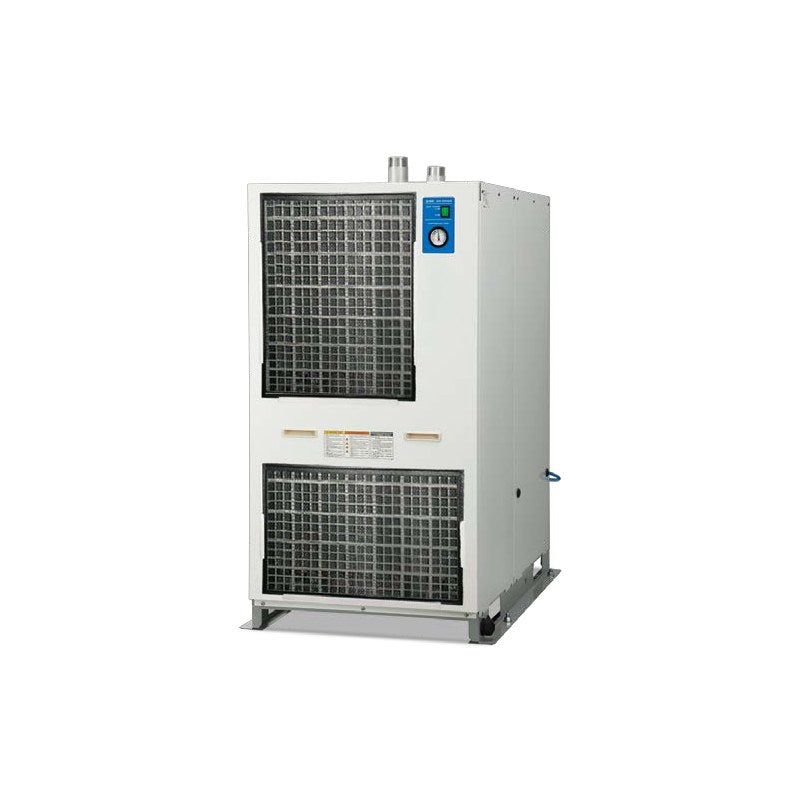

SMC IDFA Refrigerated Air Dryer (EU/Asia/Oceania, 3E to 150F)

SMC IDFA Refrigerated Air Dryer (EU/Asia/Oceania, 3E to 150F)

SMC IDFA series refrigerated air dryer for EU, Asia and Oceania, removing moisture from compressed air in standard (3E to 15E1, 60 to 90) and large (100F to 150F) sizes.

Key features

  • Air-cooled refrigerated dryer; inlet air up to 50C (3E-15E1), 65C (60-90) or 60C (100F-150F)
  • Ambient temperature up to 40C (3E-15E1) or 45C (60-150F); stainless steel heat exchanger
  • Low-GWP refrigerant versions with suffix F for EU: R1234yf (3E-15E1) or R454C (60-90, 100F-150F -40); not air-transportable
  • Standard refrigerants for Asia/Oceania: R134a, R410A or R407C depending on size
  • Options (not listed as separate codes): A compressed-air cooling, C copper tube anti-corrosion, G Chinese nameplate/manual, K medium pressure 1.6MPa, L large-capacity auto drain, R earth leakage breaker, T run/alarm signal terminal, V timer solenoid auto drain
  • Float-type auto drain (N.O.) fitted as standard; CE and UKCA marked

Specifications

Fluid Compressed air
Inlet air pressure 0.15 to 1.0 MPa (1.6 MPa with K/L/V options)
Rated inlet condition 0.7 MPa, 35C inlet, 25C ambient (100F-150F -38: 40C/32C)
Outlet pressure dew point 3, 7 or 10C (rated flow listed at 3C; -38 types 10C)
Ambient humidity 85% RH or less
Cooling method Air-cooled refrigeration
Auto drain Float type, normally open
Standards CE / UKCA
Source SMC Korea catalog CAT.KS30-26B (SMCKR_IDFA__E.pdf), p. 1-24
IDFA3E-23 Group: Standard IDFA-E | Size: 3E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc3/8 | Flow: 12 m3/h ANR at 3C PDP
IDFA3E-23-F Group: Standard IDFA-E | Size: 3E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc3/8 | Flow: 12 m3/h ANR at 3C PDP
IDFA4E-23 Group: Standard IDFA-E | Size: 4E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc1/2 | Flow: 24 m3/h ANR at 3C PDP
IDFA4E-23-F Group: Standard IDFA-E | Size: 4E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc1/2 | Flow: 24 m3/h ANR at 3C PDP
IDFA6E-23 Group: Standard IDFA-E | Size: 6E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc3/4 | Flow: 36 m3/h ANR at 3C PDP
IDFA6E-23-F Group: Standard IDFA-E | Size: 6E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc3/4 | Flow: 36 m3/h ANR at 3C PDP
IDFA6E-20 Group: Standard IDFA-E | Size: 6E | Voltage: 1-ph AC200V 50Hz/200-220V 60Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc3/4 | Flow: 36 m3/h ANR at 3C PDP
IDFA6E-20-F Group: Standard IDFA-E | Size: 6E | Voltage: 1-ph AC200V 50Hz/200-220V 60Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc3/4 | Flow: 36 m3/h ANR at 3C PDP
IDFA8E-23 Group: Standard IDFA-E | Size: 8E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc3/4 | Flow: 65 m3/h ANR at 3C PDP
IDFA8E-23-F Group: Standard IDFA-E | Size: 8E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc3/4 | Flow: 65 m3/h ANR at 3C PDP
IDFA11E-23 Group: Standard IDFA-E | Size: 11E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc3/4 | Flow: 80 m3/h ANR at 3C PDP
IDFA11E-23-F Group: Standard IDFA-E | Size: 11E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc3/4 | Flow: 80 m3/h ANR at 3C PDP
IDFA15E1-23 Group: Standard IDFA-E | Size: 15E1 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc1 | Flow: 120 m3/h ANR at 3C PDP
IDFA15E1-23-F Group: Standard IDFA-E | Size: 15E1 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc1 | Flow: 120 m3/h ANR at 3C PDP
IDFA60-23 Group: Standard IDFA60-90 | Size: 60 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R410A (Asia/Oceania) | Port: R1 | Flow: 204 m3/h ANR at 3C PDP
IDFA60-23-F Group: Standard IDFA60-90 | Size: 60 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R1 | Flow: 204 m3/h ANR at 3C PDP
IDFA70-23 Group: Standard IDFA60-90 | Size: 70 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R410A (Asia/Oceania) | Port: R1 1/2 | Flow: 312 m3/h ANR at 3C PDP
IDFA70-23-F Group: Standard IDFA60-90 | Size: 70 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R1 1/2 | Flow: 312 m3/h ANR at 3C PDP
IDFA80-23 Group: Standard IDFA60-90 | Size: 80 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R410A (Asia/Oceania) | Port: R2 | Flow: 552 m3/h ANR at 3C PDP
IDFA80-23-F Group: Standard IDFA60-90 | Size: 80 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R2 | Flow: 552 m3/h ANR at 3C PDP
IDFA90-23 Group: Standard IDFA60-90 | Size: 90 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R410A (Asia/Oceania) | Port: R2 | Flow: 810 m3/h ANR at 3C PDP
IDFA90-23-F Group: Standard IDFA60-90 | Size: 90 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R2 | Flow: 810 m3/h ANR at 3C PDP
IDFA100F-38 Group: Large IDFA-F | Size: 100F | Voltage: 3-ph AC380V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: R2 | Flow: 960 m3/h ANR at 10C PDP
IDFA100F-40 Group: Large IDFA-F | Size: 100F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: R2 | Flow: 860 m3/h ANR at 3C PDP
IDFA100F-40-F Group: Large IDFA-F | Size: 100F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R2 | Flow: 860 m3/h ANR at 3C PDP
IDFA125F-38 Group: Large IDFA-F | Size: 125F | Voltage: 3-ph AC380V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: R2 1/2 | Flow: 1210 m3/h ANR at 10C PDP
IDFA125F-40 Group: Large IDFA-F | Size: 125F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: R2 1/2 | Flow: 1100 m3/h ANR at 3C PDP
IDFA125F-40-F Group: Large IDFA-F | Size: 125F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R2 1/2 | Flow: 1100 m3/h ANR at 3C PDP
IDFA150F-38 Group: Large IDFA-F | Size: 150F | Voltage: 3-ph AC380V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: DIN flange 80 | Flow: 1500 m3/h ANR at 10C PDP
IDFA150F-40 Group: Large IDFA-F | Size: 150F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: DIN flange 80 | Flow: 1340 m3/h ANR at 3C PDP
IDFA150F-40-F Group: Large IDFA-F | Size: 150F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: DIN flange 80 | Flow: 1340 m3/h ANR at 3C PDP
Air DryersSMC
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IDFA Refrigerated Air Dryer (EU/Asia/Oceania, 3E to 150F)

Brand SMC·Air Dryers

Available part numbers (31)

IDFA3E-23, IDFA3E-23-F, IDFA4E-23, IDFA4E-23-F, IDFA6E-23, IDFA6E-23-F, IDFA6E-20, IDFA6E-20-F, IDFA8E-23, IDFA8E-23-F + 21 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IDFA3E-23Group: Standard IDFA-E | Size: 3E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc3/8 | Flow: 12 m3/h ANR at 3C PDP
IDFA3E-23-FGroup: Standard IDFA-E | Size: 3E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc3/8 | Flow: 12 m3/h ANR at 3C PDP
IDFA4E-23Group: Standard IDFA-E | Size: 4E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc1/2 | Flow: 24 m3/h ANR at 3C PDP
IDFA4E-23-FGroup: Standard IDFA-E | Size: 4E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc1/2 | Flow: 24 m3/h ANR at 3C PDP
IDFA6E-23Group: Standard IDFA-E | Size: 6E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc3/4 | Flow: 36 m3/h ANR at 3C PDP
IDFA6E-23-FGroup: Standard IDFA-E | Size: 6E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc3/4 | Flow: 36 m3/h ANR at 3C PDP
IDFA6E-20Group: Standard IDFA-E | Size: 6E | Voltage: 1-ph AC200V 50Hz/200-220V 60Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc3/4 | Flow: 36 m3/h ANR at 3C PDP
IDFA6E-20-FGroup: Standard IDFA-E | Size: 6E | Voltage: 1-ph AC200V 50Hz/200-220V 60Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc3/4 | Flow: 36 m3/h ANR at 3C PDP
IDFA8E-23Group: Standard IDFA-E | Size: 8E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc3/4 | Flow: 65 m3/h ANR at 3C PDP
IDFA8E-23-FGroup: Standard IDFA-E | Size: 8E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc3/4 | Flow: 65 m3/h ANR at 3C PDP
IDFA11E-23Group: Standard IDFA-E | Size: 11E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc3/4 | Flow: 80 m3/h ANR at 3C PDP
IDFA11E-23-FGroup: Standard IDFA-E | Size: 11E | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc3/4 | Flow: 80 m3/h ANR at 3C PDP
IDFA15E1-23Group: Standard IDFA-E | Size: 15E1 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R134a (Asia/Oceania) | Port: Rc1 | Flow: 120 m3/h ANR at 3C PDP
IDFA15E1-23-FGroup: Standard IDFA-E | Size: 15E1 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R1234yf low-GWP (EU) | Port: Rc1 | Flow: 120 m3/h ANR at 3C PDP
IDFA60-23Group: Standard IDFA60-90 | Size: 60 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R410A (Asia/Oceania) | Port: R1 | Flow: 204 m3/h ANR at 3C PDP
IDFA60-23-FGroup: Standard IDFA60-90 | Size: 60 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R1 | Flow: 204 m3/h ANR at 3C PDP
IDFA70-23Group: Standard IDFA60-90 | Size: 70 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R410A (Asia/Oceania) | Port: R1 1/2 | Flow: 312 m3/h ANR at 3C PDP
IDFA70-23-FGroup: Standard IDFA60-90 | Size: 70 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R1 1/2 | Flow: 312 m3/h ANR at 3C PDP
IDFA80-23Group: Standard IDFA60-90 | Size: 80 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R410A (Asia/Oceania) | Port: R2 | Flow: 552 m3/h ANR at 3C PDP
IDFA80-23-FGroup: Standard IDFA60-90 | Size: 80 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R2 | Flow: 552 m3/h ANR at 3C PDP
IDFA90-23Group: Standard IDFA60-90 | Size: 90 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R410A (Asia/Oceania) | Port: R2 | Flow: 810 m3/h ANR at 3C PDP
IDFA90-23-FGroup: Standard IDFA60-90 | Size: 90 | Voltage: 1-ph AC230V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R2 | Flow: 810 m3/h ANR at 3C PDP
IDFA100F-38Group: Large IDFA-F | Size: 100F | Voltage: 3-ph AC380V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: R2 | Flow: 960 m3/h ANR at 10C PDP
IDFA100F-40Group: Large IDFA-F | Size: 100F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: R2 | Flow: 860 m3/h ANR at 3C PDP
IDFA100F-40-FGroup: Large IDFA-F | Size: 100F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R2 | Flow: 860 m3/h ANR at 3C PDP
IDFA125F-38Group: Large IDFA-F | Size: 125F | Voltage: 3-ph AC380V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: R2 1/2 | Flow: 1210 m3/h ANR at 10C PDP
IDFA125F-40Group: Large IDFA-F | Size: 125F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: R2 1/2 | Flow: 1100 m3/h ANR at 3C PDP
IDFA125F-40-FGroup: Large IDFA-F | Size: 125F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: R2 1/2 | Flow: 1100 m3/h ANR at 3C PDP
IDFA150F-38Group: Large IDFA-F | Size: 150F | Voltage: 3-ph AC380V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: DIN flange 80 | Flow: 1500 m3/h ANR at 10C PDP
IDFA150F-40Group: Large IDFA-F | Size: 150F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R407C (Asia/Oceania) | Port: DIN flange 80 | Flow: 1340 m3/h ANR at 3C PDP
IDFA150F-40-FGroup: Large IDFA-F | Size: 150F | Voltage: 3-ph AC400V 50Hz | Refrigerant: R454C low-GWP (EU) | Port: DIN flange 80 | Flow: 1340 m3/h ANR at 3C PDP
