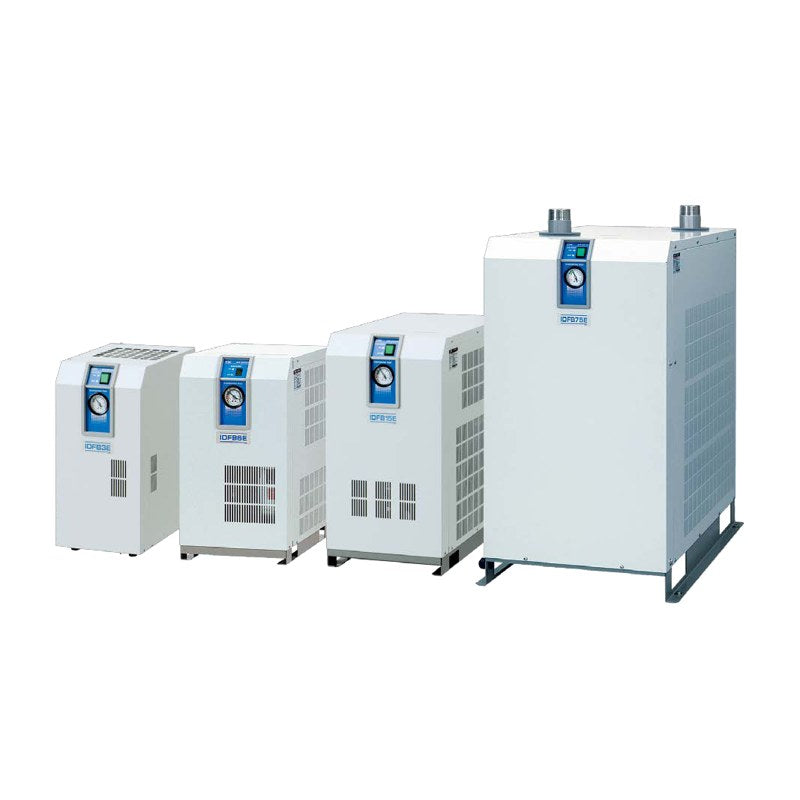

SMC IDFB Refrigerated Air Dryer (North/Latin America, 3E to 90)

SMC IDFB Refrigerated Air Dryer (North/Latin America, 3E to 90)

SMC IDFB series refrigerated air dryer built to North and Latin American specifications (UL), covering 10 to 459 SCFM in sizes 3E to 90.

Key features

  • Sizes 3E-15E (AC115V), 55E/75E (3-phase AC460V) and 60-90 (AC230V; IDFB60 also AC115V)
  • Low-GWP refrigerant versions with suffix F: R1234yf (3E-15E) or R454C (60-90); not air-transportable
  • Inlet air up to 122F/50C (3E-75E) or 149F/65C (60-90); ambient up to 104F/40C or 113F/45C
  • Thread code N for native NPT connections; listed codes are the blank (Rc adapter for 3E-15E, R thread for 55E-90) version
  • Options (not listed as separate codes): A air cooling, C copper tube anti-corrosion, K medium pressure, L large auto drain, R earth leakage breaker, S power terminal block, T signal terminal, V timer solenoid auto drain
  • UL certified / cULus listed

Specifications

Fluid Compressed air
Rated inlet condition 100 psi (0.7 MPa), 100F (37.8C) inlet and ambient
Outlet pressure dew point 37F (2.8C), 45F (7.2C) or 50F (10C)
Medium pressure Up to 240 psi (1.6 MPa) with K, L or V option
Cooling method Air-cooled refrigeration
Native connection NPT3/8 to NPT2 (thread code N)
Standards UL / cULus
Source SMC Korea catalog CAT.KS30-28A (SMCKR_IDFB.pdf), p. 1-28
IDFB3E-11 Group: IDFB-E 3E-15E | Size: 3E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc3/8 (adapter) | Flow: 17 m3/h ANR at 2.8C PDP
IDFB3E-11-F Group: IDFB-E 3E-15E | Size: 3E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc3/8 (adapter) | Flow: 17 m3/h ANR at 2.8C PDP
IDFB4E-11 Group: IDFB-E 3E-15E | Size: 4E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc1/2 (adapter) | Flow: 25 m3/h ANR at 2.8C PDP
IDFB4E-11-F Group: IDFB-E 3E-15E | Size: 4E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc1/2 (adapter) | Flow: 25 m3/h ANR at 2.8C PDP
IDFB6E-11 Group: IDFB-E 3E-15E | Size: 6E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc3/4 (adapter) | Flow: 43 m3/h ANR at 2.8C PDP
IDFB6E-11-F Group: IDFB-E 3E-15E | Size: 6E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc3/4 (adapter) | Flow: 43 m3/h ANR at 2.8C PDP
IDFB8E-11 Group: IDFB-E 3E-15E | Size: 8E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc3/4 (adapter) | Flow: 70 m3/h ANR at 2.8C PDP
IDFB8E-11-F Group: IDFB-E 3E-15E | Size: 8E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc3/4 (adapter) | Flow: 70 m3/h ANR at 2.8C PDP
IDFB11E-11 Group: IDFB-E 3E-15E | Size: 11E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc3/4 (adapter) | Flow: 100 m3/h ANR at 2.8C PDP
IDFB11E-11-F Group: IDFB-E 3E-15E | Size: 11E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc3/4 (adapter) | Flow: 100 m3/h ANR at 2.8C PDP
IDFB15E-11 Group: IDFB-E 3E-15E | Size: 15E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc1 (adapter) | Flow: 120 m3/h ANR at 2.8C PDP
IDFB15E-11-F Group: IDFB-E 3E-15E | Size: 15E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc1 (adapter) | Flow: 120 m3/h ANR at 2.8C PDP
IDFB55E-46 Group: IDFB-E 55E-75E | Size: 55E | Voltage: 3-ph AC460V 60Hz | Refrigerant: R407C | Port: R2 | Flow: 384 m3/h ANR at 2.8C PDP
IDFB75E-46 Group: IDFB-E 55E-75E | Size: 75E | Voltage: 3-ph AC460V 60Hz | Refrigerant: R407C | Port: R2 | Flow: 510 m3/h ANR at 2.8C PDP
IDFB60-23 Group: IDFB60-90 | Size: 60 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R410A | Port: R1 | Flow: 192 m3/h ANR at 2.8C PDP
IDFB60-23-F Group: IDFB60-90 | Size: 60 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R454C low-GWP | Port: R1 | Flow: 192 m3/h ANR at 2.8C PDP
IDFB70-23 Group: IDFB60-90 | Size: 70 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R410A | Port: R1 1/2 | Flow: 282 m3/h ANR at 2.8C PDP
IDFB70-23-F Group: IDFB60-90 | Size: 70 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R454C low-GWP | Port: R1 1/2 | Flow: 282 m3/h ANR at 2.8C PDP
IDFB80-23 Group: IDFB60-90 | Size: 80 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R410A | Port: R2 | Flow: 420 m3/h ANR at 2.8C PDP
IDFB80-23-F Group: IDFB60-90 | Size: 80 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R454C low-GWP | Port: R2 | Flow: 420 m3/h ANR at 2.8C PDP
IDFB90-23 Group: IDFB60-90 | Size: 90 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R410A | Port: R2 | Flow: 570 m3/h ANR at 2.8C PDP
IDFB90-23-F Group: IDFB60-90 | Size: 90 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R454C low-GWP | Port: R2 | Flow: 570 m3/h ANR at 2.8C PDP
IDFB60-11 Group: IDFB60-90 | Size: 60 | Voltage: 1-ph AC115V 60Hz | Refrigerant: R410A | Port: R1 | Flow: 192 m3/h ANR at 2.8C PDP
Air DryersSMC
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IDFB Refrigerated Air Dryer (North/Latin America, 3E to 90)

Brand SMC·Air Dryers

Available part numbers (23)

IDFB3E-11, IDFB3E-11-F, IDFB4E-11, IDFB4E-11-F, IDFB6E-11, IDFB6E-11-F, IDFB8E-11, IDFB8E-11-F, IDFB11E-11, IDFB11E-11-F + 13 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IDFB3E-11Group: IDFB-E 3E-15E | Size: 3E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc3/8 (adapter) | Flow: 17 m3/h ANR at 2.8C PDP
IDFB3E-11-FGroup: IDFB-E 3E-15E | Size: 3E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc3/8 (adapter) | Flow: 17 m3/h ANR at 2.8C PDP
IDFB4E-11Group: IDFB-E 3E-15E | Size: 4E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc1/2 (adapter) | Flow: 25 m3/h ANR at 2.8C PDP
IDFB4E-11-FGroup: IDFB-E 3E-15E | Size: 4E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc1/2 (adapter) | Flow: 25 m3/h ANR at 2.8C PDP
IDFB6E-11Group: IDFB-E 3E-15E | Size: 6E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc3/4 (adapter) | Flow: 43 m3/h ANR at 2.8C PDP
IDFB6E-11-FGroup: IDFB-E 3E-15E | Size: 6E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc3/4 (adapter) | Flow: 43 m3/h ANR at 2.8C PDP
IDFB8E-11Group: IDFB-E 3E-15E | Size: 8E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc3/4 (adapter) | Flow: 70 m3/h ANR at 2.8C PDP
IDFB8E-11-FGroup: IDFB-E 3E-15E | Size: 8E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc3/4 (adapter) | Flow: 70 m3/h ANR at 2.8C PDP
IDFB11E-11Group: IDFB-E 3E-15E | Size: 11E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc3/4 (adapter) | Flow: 100 m3/h ANR at 2.8C PDP
IDFB11E-11-FGroup: IDFB-E 3E-15E | Size: 11E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc3/4 (adapter) | Flow: 100 m3/h ANR at 2.8C PDP
IDFB15E-11Group: IDFB-E 3E-15E | Size: 15E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R134a | Port: Rc1 (adapter) | Flow: 120 m3/h ANR at 2.8C PDP
IDFB15E-11-FGroup: IDFB-E 3E-15E | Size: 15E | Voltage: 1-ph AC115V 60Hz | Refrigerant: R1234yf low-GWP | Port: Rc1 (adapter) | Flow: 120 m3/h ANR at 2.8C PDP
IDFB55E-46Group: IDFB-E 55E-75E | Size: 55E | Voltage: 3-ph AC460V 60Hz | Refrigerant: R407C | Port: R2 | Flow: 384 m3/h ANR at 2.8C PDP
IDFB75E-46Group: IDFB-E 55E-75E | Size: 75E | Voltage: 3-ph AC460V 60Hz | Refrigerant: R407C | Port: R2 | Flow: 510 m3/h ANR at 2.8C PDP
IDFB60-23Group: IDFB60-90 | Size: 60 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R410A | Port: R1 | Flow: 192 m3/h ANR at 2.8C PDP
IDFB60-23-FGroup: IDFB60-90 | Size: 60 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R454C low-GWP | Port: R1 | Flow: 192 m3/h ANR at 2.8C PDP
IDFB70-23Group: IDFB60-90 | Size: 70 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R410A | Port: R1 1/2 | Flow: 282 m3/h ANR at 2.8C PDP
IDFB70-23-FGroup: IDFB60-90 | Size: 70 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R454C low-GWP | Port: R1 1/2 | Flow: 282 m3/h ANR at 2.8C PDP
IDFB80-23Group: IDFB60-90 | Size: 80 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R410A | Port: R2 | Flow: 420 m3/h ANR at 2.8C PDP
IDFB80-23-FGroup: IDFB60-90 | Size: 80 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R454C low-GWP | Port: R2 | Flow: 420 m3/h ANR at 2.8C PDP
IDFB90-23Group: IDFB60-90 | Size: 90 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R410A | Port: R2 | Flow: 570 m3/h ANR at 2.8C PDP
IDFB90-23-FGroup: IDFB60-90 | Size: 90 | Voltage: 1-ph AC230V 60Hz | Refrigerant: R454C low-GWP | Port: R2 | Flow: 570 m3/h ANR at 2.8C PDP
IDFB60-11Group: IDFB60-90 | Size: 60 | Voltage: 1-ph AC115V 60Hz | Refrigerant: R410A | Port: R1 | Flow: 192 m3/h ANR at 2.8C PDP
