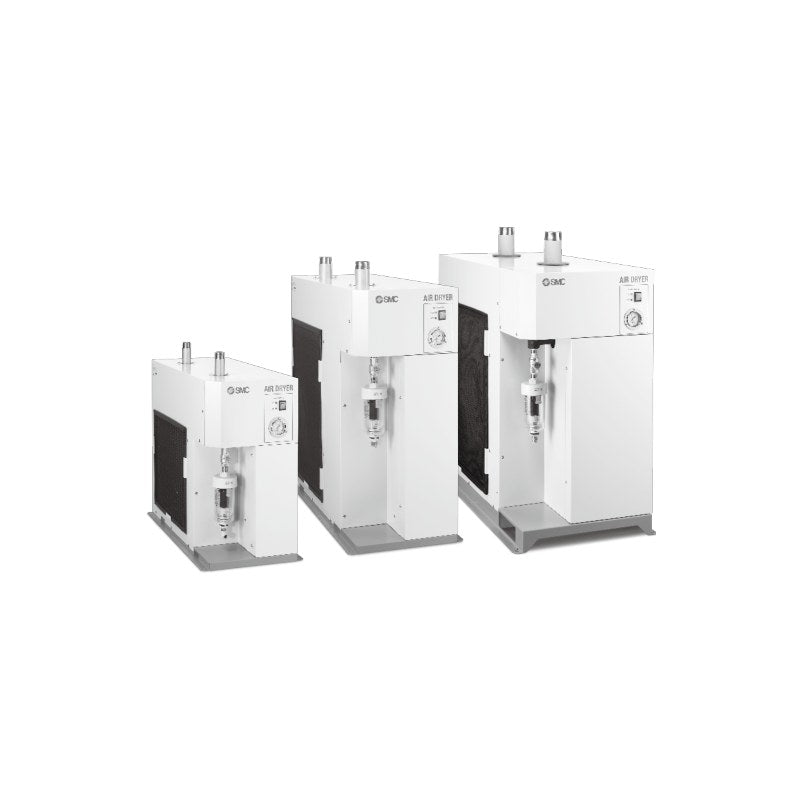

SMC IDFC Refrigerated Air Dryer (Southeast Asia Spec, AC230V)

SMC IDFC Refrigerated Air Dryer (Southeast Asia Spec, AC230V)

SMC IDFC60 to IDFC90 refrigerated air dryer, Southeast Asia specification for tropical high-temperature environments, single-phase AC230V 50Hz.

Key features

  • Ambient up to 45°C, inlet air up to 65°C, dew point range 3 to 20°C
  • Air flow up to 9.2 m3/min (IDFC90, 10°C dew point), 52% more than the previous model
  • Single-phase AC230V (50Hz) power supply
  • Float type auto drain with transparent case guard and dustproof filter
  • Options as suffix letters: C (copper tube anti-rust), G (Chinese nameplate/manual), L (large-capacity auto drain), R (earth leakage breaker), T (run/alarm and remote terminal), V (timer solenoid auto drain)

Specifications

Fluid Compressed air
Inlet air temperature 20 to 65°C
Inlet air pressure 0.15 to 1.0 MPa (1.6 MPa with option L or V)
Ambient temperature 20 to 45°C (RH 85% or less)
Rated conditions Inlet 0.7 MPa, 50°C, ambient 35°C
Power supply Single-phase AC230V 50Hz
Cooling method Air-cooled refrigeration
Refrigerant R410A (HFC)
Power consumption 1.0 / 1.6 / 2.4 / 2.8 kW
Mass 49 / 68 / 95 / 110 kg
Source SMC Korea catalog CAT.KS30-18C (SMCKR_IDFC.pdf), p. 5-6
IDFC60-23 Model: IDFC60 | Air flow at 10°C dew point: 2.8 m3/min | Port: R1
IDFC70-23 Model: IDFC70 | Air flow at 10°C dew point: 4.7 m3/min | Port: R1 1/2
IDFC80-23 Model: IDFC80 | Air flow at 10°C dew point: 6.5 m3/min | Port: R2
IDFC90-23 Model: IDFC90 | Air flow at 10°C dew point: 9.2 m3/min | Port: R2
Air DryersSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IDFC Refrigerated Air Dryer (Southeast Asia Spec, AC230V)

Brand SMC·Air Dryers

Available part numbers (4)

IDFC60-23, IDFC70-23, IDFC80-23, IDFC90-23

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IDFC60-23Model: IDFC60 | Air flow at 10°C dew point: 2.8 m3/min | Port: R1
IDFC70-23Model: IDFC70 | Air flow at 10°C dew point: 4.7 m3/min | Port: R1 1/2
IDFC80-23Model: IDFC80 | Air flow at 10°C dew point: 6.5 m3/min | Port: R2
IDFC90-23Model: IDFC90 | Air flow at 10°C dew point: 9.2 m3/min | Port: R2
