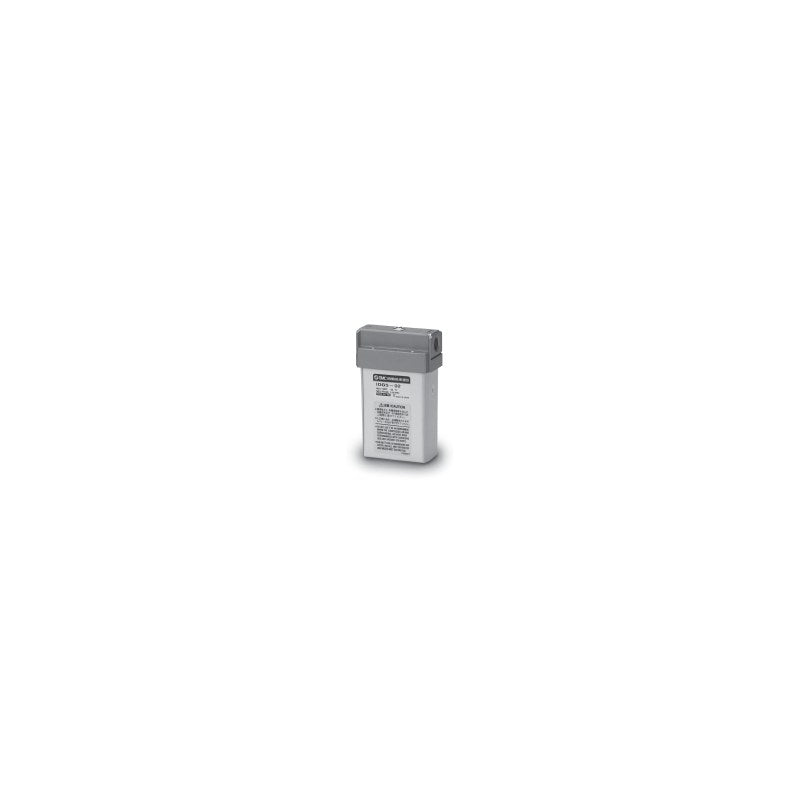

SMC IDGA Membrane Air Dryer (Purge Saving, Single & Unit Type)

SMC IDGA Membrane Air Dryer (Purge Saving, Single & Unit Type)

SMC IDGA purge-air-saving hollow-fiber membrane air dryer, sizes 30 to 100, for atmospheric dew points from -15°C down to -60°C, as a single unit or as M/V units with mist separators and regulator.

Key features

  • Purge air flow reduced by up to 39 L/min(ANR) versus the previous model (IDG50A); non-fluorocarbon, no power, no vibration or heat
  • Dew point types: standard -20°C, H -15°C, L -40°C and S -60°C (atmospheric dew point); outlet flow up to 500 L/min(ANR)
  • Dew point checker and built-in silencer for purge exhaust as standard
  • M unit: mist separator AFM40-A + micro mist separator AFD40-A; V unit adds AR40-B relief regulator (modular connection)
  • Unit drain options: manual valve, N.C./N.O. float auto drain (C/D), drain guide (J)
  • Semi-standard P (purge exhaust fitting), R (flow right to left); NPT (N) and G (F) threads and -X016/-X017/-X032 made-to-order on request

Specifications

Fluid Compressed air (no water droplets)
Inlet air pressure 0.3 to 1.0 MPa
Inlet air and ambient temperature -5 to 50°C (no freezing)
Rated condition Inlet 0.7 MPa, 25°C, inlet saturation temp. 25°C
Dew checker purge air 1 L/min(ANR) at 0.7 MPa
Port size Size 30/50: 1/4, 3/8; size 60/75/100: 3/8, 1/2
Single unit mass 0.78 kg (IDG30A) to 1.82 kg (IDG100LA)
Bracket assembly BM64 (IDG30/50A), BM65 (IDG60/75/100A)
Thread type Rc (listed codes)
Source SMC Korea catalog IDGA/IDG (SMCKR_IDG.pdf), p. 206, 208-209, 220, 222-223 (PDF p. 6, 8-9, 20, 22-23)
IDG30A-02 Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG30A-02B Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG30A-03 Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG30A-03B Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG30HA-02 Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG30HA-02B Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG30HA-03 Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG30HA-03B Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG30LA-02 Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG30LA-02B Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG30LA-03 Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG30LA-03B Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG50A-02 Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG50A-02B Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG50A-03 Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG50A-03B Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG50HA-02 Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG50HA-02B Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG50HA-03 Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG50HA-03B Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG50LA-02 Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG50LA-02B Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG50LA-03 Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG50LA-03B Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60LA-03 Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG60LA-03B Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60LA-04 Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG60LA-04B Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG60SA-03 Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG60SA-03B Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60SA-04 Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG60SA-04B Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG75LA-03 Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG75LA-03B Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG75LA-04 Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG75LA-04B Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG75SA-03 Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG75SA-03B Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG75SA-04 Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG75SA-04B Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG100LA-03 Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG100LA-03B Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG100LA-04 Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG100LA-04B Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG100SA-03 Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG100SA-03B Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG100SA-04 Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG100SA-04B Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG30AM4-02 Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30AM4-02C Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30AM4-02D Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30AM4-02J Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30AM4-03 Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30AM4-03C Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30AM4-03D Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30AM4-03J Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG30AV4-02 Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30AV4-02C Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30AV4-02D Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30AV4-02J Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30AV4-03 Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30AV4-03C Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30AV4-03D Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30AV4-03J Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG30HAM4-02 Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30HAM4-02C Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30HAM4-02D Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30HAM4-02J Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30HAM4-03 Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30HAM4-03C Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30HAM4-03D Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30HAM4-03J Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG30HAV4-02 Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30HAV4-02C Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30HAV4-02D Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30HAV4-02J Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30HAV4-03 Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30HAV4-03C Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30HAV4-03D Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30HAV4-03J Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG30LAM4-02 Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30LAM4-02C Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30LAM4-02D Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30LAM4-02J Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30LAM4-03 Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30LAM4-03C Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30LAM4-03D Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30LAM4-03J Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG30LAV4-02 Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30LAV4-02C Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30LAV4-02D Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30LAV4-02J Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30LAV4-03 Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30LAV4-03C Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30LAV4-03D Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30LAV4-03J Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50AM4-02 Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50AM4-02C Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50AM4-02D Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50AM4-02J Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50AM4-03 Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50AM4-03C Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50AM4-03D Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50AM4-03J Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50AV4-02 Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50AV4-02C Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50AV4-02D Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50AV4-02J Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50AV4-03 Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50AV4-03C Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50AV4-03D Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50AV4-03J Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50HAM4-02 Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50HAM4-02C Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50HAM4-02D Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50HAM4-02J Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50HAM4-03 Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50HAM4-03C Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50HAM4-03D Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50HAM4-03J Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50HAV4-02 Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50HAV4-02C Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50HAV4-02D Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50HAV4-02J Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50HAV4-03 Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50HAV4-03C Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50HAV4-03D Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50HAV4-03J Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50LAM4-02 Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50LAM4-02C Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50LAM4-02D Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50LAM4-02J Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50LAM4-03 Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50LAM4-03C Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50LAM4-03D Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50LAM4-03J Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50LAV4-02 Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50LAV4-02C Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50LAV4-02D Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50LAV4-02J Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50LAV4-03 Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50LAV4-03C Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50LAV4-03D Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50LAV4-03J Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60LAM4-03 Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60LAM4-03C Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG60LAM4-03D Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60LAM4-03J Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60LAM4-04 Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60LAM4-04C Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG60LAM4-04D Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60LAM4-04J Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60LAV4-03 Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60LAV4-03C Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG60LAV4-03D Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60LAV4-03J Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60LAV4-04 Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60LAV4-04C Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG60LAV4-04D Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60LAV4-04J Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60SAM4-03 Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60SAM4-03C Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG60SAM4-03D Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60SAM4-03J Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60SAM4-04 Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60SAM4-04C Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG60SAM4-04D Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60SAM4-04J Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60SAV4-03 Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60SAV4-03C Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG60SAV4-03D Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60SAV4-03J Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60SAV4-04 Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60SAV4-04C Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG60SAV4-04D Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60SAV4-04J Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75LAM4-03 Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG75LAM4-03C Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG75LAM4-03D Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG75LAM4-03J Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG75LAM4-04 Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75LAM4-04C Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG75LAM4-04D Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75LAM4-04J Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75LAV4-03 Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG75LAV4-03C Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG75LAV4-03D Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG75LAV4-03J Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG75LAV4-04 Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75LAV4-04C Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG75LAV4-04D Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75LAV4-04J Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75SAM4-03 Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG75SAM4-03C Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG75SAM4-03D Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG75SAM4-03J Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG75SAM4-04 Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75SAM4-04C Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG75SAM4-04D Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75SAM4-04J Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75SAV4-03 Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG75SAV4-03C Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG75SAV4-03D Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG75SAV4-03J Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG75SAV4-04 Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75SAV4-04C Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG75SAV4-04D Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75SAV4-04J Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100LAM4-03 Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG100LAM4-03C Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG100LAM4-03D Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG100LAM4-03J Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG100LAM4-04 Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100LAM4-04C Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG100LAM4-04D Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100LAM4-04J Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100LAV4-03 Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG100LAV4-03C Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG100LAV4-03D Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG100LAV4-03J Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG100LAV4-04 Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100LAV4-04C Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG100LAV4-04D Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100LAV4-04J Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100SAM4-03 Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG100SAM4-03C Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG100SAM4-03D Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG100SAM4-03J Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG100SAM4-04 Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100SAM4-04C Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG100SAM4-04D Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100SAM4-04J Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100SAV4-03 Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG100SAV4-03C Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG100SAV4-03D Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG100SAV4-03J Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG100SAV4-04 Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100SAV4-04C Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG100SAV4-04D Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100SAV4-04J Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
Air DryersSMC
240 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IDGA Membrane Air Dryer (Purge Saving, Single & Unit Type)

Brand SMC·Air Dryers

Available part numbers (240)

IDG30A-02, IDG30A-02B, IDG30A-03, IDG30A-03B, IDG30HA-02, IDG30HA-02B, IDG30HA-03, IDG30HA-03B, IDG30LA-02, IDG30LA-02B + 230 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IDG30A-02Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG30A-02BSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG30A-03Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG30A-03BSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG30HA-02Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG30HA-02BSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG30HA-03Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG30HA-03BSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG30LA-02Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG30LA-02BSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG30LA-03Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG30LA-03BSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG50A-02Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG50A-02BSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG50A-03Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG50A-03BSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG50HA-02Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG50HA-02BSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG50HA-03Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG50HA-03BSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG50LA-02Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG50LA-02BSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG50LA-03Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG50LA-03BSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60LA-03Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG60LA-03BSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60LA-04Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG60LA-04BSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG60SA-03Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG60SA-03BSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60SA-04Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG60SA-04BSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG75LA-03Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG75LA-03BSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG75LA-04Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG75LA-04BSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG75SA-03Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG75SA-03BSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG75SA-04Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG75SA-04BSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG100LA-03Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG100LA-03BSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG100LA-04Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG100LA-04BSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG100SA-03Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG100SA-03BSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG100SA-04Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG100SA-04BSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG30AM4-02Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30AM4-02CSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30AM4-02DSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30AM4-02JSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30AM4-03Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30AM4-03CSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30AM4-03DSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30AM4-03JSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG30AV4-02Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30AV4-02CSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30AV4-02DSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30AV4-02JSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30AV4-03Size: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30AV4-03CSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30AV4-03DSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30AV4-03JSize: 30 | Dew point (atm.): -20°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG30HAM4-02Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30HAM4-02CSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30HAM4-02DSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30HAM4-02JSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30HAM4-03Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30HAM4-03CSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30HAM4-03DSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30HAM4-03JSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG30HAV4-02Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30HAV4-02CSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30HAV4-02DSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30HAV4-02JSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30HAV4-03Size: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30HAV4-03CSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30HAV4-03DSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30HAV4-03JSize: 30 | Dew point (atm.): -15°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG30LAM4-02Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30LAM4-02CSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30LAM4-02DSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30LAM4-02JSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30LAM4-03Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30LAM4-03CSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30LAM4-03DSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30LAM4-03JSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG30LAV4-02Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG30LAV4-02CSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG30LAV4-02DSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG30LAV4-02JSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG30LAV4-03Size: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG30LAV4-03CSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG30LAV4-03DSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG30LAV4-03JSize: 30 | Dew point (atm.): -40°C | Outlet air flow: 75 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50AM4-02Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50AM4-02CSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50AM4-02DSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50AM4-02JSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50AM4-03Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50AM4-03CSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50AM4-03DSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50AM4-03JSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50AV4-02Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50AV4-02CSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50AV4-02DSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50AV4-02JSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50AV4-03Size: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50AV4-03CSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50AV4-03DSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50AV4-03JSize: 50 | Dew point (atm.): -20°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50HAM4-02Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50HAM4-02CSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50HAM4-02DSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50HAM4-02JSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50HAM4-03Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50HAM4-03CSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50HAM4-03DSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50HAM4-03JSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50HAV4-02Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50HAV4-02CSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50HAV4-02DSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50HAV4-02JSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50HAV4-03Size: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50HAV4-03CSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50HAV4-03DSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50HAV4-03JSize: 50 | Dew point (atm.): -15°C | Outlet air flow: 500 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50LAM4-02Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50LAM4-02CSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50LAM4-02DSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50LAM4-02JSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50LAM4-03Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50LAM4-03CSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50LAM4-03DSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50LAM4-03JSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG50LAV4-02Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG50LAV4-02CSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG50LAV4-02DSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG50LAV4-02JSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG50LAV4-03Size: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG50LAV4-03CSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG50LAV4-03DSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG50LAV4-03JSize: 50 | Dew point (atm.): -40°C | Outlet air flow: 110 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60LAM4-03Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60LAM4-03CSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG60LAM4-03DSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60LAM4-03JSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60LAM4-04Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60LAM4-04CSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG60LAM4-04DSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60LAM4-04JSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60LAV4-03Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60LAV4-03CSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG60LAV4-03DSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60LAV4-03JSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60LAV4-04Size: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60LAV4-04CSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG60LAV4-04DSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60LAV4-04JSize: 60 | Dew point (atm.): -40°C | Outlet air flow: 170 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60SAM4-03Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60SAM4-03CSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG60SAM4-03DSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60SAM4-03JSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60SAM4-04Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60SAM4-04CSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG60SAM4-04DSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60SAM4-04JSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60SAV4-03Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60SAV4-03CSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG60SAV4-03DSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60SAV4-03JSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60SAV4-04Size: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60SAV4-04CSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG60SAV4-04DSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60SAV4-04JSize: 60 | Dew point (atm.): -60°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75LAM4-03Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG75LAM4-03CSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG75LAM4-03DSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG75LAM4-03JSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG75LAM4-04Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75LAM4-04CSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG75LAM4-04DSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75LAM4-04JSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75LAV4-03Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG75LAV4-03CSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG75LAV4-03DSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG75LAV4-03JSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG75LAV4-04Size: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75LAV4-04CSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG75LAV4-04DSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75LAV4-04JSize: 75 | Dew point (atm.): -40°C | Outlet air flow: 240 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75SAM4-03Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG75SAM4-03CSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG75SAM4-03DSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG75SAM4-03JSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG75SAM4-04Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75SAM4-04CSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG75SAM4-04DSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75SAM4-04JSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75SAV4-03Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG75SAV4-03CSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG75SAV4-03DSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG75SAV4-03JSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG75SAV4-04Size: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75SAV4-04CSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG75SAV4-04DSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75SAV4-04JSize: 75 | Dew point (atm.): -60°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100LAM4-03Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG100LAM4-03CSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG100LAM4-03DSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG100LAM4-03JSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG100LAM4-04Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100LAM4-04CSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG100LAM4-04DSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100LAM4-04JSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100LAV4-03Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG100LAV4-03CSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG100LAV4-03DSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG100LAV4-03JSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG100LAV4-04Size: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100LAV4-04CSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG100LAV4-04DSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100LAV4-04JSize: 100 | Dew point (atm.): -40°C | Outlet air flow: 300 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100SAM4-03Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG100SAM4-03CSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG100SAM4-03DSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG100SAM4-03JSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG100SAM4-04Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100SAM4-04CSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG100SAM4-04DSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100SAM4-04JSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100SAV4-03Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG100SAV4-03CSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG100SAV4-03DSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG100SAV4-03JSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG100SAV4-04Size: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100SAV4-04CSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.C. auto drain (C)
IDG100SAV4-04DSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100SAV4-04JSize: 100 | Dew point (atm.): -60°C | Outlet air flow: 150 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
