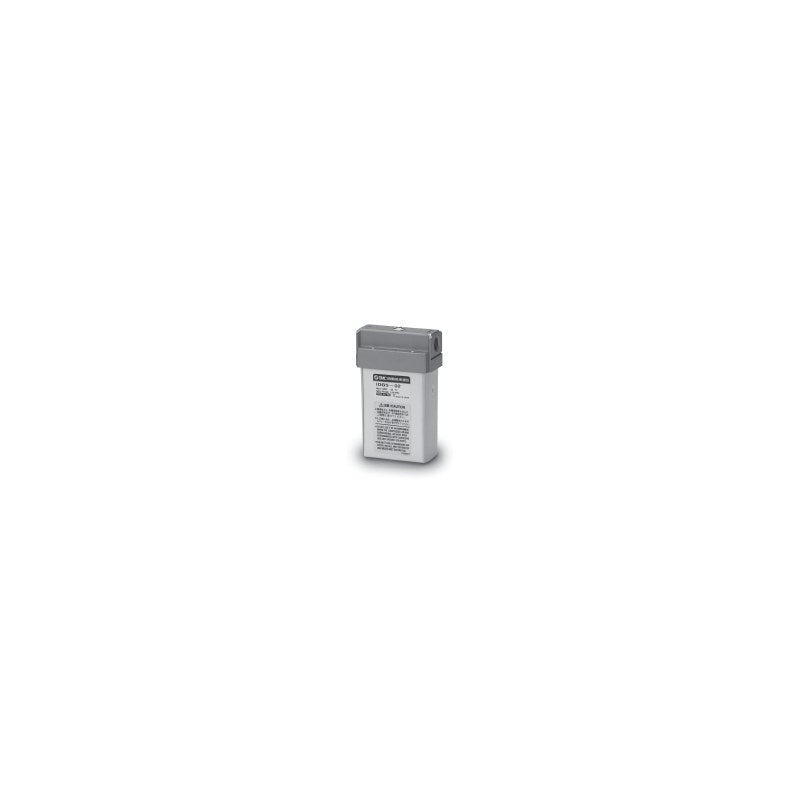

SMC IDG Membrane Air Dryer (Single & Unit Type, IDG1 to IDG100)

SMC IDG Membrane Air Dryer (Single & Unit Type, IDG1 to IDG100)

SMC IDG series hollow-fiber membrane air dryer for -20°C or -15°C (H) atmospheric dew point, outlet flow 10 to 1000 L/min(ANR), as a single unit or M/V unit with separators and regulator.

Key features

  • Hollow-fiber membrane: non-fluorocarbon, no power supply, no vibration or heat generation
  • Eight sizes from IDG1 (tube type, ø6 one-touch fitting option) to IDG100 (1000 L/min(ANR))
  • Dew point checker standard on IDG10 and larger (semi-standard S on IDG3/5); purge exhaust silencer built in
  • M unit: mist + micro mist separator (sizes 3-20, modular) or pre-filter micro mist separator AMH (sizes 60-100, nipple joint); V unit adds a relief regulator
  • Unit drain options: manual valve, N.C. auto drain (C, sizes 3-20), N.O. auto drain (D, sizes 10-100), drain guide (J)
  • Semi-standard P (purge exhaust fitting), R (flow right to left), S (dew checker, IDG3/5); NPT/G threads and -X made-to-order on request

Specifications

Fluid Compressed air (no water droplets)
Inlet air pressure 0.3 to 0.85 MPa (IDG1-20), 0.3 to 1.0 MPa (IDG60-100)
Inlet air and ambient temperature -5 to 55°C (IDG1-20), -5 to 50°C (IDG60-100), no freezing
Rated condition Inlet 0.7 MPa, 25°C, inlet saturation temp. 25°C
Dew checker purge air 1 L/min(ANR) at 0.7 MPa (except IDG1, IDG3H/5H)
Single unit mass 0.11 kg (IDG1) to 1.55 kg (IDG100)
Bracket assembly BM59 (IDG3/5), BM61 (IDG10), BM63 (IDG20), BM65 (IDG60-100)
Thread type Rc (listed codes)
Source SMC Korea catalog IDGA/IDG (SMCKR_IDG.pdf), p. 207-208, 221-222 (PDF p. 7-8, 21-22)
IDG1-02 Size: 1 | Dew point (atm.): -20°C | Outlet air flow: 10 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG1-C06 Size: 1 | Dew point (atm.): -20°C | Outlet air flow: 10 L/min(ANR) | Configuration: Single unit | Port size: ø6 one-touch fitting | Option/drain: None
IDG3-01 Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: None
IDG3-01B Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: With bracket (B)
IDG3-02 Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG3-02B Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG3H-01 Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: None
IDG3H-01B Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: With bracket (B)
IDG3H-02 Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG3H-02B Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG5-01 Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: None
IDG5-01B Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: With bracket (B)
IDG5-02 Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG5-02B Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG5H-01 Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: None
IDG5H-01B Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: With bracket (B)
IDG5H-02 Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG5H-02B Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG10-02 Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG10-02B Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG10-03 Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG10-03B Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG10H-02 Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG10H-02B Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG10H-03 Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG10H-03B Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG20-02 Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG20-02B Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG20-03 Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG20-03B Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG20H-02 Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG20H-02B Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG20H-03 Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG20H-03B Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60-03 Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG60-03B Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60-04 Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG60-04B Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG60H-03 Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG60H-03B Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60H-04 Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG60H-04B Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG75-04 Size: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG75-04B Size: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG75H-04 Size: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG75H-04B Size: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG100-04 Size: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG100-04B Size: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG100H-04 Size: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG100H-04B Size: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG3M4-01 Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG3M4-01C Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG3M4-01J Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG3M4-02 Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG3M4-02C Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG3M4-02J Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG3V4-01 Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG3V4-01C Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG3V4-01J Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG3V4-02 Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG3V4-02C Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG3V4-02J Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG3HM4-01 Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG3HM4-01C Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG3HM4-01J Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG3HM4-02 Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG3HM4-02C Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG3HM4-02J Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG3HV4-01 Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG3HV4-01C Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG3HV4-01J Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG3HV4-02 Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG3HV4-02C Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG3HV4-02J Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG5M4-01 Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG5M4-01C Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG5M4-01J Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG5M4-02 Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG5M4-02C Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG5M4-02J Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG5V4-01 Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG5V4-01C Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG5V4-01J Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG5V4-02 Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG5V4-02C Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG5V4-02J Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG5HM4-01 Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG5HM4-01C Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG5HM4-01J Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG5HM4-02 Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG5HM4-02C Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG5HM4-02J Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG5HV4-01 Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG5HV4-01C Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG5HV4-01J Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG5HV4-02 Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG5HV4-02C Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG5HV4-02J Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG10M4-02 Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG10M4-02C Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG10M4-02D Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG10M4-02J Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG10M4-03 Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG10M4-03C Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG10M4-03D Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG10M4-03J Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG10V4-02 Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG10V4-02C Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG10V4-02D Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG10V4-02J Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG10V4-03 Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG10V4-03C Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG10V4-03D Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG10V4-03J Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG10HM4-02 Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG10HM4-02C Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG10HM4-02D Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG10HM4-02J Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG10HM4-03 Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG10HM4-03C Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG10HM4-03D Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG10HM4-03J Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG10HV4-02 Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG10HV4-02C Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG10HV4-02D Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG10HV4-02J Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG10HV4-03 Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG10HV4-03C Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG10HV4-03D Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG10HV4-03J Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG20M4-02 Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG20M4-02C Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG20M4-02D Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG20M4-02J Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG20M4-03 Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG20M4-03C Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG20M4-03D Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG20M4-03J Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG20V4-02 Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG20V4-02C Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG20V4-02D Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG20V4-02J Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG20V4-03 Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG20V4-03C Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG20V4-03D Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG20V4-03J Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG20HM4-02 Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG20HM4-02C Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG20HM4-02D Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG20HM4-02J Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG20HM4-03 Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG20HM4-03C Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG20HM4-03D Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG20HM4-03J Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG20HV4-02 Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG20HV4-02C Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG20HV4-02D Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG20HV4-02J Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG20HV4-03 Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG20HV4-03C Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG20HV4-03D Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG20HV4-03J Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60M2-03 Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60M2-03D Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60M2-03J Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60M2-04 Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60M2-04D Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60M2-04J Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60V4-03 Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60V4-03D Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60V4-03J Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60V4-04 Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60V4-04D Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60V4-04J Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60HM2-03 Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60HM2-03D Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60HM2-03J Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60HM2-04 Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60HM2-04D Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60HM2-04J Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60HV4-03 Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60HV4-03D Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60HV4-03J Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60HV4-04 Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60HV4-04D Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60HV4-04J Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75M2-04 Size: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75M2-04D Size: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75M2-04J Size: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75V4-04 Size: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75V4-04D Size: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75V4-04J Size: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75HM2-04 Size: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75HM2-04D Size: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75HM2-04J Size: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75HV4-04 Size: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75HV4-04D Size: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75HV4-04J Size: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100M2-04 Size: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100M2-04D Size: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100M2-04J Size: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100V4-04 Size: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100V4-04D Size: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100V4-04J Size: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100HM2-04 Size: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100HM2-04D Size: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100HM2-04J Size: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100HV4-04 Size: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100HV4-04D Size: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100HV4-04J Size: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
Air DryersSMC
210 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IDG Membrane Air Dryer (Single & Unit Type, IDG1 to IDG100)

Brand SMC·Air Dryers

Available part numbers (210)

IDG1-02, IDG1-C06, IDG3-01, IDG3-01B, IDG3-02, IDG3-02B, IDG3H-01, IDG3H-01B, IDG3H-02, IDG3H-02B + 200 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IDG1-02Size: 1 | Dew point (atm.): -20°C | Outlet air flow: 10 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG1-C06Size: 1 | Dew point (atm.): -20°C | Outlet air flow: 10 L/min(ANR) | Configuration: Single unit | Port size: ø6 one-touch fitting | Option/drain: None
IDG3-01Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: None
IDG3-01BSize: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: With bracket (B)
IDG3-02Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG3-02BSize: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG3H-01Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: None
IDG3H-01BSize: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: With bracket (B)
IDG3H-02Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG3H-02BSize: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG5-01Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: None
IDG5-01BSize: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: With bracket (B)
IDG5-02Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG5-02BSize: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG5H-01Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: None
IDG5H-01BSize: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/8 | Option/drain: With bracket (B)
IDG5H-02Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG5H-02BSize: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG10-02Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG10-02BSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG10-03Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG10-03BSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG10H-02Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG10H-02BSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG10H-03Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG10H-03BSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG20-02Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG20-02BSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG20-03Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG20-03BSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG20H-02Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: None
IDG20H-02BSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc1/4 | Option/drain: With bracket (B)
IDG20H-03Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG20H-03BSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60-03Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG60-03BSize: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60-04Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG60-04BSize: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG60H-03Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: None
IDG60H-03BSize: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc3/8 | Option/drain: With bracket (B)
IDG60H-04Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG60H-04BSize: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG75-04Size: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG75-04BSize: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG75H-04Size: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG75H-04BSize: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG100-04Size: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG100-04BSize: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG100H-04Size: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: None
IDG100H-04BSize: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: Single unit | Port size: Rc1/2 | Option/drain: With bracket (B)
IDG3M4-01Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG3M4-01CSize: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG3M4-01JSize: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG3M4-02Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG3M4-02CSize: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG3M4-02JSize: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG3V4-01Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG3V4-01CSize: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG3V4-01JSize: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG3V4-02Size: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG3V4-02CSize: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG3V4-02JSize: 3 | Dew point (atm.): -20°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG3HM4-01Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG3HM4-01CSize: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG3HM4-01JSize: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG3HM4-02Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG3HM4-02CSize: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG3HM4-02JSize: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG3HV4-01Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG3HV4-01CSize: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG3HV4-01JSize: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG3HV4-02Size: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG3HV4-02CSize: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG3HV4-02JSize: 3 | Dew point (atm.): -15°C | Outlet air flow: 25 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG5M4-01Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG5M4-01CSize: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG5M4-01JSize: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG5M4-02Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG5M4-02CSize: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG5M4-02JSize: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG5V4-01Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG5V4-01CSize: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG5V4-01JSize: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG5V4-02Size: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG5V4-02CSize: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG5V4-02JSize: 5 | Dew point (atm.): -20°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG5HM4-01Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG5HM4-01CSize: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG5HM4-01JSize: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG5HM4-02Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG5HM4-02CSize: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG5HM4-02JSize: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG5HV4-01Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Manual drain valve
IDG5HV4-01CSize: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: N.C. auto drain (C)
IDG5HV4-01JSize: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/8 | Option/drain: Drain guide (J)
IDG5HV4-02Size: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG5HV4-02CSize: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG5HV4-02JSize: 5 | Dew point (atm.): -15°C | Outlet air flow: 50 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG10M4-02Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG10M4-02CSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG10M4-02DSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG10M4-02JSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG10M4-03Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG10M4-03CSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG10M4-03DSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG10M4-03JSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG10V4-02Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG10V4-02CSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG10V4-02DSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG10V4-02JSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG10V4-03Size: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG10V4-03CSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG10V4-03DSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG10V4-03JSize: 10 | Dew point (atm.): -20°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG10HM4-02Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG10HM4-02CSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG10HM4-02DSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG10HM4-02JSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG10HM4-03Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG10HM4-03CSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG10HM4-03DSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG10HM4-03JSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG10HV4-02Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG10HV4-02CSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG10HV4-02DSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG10HV4-02JSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG10HV4-03Size: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG10HV4-03CSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG10HV4-03DSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG10HV4-03JSize: 10 | Dew point (atm.): -15°C | Outlet air flow: 100 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG20M4-02Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG20M4-02CSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG20M4-02DSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG20M4-02JSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG20M4-03Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG20M4-03CSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG20M4-03DSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG20M4-03JSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG20V4-02Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG20V4-02CSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG20V4-02DSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG20V4-02JSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG20V4-03Size: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG20V4-03CSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG20V4-03DSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG20V4-03JSize: 20 | Dew point (atm.): -20°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG20HM4-02Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG20HM4-02CSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG20HM4-02DSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG20HM4-02JSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG20HM4-03Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG20HM4-03CSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG20HM4-03DSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG20HM4-03JSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: M unit (mist + micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG20HV4-02Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Manual drain valve
IDG20HV4-02CSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.C. auto drain (C)
IDG20HV4-02DSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: N.O. auto drain (D)
IDG20HV4-02JSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc1/4 | Option/drain: Drain guide (J)
IDG20HV4-03Size: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG20HV4-03CSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.C. auto drain (C)
IDG20HV4-03DSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG20HV4-03JSize: 20 | Dew point (atm.): -15°C | Outlet air flow: 200 L/min(ANR) | Configuration: V unit (M unit + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60M2-03Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60M2-03DSize: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60M2-03JSize: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60M2-04Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60M2-04DSize: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60M2-04JSize: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60V4-03Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60V4-03DSize: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60V4-03JSize: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60V4-04Size: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60V4-04DSize: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60V4-04JSize: 60 | Dew point (atm.): -20°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60HM2-03Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60HM2-03DSize: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60HM2-03JSize: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60HM2-04Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60HM2-04DSize: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60HM2-04JSize: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG60HV4-03Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: Manual drain valve
IDG60HV4-03DSize: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: N.O. auto drain (D)
IDG60HV4-03JSize: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc3/8 | Option/drain: Drain guide (J)
IDG60HV4-04Size: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG60HV4-04DSize: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG60HV4-04JSize: 60 | Dew point (atm.): -15°C | Outlet air flow: 600 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75M2-04Size: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75M2-04DSize: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75M2-04JSize: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75V4-04Size: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75V4-04DSize: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75V4-04JSize: 75 | Dew point (atm.): -20°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75HM2-04Size: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75HM2-04DSize: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75HM2-04JSize: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG75HV4-04Size: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG75HV4-04DSize: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG75HV4-04JSize: 75 | Dew point (atm.): -15°C | Outlet air flow: 750 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100M2-04Size: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100M2-04DSize: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100M2-04JSize: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100V4-04Size: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100V4-04DSize: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100V4-04JSize: 100 | Dew point (atm.): -20°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100HM2-04Size: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100HM2-04DSize: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100HM2-04JSize: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: M unit (pre-filter micro mist sep.) | Port size: Rc1/2 | Option/drain: Drain guide (J)
IDG100HV4-04Size: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Manual drain valve
IDG100HV4-04DSize: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: N.O. auto drain (D)
IDG100HV4-04JSize: 100 | Dew point (atm.): -15°C | Outlet air flow: 1000 L/min(ANR) | Configuration: V unit (pre-filter MMS + regulator) | Port size: Rc1/2 | Option/drain: Drain guide (J)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
