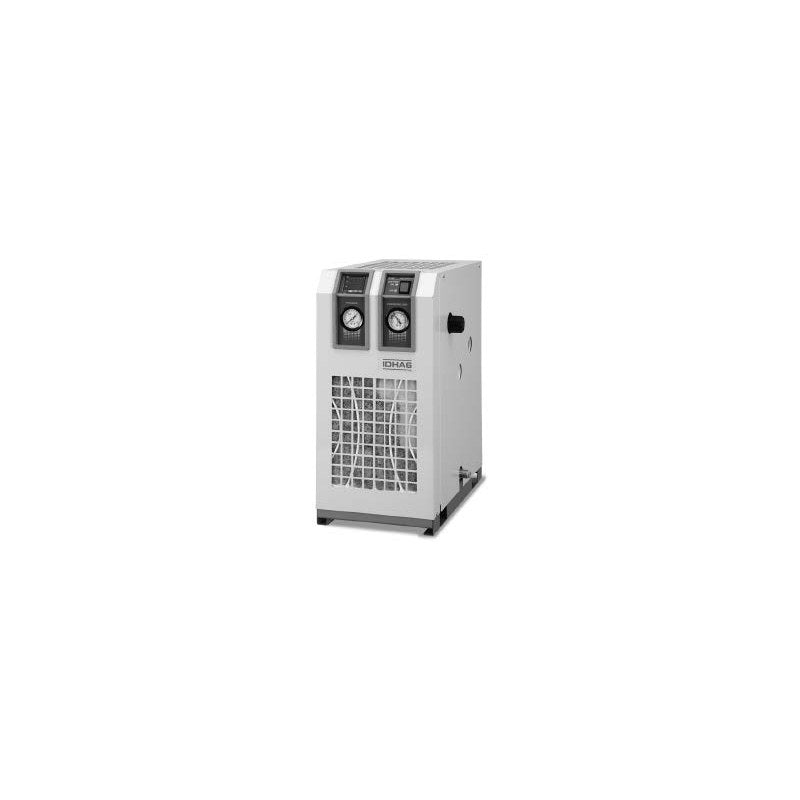

SMC IDH Thermo-Dryer (Air Temperature Control, 400/600 L/min)

SMC IDH Thermo-Dryer (Air Temperature Control, 400/600 L/min)

SMC IDH series thermo-dryer combining refrigerated drying, pressure regulation, heater temperature control and fine filtration to supply clean, dry air at a stable temperature.

Key features

  • Outlet air temperature adjustable 15 to 30C with stability of +/-0.1C (heater, PID control)
  • Outlet pressure set range 0.15 to 0.85 MPa via built-in regulator; outlet pressure dew point 10C
  • Built-in filters: AMH micro mist separator with prefilter and AME super mist separator (0.01 um, 99.9%)
  • IDH for Japan (AC100V/200V), IDHA for Europe/SE Asia (AC230V, CE/UKCA)
  • Options (not listed): E auto drain normally closed, G Chinese nameplate/manual

Specifications

Fluid Compressed air
Inlet air temperature 5 to 40C
Inlet air pressure 0.3 to 1.0 MPa
Ambient temperature 15 to 35C (85% RH or less)
Flow range IDH4: 100-500, IDH6: 200-800 L/min ANR
Outlet pressure dew point 10C
Filtration 0.01 um (99.9% capture)
Refrigerant R134a
Mass 26 kg (size 4) / 37 kg (size 6)
Source SMC Korea catalog IDH series (SMCKR_IDH.pdf), p. 1-11
IDH4-10 Size: 4 (400 L/min ANR) | Voltage: 1-ph AC100V 50/60Hz | Market: Japan | Built-in units: Regulator + AMH + AME filters | Port: Rc3/8
IDH4-10A Size: 4 (400 L/min ANR) | Voltage: 1-ph AC100V 50/60Hz | Market: Japan | Built-in units: Regulator + AMH filter | Port: Rc3/8
IDH4-10B Size: 4 (400 L/min ANR) | Voltage: 1-ph AC100V 50/60Hz | Market: Japan | Built-in units: Regulator only | Port: Rc3/8
IDH4-20 Size: 4 (400 L/min ANR) | Voltage: 1-ph AC200V 50/60Hz | Market: Japan | Built-in units: Regulator + AMH + AME filters | Port: Rc3/8
IDH4-20A Size: 4 (400 L/min ANR) | Voltage: 1-ph AC200V 50/60Hz | Market: Japan | Built-in units: Regulator + AMH filter | Port: Rc3/8
IDH4-20B Size: 4 (400 L/min ANR) | Voltage: 1-ph AC200V 50/60Hz | Market: Japan | Built-in units: Regulator only | Port: Rc3/8
IDH6-10 Size: 6 (600 L/min ANR) | Voltage: 1-ph AC100V 50/60Hz | Market: Japan | Built-in units: Regulator + AMH + AME filters | Port: Rc1/2
IDH6-10A Size: 6 (600 L/min ANR) | Voltage: 1-ph AC100V 50/60Hz | Market: Japan | Built-in units: Regulator + AMH filter | Port: Rc1/2
IDH6-10B Size: 6 (600 L/min ANR) | Voltage: 1-ph AC100V 50/60Hz | Market: Japan | Built-in units: Regulator only | Port: Rc1/2
IDH6-20 Size: 6 (600 L/min ANR) | Voltage: 1-ph AC200V 50/60Hz | Market: Japan | Built-in units: Regulator + AMH + AME filters | Port: Rc1/2
IDH6-20A Size: 6 (600 L/min ANR) | Voltage: 1-ph AC200V 50/60Hz | Market: Japan | Built-in units: Regulator + AMH filter | Port: Rc1/2
IDH6-20B Size: 6 (600 L/min ANR) | Voltage: 1-ph AC200V 50/60Hz | Market: Japan | Built-in units: Regulator only | Port: Rc1/2
IDHA4-23 Size: 4 (400 L/min ANR) | Voltage: 1-ph AC230V 50/60Hz | Market: Europe/SE Asia | Built-in units: Regulator + AMH + AME filters | Port: Rc3/8
IDHA4-23A Size: 4 (400 L/min ANR) | Voltage: 1-ph AC230V 50/60Hz | Market: Europe/SE Asia | Built-in units: Regulator + AMH filter | Port: Rc3/8
IDHA4-23B Size: 4 (400 L/min ANR) | Voltage: 1-ph AC230V 50/60Hz | Market: Europe/SE Asia | Built-in units: Regulator only | Port: Rc3/8
IDHA6-23 Size: 6 (600 L/min ANR) | Voltage: 1-ph AC230V 50/60Hz | Market: Europe/SE Asia | Built-in units: Regulator + AMH + AME filters | Port: Rc1/2
IDHA6-23A Size: 6 (600 L/min ANR) | Voltage: 1-ph AC230V 50/60Hz | Market: Europe/SE Asia | Built-in units: Regulator + AMH filter | Port: Rc1/2
IDHA6-23B Size: 6 (600 L/min ANR) | Voltage: 1-ph AC230V 50/60Hz | Market: Europe/SE Asia | Built-in units: Regulator only | Port: Rc1/2
Air DryersSMC
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
