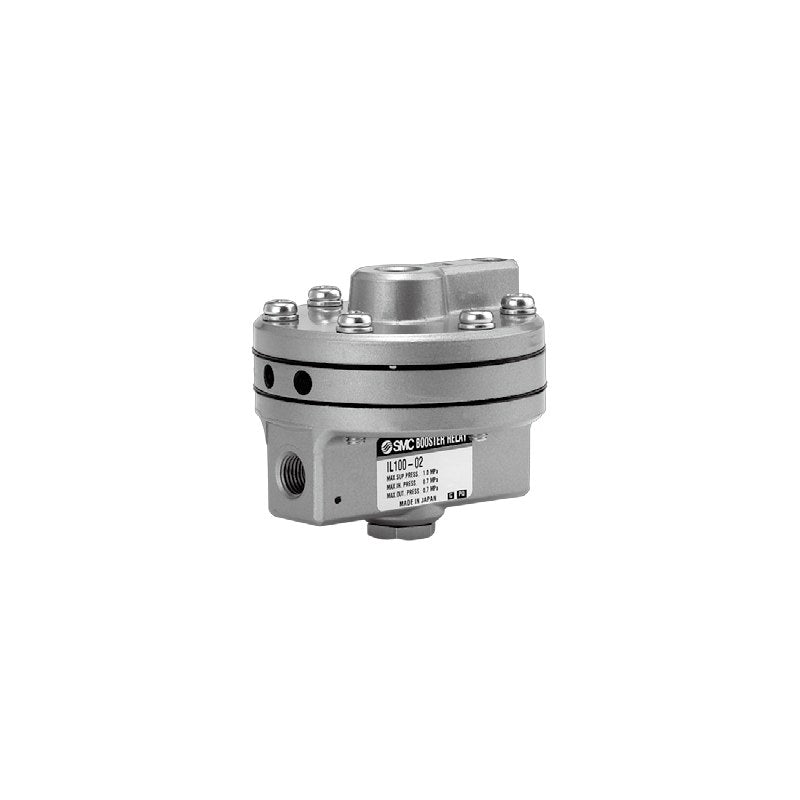

SMC IL100 Booster Relay (Rc1/4, Rc3/8)

SMC IL100 Booster Relay (Rc1/4, Rc3/8)

SMC IL100 booster relay that amplifies the air volume of an instrument signal 1:1 for long piping runs or large-capacity actuators, greatly increasing actuator speed.

Key features

  • 1:1 input/output pressure ratio with built-in needle valve for loop stability
  • For long piping from instrument to actuator or large actuator volumes
  • Port size 1/4 or 3/8, Rc standard; NPT (N) and G (F) semi-standard
  • High-temperature, low-temperature and non-freezing versions; bracket (B) as accessory
  • Maintenance kit KT-IL100

Specifications

Supply pressure Max. 1.0 MPa
Input pressure Max. 0.7 MPa
Output pressure Max. 0.7 MPa
Input/output ratio 1:1
Air consumption 3 L/min (ANR) or less at OUT 0.5 MPa
Linearity Within ±1%
Hysteresis Within 1%
Ambient and fluid temperature -5 to 60°C (standard)
Mass 0.56 kg
Source SMC Korea catalog IL100_XT240 (SMCKR_IL100_XT240.pdf), p. 167-169 (PDF p. 1-3)
IL100-02 Port size: Rc1/4 | Version: Standard
IL100-02-T Port size: Rc1/4 | Version: High temp. (-5 to 100°C)
IL100-02-L Port size: Rc1/4 | Version: Low temp. (-30 to 60°C)
IL100-02-S Port size: Rc1/4 | Version: Non-freezing
IL100-02-ST Port size: Rc1/4 | Version: Non-freezing, high temp.
IL100-02-SL Port size: Rc1/4 | Version: Non-freezing, low temp.
IL100-03 Port size: Rc3/8 | Version: Standard
IL100-03-T Port size: Rc3/8 | Version: High temp. (-5 to 100°C)
IL100-03-L Port size: Rc3/8 | Version: Low temp. (-30 to 60°C)
IL100-03-S Port size: Rc3/8 | Version: Non-freezing
IL100-03-ST Port size: Rc3/8 | Version: Non-freezing, high temp.
IL100-03-SL Port size: Rc3/8 | Version: Non-freezing, low temp.
