SMC IN778 Membrane Nitrogen Generator (20 L/min, 98/99.9%)

SMC IN778 Membrane Nitrogen Generator (20 L/min, 98/99.9%)

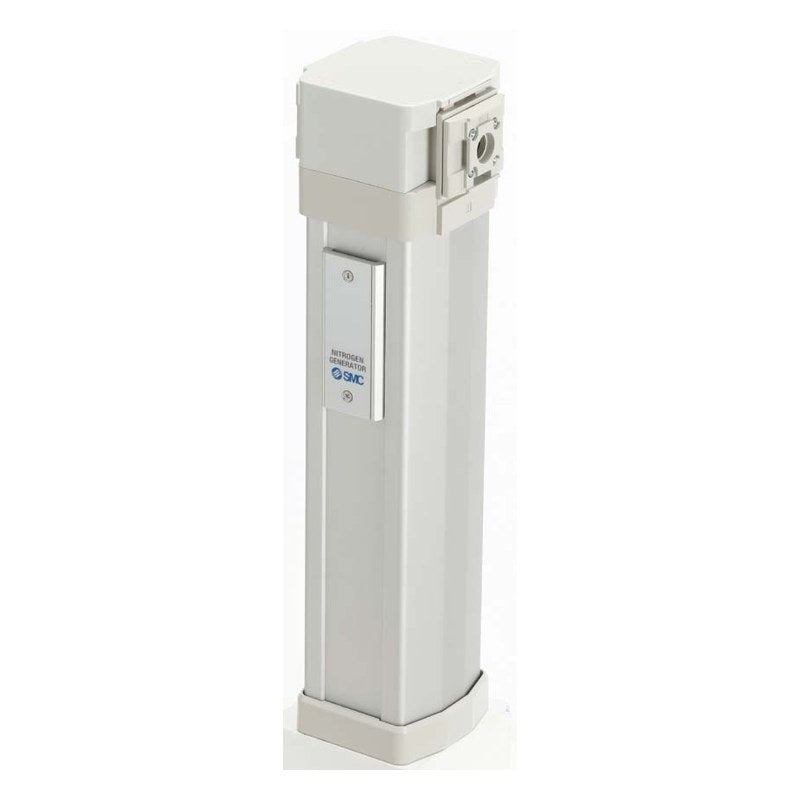

SMC IN778 membrane nitrogen generator that delivers 20 L/min (ANR) of nitrogen-enriched air at up to 99.9% concentration from compressed air alone.

Key features

  • Outlet nitrogen-enriched air 20 L/min (ANR) at 0.7 MPa, 25°C inlet
  • IN778-1: 99.9% or more N2; IN778-2: 98% or more N2
  • No power supply and no cylinder replacement; outside the scope of high-pressure gas regulations
  • Modular connection type; outlet air cleanliness (humidity and water) class 2

Specifications

Fluid Air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.3 MPa
Proof pressure 1.5 MPa
Ambient and fluid temperature -5 to 50°C (no freezing or condensation)
Inlet air quality ISO 8573-1:2010 [1:6:1]
Outlet nitrogen-enriched air flow 20 L/min (ANR)
Body width 90 x 90 mm
Source SMC Korea leaflet IN778 (SMCKR_IN778.pdf), P-K24-14, p. 1-2
IN778-1 Nitrogen concentration: 99.9% or more | Inlet air flow: 148 L/min (ANR) | Length: 782 mm | Mass: 6.4 kg
IN778-2 Nitrogen concentration: 98% or more | Inlet air flow: 59 L/min (ANR) | Length: 357 mm | Mass: 3.2 kg
Nitrogen GeneratorsSMC
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IN778 Membrane Nitrogen Generator (20 L/min, 98/99.9%)

Brand SMC·Nitrogen Generators

Available part numbers (2)

IN778-1, IN778-2

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IN778-1Nitrogen concentration: 99.9% or more | Inlet air flow: 148 L/min (ANR) | Length: 782 mm | Mass: 6.4 kg
IN778-2Nitrogen concentration: 98% or more | Inlet air flow: 59 L/min (ANR) | Length: 357 mm | Mass: 3.2 kg
