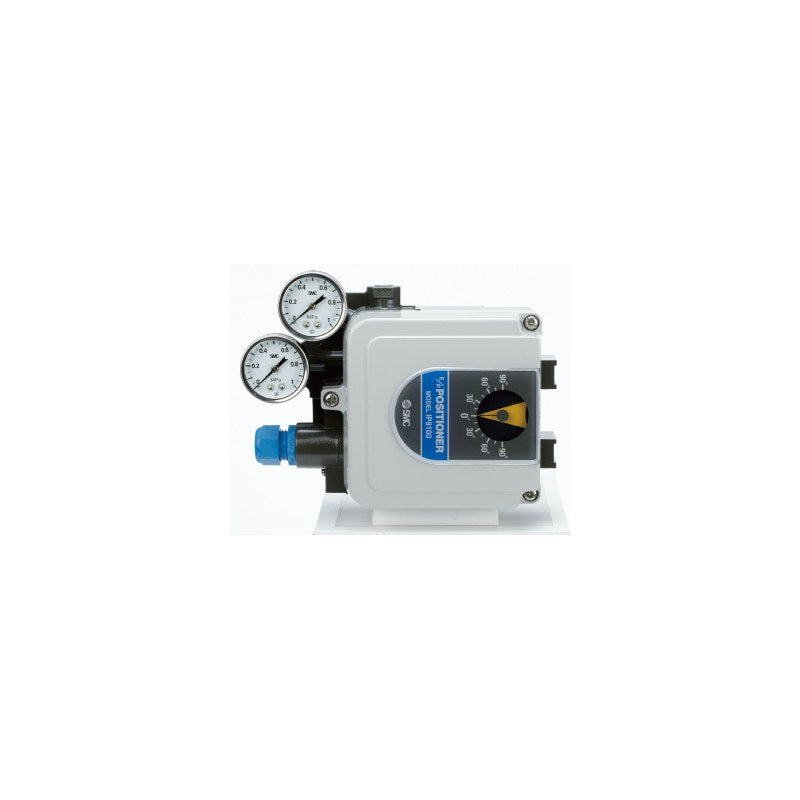

SMC IP8000/IP8100 Electro-Pneumatic Positioner (Lever / Rotary)

SMC IP8000/IP8100 Electro-Pneumatic Positioner (Lever / Rotary)

SMC IP8000 (lever type) and IP8100 (rotary cam type) electro-pneumatic positioners that position valve actuators in proportion to a DC4 to 20 mA input signal.

Key features

  • IP65 dustproof/waterproof enclosure (JIS F8007, IEC 60529) with check valve and labyrinth central exhaust
  • Structure 0: general purpose without terminal box; structure 1: terminal box, TIIS flameproof Exd IIBT5 (Korea-certified versions -X113 lever / -X114 rotary)
  • Single and double acting; standard stroke 10 to 85 mm (lever) or 60 to 100 degrees (rotary); 1/2 split range possible
  • Accessories as suffix letters: A/B output-orifice pilot valve, C/D fork lever joint, E/F lever units 35-100/50-140 mm, G compensation spring, H external scale, J/JR DC4-20 mA opening feedback, W internal opening indicator
  • Connection ports Rc1/4 with G1/2 conduit standard; NPT, G and M20x1.5 variants, ATEX intrinsically safe (-X14) and CE/UKCA (Q) versions on order

Specifications

Input current DC4 to 20 mA
Input resistance 235 ±15 ohm
Supply pressure 0.14 to 0.7 MPa
Sensitivity Within 0.1% F.S. (IP8000), 0.5% F.S. (IP8100)
Linearity Within ±1% F.S. (IP8000), ±2% F.S. (IP8100)
Hysteresis Within 0.75% F.S. (IP8000), 1% F.S. (IP8100)
Repeatability Within ±0.5% F.S.
Air consumption 5 L/min (ANR) or less at 0.14 MPa, 11 L/min at 0.4 MPa
Ambient temperature -20 to 80°C (Exd flameproof -20 to 60°C)
Ports Air Rc1/4, electrical G1/2
Body Aluminum die-cast, epoxy coated; approx. 2.4 kg (2.6 kg with terminal box)
Source SMC Korea catalog IP8000_IP8100 (SMCKR_IP8000_IP8100.pdf), p. 124, 126, 128 (PDF p. 1, 4, 6)
IP8000-000 Model: IP8000 | Type: Lever type | Pressure gauge: None | Structure: Non-explosion proof, no terminal box
IP8000-001-X113 Model: IP8000 | Type: Lever type | Pressure gauge: None | Structure: Terminal box, Exd IIBT5 (Korea X113)
IP8000-010 Model: IP8000 | Type: Lever type | Pressure gauge: 0.2 MPa | Structure: Non-explosion proof, no terminal box
IP8000-011-X113 Model: IP8000 | Type: Lever type | Pressure gauge: 0.2 MPa | Structure: Terminal box, Exd IIBT5 (Korea X113)
IP8000-020 Model: IP8000 | Type: Lever type | Pressure gauge: 0.3 MPa | Structure: Non-explosion proof, no terminal box
IP8000-021-X113 Model: IP8000 | Type: Lever type | Pressure gauge: 0.3 MPa | Structure: Terminal box, Exd IIBT5 (Korea X113)
IP8000-030 Model: IP8000 | Type: Lever type | Pressure gauge: 1.0 MPa | Structure: Non-explosion proof, no terminal box
IP8000-031-X113 Model: IP8000 | Type: Lever type | Pressure gauge: 1.0 MPa | Structure: Terminal box, Exd IIBT5 (Korea X113)
IP8100-000 Model: IP8100 | Type: Rotary type | Pressure gauge: None | Structure: Non-explosion proof, no terminal box
IP8100-001-X114 Model: IP8100 | Type: Rotary type | Pressure gauge: None | Structure: Terminal box, Exd IIBT5 (Korea X114)
IP8100-010 Model: IP8100 | Type: Rotary type | Pressure gauge: 0.2 MPa | Structure: Non-explosion proof, no terminal box
IP8100-011-X114 Model: IP8100 | Type: Rotary type | Pressure gauge: 0.2 MPa | Structure: Terminal box, Exd IIBT5 (Korea X114)
IP8100-020 Model: IP8100 | Type: Rotary type | Pressure gauge: 0.3 MPa | Structure: Non-explosion proof, no terminal box
IP8100-021-X114 Model: IP8100 | Type: Rotary type | Pressure gauge: 0.3 MPa | Structure: Terminal box, Exd IIBT5 (Korea X114)
IP8100-030 Model: IP8100 | Type: Rotary type | Pressure gauge: 1.0 MPa | Structure: Non-explosion proof, no terminal box
IP8100-031-X114 Model: IP8100 | Type: Rotary type | Pressure gauge: 1.0 MPa | Structure: Terminal box, Exd IIBT5 (Korea X114)
PositionersSMC
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IP8000/IP8100 Electro-Pneumatic Positioner (Lever / Rotary)

Brand SMC·Positioners

Available part numbers (16)

IP8000-000, IP8000-001-X113, IP8000-010, IP8000-011-X113, IP8000-020, IP8000-021-X113, IP8000-030, IP8000-031-X113, IP8100-000, IP8100-001-X114 + 6 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IP8000-000Model: IP8000 | Type: Lever type | Pressure gauge: None | Structure: Non-explosion proof, no terminal box
IP8000-001-X113Model: IP8000 | Type: Lever type | Pressure gauge: None | Structure: Terminal box, Exd IIBT5 (Korea X113)
IP8000-010Model: IP8000 | Type: Lever type | Pressure gauge: 0.2 MPa | Structure: Non-explosion proof, no terminal box
IP8000-011-X113Model: IP8000 | Type: Lever type | Pressure gauge: 0.2 MPa | Structure: Terminal box, Exd IIBT5 (Korea X113)
IP8000-020Model: IP8000 | Type: Lever type | Pressure gauge: 0.3 MPa | Structure: Non-explosion proof, no terminal box
IP8000-021-X113Model: IP8000 | Type: Lever type | Pressure gauge: 0.3 MPa | Structure: Terminal box, Exd IIBT5 (Korea X113)
IP8000-030Model: IP8000 | Type: Lever type | Pressure gauge: 1.0 MPa | Structure: Non-explosion proof, no terminal box
IP8000-031-X113Model: IP8000 | Type: Lever type | Pressure gauge: 1.0 MPa | Structure: Terminal box, Exd IIBT5 (Korea X113)
IP8100-000Model: IP8100 | Type: Rotary type | Pressure gauge: None | Structure: Non-explosion proof, no terminal box
IP8100-001-X114Model: IP8100 | Type: Rotary type | Pressure gauge: None | Structure: Terminal box, Exd IIBT5 (Korea X114)
IP8100-010Model: IP8100 | Type: Rotary type | Pressure gauge: 0.2 MPa | Structure: Non-explosion proof, no terminal box
IP8100-011-X114Model: IP8100 | Type: Rotary type | Pressure gauge: 0.2 MPa | Structure: Terminal box, Exd IIBT5 (Korea X114)
IP8100-020Model: IP8100 | Type: Rotary type | Pressure gauge: 0.3 MPa | Structure: Non-explosion proof, no terminal box
IP8100-021-X114Model: IP8100 | Type: Rotary type | Pressure gauge: 0.3 MPa | Structure: Terminal box, Exd IIBT5 (Korea X114)
IP8100-030Model: IP8100 | Type: Rotary type | Pressure gauge: 1.0 MPa | Structure: Non-explosion proof, no terminal box
IP8100-031-X114Model: IP8100 | Type: Rotary type | Pressure gauge: 1.0 MPa | Structure: Terminal box, Exd IIBT5 (Korea X114)
