• SMC IR1200-A/2200-A/3200-A Regulator (Zero Bleed, 1/8 to 1/2)
1 1

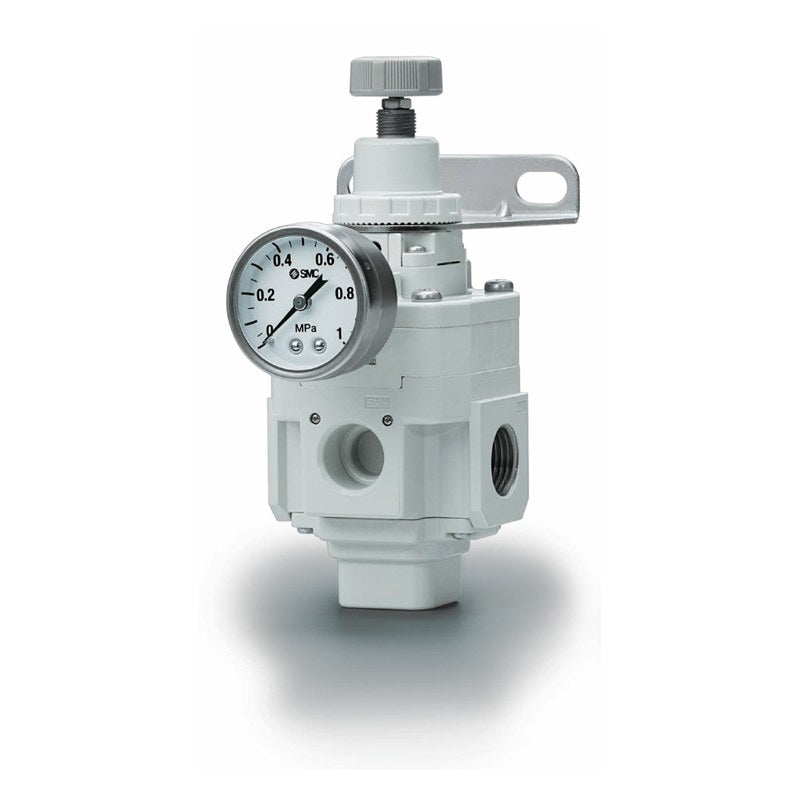

SMC IR1200-A/2200-A/3200-A Regulator (Zero Bleed, 1/8 to 1/2)

SMC IR1200-A/2200-A/3200-A Regulator (Zero Bleed, 1/8 to 1/2)

SMC IR1200-A/2200-A/3200-A series compact regulator with relief, a zero-bleed (no constant air release) version of the IR-A precision regulator in three body sizes from 1/8 to 1/2.

Key features

  • Bleed air 0 L/min: no constant air release to atmosphere, reducing compressed-air cost
  • Repeatability within +/-1% of full span; flow rate up to approx. 2x the previous IR series
  • Set pressure ranges 0.02 to 0.2, 0.4 or 0.8 MPa across all body sizes
  • IR3200-A: exhaust direction selectable (bottom, front or back)
  • Options ordered as suffixes: bracket (B), hex panel nut (H), digital pressure switch (EA/EB/EC/ED), flow direction (R), handle downward (V), psi units (Z/ZA); listed codes cover no gauge and round gauge (G)
  • Made to order: clean room (10-), grease-free (-X1), IRM manifold

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. supply pressure 1.0 MPa
Min. supply pressure Set pressure + 0.05 MPa (IR3200-A: + 0.1 MPa)
Repeatability Within +/-1% of full span
Gauge port 1/8 (2 locations)
Ambient and fluid temperature -5 to 60 C (no freezing; with digital switch -5 to 50 C)
Mass 0.13 / 0.23 / 0.47 kg (IR1200-A / 2200-A / 3200-A)
Thread type Rc (NPT: N, G: F on order)
Source SMC Korea catalog IR1200-A/2200-A/3200-A (SMCKR_IR1200_2200_3200-A.pdf), p. 771-777
IR1200-01-A Body size: IR1200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Bottom | Port size: Rc1/8 | Pressure gauge: None
IR1200-01G-A Body size: IR1200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Bottom | Port size: Rc1/8 | Pressure gauge: Round pressure gauge
IR1210-01-A Body size: IR1200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Bottom | Port size: Rc1/8 | Pressure gauge: None
IR1210-01G-A Body size: IR1200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Bottom | Port size: Rc1/8 | Pressure gauge: Round pressure gauge
IR1220-01-A Body size: IR1200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Bottom | Port size: Rc1/8 | Pressure gauge: None
IR1220-01G-A Body size: IR1200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Bottom | Port size: Rc1/8 | Pressure gauge: Round pressure gauge
IR2200-02-A Body size: IR2200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: None
IR2200-02G-A Body size: IR2200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR2210-02-A Body size: IR2200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: None
IR2210-02G-A Body size: IR2200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR2220-02-A Body size: IR2200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: None
IR2220-02G-A Body size: IR2200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR3200-02-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: None
IR3200-02G-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR3200-03-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Bottom | Port size: Rc3/8 | Pressure gauge: None
IR3200-03G-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Bottom | Port size: Rc3/8 | Pressure gauge: Round pressure gauge
IR3200-04-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Bottom | Port size: Rc1/2 | Pressure gauge: None
IR3200-04G-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Bottom | Port size: Rc1/2 | Pressure gauge: Round pressure gauge
IR3201-02-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Front | Port size: Rc1/4 | Pressure gauge: None
IR3201-02G-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Front | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR3201-03-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Front | Port size: Rc3/8 | Pressure gauge: None
IR3201-03G-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Front | Port size: Rc3/8 | Pressure gauge: Round pressure gauge
IR3201-04-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Front | Port size: Rc1/2 | Pressure gauge: None
IR3201-04G-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Front | Port size: Rc1/2 | Pressure gauge: Round pressure gauge
IR3202-02-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Back | Port size: Rc1/4 | Pressure gauge: None
IR3202-02G-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Back | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR3202-03-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Back | Port size: Rc3/8 | Pressure gauge: None
IR3202-03G-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Back | Port size: Rc3/8 | Pressure gauge: Round pressure gauge
IR3202-04-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Back | Port size: Rc1/2 | Pressure gauge: None
IR3202-04G-A Body size: IR3200-A | Set pressure: 0.02 to 0.2 MPa | Exhaust direction: Back | Port size: Rc1/2 | Pressure gauge: Round pressure gauge
IR3210-02-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: None
IR3210-02G-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR3210-03-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Bottom | Port size: Rc3/8 | Pressure gauge: None
IR3210-03G-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Bottom | Port size: Rc3/8 | Pressure gauge: Round pressure gauge
IR3210-04-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Bottom | Port size: Rc1/2 | Pressure gauge: None
IR3210-04G-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Bottom | Port size: Rc1/2 | Pressure gauge: Round pressure gauge
IR3211-02-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Front | Port size: Rc1/4 | Pressure gauge: None
IR3211-02G-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Front | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR3211-03-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Front | Port size: Rc3/8 | Pressure gauge: None
IR3211-03G-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Front | Port size: Rc3/8 | Pressure gauge: Round pressure gauge
IR3211-04-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Front | Port size: Rc1/2 | Pressure gauge: None
IR3211-04G-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Front | Port size: Rc1/2 | Pressure gauge: Round pressure gauge
IR3212-02-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Back | Port size: Rc1/4 | Pressure gauge: None
IR3212-02G-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Back | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR3212-03-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Back | Port size: Rc3/8 | Pressure gauge: None
IR3212-03G-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Back | Port size: Rc3/8 | Pressure gauge: Round pressure gauge
IR3212-04-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Back | Port size: Rc1/2 | Pressure gauge: None
IR3212-04G-A Body size: IR3200-A | Set pressure: 0.02 to 0.4 MPa | Exhaust direction: Back | Port size: Rc1/2 | Pressure gauge: Round pressure gauge
IR3220-02-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: None
IR3220-02G-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Bottom | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR3220-03-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Bottom | Port size: Rc3/8 | Pressure gauge: None
IR3220-03G-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Bottom | Port size: Rc3/8 | Pressure gauge: Round pressure gauge
IR3220-04-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Bottom | Port size: Rc1/2 | Pressure gauge: None
IR3220-04G-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Bottom | Port size: Rc1/2 | Pressure gauge: Round pressure gauge
IR3221-02-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Front | Port size: Rc1/4 | Pressure gauge: None
IR3221-02G-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Front | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR3221-03-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Front | Port size: Rc3/8 | Pressure gauge: None
IR3221-03G-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Front | Port size: Rc3/8 | Pressure gauge: Round pressure gauge
IR3221-04-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Front | Port size: Rc1/2 | Pressure gauge: None
IR3221-04G-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Front | Port size: Rc1/2 | Pressure gauge: Round pressure gauge
IR3222-02-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Back | Port size: Rc1/4 | Pressure gauge: None
IR3222-02G-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Back | Port size: Rc1/4 | Pressure gauge: Round pressure gauge
IR3222-03-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Back | Port size: Rc3/8 | Pressure gauge: None
IR3222-03G-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Back | Port size: Rc3/8 | Pressure gauge: Round pressure gauge
IR3222-04-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Back | Port size: Rc1/2 | Pressure gauge: None
IR3222-04G-A Body size: IR3200-A | Set pressure: 0.02 to 0.8 MPa | Exhaust direction: Back | Port size: Rc1/2 | Pressure gauge: Round pressure gauge
RegulatorsSMC
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IR1200-A/2200-A/3200-A Regulator (Zero Bleed, 1/8 to 1/2)

Brand SMC·Regulators

Available part numbers (66)

IR1200-01-A, IR1200-01G-A, IR1210-01-A, IR1210-01G-A, IR1220-01-A, IR1220-01G-A, IR2200-02-A, IR2200-02G-A, IR2210-02-A, IR2210-02G-A + 56 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
