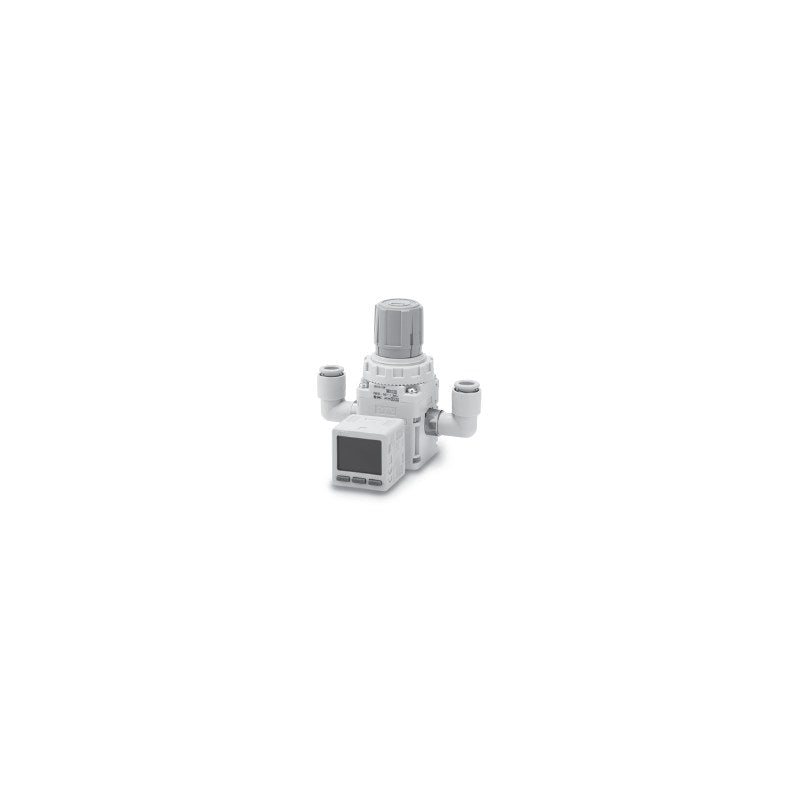

SMC IRV10/IRV20 Vacuum Regulator (One-touch Fittings, ø6 to ø10)

SMC IRV10/IRV20 Vacuum Regulator (One-touch Fittings, ø6 to ø10)

SMC IRV10 and IRV20 vacuum regulators with one-touch fittings, setting vacuum pressure from -100 to -1.3 kPa with maximum flow of 140 or 240 L/min (ANR).

Key features

  • Standard piping and single-side (A) piping versions for space-saving panel mounting
  • Straight or elbow one-touch fittings for metric ø6 to ø10 and inch ø1/4" to ø3/8" tubing
  • About 20% lighter than previous IRV2000 (IRV20 with fittings); higher flow than IRV1000/IRV2000
  • Bracket (B) or panel-mount bracket (L), gauge (G) or digital pressure switch (ZN, ZP, ZA, ZB) are ordered as suffix accessories
  • Panel-mount digital pressure switch integrated type (-X1) is made to order

Specifications

Fluid Air
Set pressure range -100 to -1.3 kPa
Proof pressure 100 kPa (excluding gauge)
Atmospheric air consumption 0.6 L/min (ANR) or less
Handle resolution 0.13 kPa or less
Ambient and fluid temperature 5 to 60°C
Mass (no accessories) IRV10-C08 135 g, IRV10A-C08 125 g, IRV20(A)-C10 250 g
Source SMC Korea catalog IRV10/20 Series (SMCKR_IRV10_IRV20.pdf), p. 1113-1116 (PDF p. 1-4)
IRV10-C06 Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø6
IRV10-C08 Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø8
IRV10-N07 Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø1/4"
IRV10-N09 Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø5/16"
IRV10-LC06 Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø6
IRV10-LC08 Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø8
IRV10-LN07 Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø1/4"
IRV10-LN09 Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø5/16"
IRV10A-C06 Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø6
IRV10A-C08 Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø8
IRV10A-N07 Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø1/4"
IRV10A-N09 Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø5/16"
IRV10A-LC06 Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø6
IRV10A-LC08 Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø8
IRV10A-LN07 Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø1/4"
IRV10A-LN09 Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø5/16"
IRV20-C06 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø6
IRV20-C08 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø8
IRV20-C10 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø10
IRV20-N07 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø1/4"
IRV20-N09 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø5/16"
IRV20-N11 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø3/8"
IRV20-LC06 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø6
IRV20-LC08 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø8
IRV20-LC10 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø10
IRV20-LN07 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø1/4"
IRV20-LN09 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø5/16"
IRV20-LN11 Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø3/8"
IRV20A-C06 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø6
IRV20A-C08 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø8
IRV20A-C10 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø10
IRV20A-N07 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø1/4"
IRV20A-N09 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø5/16"
IRV20A-N11 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø3/8"
IRV20A-LC06 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø6
IRV20A-LC08 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø8
IRV20A-LC10 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø10
IRV20A-LN07 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø1/4"
IRV20A-LN09 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø5/16"
IRV20A-LN11 Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø3/8"
RegulatorsSMC
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IRV10/IRV20 Vacuum Regulator (One-touch Fittings, ø6 to ø10)

Brand SMC·Regulators

Available part numbers (40)

IRV10-C06, IRV10-C08, IRV10-N07, IRV10-N09, IRV10-LC06, IRV10-LC08, IRV10-LN07, IRV10-LN09, IRV10A-C06, IRV10A-C08 + 30 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IRV10-C06Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø6
IRV10-C08Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø8
IRV10-N07Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø1/4"
IRV10-N09Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø5/16"
IRV10-LC06Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø6
IRV10-LC08Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø8
IRV10-LN07Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø1/4"
IRV10-LN09Size: IRV10 (140 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø5/16"
IRV10A-C06Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø6
IRV10A-C08Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø8
IRV10A-N07Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø1/4"
IRV10A-N09Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø5/16"
IRV10A-LC06Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø6
IRV10A-LC08Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø8
IRV10A-LN07Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø1/4"
IRV10A-LN09Size: IRV10 (140 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø5/16"
IRV20-C06Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø6
IRV20-C08Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø8
IRV20-C10Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø10
IRV20-N07Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø1/4"
IRV20-N09Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø5/16"
IRV20-N11Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Straight | Tube O.D.: ø3/8"
IRV20-LC06Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø6
IRV20-LC08Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø8
IRV20-LC10Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø10
IRV20-LN07Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø1/4"
IRV20-LN09Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø5/16"
IRV20-LN11Size: IRV20 (240 L/min) | Piping: Standard | Fitting: Elbow | Tube O.D.: ø3/8"
IRV20A-C06Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø6
IRV20A-C08Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø8
IRV20A-C10Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø10
IRV20A-N07Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø1/4"
IRV20A-N09Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø5/16"
IRV20A-N11Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Straight | Tube O.D.: ø3/8"
IRV20A-LC06Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø6
IRV20A-LC08Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø8
IRV20A-LC10Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø10
IRV20A-LN07Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø1/4"
IRV20A-LN09Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø5/16"
IRV20A-LN11Size: IRV20 (240 L/min) | Piping: Single-side (A) | Fitting: Elbow | Tube O.D.: ø3/8"
