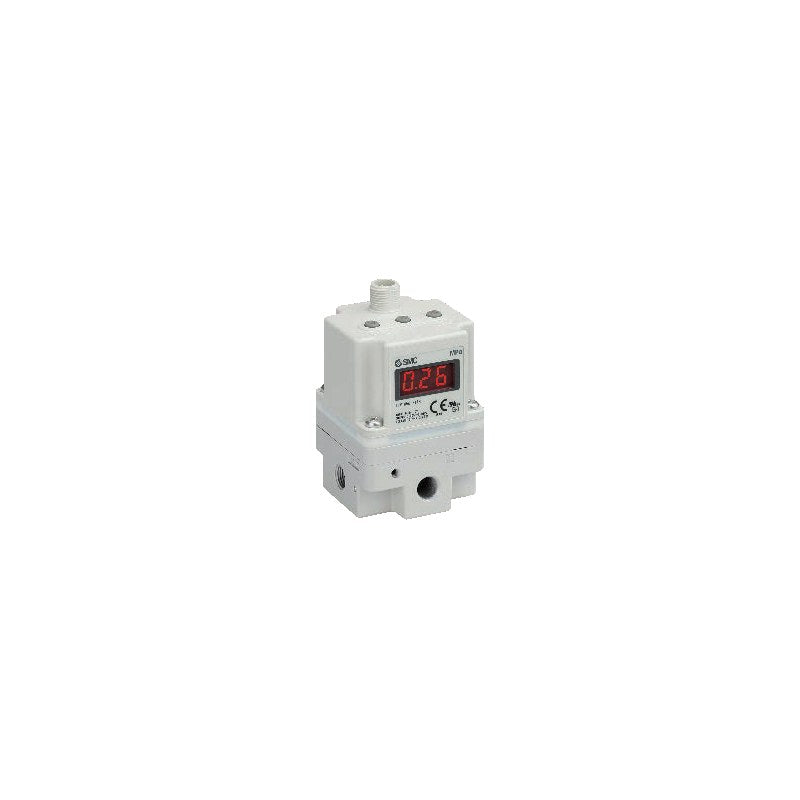

SMC ITV0090/0091 Compact Electronic Vacuum Regulator (Thin Type)

SMC ITV0090/0091 Compact Electronic Vacuum Regulator (Thin Type)

SMC ITV009 thin electronic vacuum regulator that steplessly controls vacuum pressure from -1 to -100 kPa in proportion to an electrical signal.

Key features

  • 15 mm thin body with built-in one-touch fittings; single unit or IITV00 manifold mounting
  • Set vacuum range -1 to -100 kPa; ITV0090 DC24V, ITV0091 DC12-15V
  • Current (4-20mA, 0-20mA) or voltage (0-5V, 0-10V) input; analog DC1-5V monitor output
  • Listed codes: millimeter fittings, no bracket, straight 3 m cable; inch fittings (U), brackets (B, C), other cables on order

Specifications

Fluid Air
Set pressure range -1 to -100 kPa
Min. supply vacuum Set pressure -1 kPa
Max. supply vacuum -101 kPa
Power consumption DC24V: 0.12 A or less; DC12-15V: 0.18 A or less
Monitor output Analog DC1-5V
Linearity / hysteresis ±1% F.S. / 0.5% F.S. or less
Ambient temperature 0 to 50°C (no condensation)
Enclosure IP65 equivalent
Mass 100 g or less
Source SMC Korea catalog CAT.KS60-15G (SMCKR_ITV.pdf), p. 39-40 (PDF p. 40-41)
ITV0090-0S Power supply: DC24V | Input signal: DC4-20mA (sink) | Base type: Single unit (ø4 fittings)
ITV0090-0MS Power supply: DC24V | Input signal: DC4-20mA (sink) | Base type: Manifold mount (IITV00)
ITV0090-1S Power supply: DC24V | Input signal: DC0-20mA (sink) | Base type: Single unit (ø4 fittings)
ITV0090-1MS Power supply: DC24V | Input signal: DC0-20mA (sink) | Base type: Manifold mount (IITV00)
ITV0090-2S Power supply: DC24V | Input signal: DC0-5V | Base type: Single unit (ø4 fittings)
ITV0090-2MS Power supply: DC24V | Input signal: DC0-5V | Base type: Manifold mount (IITV00)
ITV0090-3S Power supply: DC24V | Input signal: DC0-10V | Base type: Single unit (ø4 fittings)
ITV0090-3MS Power supply: DC24V | Input signal: DC0-10V | Base type: Manifold mount (IITV00)
ITV0091-0S Power supply: DC12-15V | Input signal: DC4-20mA (sink) | Base type: Single unit (ø4 fittings)
ITV0091-0MS Power supply: DC12-15V | Input signal: DC4-20mA (sink) | Base type: Manifold mount (IITV00)
ITV0091-1S Power supply: DC12-15V | Input signal: DC0-20mA (sink) | Base type: Single unit (ø4 fittings)
ITV0091-1MS Power supply: DC12-15V | Input signal: DC0-20mA (sink) | Base type: Manifold mount (IITV00)
ITV0091-2S Power supply: DC12-15V | Input signal: DC0-5V | Base type: Single unit (ø4 fittings)
ITV0091-2MS Power supply: DC12-15V | Input signal: DC0-5V | Base type: Manifold mount (IITV00)
ITV0091-3S Power supply: DC12-15V | Input signal: DC0-10V | Base type: Single unit (ø4 fittings)
ITV0091-3MS Power supply: DC12-15V | Input signal: DC0-10V | Base type: Manifold mount (IITV00)
Electro-Pneumatic RegulatorsSMC
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ITV0090/0091 Compact Electronic Vacuum Regulator (Thin Type)

Brand SMC·Electro-Pneumatic Regulators

Available part numbers (16)

ITV0090-0S, ITV0090-0MS, ITV0090-1S, ITV0090-1MS, ITV0090-2S, ITV0090-2MS, ITV0090-3S, ITV0090-3MS, ITV0091-0S, ITV0091-0MS + 6 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ITV0090-0SPower supply: DC24V | Input signal: DC4-20mA (sink) | Base type: Single unit (ø4 fittings)
ITV0090-0MSPower supply: DC24V | Input signal: DC4-20mA (sink) | Base type: Manifold mount (IITV00)
ITV0090-1SPower supply: DC24V | Input signal: DC0-20mA (sink) | Base type: Single unit (ø4 fittings)
ITV0090-1MSPower supply: DC24V | Input signal: DC0-20mA (sink) | Base type: Manifold mount (IITV00)
ITV0090-2SPower supply: DC24V | Input signal: DC0-5V | Base type: Single unit (ø4 fittings)
ITV0090-2MSPower supply: DC24V | Input signal: DC0-5V | Base type: Manifold mount (IITV00)
ITV0090-3SPower supply: DC24V | Input signal: DC0-10V | Base type: Single unit (ø4 fittings)
ITV0090-3MSPower supply: DC24V | Input signal: DC0-10V | Base type: Manifold mount (IITV00)
ITV0091-0SPower supply: DC12-15V | Input signal: DC4-20mA (sink) | Base type: Single unit (ø4 fittings)
ITV0091-0MSPower supply: DC12-15V | Input signal: DC4-20mA (sink) | Base type: Manifold mount (IITV00)
ITV0091-1SPower supply: DC12-15V | Input signal: DC0-20mA (sink) | Base type: Single unit (ø4 fittings)
ITV0091-1MSPower supply: DC12-15V | Input signal: DC0-20mA (sink) | Base type: Manifold mount (IITV00)
ITV0091-2SPower supply: DC12-15V | Input signal: DC0-5V | Base type: Single unit (ø4 fittings)
ITV0091-2MSPower supply: DC12-15V | Input signal: DC0-5V | Base type: Manifold mount (IITV00)
ITV0091-3SPower supply: DC12-15V | Input signal: DC0-10V | Base type: Single unit (ø4 fittings)
ITV0091-3MSPower supply: DC12-15V | Input signal: DC0-10V | Base type: Manifold mount (IITV00)
