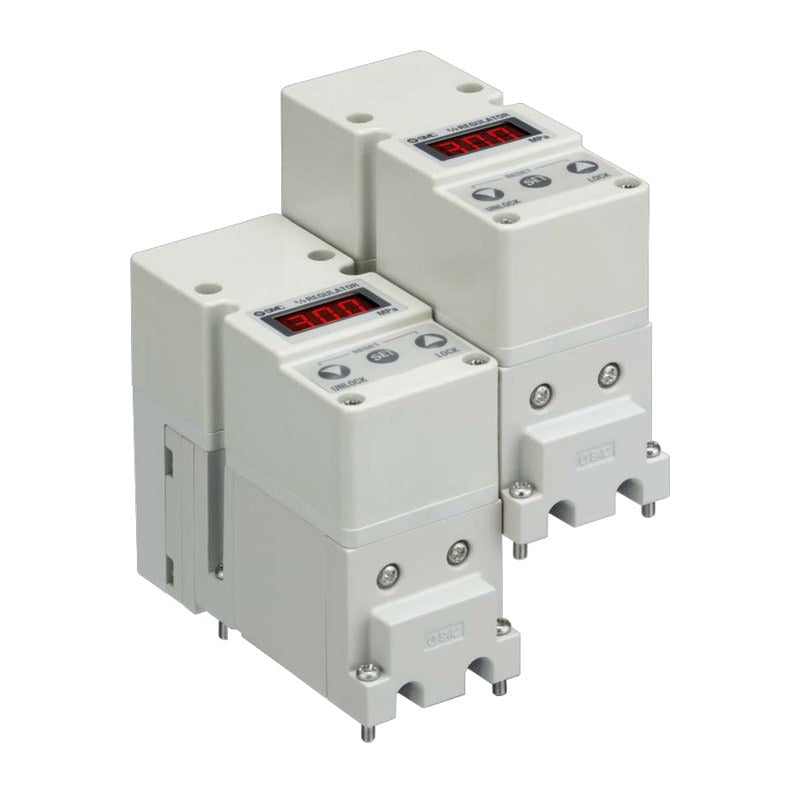

SMC ITV2340/2350 Electro-Pneumatic Regulator (for IITV23 Manifold)

SMC ITV2340/2350 Electro-Pneumatic Regulator (for IITV23 Manifold)

SMC ITV2340/2350 plug-in electro-pneumatic regulator, direct output type, for mounting on the IITV23 EX600 manifold.

Key features

  • Direct output type (2) for the IITV23 plug-in manifold, screw mounted
  • Set pressure 0 to 0.7 MPa (ITV2340) or 0 to 0.9 MPa (ITV2350)
  • 3-digit 7-segment LED output pressure display in MPa, bar or psi
  • Gain and sensitivity adjustable remotely via fieldbus; 12-bit command resolution
  • Base gasket not included when ordered as a single unit

Specifications

Fluid Air
Min. supply pressure Set pressure + 0.05 MPa
Max. supply pressure 1.0 MPa
Power supply DC24V ±10%, 0.12 A or less
Linearity / hysteresis ±0.009 MPa / 0.0045 MPa or less
Repeatability ±0.0045 MPa or less
Step response 0.3 s or less
Ambient and fluid temperature 0 to 50°C (no condensation)
Enclosure IP65
Mass Approx. 390 g
Source SMC Korea catalog CAT.KS60-27A (SMCKR_IITV23.pdf), p. 4-5 (PDF p. 5-6)
ITV2340-2 Set pressure: 0 to 0.7 MPa | Pressure display unit: MPa
ITV2340-23 Set pressure: 0 to 0.7 MPa | Pressure display unit: bar
ITV2340-24 Set pressure: 0 to 0.7 MPa | Pressure display unit: psi
ITV2350-2 Set pressure: 0 to 0.9 MPa | Pressure display unit: MPa
ITV2350-23 Set pressure: 0 to 0.9 MPa | Pressure display unit: bar
ITV2350-24 Set pressure: 0 to 0.9 MPa | Pressure display unit: psi
Electro-Pneumatic RegulatorsSMC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ITV2340/2350 Electro-Pneumatic Regulator (for IITV23 Manifold)

Brand SMC·Electro-Pneumatic Regulators

Available part numbers (6)

ITV2340-2, ITV2340-23, ITV2340-24, ITV2350-2, ITV2350-23, ITV2350-24

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ITV2340-2Set pressure: 0 to 0.7 MPa | Pressure display unit: MPa
ITV2340-23Set pressure: 0 to 0.7 MPa | Pressure display unit: bar
ITV2340-24Set pressure: 0 to 0.7 MPa | Pressure display unit: psi
ITV2350-2Set pressure: 0 to 0.9 MPa | Pressure display unit: MPa
ITV2350-23Set pressure: 0 to 0.9 MPa | Pressure display unit: bar
ITV2350-24Set pressure: 0 to 0.9 MPa | Pressure display unit: psi
