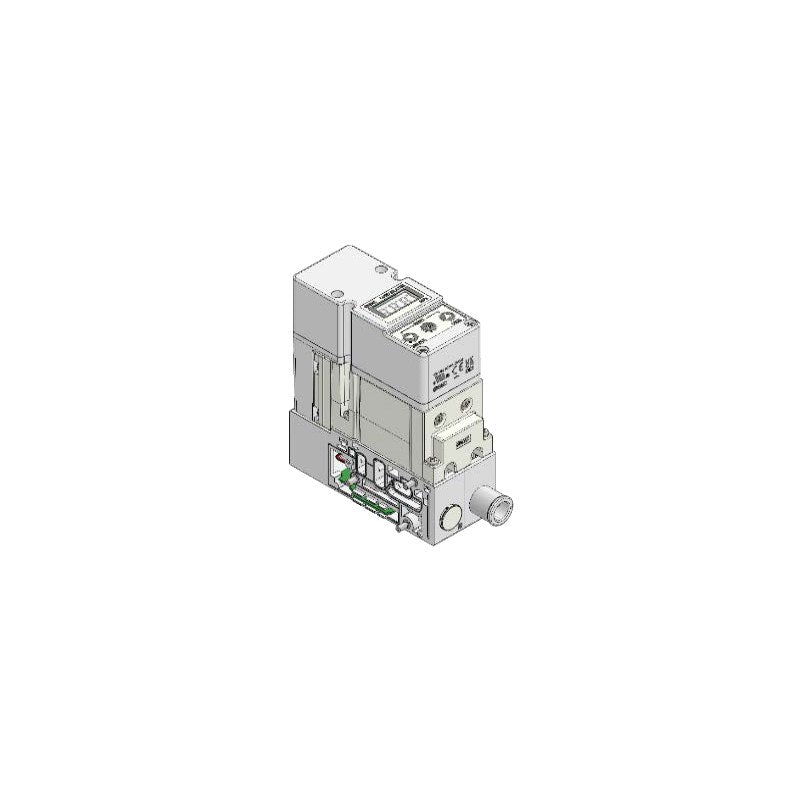

SMC ITV2340 Electro-Pneumatic Regulator (for JSY3000-P Manifold)

SMC ITV2340 Electro-Pneumatic Regulator (for JSY3000-P Manifold)

SMC ITV2340 electro-pneumatic regulator module for the JSY3000-P manifold, steplessly controlling air pressure in proportion to the fieldbus signal.

Key features

  • Mounts on the JJ5SY3-P10 manifold, up to 4 units per manifold; no separate wiring
  • Valve supply type (1) controls valve supply pressure; direct output type (2) supplies regulated air from its own OUT port
  • With intermediate supply/exhaust block (M: P, R ø10; S: built-in silencer) or without (A)
  • 3-digit 7-segment LED output pressure display in MPa, bar or psi
  • DIN rail mounting (-D0) available for M and S types; mounting screws included

Specifications

Fluid Air
Max. supply pressure 1.0 MPa
Min. supply pressure Set pressure + 0.05 MPa
Set pressure range 0 to 0.7 MPa
Power supply DC24V ±10%, 0.12 A or less
Linearity / hysteresis ±0.009 MPa / 0.0045 MPa or less
Step response 0.3 s or less
Ambient and fluid temperature 0 to 50°C (no condensation)
Enclosure IP65
Mass A type 535 g; M, S types 676 g
Source SMC Korea catalog CAT.KS11-120B (SMCKR_JSY3000-P.pdf), p. 5, 14 (PDF p. 6, 15)
ITV2340-1A Output type: Valve supply type | Pressure unit: MPa | Mid SUP/EXH block: None
ITV2340-1M Output type: Valve supply type | Pressure unit: MPa | Mid SUP/EXH block: With, P, R ø10
ITV2340-1S Output type: Valve supply type | Pressure unit: MPa | Mid SUP/EXH block: With, P ø10, R silencer
ITV2340-13A Output type: Valve supply type | Pressure unit: bar | Mid SUP/EXH block: None
ITV2340-13M Output type: Valve supply type | Pressure unit: bar | Mid SUP/EXH block: With, P, R ø10
ITV2340-13S Output type: Valve supply type | Pressure unit: bar | Mid SUP/EXH block: With, P ø10, R silencer
ITV2340-14A Output type: Valve supply type | Pressure unit: psi | Mid SUP/EXH block: None
ITV2340-14M Output type: Valve supply type | Pressure unit: psi | Mid SUP/EXH block: With, P, R ø10
ITV2340-14S Output type: Valve supply type | Pressure unit: psi | Mid SUP/EXH block: With, P ø10, R silencer
ITV2340-2A Output type: Direct output type | Pressure unit: MPa | Mid SUP/EXH block: None
ITV2340-2M Output type: Direct output type | Pressure unit: MPa | Mid SUP/EXH block: With, P, R ø10
ITV2340-2S Output type: Direct output type | Pressure unit: MPa | Mid SUP/EXH block: With, P ø10, R silencer
ITV2340-23A Output type: Direct output type | Pressure unit: bar | Mid SUP/EXH block: None
ITV2340-23M Output type: Direct output type | Pressure unit: bar | Mid SUP/EXH block: With, P, R ø10
ITV2340-23S Output type: Direct output type | Pressure unit: bar | Mid SUP/EXH block: With, P ø10, R silencer
ITV2340-24A Output type: Direct output type | Pressure unit: psi | Mid SUP/EXH block: None
ITV2340-24M Output type: Direct output type | Pressure unit: psi | Mid SUP/EXH block: With, P, R ø10
ITV2340-24S Output type: Direct output type | Pressure unit: psi | Mid SUP/EXH block: With, P ø10, R silencer
RegulatorsSMC
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ITV2340 Electro-Pneumatic Regulator (for JSY3000-P Manifold)

Brand SMC·Regulators

Available part numbers (18)

ITV2340-1A, ITV2340-1M, ITV2340-1S, ITV2340-13A, ITV2340-13M, ITV2340-13S, ITV2340-14A, ITV2340-14M, ITV2340-14S, ITV2340-2A + 8 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ITV2340-1AOutput type: Valve supply type | Pressure unit: MPa | Mid SUP/EXH block: None
ITV2340-1MOutput type: Valve supply type | Pressure unit: MPa | Mid SUP/EXH block: With, P, R ø10
ITV2340-1SOutput type: Valve supply type | Pressure unit: MPa | Mid SUP/EXH block: With, P ø10, R silencer
ITV2340-13AOutput type: Valve supply type | Pressure unit: bar | Mid SUP/EXH block: None
ITV2340-13MOutput type: Valve supply type | Pressure unit: bar | Mid SUP/EXH block: With, P, R ø10
ITV2340-13SOutput type: Valve supply type | Pressure unit: bar | Mid SUP/EXH block: With, P ø10, R silencer
ITV2340-14AOutput type: Valve supply type | Pressure unit: psi | Mid SUP/EXH block: None
ITV2340-14MOutput type: Valve supply type | Pressure unit: psi | Mid SUP/EXH block: With, P, R ø10
ITV2340-14SOutput type: Valve supply type | Pressure unit: psi | Mid SUP/EXH block: With, P ø10, R silencer
ITV2340-2AOutput type: Direct output type | Pressure unit: MPa | Mid SUP/EXH block: None
ITV2340-2MOutput type: Direct output type | Pressure unit: MPa | Mid SUP/EXH block: With, P, R ø10
ITV2340-2SOutput type: Direct output type | Pressure unit: MPa | Mid SUP/EXH block: With, P ø10, R silencer
ITV2340-23AOutput type: Direct output type | Pressure unit: bar | Mid SUP/EXH block: None
ITV2340-23MOutput type: Direct output type | Pressure unit: bar | Mid SUP/EXH block: With, P, R ø10
ITV2340-23SOutput type: Direct output type | Pressure unit: bar | Mid SUP/EXH block: With, P ø10, R silencer
ITV2340-24AOutput type: Direct output type | Pressure unit: psi | Mid SUP/EXH block: None
ITV2340-24MOutput type: Direct output type | Pressure unit: psi | Mid SUP/EXH block: With, P, R ø10
ITV2340-24SOutput type: Direct output type | Pressure unit: psi | Mid SUP/EXH block: With, P ø10, R silencer
