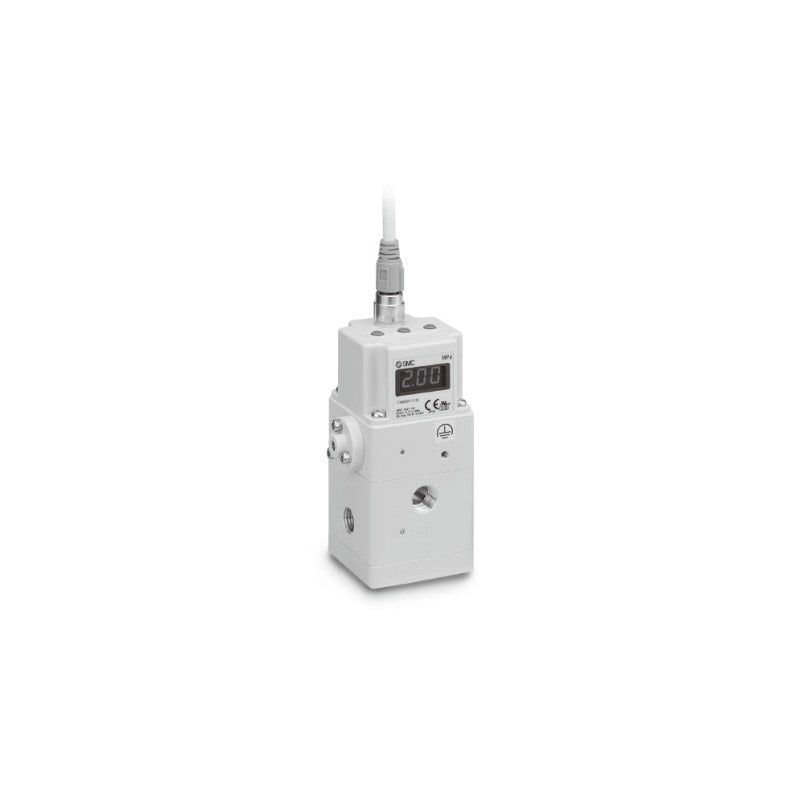

SMC ITVH2000 High-Pressure Electro-Pneumatic Regulator (3.0 MPa)

SMC ITVH2000 High-Pressure Electro-Pneumatic Regulator (3.0 MPa)

SMC ITVH2000 high-pressure electro-pneumatic regulator that steplessly controls air pressure up to 2.0 MPa from a 3.0 MPa supply.

Key features

  • Max. supply pressure 3.0 MPa, set pressure 0.2 to 2.0 MPa, max. flow 3000 L/min (ANR)
  • Power consumption 3 W or less; fluorinated grease on wetted parts
  • Current, voltage or 4-point preset input; analog or NPN/PNP switch monitor output; digital display
  • Rc1/4 or Rc3/8 ports; applications include tank pressure testing
  • Listed codes: Rc thread, no bracket, straight 3 m cable, MPa display; NPT/G, brackets (B, C), other cables and units on order

Specifications

Fluid Air
Max. supply pressure 3.0 MPa
Min. supply pressure 0.5 MPa or set pressure + 0.2 MPa
Set pressure range 0.2 to 2.0 MPa
Power supply DC24V ±10%, 0.12 A or less
Linearity / hysteresis ±1% F.S. / 1% F.S. or less
Repeatability ±1% F.S. or less
Ambient and fluid temperature 0 to 50°C (no freezing)
Mass Approx. 630 g
Source SMC Korea catalog (SMCKR_ITVH.pdf), p. 1239-1240 (PDF p. 3-4)
ITVH2020-012S Input signal: DC4-20mA (sink) | Monitor output: Analog DC1-5V | Port size: Rc1/4
ITVH2020-013S Input signal: DC4-20mA (sink) | Monitor output: Analog DC1-5V | Port size: Rc3/8
ITVH2020-022S Input signal: DC4-20mA (sink) | Monitor output: Switch NPN | Port size: Rc1/4
ITVH2020-023S Input signal: DC4-20mA (sink) | Monitor output: Switch NPN | Port size: Rc3/8
ITVH2020-032S Input signal: DC4-20mA (sink) | Monitor output: Switch PNP | Port size: Rc1/4
ITVH2020-033S Input signal: DC4-20mA (sink) | Monitor output: Switch PNP | Port size: Rc3/8
ITVH2020-042S Input signal: DC4-20mA (sink) | Monitor output: Analog DC4-20mA (sink) | Port size: Rc1/4
ITVH2020-043S Input signal: DC4-20mA (sink) | Monitor output: Analog DC4-20mA (sink) | Port size: Rc3/8
ITVH2020-112S Input signal: DC0-20mA (sink) | Monitor output: Analog DC1-5V | Port size: Rc1/4
ITVH2020-113S Input signal: DC0-20mA (sink) | Monitor output: Analog DC1-5V | Port size: Rc3/8
ITVH2020-122S Input signal: DC0-20mA (sink) | Monitor output: Switch NPN | Port size: Rc1/4
ITVH2020-123S Input signal: DC0-20mA (sink) | Monitor output: Switch NPN | Port size: Rc3/8
ITVH2020-132S Input signal: DC0-20mA (sink) | Monitor output: Switch PNP | Port size: Rc1/4
ITVH2020-133S Input signal: DC0-20mA (sink) | Monitor output: Switch PNP | Port size: Rc3/8
ITVH2020-142S Input signal: DC0-20mA (sink) | Monitor output: Analog DC4-20mA (sink) | Port size: Rc1/4
ITVH2020-143S Input signal: DC0-20mA (sink) | Monitor output: Analog DC4-20mA (sink) | Port size: Rc3/8
ITVH2020-212S Input signal: DC0-5V | Monitor output: Analog DC1-5V | Port size: Rc1/4
ITVH2020-213S Input signal: DC0-5V | Monitor output: Analog DC1-5V | Port size: Rc3/8
ITVH2020-222S Input signal: DC0-5V | Monitor output: Switch NPN | Port size: Rc1/4
ITVH2020-223S Input signal: DC0-5V | Monitor output: Switch NPN | Port size: Rc3/8
ITVH2020-232S Input signal: DC0-5V | Monitor output: Switch PNP | Port size: Rc1/4
ITVH2020-233S Input signal: DC0-5V | Monitor output: Switch PNP | Port size: Rc3/8
ITVH2020-242S Input signal: DC0-5V | Monitor output: Analog DC4-20mA (sink) | Port size: Rc1/4
ITVH2020-243S Input signal: DC0-5V | Monitor output: Analog DC4-20mA (sink) | Port size: Rc3/8
ITVH2020-312S Input signal: DC0-10V | Monitor output: Analog DC1-5V | Port size: Rc1/4
ITVH2020-313S Input signal: DC0-10V | Monitor output: Analog DC1-5V | Port size: Rc3/8
ITVH2020-322S Input signal: DC0-10V | Monitor output: Switch NPN | Port size: Rc1/4
ITVH2020-323S Input signal: DC0-10V | Monitor output: Switch NPN | Port size: Rc3/8
ITVH2020-332S Input signal: DC0-10V | Monitor output: Switch PNP | Port size: Rc1/4
ITVH2020-333S Input signal: DC0-10V | Monitor output: Switch PNP | Port size: Rc3/8
ITVH2020-342S Input signal: DC0-10V | Monitor output: Analog DC4-20mA (sink) | Port size: Rc1/4
ITVH2020-343S Input signal: DC0-10V | Monitor output: Analog DC4-20mA (sink) | Port size: Rc3/8
ITVH2020-402S Input signal: 4-point preset input | Monitor output: None | Port size: Rc1/4
ITVH2020-403S Input signal: 4-point preset input | Monitor output: None | Port size: Rc3/8
Electro-Pneumatic RegulatorsSMC
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ITVH2000 High-Pressure Electro-Pneumatic Regulator (3.0 MPa)

Brand SMC·Electro-Pneumatic Regulators

Available part numbers (34)

ITVH2020-012S, ITVH2020-013S, ITVH2020-022S, ITVH2020-023S, ITVH2020-032S, ITVH2020-033S, ITVH2020-042S, ITVH2020-043S, ITVH2020-112S, ITVH2020-113S + 24 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ITVH2020-012SInput signal: DC4-20mA (sink) | Monitor output: Analog DC1-5V | Port size: Rc1/4
ITVH2020-013SInput signal: DC4-20mA (sink) | Monitor output: Analog DC1-5V | Port size: Rc3/8
ITVH2020-022SInput signal: DC4-20mA (sink) | Monitor output: Switch NPN | Port size: Rc1/4
ITVH2020-023SInput signal: DC4-20mA (sink) | Monitor output: Switch NPN | Port size: Rc3/8
ITVH2020-032SInput signal: DC4-20mA (sink) | Monitor output: Switch PNP | Port size: Rc1/4
ITVH2020-033SInput signal: DC4-20mA (sink) | Monitor output: Switch PNP | Port size: Rc3/8
ITVH2020-042SInput signal: DC4-20mA (sink) | Monitor output: Analog DC4-20mA (sink) | Port size: Rc1/4
ITVH2020-043SInput signal: DC4-20mA (sink) | Monitor output: Analog DC4-20mA (sink) | Port size: Rc3/8
ITVH2020-112SInput signal: DC0-20mA (sink) | Monitor output: Analog DC1-5V | Port size: Rc1/4
ITVH2020-113SInput signal: DC0-20mA (sink) | Monitor output: Analog DC1-5V | Port size: Rc3/8
ITVH2020-122SInput signal: DC0-20mA (sink) | Monitor output: Switch NPN | Port size: Rc1/4
ITVH2020-123SInput signal: DC0-20mA (sink) | Monitor output: Switch NPN | Port size: Rc3/8
ITVH2020-132SInput signal: DC0-20mA (sink) | Monitor output: Switch PNP | Port size: Rc1/4
ITVH2020-133SInput signal: DC0-20mA (sink) | Monitor output: Switch PNP | Port size: Rc3/8
ITVH2020-142SInput signal: DC0-20mA (sink) | Monitor output: Analog DC4-20mA (sink) | Port size: Rc1/4
ITVH2020-143SInput signal: DC0-20mA (sink) | Monitor output: Analog DC4-20mA (sink) | Port size: Rc3/8
ITVH2020-212SInput signal: DC0-5V | Monitor output: Analog DC1-5V | Port size: Rc1/4
ITVH2020-213SInput signal: DC0-5V | Monitor output: Analog DC1-5V | Port size: Rc3/8
ITVH2020-222SInput signal: DC0-5V | Monitor output: Switch NPN | Port size: Rc1/4
ITVH2020-223SInput signal: DC0-5V | Monitor output: Switch NPN | Port size: Rc3/8
ITVH2020-232SInput signal: DC0-5V | Monitor output: Switch PNP | Port size: Rc1/4
ITVH2020-233SInput signal: DC0-5V | Monitor output: Switch PNP | Port size: Rc3/8
ITVH2020-242SInput signal: DC0-5V | Monitor output: Analog DC4-20mA (sink) | Port size: Rc1/4
ITVH2020-243SInput signal: DC0-5V | Monitor output: Analog DC4-20mA (sink) | Port size: Rc3/8
ITVH2020-312SInput signal: DC0-10V | Monitor output: Analog DC1-5V | Port size: Rc1/4
ITVH2020-313SInput signal: DC0-10V | Monitor output: Analog DC1-5V | Port size: Rc3/8
ITVH2020-322SInput signal: DC0-10V | Monitor output: Switch NPN | Port size: Rc1/4
ITVH2020-323SInput signal: DC0-10V | Monitor output: Switch NPN | Port size: Rc3/8
ITVH2020-332SInput signal: DC0-10V | Monitor output: Switch PNP | Port size: Rc1/4
ITVH2020-333SInput signal: DC0-10V | Monitor output: Switch PNP | Port size: Rc3/8
ITVH2020-342SInput signal: DC0-10V | Monitor output: Analog DC4-20mA (sink) | Port size: Rc1/4
ITVH2020-343SInput signal: DC0-10V | Monitor output: Analog DC4-20mA (sink) | Port size: Rc3/8
ITVH2020-402SInput signal: 4-point preset input | Monitor output: None | Port size: Rc1/4
ITVH2020-403SInput signal: 4-point preset input | Monitor output: None | Port size: Rc3/8
