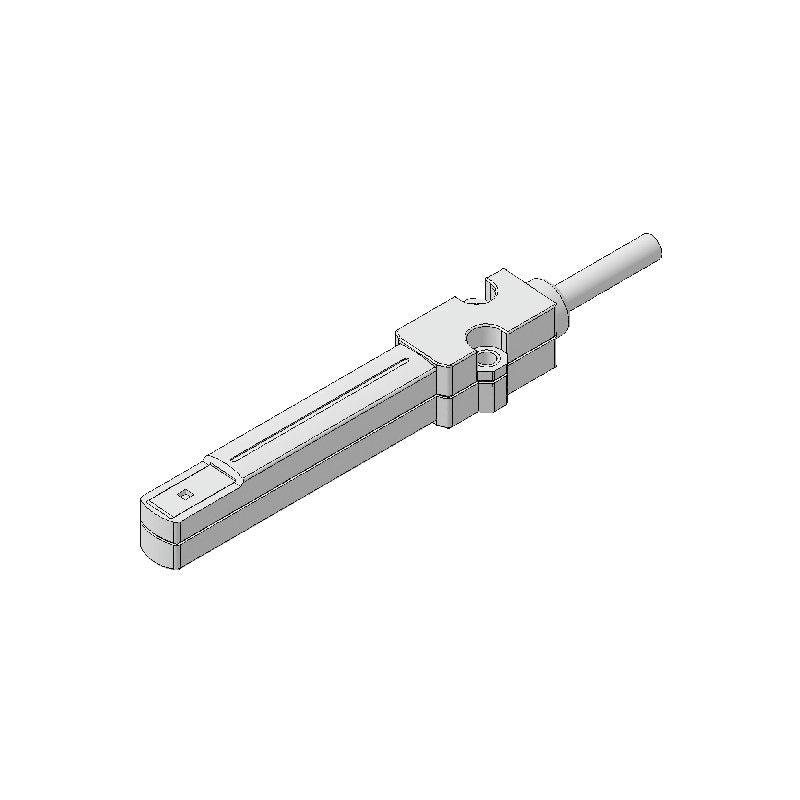

SMC IZD10 Surface Potential Sensor (±0.4 kV / ±20 kV)

SMC IZD10 Surface Potential Sensor (±0.4 kV / ±20 kV)

SMC IZD10 series surface potential sensor that detects the electrostatic potential of a workpiece and outputs a 1 to 5 V analog voltage.

Key features

  • Two measuring ranges: ±0.4 kV (IZD10-110) and ±20 kV (IZD10-510)
  • Analog output 1 to 5 V, output impedance approx. 100 Ω, output delay 100 ms or less
  • Compact sensor head with separate amplifier, mounted with M3 screws
  • Combine with IZE11 surface potential sensor monitor for display, switch and analog outputs

Specifications

Output voltage 1 to 5 V (approx. 100 Ω)
Linearity ±5% F.S. (0 to 50°C)
Output delay 100 ms or less
Power supply voltage 21.6 to 26.4 VDC
Current consumption 40 mA or less
Ambient temperature 0 to 50°C
Ambient humidity 35 to 85% RH (no condensation)
Material Head case ABS, amplifier case ABS
Cables Head to amplifier 1.5 m, amplifier output 3.5 m
Mass 185 g (including cable)
Standards CE, cUL (UL508, C22.2 No.14), RoHS
Source SMC Korea catalog IZD10/IZE11 (SMCKR_IZD_IZE.pdf), p. 202-206 (How to Order p. 205)
IZD10-110 Measuring range: ±0.4 kV | Rated at distance: 25 mm | Effective detection distance: 10 to 50 mm
IZD10-510 Measuring range: ±20 kV | Rated at distance: 50 mm | Effective detection distance: 25 to 75 mm
IonizersSMC
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IZD10 Surface Potential Sensor (±0.4 kV / ±20 kV)

Brand SMC·Ionizers

Available part numbers (2)

IZD10-110, IZD10-510

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IZD10-110Measuring range: ±0.4 kV | Rated at distance: 25 mm | Effective detection distance: 10 to 50 mm
IZD10-510Measuring range: ±20 kV | Rated at distance: 50 mm | Effective detection distance: 25 to 75 mm
