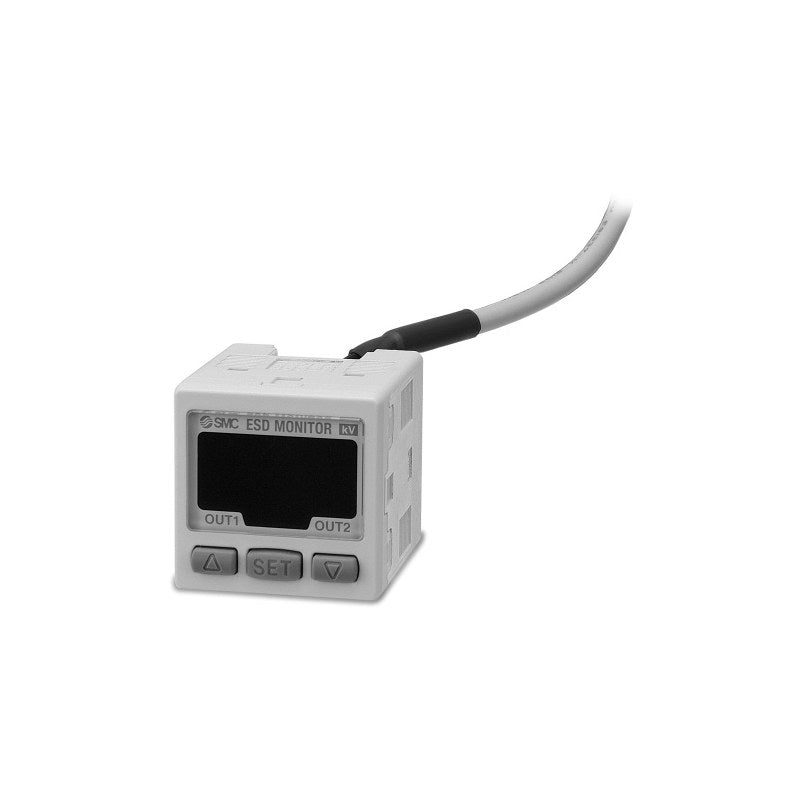

SMC IZE11 Surface Potential Sensor Monitor (for IZD10)

SMC IZE11 Surface Potential Sensor Monitor (for IZD10)

SMC IZE11 series monitor for IZD10 surface potential sensors with 2-color display, two switch outputs and an analog output.

Key features

  • Supports both IZD10-110 (±0.4 kV, 0.001 kV resolution) and IZD10-510 (±20 kV, 0.1 kV resolution) by range selection
  • Two NPN or PNP switch outputs plus 1 to 5 V or 4 to 20 mA analog output
  • Detection distance correction in 1 mm steps, peak/bottom display, key lock, zero adjustment
  • 2-color display (red/green), side-by-side panel mounting
  • Options as suffix: L (power/output cable ZS-28-A), A (bracket ZS-28-B), B (panel adapter ZS-27-C), D (panel adapter + cover ZS-27-D), C (sensor connector ZS-28-C)

Specifications

Rated measuring range ±0.4 kV (25 mm) / ±20 kV (50 mm)
Display accuracy ±0.5% F.S. ±1 digit
Power supply voltage 21.6 to 26.4 VDC (reverse connection protection)
Current consumption 50 mA or less
Sensor input 1 to 5 VDC (1 MΩ), 1 input
Switch output load Max. 80 mA, 30 VDC (NPN)
Response time 100 ms or less (switch output)
Enclosure IP40
Operating temperature 0 to 50°C
Mass 30 g (without cable)
Standards CE, cUL (UL508, C22.2 No.14), RoHS
Source SMC Korea catalog IZD10/IZE11 (SMCKR_IZD_IZE.pdf), p. 207-212 (How to Order p. 207)
IZE110 Switch output: NPN open collector x2 | Analog output: 1 to 5 V | Connectable sensor: IZD10-110 / IZD10-510
IZE111 Switch output: NPN open collector x2 | Analog output: 4 to 20 mA | Connectable sensor: IZD10-110 / IZD10-510
IZE112 Switch output: PNP open collector x2 | Analog output: 1 to 5 V | Connectable sensor: IZD10-110 / IZD10-510
IZE113 Switch output: PNP open collector x2 | Analog output: 4 to 20 mA | Connectable sensor: IZD10-110 / IZD10-510
IonizersSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IZE11 Surface Potential Sensor Monitor (for IZD10)

Brand SMC·Ionizers

Available part numbers (4)

IZE110, IZE111, IZE112, IZE113

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IZE110Switch output: NPN open collector x2 | Analog output: 1 to 5 V | Connectable sensor: IZD10-110 / IZD10-510
IZE111Switch output: NPN open collector x2 | Analog output: 4 to 20 mA | Connectable sensor: IZD10-110 / IZD10-510
IZE112Switch output: PNP open collector x2 | Analog output: 1 to 5 V | Connectable sensor: IZD10-110 / IZD10-510
IZE113Switch output: PNP open collector x2 | Analog output: 4 to 20 mA | Connectable sensor: IZD10-110 / IZD10-510
