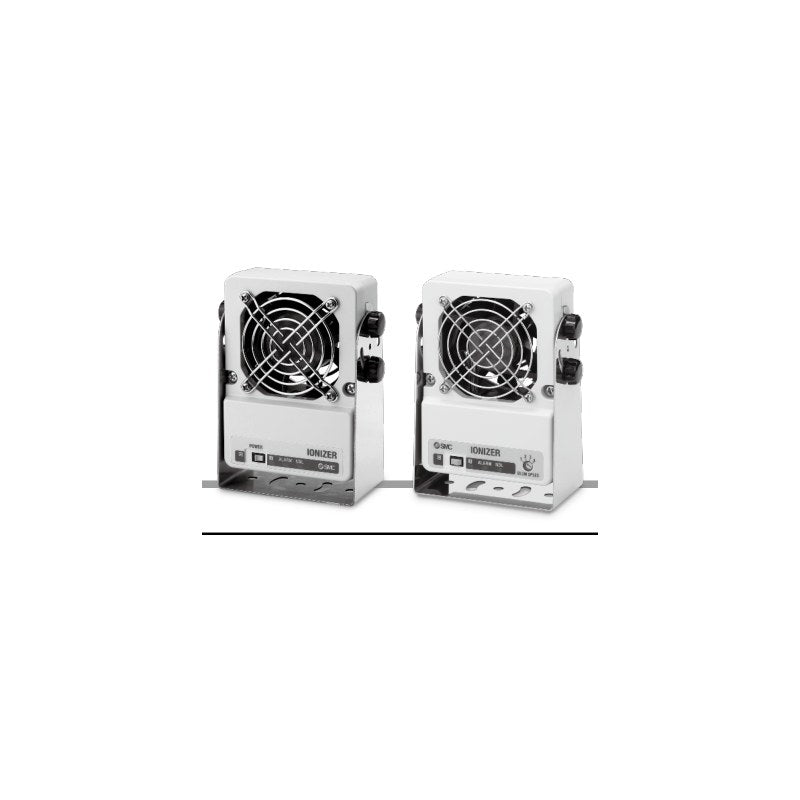

SMC IZF10/IZF10R Compact Fan Type Ionizer

SMC IZF10/IZF10R Compact Fan Type Ionizer

SMC IZF10/IZF10R series compact fan type ionizer (39 x 80 x 110 mm) with a high-speed or low-noise fan, or built-in air flow adjustment on IZF10R.

Key features

  • Compact 39 x 80 x 110 mm body, mass 260 to 280 g
  • IZF10: high-speed fan 0.66 m3/min (1.5 s decay at 300 mm) or low-noise L fan 0.46 m3/min (48 dB(A))
  • IZF10R: built-in air flow adjustment 0.19 to 0.80 m3/min
  • Alarm functions: high voltage error and maintenance warning (emitter contamination), NPN or PNP output
  • Bracket (B) ordered as suffix; power cables IZF10-CP/CPZ and AC adapters IZF10-CG1/CG2 also available separately

Specifications

Ion generation Corona discharge
Voltage application DC
Applied voltage ±5 kV
Offset voltage ±13 V (ANSI/ESD-STM3.1-2015)
Power supply voltage 24 VDC ±10%
Current consumption 140 to 270 mA max. (by model/output)
Switch output Open collector, max. 80 mA (IZF10) / 150 mA (IZF10R)
Ambient temperature 0 to 50°C (storage -10 to 60°C)
Ambient humidity 35 to 80% RH (no condensation)
Material Case ABS/stainless steel, emitter tungsten
Standards CE, UKCA, RoHS
Source SMC Korea catalog IZF (SMCKR_IZF.pdf), p. 152, 166-176 (How to Order p. 167)
IZF10 Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: Power cable 3 m
IZF10-Z Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: Power cable 10 m
IZF10-H Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: e-con connector
IZF10-Q Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: AC adapter with AC cord
IZF10-R Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: AC adapter without AC cord
IZF10-N Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: None
IZF10-P Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: Power cable 3 m
IZF10-P-Z Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: Power cable 10 m
IZF10-P-H Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: e-con connector
IZF10-P-Q Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: AC adapter with AC cord
IZF10-P-R Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: AC adapter without AC cord
IZF10-P-N Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: None
IZF10-L Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: Power cable 3 m
IZF10-L-Z Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: Power cable 10 m
IZF10-L-H Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: e-con connector
IZF10-L-Q Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: AC adapter with AC cord
IZF10-L-R Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: AC adapter without AC cord
IZF10-L-N Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: None
IZF10-LP Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: Power cable 3 m
IZF10-LP-Z Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: Power cable 10 m
IZF10-LP-H Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: e-con connector
IZF10-LP-Q Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: AC adapter with AC cord
IZF10-LP-R Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: AC adapter without AC cord
IZF10-LP-N Model: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: None
IZF10R Model: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: NPN | Power supply: Power cable 3 m
IZF10R-Z Model: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: NPN | Power supply: Power cable 10 m
IZF10R-Q Model: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: NPN | Power supply: AC adapter with AC cord
IZF10R-R Model: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: NPN | Power supply: AC adapter without AC cord
IZF10R-N Model: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: NPN | Power supply: None
IZF10R-P Model: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: PNP | Power supply: Power cable 3 m
IZF10R-P-Z Model: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: PNP | Power supply: Power cable 10 m
IZF10R-P-Q Model: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: PNP | Power supply: AC adapter with AC cord
IZF10R-P-R Model: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: PNP | Power supply: AC adapter without AC cord
IZF10R-P-N Model: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: PNP | Power supply: None
IonizersSMC
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IZF10/IZF10R Compact Fan Type Ionizer

Brand SMC·Ionizers

Available part numbers (34)

IZF10, IZF10-Z, IZF10-H, IZF10-Q, IZF10-R, IZF10-N, IZF10-P, IZF10-P-Z, IZF10-P-H, IZF10-P-Q + 24 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IZF10Model: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: Power cable 3 m
IZF10-ZModel: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: Power cable 10 m
IZF10-HModel: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: e-con connector
IZF10-QModel: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: AC adapter with AC cord
IZF10-RModel: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: AC adapter without AC cord
IZF10-NModel: IZF10 | Air flow: Fixed 0.66 m3/min | Output: NPN | Power supply: None
IZF10-PModel: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: Power cable 3 m
IZF10-P-ZModel: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: Power cable 10 m
IZF10-P-HModel: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: e-con connector
IZF10-P-QModel: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: AC adapter with AC cord
IZF10-P-RModel: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: AC adapter without AC cord
IZF10-P-NModel: IZF10 | Air flow: Fixed 0.66 m3/min | Output: PNP | Power supply: None
IZF10-LModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: Power cable 3 m
IZF10-L-ZModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: Power cable 10 m
IZF10-L-HModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: e-con connector
IZF10-L-QModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: AC adapter with AC cord
IZF10-L-RModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: AC adapter without AC cord
IZF10-L-NModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: NPN | Power supply: None
IZF10-LPModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: Power cable 3 m
IZF10-LP-ZModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: Power cable 10 m
IZF10-LP-HModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: e-con connector
IZF10-LP-QModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: AC adapter with AC cord
IZF10-LP-RModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: AC adapter without AC cord
IZF10-LP-NModel: IZF10 | Air flow: Fixed 0.46 m3/min (low noise) | Output: PNP | Power supply: None
IZF10RModel: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: NPN | Power supply: Power cable 3 m
IZF10R-ZModel: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: NPN | Power supply: Power cable 10 m
IZF10R-QModel: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: NPN | Power supply: AC adapter with AC cord
IZF10R-RModel: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: NPN | Power supply: AC adapter without AC cord
IZF10R-NModel: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: NPN | Power supply: None
IZF10R-PModel: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: PNP | Power supply: Power cable 3 m
IZF10R-P-ZModel: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: PNP | Power supply: Power cable 10 m
IZF10R-P-QModel: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: PNP | Power supply: AC adapter with AC cord
IZF10R-P-RModel: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: PNP | Power supply: AC adapter without AC cord
IZF10R-P-NModel: IZF10R | Air flow: Adjustable 0.19 to 0.80 m3/min | Output: PNP | Power supply: None
