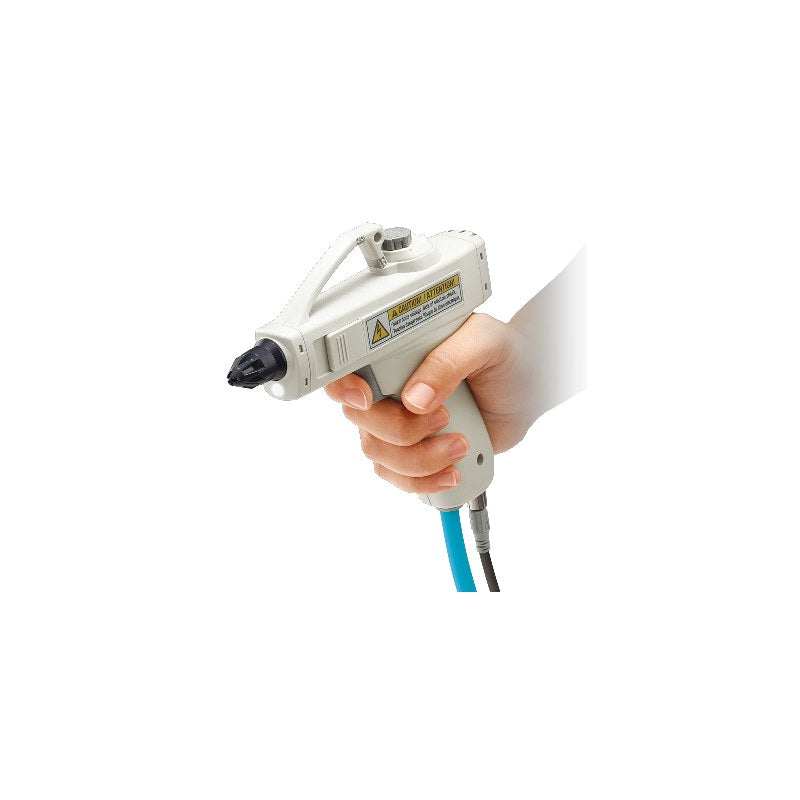

SMC IZG10 Ionizer Gun (Static Elimination Blow Gun)

SMC IZG10 Ionizer Gun (Static Elimination Blow Gun)

SMC IZG10 series lightweight (200 g) ionizer gun that blows ionized air to remove static and dust, discharging a charged plate in 0.3 s at 150 mm.

Key features

  • Blow setting: continuous or pulse blow; trigger setting: linked, latching or OFF timer (3/5/7 s) via mode switch
  • Graduated flow adjustment valve for easy, repeatable flow setting
  • Illumination LED makes dust on the workpiece easy to see; PWR, ION/HV and NDL (maintenance) indicator LEDs
  • Bypass nozzle option keeps dead-end pressure below 30 psi (OSHA 1910.242b) at 0.5 MPa or less
  • Tool-free nozzle and emitter removal for cleaning or replacement; spare emitter IZG10-NT, nozzle IZG10-A001-01/02
  • AC adapter IZG10-CG1/CG2 and power cable IZG10-CP also sold separately

Specifications

Ion generation method Corona discharge
Voltage application method High-frequency AC
Applied voltage ±2.5 kV
Offset voltage Within ±10 V
Fluid Air (clean dry air)
Operating pressure 0.05 to 0.6 MPa
Power supply voltage DC24V ±10%
Current consumption 90 mA (typ.)
Ambient temperature / humidity 0 to 40°C, 35 to 65% RH
Material Case PBT, emitter tungsten
Weight (body) Standard nozzle 200 g, bypass nozzle 250 g
Standards CE (EMC, RoHS), UKCA
Source SMC Korea catalog IZG10 (SMCKR_IZG10.pdf), p. 178-186 (PDF p. 1-9)
IZG10-0801-01 One-touch fitting: ø8 (metric) | Power supply: AC adapter with AC cord | Nozzle: Standard nozzle
IZG10-0801-02 One-touch fitting: ø8 (metric) | Power supply: AC adapter with AC cord | Nozzle: Bypass nozzle (OSHA)
IZG10-0802-01 One-touch fitting: ø8 (metric) | Power supply: AC adapter without AC cord | Nozzle: Standard nozzle
IZG10-0802-02 One-touch fitting: ø8 (metric) | Power supply: AC adapter without AC cord | Nozzle: Bypass nozzle (OSHA)
IZG10-0803-01 One-touch fitting: ø8 (metric) | Power supply: Power cable (DC24V wiring) | Nozzle: Standard nozzle
IZG10-0803-02 One-touch fitting: ø8 (metric) | Power supply: Power cable (DC24V wiring) | Nozzle: Bypass nozzle (OSHA)
IZG10-08N-01 One-touch fitting: ø8 (metric) | Power supply: None | Nozzle: Standard nozzle
IZG10-08N-02 One-touch fitting: ø8 (metric) | Power supply: None | Nozzle: Bypass nozzle (OSHA)
IZG10-0901-01 One-touch fitting: ø5/16" (inch) | Power supply: AC adapter with AC cord | Nozzle: Standard nozzle
IZG10-0901-02 One-touch fitting: ø5/16" (inch) | Power supply: AC adapter with AC cord | Nozzle: Bypass nozzle (OSHA)
IZG10-0902-01 One-touch fitting: ø5/16" (inch) | Power supply: AC adapter without AC cord | Nozzle: Standard nozzle
IZG10-0902-02 One-touch fitting: ø5/16" (inch) | Power supply: AC adapter without AC cord | Nozzle: Bypass nozzle (OSHA)
IZG10-0903-01 One-touch fitting: ø5/16" (inch) | Power supply: Power cable (DC24V wiring) | Nozzle: Standard nozzle
IZG10-0903-02 One-touch fitting: ø5/16" (inch) | Power supply: Power cable (DC24V wiring) | Nozzle: Bypass nozzle (OSHA)
IZG10-09N-01 One-touch fitting: ø5/16" (inch) | Power supply: None | Nozzle: Standard nozzle
IZG10-09N-02 One-touch fitting: ø5/16" (inch) | Power supply: None | Nozzle: Bypass nozzle (OSHA)
IonizersSMC
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IZG10 Ionizer Gun (Static Elimination Blow Gun)

Brand SMC·Ionizers

Available part numbers (16)

IZG10-0801-01, IZG10-0801-02, IZG10-0802-01, IZG10-0802-02, IZG10-0803-01, IZG10-0803-02, IZG10-08N-01, IZG10-08N-02, IZG10-0901-01, IZG10-0901-02 + 6 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IZG10-0801-01One-touch fitting: ø8 (metric) | Power supply: AC adapter with AC cord | Nozzle: Standard nozzle
IZG10-0801-02One-touch fitting: ø8 (metric) | Power supply: AC adapter with AC cord | Nozzle: Bypass nozzle (OSHA)
IZG10-0802-01One-touch fitting: ø8 (metric) | Power supply: AC adapter without AC cord | Nozzle: Standard nozzle
IZG10-0802-02One-touch fitting: ø8 (metric) | Power supply: AC adapter without AC cord | Nozzle: Bypass nozzle (OSHA)
IZG10-0803-01One-touch fitting: ø8 (metric) | Power supply: Power cable (DC24V wiring) | Nozzle: Standard nozzle
IZG10-0803-02One-touch fitting: ø8 (metric) | Power supply: Power cable (DC24V wiring) | Nozzle: Bypass nozzle (OSHA)
IZG10-08N-01One-touch fitting: ø8 (metric) | Power supply: None | Nozzle: Standard nozzle
IZG10-08N-02One-touch fitting: ø8 (metric) | Power supply: None | Nozzle: Bypass nozzle (OSHA)
IZG10-0901-01One-touch fitting: ø5/16" (inch) | Power supply: AC adapter with AC cord | Nozzle: Standard nozzle
IZG10-0901-02One-touch fitting: ø5/16" (inch) | Power supply: AC adapter with AC cord | Nozzle: Bypass nozzle (OSHA)
IZG10-0902-01One-touch fitting: ø5/16" (inch) | Power supply: AC adapter without AC cord | Nozzle: Standard nozzle
IZG10-0902-02One-touch fitting: ø5/16" (inch) | Power supply: AC adapter without AC cord | Nozzle: Bypass nozzle (OSHA)
IZG10-0903-01One-touch fitting: ø5/16" (inch) | Power supply: Power cable (DC24V wiring) | Nozzle: Standard nozzle
IZG10-0903-02One-touch fitting: ø5/16" (inch) | Power supply: Power cable (DC24V wiring) | Nozzle: Bypass nozzle (OSHA)
IZG10-09N-01One-touch fitting: ø5/16" (inch) | Power supply: None | Nozzle: Standard nozzle
IZG10-09N-02One-touch fitting: ø5/16" (inch) | Power supply: None | Nozzle: Bypass nozzle (OSHA)
