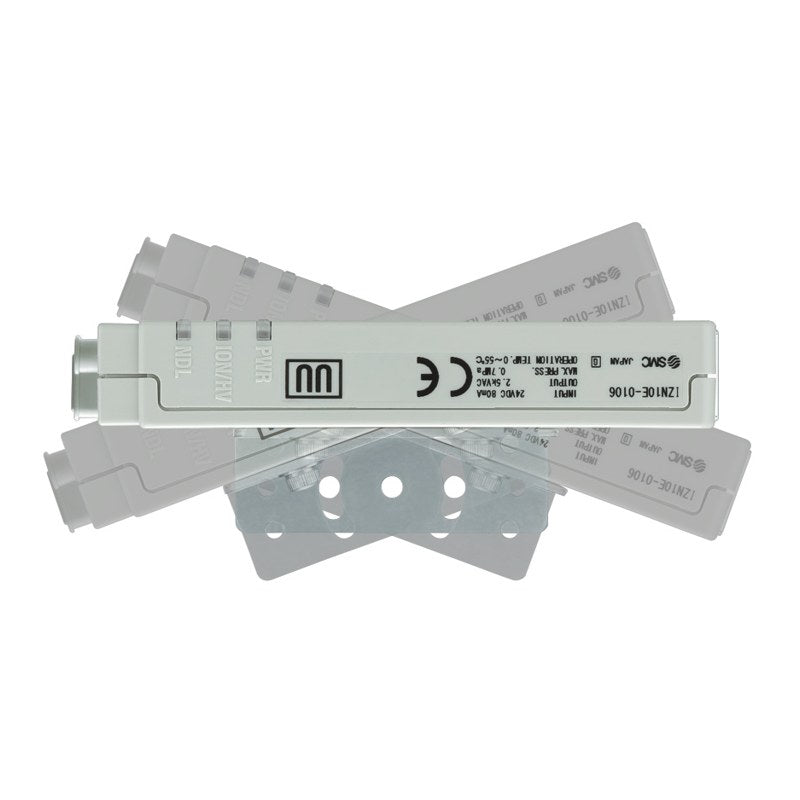

SMC IZN10E Ionizer, Nozzle Type (High-Frequency AC)

SMC IZN10E Ionizer, Nozzle Type (High-Frequency AC)

SMC IZN10E compact high-frequency AC nozzle ionizer (16 x 100 x 46 mm) for spot static elimination and air blow dust removal.

Key features

  • Energy-saving nozzle (offset ±10 V), high flow nozzle (±15 V) or Rc1/8 female thread for customer nozzles
  • Built-in 2 external switch inputs for pressure switch / sensor interlock
  • NPN or PNP I/O; maintenance warning, discharge and error signals
  • Power cable 3 m standard (Z 10 m, N none); brackets B1/B2/B3, inch fittings and -X367 right-angle nozzle on order

Specifications

Ion generation Corona discharge
Voltage application High-frequency AC
Output voltage 2.5 kVAC
Purge air Clean dry air, 0.05 to 0.7 MPa
Power supply DC24V ±10%, 80 mA or less
Effective distance 20 to 500 mm
Ambient temperature 0 to 55°C
Materials Case ABS/SUS, nozzle SUS, W emitter
Standards CE, UKCA, cUL, RoHS
Source SMC Korea catalog IZN10E (SMCKR_IZN10E.pdf), p. 128-129
IZN10E-0106 Nozzle: Energy saving nozzle | I/O: NPN | Fitting: ø6 straight
IZN10E-0116 Nozzle: Energy saving nozzle | I/O: NPN | Fitting: ø6 elbow
IZN10E-01P06 Nozzle: Energy saving nozzle | I/O: PNP | Fitting: ø6 straight
IZN10E-01P16 Nozzle: Energy saving nozzle | I/O: PNP | Fitting: ø6 elbow
IZN10E-0206 Nozzle: High flow nozzle | I/O: NPN | Fitting: ø6 straight
IZN10E-0216 Nozzle: High flow nozzle | I/O: NPN | Fitting: ø6 elbow
IZN10E-02P06 Nozzle: High flow nozzle | I/O: PNP | Fitting: ø6 straight
IZN10E-02P16 Nozzle: High flow nozzle | I/O: PNP | Fitting: ø6 elbow
IZN10E-1106 Nozzle: Female thread (Rc1/8) | I/O: NPN | Fitting: ø6 straight
IZN10E-1116 Nozzle: Female thread (Rc1/8) | I/O: NPN | Fitting: ø6 elbow
IZN10E-11P06 Nozzle: Female thread (Rc1/8) | I/O: PNP | Fitting: ø6 straight
IZN10E-11P16 Nozzle: Female thread (Rc1/8) | I/O: PNP | Fitting: ø6 elbow
IonizersSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IZN10E Ionizer, Nozzle Type (High-Frequency AC)

Brand SMC·Ionizers

Available part numbers (12)

IZN10E-0106, IZN10E-0116, IZN10E-01P06, IZN10E-01P16, IZN10E-0206, IZN10E-0216, IZN10E-02P06, IZN10E-02P16, IZN10E-1106, IZN10E-1116 + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IZN10E-0106Nozzle: Energy saving nozzle | I/O: NPN | Fitting: ø6 straight
IZN10E-0116Nozzle: Energy saving nozzle | I/O: NPN | Fitting: ø6 elbow
IZN10E-01P06Nozzle: Energy saving nozzle | I/O: PNP | Fitting: ø6 straight
IZN10E-01P16Nozzle: Energy saving nozzle | I/O: PNP | Fitting: ø6 elbow
IZN10E-0206Nozzle: High flow nozzle | I/O: NPN | Fitting: ø6 straight
IZN10E-0216Nozzle: High flow nozzle | I/O: NPN | Fitting: ø6 elbow
IZN10E-02P06Nozzle: High flow nozzle | I/O: PNP | Fitting: ø6 straight
IZN10E-02P16Nozzle: High flow nozzle | I/O: PNP | Fitting: ø6 elbow
IZN10E-1106Nozzle: Female thread (Rc1/8) | I/O: NPN | Fitting: ø6 straight
IZN10E-1116Nozzle: Female thread (Rc1/8) | I/O: NPN | Fitting: ø6 elbow
IZN10E-11P06Nozzle: Female thread (Rc1/8) | I/O: PNP | Fitting: ø6 straight
IZN10E-11P16Nozzle: Female thread (Rc1/8) | I/O: PNP | Fitting: ø6 elbow
