SMC IZSW10 Ionizer Bar, Dust/Splash-Proof IP66 (400-1120 mm)

SMC IZSW10 Ionizer Bar, Dust/Splash-Proof IP66 (400-1120 mm)

SMC IZSW10 IP66 dust- and splash-proof bar ionizer with washable stainless body, for food packaging and wet-cleaning environments.

Key features

  • IP66 (air-less cartridge, or with purge air); body can be washed (not while operating)
  • DC and dual AC ion generation modes, ±7000 V; auto balance and averaging functions

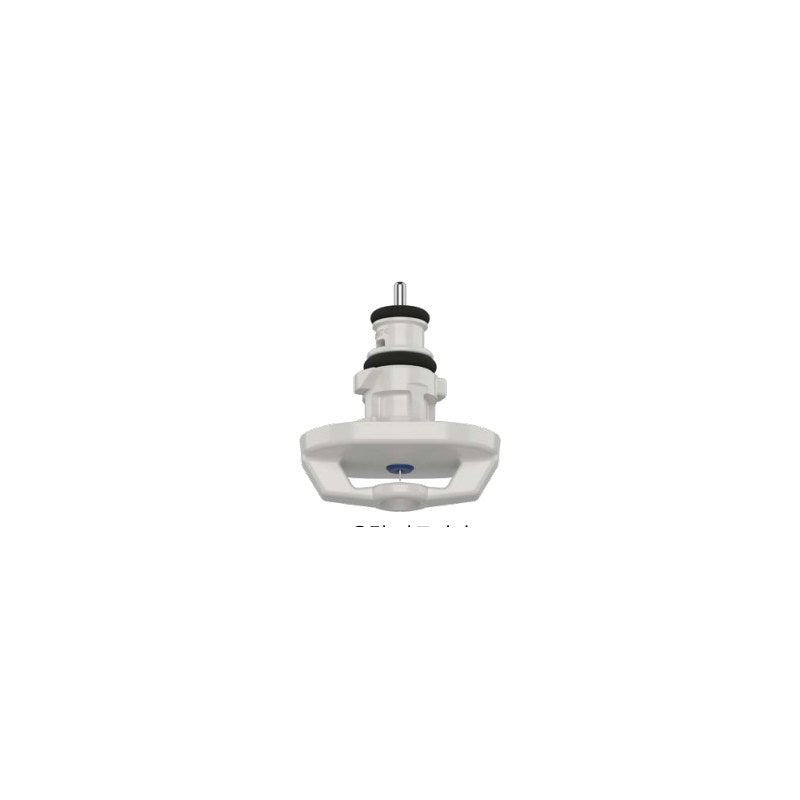

  • Air-less, high, medium and low flow emitter cartridges; G1/8 ports with ø6/ø8 fittings
  • Listed codes include 3 m power cable; brackets (B), 5/10 m cable or none on order
  • Smooth cylindrical body with no liquid traps, 2-direction LED display

Specifications

Ion generation Corona discharge
Voltage application DC, dual AC
Output voltage ±7000 V
Offset voltage ±30 V or less
Purge air 0.5 MPa or less (proof 0.7 MPa)
Port G1/8
Power supply DC24V ±10%, 700 mA or less
I/O NPN / PNP
Ambient temperature 0 to 50°C
Materials ABS, PBT, PC, PET, SUS, FKM; W emitter
Standards CE, UKCA, RoHS
Source SMC Korea catalog CAT.KS100-180A (SMCKR_IZSW10.pdf), p. 6-7
IZSW10-40-N-3 Bar length: 400 mm | Cartridge: Air-less | Piping: Both-side piping | Fitting: None (air-less)
IZSW10-40-DN-3 Bar length: 400 mm | Cartridge: Air-less | Piping: One-side piping | Fitting: None (air-less)
IZSW10-40T-6-3 Bar length: 400 mm | Cartridge: High flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-40T-8-3 Bar length: 400 mm | Cartridge: High flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-40T-D6-3 Bar length: 400 mm | Cartridge: High flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-40T-D8-3 Bar length: 400 mm | Cartridge: High flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-40J-6-3 Bar length: 400 mm | Cartridge: Medium flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-40J-8-3 Bar length: 400 mm | Cartridge: Medium flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-40J-D6-3 Bar length: 400 mm | Cartridge: Medium flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-40J-D8-3 Bar length: 400 mm | Cartridge: Medium flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-40V-6-3 Bar length: 400 mm | Cartridge: Low flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-40V-8-3 Bar length: 400 mm | Cartridge: Low flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-40V-D6-3 Bar length: 400 mm | Cartridge: Low flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-40V-D8-3 Bar length: 400 mm | Cartridge: Low flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-58-N-3 Bar length: 580 mm | Cartridge: Air-less | Piping: Both-side piping | Fitting: None (air-less)
IZSW10-58-DN-3 Bar length: 580 mm | Cartridge: Air-less | Piping: One-side piping | Fitting: None (air-less)
IZSW10-58T-6-3 Bar length: 580 mm | Cartridge: High flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-58T-8-3 Bar length: 580 mm | Cartridge: High flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-58T-D6-3 Bar length: 580 mm | Cartridge: High flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-58T-D8-3 Bar length: 580 mm | Cartridge: High flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-58J-6-3 Bar length: 580 mm | Cartridge: Medium flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-58J-8-3 Bar length: 580 mm | Cartridge: Medium flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-58J-D6-3 Bar length: 580 mm | Cartridge: Medium flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-58J-D8-3 Bar length: 580 mm | Cartridge: Medium flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-58V-6-3 Bar length: 580 mm | Cartridge: Low flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-58V-8-3 Bar length: 580 mm | Cartridge: Low flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-58V-D6-3 Bar length: 580 mm | Cartridge: Low flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-58V-D8-3 Bar length: 580 mm | Cartridge: Low flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-76-N-3 Bar length: 760 mm | Cartridge: Air-less | Piping: Both-side piping | Fitting: None (air-less)
IZSW10-76-DN-3 Bar length: 760 mm | Cartridge: Air-less | Piping: One-side piping | Fitting: None (air-less)
IZSW10-76T-6-3 Bar length: 760 mm | Cartridge: High flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-76T-8-3 Bar length: 760 mm | Cartridge: High flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-76T-D6-3 Bar length: 760 mm | Cartridge: High flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-76T-D8-3 Bar length: 760 mm | Cartridge: High flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-76J-6-3 Bar length: 760 mm | Cartridge: Medium flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-76J-8-3 Bar length: 760 mm | Cartridge: Medium flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-76J-D6-3 Bar length: 760 mm | Cartridge: Medium flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-76J-D8-3 Bar length: 760 mm | Cartridge: Medium flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-76V-6-3 Bar length: 760 mm | Cartridge: Low flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-76V-8-3 Bar length: 760 mm | Cartridge: Low flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-76V-D6-3 Bar length: 760 mm | Cartridge: Low flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-76V-D8-3 Bar length: 760 mm | Cartridge: Low flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-94-N-3 Bar length: 940 mm | Cartridge: Air-less | Piping: Both-side piping | Fitting: None (air-less)
IZSW10-94-DN-3 Bar length: 940 mm | Cartridge: Air-less | Piping: One-side piping | Fitting: None (air-less)
IZSW10-94T-6-3 Bar length: 940 mm | Cartridge: High flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-94T-8-3 Bar length: 940 mm | Cartridge: High flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-94T-D6-3 Bar length: 940 mm | Cartridge: High flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-94T-D8-3 Bar length: 940 mm | Cartridge: High flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-94J-6-3 Bar length: 940 mm | Cartridge: Medium flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-94J-8-3 Bar length: 940 mm | Cartridge: Medium flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-94J-D6-3 Bar length: 940 mm | Cartridge: Medium flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-94J-D8-3 Bar length: 940 mm | Cartridge: Medium flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-94V-6-3 Bar length: 940 mm | Cartridge: Low flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-94V-8-3 Bar length: 940 mm | Cartridge: Low flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-94V-D6-3 Bar length: 940 mm | Cartridge: Low flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-94V-D8-3 Bar length: 940 mm | Cartridge: Low flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-112-N-3 Bar length: 1120 mm | Cartridge: Air-less | Piping: Both-side piping | Fitting: None (air-less)
IZSW10-112-DN-3 Bar length: 1120 mm | Cartridge: Air-less | Piping: One-side piping | Fitting: None (air-less)
IZSW10-112T-6-3 Bar length: 1120 mm | Cartridge: High flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-112T-8-3 Bar length: 1120 mm | Cartridge: High flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-112T-D8-3 Bar length: 1120 mm | Cartridge: High flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-112J-6-3 Bar length: 1120 mm | Cartridge: Medium flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-112J-8-3 Bar length: 1120 mm | Cartridge: Medium flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-112J-D6-3 Bar length: 1120 mm | Cartridge: Medium flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-112J-D8-3 Bar length: 1120 mm | Cartridge: Medium flow | Piping: One-side piping | Fitting: ø8 straight
IZSW10-112V-6-3 Bar length: 1120 mm | Cartridge: Low flow | Piping: Both-side piping | Fitting: ø6 straight
IZSW10-112V-8-3 Bar length: 1120 mm | Cartridge: Low flow | Piping: Both-side piping | Fitting: ø8 straight
IZSW10-112V-D6-3 Bar length: 1120 mm | Cartridge: Low flow | Piping: One-side piping | Fitting: ø6 straight
IZSW10-112V-D8-3 Bar length: 1120 mm | Cartridge: Low flow | Piping: One-side piping | Fitting: ø8 straight
IonizersSMC
69 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IZSW10 Ionizer Bar, Dust/Splash-Proof IP66 (400-1120 mm)

Brand SMC·Ionizers

Available part numbers (69)

IZSW10-40-N-3, IZSW10-40-DN-3, IZSW10-40T-6-3, IZSW10-40T-8-3, IZSW10-40T-D6-3, IZSW10-40T-D8-3, IZSW10-40J-6-3, IZSW10-40J-8-3, IZSW10-40J-D6-3, IZSW10-40J-D8-3 + 59 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
