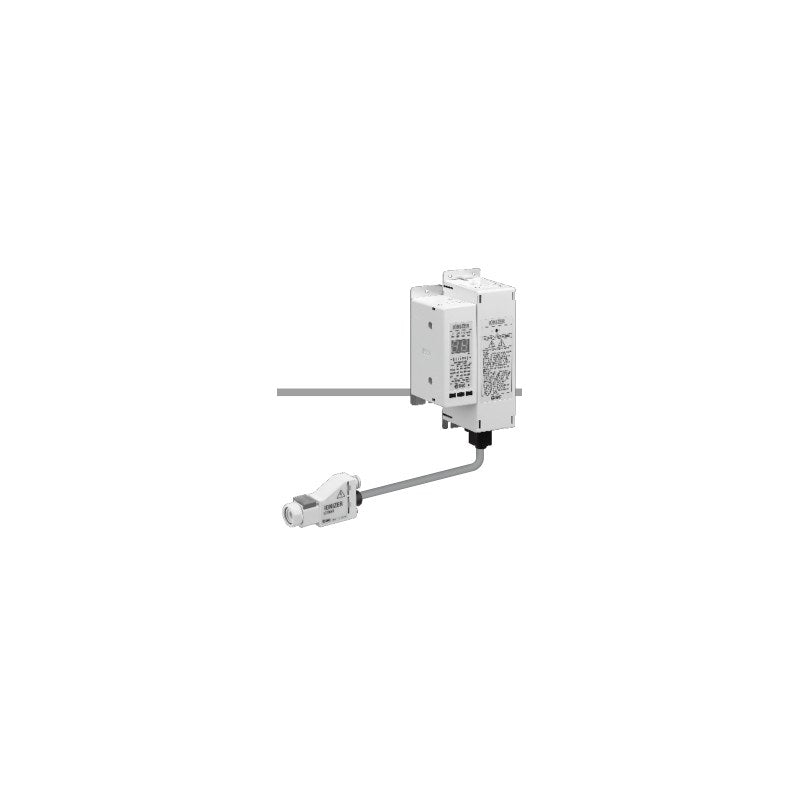

SMC IZT43(-L) Ionizer Nozzle Type, Separate Controller

SMC IZT43 AC-type controller-separated nozzle ionizer (16 x 53 x 32 mm nozzle) for spot static elimination and air blow dust removal.

Key features

AC or DC voltage application, ±6000 V; auto balance, maintenance and HV error detection
High-speed (D) or energy-saving (L) emitter cartridge, tungsten emitter
Up to 4 nozzles/bars per controller; ø6 straight or elbow one-touch fitting
NPN/PNP (3 m power cable) or IO-Link -L (straight 3 m power cable, no comm cable)
HV cable 2/3 m, inch fittings, nozzle brackets (B/F) and DIN rail brackets (U/W/Y) on order

Specifications

Ion generation	Corona discharge
Voltage application	AC, DC
Output voltage	±6000 V
Offset voltage	±30 V or less
Purge air	Clean dry air, 0.7 MPa or less
Power supply	DC24V ±10%, 0.4 A or less
Effective distance	50 to 2000 mm
Ambient temperature	0 to 40°C
Listed configuration	Nozzle + HV module + controller, HV cable 1 m
Source	SMC Korea catalog IZT40/41/42/43 (SMCKR_IZT40.pdf), p. 95-97

IZT43-D16H-3		Cartridge: High speed \| Fitting: ø6 straight \| I/O: NPN
IZT43-D16L-3		Cartridge: High speed \| Fitting: ø6 elbow \| I/O: NPN
IZT43-L16H-3		Cartridge: Energy saving \| Fitting: ø6 straight \| I/O: NPN
IZT43-L16L-3		Cartridge: Energy saving \| Fitting: ø6 elbow \| I/O: NPN
IZT43-D16HP-3		Cartridge: High speed \| Fitting: ø6 straight \| I/O: PNP
IZT43-D16LP-3		Cartridge: High speed \| Fitting: ø6 elbow \| I/O: PNP
IZT43-L16HP-3		Cartridge: Energy saving \| Fitting: ø6 straight \| I/O: PNP
IZT43-L16LP-3		Cartridge: Energy saving \| Fitting: ø6 elbow \| I/O: PNP
IZT43-D16HL-JN		Cartridge: High speed \| Fitting: ø6 straight \| I/O: IO-Link
IZT43-D16LL-JN		Cartridge: High speed \| Fitting: ø6 elbow \| I/O: IO-Link
IZT43-L16HL-JN		Cartridge: Energy saving \| Fitting: ø6 straight \| I/O: IO-Link
IZT43-L16LL-JN		Cartridge: Energy saving \| Fitting: ø6 elbow \| I/O: IO-Link

IonizersSMC

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IZT43(-L) Ionizer Nozzle Type, Separate Controller

Brand SMC·Ionizers

Available part numbers (12)

IZT43-D16H-3, IZT43-D16L-3, IZT43-L16H-3, IZT43-L16L-3, IZT43-D16HP-3, IZT43-D16LP-3, IZT43-L16HP-3, IZT43-L16LP-3, IZT43-D16HL-JN, IZT43-D16LL-JN + 2 more — see full table ↓
