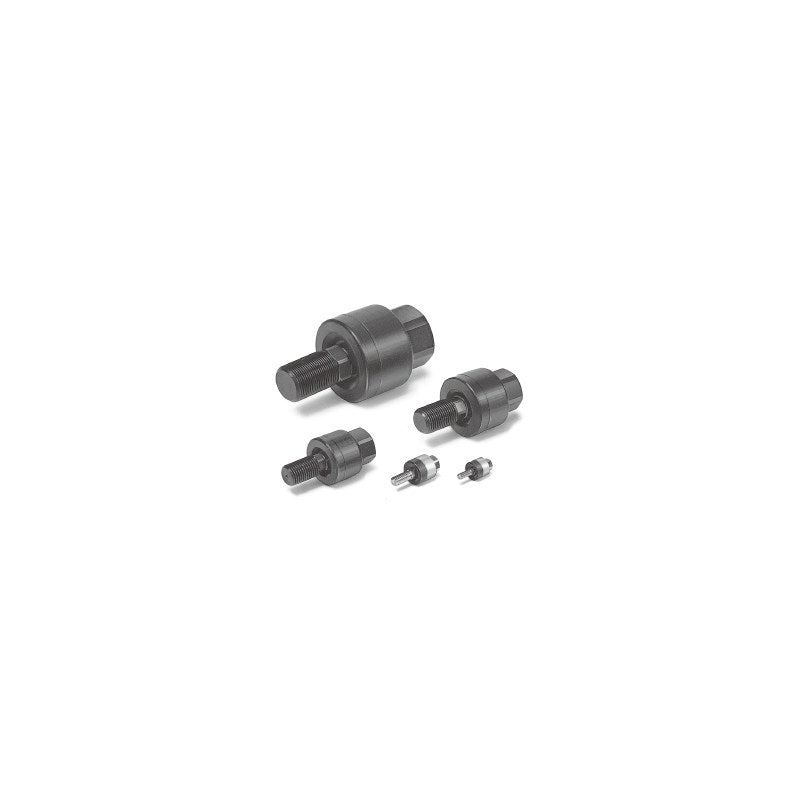

SMC JA Floating Joint (Standard Type, Basic/Flange/Foot)

SMC JA Floating Joint (Standard Type, Basic/Flange/Foot)

SMC JA series standard floating joint for ø6 to ø160 air and hydraulic cylinders, absorbing eccentricity and parallelism errors between cylinder and driven object.

Key features

  • No precise axis alignment or high machining accuracy needed; easier installation and longer cylinder life
  • Basic (JA), flange (JAF) and foot (JAL) mounting types; flange and foot for ø20 and larger
  • Standard and semi-standard rod thread sizes from M3x0.5 to M36x1.5
  • Swing angle ±5°, allowable eccentricity 0.5 to 3 mm
  • High-temperature version -5 to 100°C (suffix -X11) and ø180/ø200 sizes (-X530) on order; rod end nut included with basic type

Specifications

Operating pressure Air cylinder 1 MPa or less, hydraulic cylinder 3.5 MPa or less
Swing angle ±5°
Operating temperature -5 to 60°C
Material Chromium molybdenum steel / carbon steel, black zinc chromated (ø20 and up)
Dust cover Synthetic rubber, replaceable
Source SMC Korea catalog CAT.KS20-248A (SMCKR_JT_JC_JA_JAH_JB_JS.pdf), p. 1144-1148 (PDF p. 14-18)
JA6-3-050 Mounting: Basic | Thread size: M3 | Thread pitch: 0.5 mm | Cylinder bore: ø6 mm | Max load: 19 N | Eccentricity: 0.5 mm
JA10-4-070 Mounting: Basic | Thread size: M4 | Thread pitch: 0.7 mm | Cylinder bore: ø10 mm | Max load: 54 N | Eccentricity: 0.5 mm
JA15-5-080 Mounting: Basic | Thread size: M5 | Thread pitch: 0.8 mm | Cylinder bore: ø10, ø15 mm | Max load: 123 N | Eccentricity: 0.5 mm
JA15-6-100 Mounting: Basic | Thread size: M6 | Thread pitch: 1 mm | Cylinder bore: ø15 mm | Max load: 123 N | Eccentricity: 0.5 mm
JA20-8-125 Mounting: Basic | Thread size: M8 | Thread pitch: 1.25 mm | Cylinder bore: ø20 mm | Max load: 1100 N | Eccentricity: 0.5 mm
JA30-10-125 Mounting: Basic | Thread size: M10 | Thread pitch: 1.25 mm | Cylinder bore: ø25, ø32 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JA40-14-150 Mounting: Basic | Thread size: M14 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JA63-18-150 Mounting: Basic | Thread size: M18 | Thread pitch: 1.5 mm | Cylinder bore: ø50, ø63 mm | Max load: 11000 N | Eccentricity: 1 mm
JA80-22-150 Mounting: Basic | Thread size: M22 | Thread pitch: 1.5 mm | Cylinder bore: ø80 mm | Max load: 18000 N | Eccentricity: 1.25 mm
JA100-26-150 Mounting: Basic | Thread size: M26 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JA140-30-150 Mounting: Basic | Thread size: M30 | Thread pitch: 1.5 mm | Cylinder bore: ø125, ø140 mm | Max load: 54000 N | Eccentricity: 2.5 mm
JA160-36-150 Mounting: Basic | Thread size: M36 | Thread pitch: 1.5 mm | Cylinder bore: ø160 mm | Max load: 71000 N | Eccentricity: 3 mm
JA20-8-100 Mounting: Basic | Thread size: M8 | Thread pitch: 1 mm | Cylinder bore: ø20 mm | Max load: 1100 N | Eccentricity: 0.5 mm
JA25-10-150 Mounting: Basic | Thread size: M10 | Thread pitch: 1.5 mm | Cylinder bore: ø25 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JA32-10-100 Mounting: Basic | Thread size: M10 | Thread pitch: 1 mm | Cylinder bore: ø32 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JA40-12-125 Mounting: Basic | Thread size: M12 | Thread pitch: 1.25 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JA40-12-150 Mounting: Basic | Thread size: M12 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JA40-12-175 Mounting: Basic | Thread size: M12 | Thread pitch: 1.75 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JA50-16-150 Mounting: Basic | Thread size: M16 | Thread pitch: 1.5 mm | Cylinder bore: ø50 mm | Max load: 11000 N | Eccentricity: 1 mm
JA63-16-200 Mounting: Basic | Thread size: M16 | Thread pitch: 2 mm | Cylinder bore: ø50, ø63 mm | Max load: 11000 N | Eccentricity: 1 mm
JA80-20-250 Mounting: Basic | Thread size: M20 | Thread pitch: 2.5 mm | Cylinder bore: ø80 mm | Max load: 18000 N | Eccentricity: 1.25 mm
JA100-24-300 Mounting: Basic | Thread size: M24 | Thread pitch: 3 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JA100-27-150 Mounting: Basic | Thread size: M27 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JA125-27-200 Mounting: Basic | Thread size: M27 | Thread pitch: 2 mm | Cylinder bore: ø125 mm | Max load: 28000 N | Eccentricity: 2 mm
JA160-33-200 Mounting: Basic | Thread size: M33 | Thread pitch: 2 mm | Cylinder bore: ø160 mm | Max load: 71000 N | Eccentricity: 3 mm
JAF20-8-125 Mounting: Flange | Thread size: M8 | Thread pitch: 1.25 mm | Cylinder bore: ø20 mm | Max load: 1100 N | Eccentricity: 0.5 mm
JAF30-10-125 Mounting: Flange | Thread size: M10 | Thread pitch: 1.25 mm | Cylinder bore: ø25, ø32 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JAF40-14-150 Mounting: Flange | Thread size: M14 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAF63-18-150 Mounting: Flange | Thread size: M18 | Thread pitch: 1.5 mm | Cylinder bore: ø50, ø63 mm | Max load: 11000 N | Eccentricity: 1 mm
JAF80-22-150 Mounting: Flange | Thread size: M22 | Thread pitch: 1.5 mm | Cylinder bore: ø80 mm | Max load: 18000 N | Eccentricity: 1.25 mm
JAF100-26-150 Mounting: Flange | Thread size: M26 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JAF140-30-150 Mounting: Flange | Thread size: M30 | Thread pitch: 1.5 mm | Cylinder bore: ø125, ø140 mm | Max load: 36000 N | Eccentricity: 2.5 mm
JAF160-36-150 Mounting: Flange | Thread size: M36 | Thread pitch: 1.5 mm | Cylinder bore: ø160 mm | Max load: 55000 N | Eccentricity: 3 mm
JAF20-8-100 Mounting: Flange | Thread size: M8 | Thread pitch: 1 mm | Cylinder bore: ø20 mm | Max load: 1100 N | Eccentricity: 0.5 mm
JAF25-10-150 Mounting: Flange | Thread size: M10 | Thread pitch: 1.5 mm | Cylinder bore: ø25 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JAF32-10-100 Mounting: Flange | Thread size: M10 | Thread pitch: 1 mm | Cylinder bore: ø32 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JAF40-12-125 Mounting: Flange | Thread size: M12 | Thread pitch: 1.25 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAF40-12-150 Mounting: Flange | Thread size: M12 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAF40-12-175 Mounting: Flange | Thread size: M12 | Thread pitch: 1.75 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAF50-16-150 Mounting: Flange | Thread size: M16 | Thread pitch: 1.5 mm | Cylinder bore: ø50 mm | Max load: 11000 N | Eccentricity: 1 mm
JAF63-16-200 Mounting: Flange | Thread size: M16 | Thread pitch: 2 mm | Cylinder bore: ø50, ø63 mm | Max load: 11000 N | Eccentricity: 1 mm
JAF80-20-250 Mounting: Flange | Thread size: M20 | Thread pitch: 2.5 mm | Cylinder bore: ø80 mm | Max load: 18000 N | Eccentricity: 1.25 mm
JAF100-24-300 Mounting: Flange | Thread size: M24 | Thread pitch: 3 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JAF100-27-150 Mounting: Flange | Thread size: M27 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JAF125-27-200 Mounting: Flange | Thread size: M27 | Thread pitch: 2 mm | Cylinder bore: ø125 mm | Max load: 28000 N | Eccentricity: 2 mm
JAF160-33-200 Mounting: Flange | Thread size: M33 | Thread pitch: 2 mm | Cylinder bore: ø160 mm | Max load: 55000 N | Eccentricity: 3 mm
JAL20-8-125 Mounting: Foot | Thread size: M8 | Thread pitch: 1.25 mm | Cylinder bore: ø20 mm | Max load: 1000 N | Eccentricity: 0.5 mm
JAL30-10-125 Mounting: Foot | Thread size: M10 | Thread pitch: 1.25 mm | Cylinder bore: ø25, ø32 mm | Max load: 2000 N | Eccentricity: 0.5 mm
JAL40-14-150 Mounting: Foot | Thread size: M14 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAL63-18-150 Mounting: Foot | Thread size: M18 | Thread pitch: 1.5 mm | Cylinder bore: ø50, ø63 mm | Max load: 9000 N | Eccentricity: 1 mm
JAL80-22-150 Mounting: Foot | Thread size: M22 | Thread pitch: 1.5 mm | Cylinder bore: ø80 mm | Max load: 14000 N | Eccentricity: 1.25 mm
JAL100-26-150 Mounting: Foot | Thread size: M26 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 22000 N | Eccentricity: 2 mm
JAL140-30-150 Mounting: Foot | Thread size: M30 | Thread pitch: 1.5 mm | Cylinder bore: ø125, ø140 mm | Max load: 36000 N | Eccentricity: 2.5 mm
JAL160-36-150 Mounting: Foot | Thread size: M36 | Thread pitch: 1.5 mm | Cylinder bore: ø160 mm | Max load: 55000 N | Eccentricity: 3 mm
JAL20-8-100 Mounting: Foot | Thread size: M8 | Thread pitch: 1 mm | Cylinder bore: ø20 mm | Max load: 1000 N | Eccentricity: 0.5 mm
JAL25-10-150 Mounting: Foot | Thread size: M10 | Thread pitch: 1.5 mm | Cylinder bore: ø25 mm | Max load: 2000 N | Eccentricity: 0.5 mm
JAL32-10-100 Mounting: Foot | Thread size: M10 | Thread pitch: 1 mm | Cylinder bore: ø32 mm | Max load: 2000 N | Eccentricity: 0.5 mm
JAL40-12-125 Mounting: Foot | Thread size: M12 | Thread pitch: 1.25 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAL40-12-150 Mounting: Foot | Thread size: M12 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAL40-12-175 Mounting: Foot | Thread size: M12 | Thread pitch: 1.75 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAL50-16-150 Mounting: Foot | Thread size: M16 | Thread pitch: 1.5 mm | Cylinder bore: ø50 mm | Max load: 9000 N | Eccentricity: 1 mm
JAL63-16-200 Mounting: Foot | Thread size: M16 | Thread pitch: 2 mm | Cylinder bore: ø50, ø63 mm | Max load: 9000 N | Eccentricity: 1 mm
JAL80-20-250 Mounting: Foot | Thread size: M20 | Thread pitch: 2.5 mm | Cylinder bore: ø80 mm | Max load: 14000 N | Eccentricity: 1.25 mm
JAL100-24-300 Mounting: Foot | Thread size: M24 | Thread pitch: 3 mm | Cylinder bore: ø100 mm | Max load: 22000 N | Eccentricity: 2 mm
JAL100-27-150 Mounting: Foot | Thread size: M27 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 22000 N | Eccentricity: 2 mm
JAL125-27-200 Mounting: Foot | Thread size: M27 | Thread pitch: 2 mm | Cylinder bore: ø125 mm | Max load: 28000 N | Eccentricity: 2 mm
JAL160-33-200 Mounting: Foot | Thread size: M33 | Thread pitch: 2 mm | Cylinder bore: ø160 mm | Max load: 55000 N | Eccentricity: 3 mm
AccessoriesSMC
67 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC JA Floating Joint (Standard Type, Basic/Flange/Foot)

Brand SMC·Accessories

Available part numbers (67)

JA6-3-050, JA10-4-070, JA15-5-080, JA15-6-100, JA20-8-125, JA30-10-125, JA40-14-150, JA63-18-150, JA80-22-150, JA100-26-150 + 57 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JA6-3-050Mounting: Basic | Thread size: M3 | Thread pitch: 0.5 mm | Cylinder bore: ø6 mm | Max load: 19 N | Eccentricity: 0.5 mm
JA10-4-070Mounting: Basic | Thread size: M4 | Thread pitch: 0.7 mm | Cylinder bore: ø10 mm | Max load: 54 N | Eccentricity: 0.5 mm
JA15-5-080Mounting: Basic | Thread size: M5 | Thread pitch: 0.8 mm | Cylinder bore: ø10, ø15 mm | Max load: 123 N | Eccentricity: 0.5 mm
JA15-6-100Mounting: Basic | Thread size: M6 | Thread pitch: 1 mm | Cylinder bore: ø15 mm | Max load: 123 N | Eccentricity: 0.5 mm
JA20-8-125Mounting: Basic | Thread size: M8 | Thread pitch: 1.25 mm | Cylinder bore: ø20 mm | Max load: 1100 N | Eccentricity: 0.5 mm
JA30-10-125Mounting: Basic | Thread size: M10 | Thread pitch: 1.25 mm | Cylinder bore: ø25, ø32 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JA40-14-150Mounting: Basic | Thread size: M14 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JA63-18-150Mounting: Basic | Thread size: M18 | Thread pitch: 1.5 mm | Cylinder bore: ø50, ø63 mm | Max load: 11000 N | Eccentricity: 1 mm
JA80-22-150Mounting: Basic | Thread size: M22 | Thread pitch: 1.5 mm | Cylinder bore: ø80 mm | Max load: 18000 N | Eccentricity: 1.25 mm
JA100-26-150Mounting: Basic | Thread size: M26 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JA140-30-150Mounting: Basic | Thread size: M30 | Thread pitch: 1.5 mm | Cylinder bore: ø125, ø140 mm | Max load: 54000 N | Eccentricity: 2.5 mm
JA160-36-150Mounting: Basic | Thread size: M36 | Thread pitch: 1.5 mm | Cylinder bore: ø160 mm | Max load: 71000 N | Eccentricity: 3 mm
JA20-8-100Mounting: Basic | Thread size: M8 | Thread pitch: 1 mm | Cylinder bore: ø20 mm | Max load: 1100 N | Eccentricity: 0.5 mm
JA25-10-150Mounting: Basic | Thread size: M10 | Thread pitch: 1.5 mm | Cylinder bore: ø25 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JA32-10-100Mounting: Basic | Thread size: M10 | Thread pitch: 1 mm | Cylinder bore: ø32 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JA40-12-125Mounting: Basic | Thread size: M12 | Thread pitch: 1.25 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JA40-12-150Mounting: Basic | Thread size: M12 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JA40-12-175Mounting: Basic | Thread size: M12 | Thread pitch: 1.75 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JA50-16-150Mounting: Basic | Thread size: M16 | Thread pitch: 1.5 mm | Cylinder bore: ø50 mm | Max load: 11000 N | Eccentricity: 1 mm
JA63-16-200Mounting: Basic | Thread size: M16 | Thread pitch: 2 mm | Cylinder bore: ø50, ø63 mm | Max load: 11000 N | Eccentricity: 1 mm
JA80-20-250Mounting: Basic | Thread size: M20 | Thread pitch: 2.5 mm | Cylinder bore: ø80 mm | Max load: 18000 N | Eccentricity: 1.25 mm
JA100-24-300Mounting: Basic | Thread size: M24 | Thread pitch: 3 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JA100-27-150Mounting: Basic | Thread size: M27 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JA125-27-200Mounting: Basic | Thread size: M27 | Thread pitch: 2 mm | Cylinder bore: ø125 mm | Max load: 28000 N | Eccentricity: 2 mm
JA160-33-200Mounting: Basic | Thread size: M33 | Thread pitch: 2 mm | Cylinder bore: ø160 mm | Max load: 71000 N | Eccentricity: 3 mm
JAF20-8-125Mounting: Flange | Thread size: M8 | Thread pitch: 1.25 mm | Cylinder bore: ø20 mm | Max load: 1100 N | Eccentricity: 0.5 mm
JAF30-10-125Mounting: Flange | Thread size: M10 | Thread pitch: 1.25 mm | Cylinder bore: ø25, ø32 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JAF40-14-150Mounting: Flange | Thread size: M14 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAF63-18-150Mounting: Flange | Thread size: M18 | Thread pitch: 1.5 mm | Cylinder bore: ø50, ø63 mm | Max load: 11000 N | Eccentricity: 1 mm
JAF80-22-150Mounting: Flange | Thread size: M22 | Thread pitch: 1.5 mm | Cylinder bore: ø80 mm | Max load: 18000 N | Eccentricity: 1.25 mm
JAF100-26-150Mounting: Flange | Thread size: M26 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JAF140-30-150Mounting: Flange | Thread size: M30 | Thread pitch: 1.5 mm | Cylinder bore: ø125, ø140 mm | Max load: 36000 N | Eccentricity: 2.5 mm
JAF160-36-150Mounting: Flange | Thread size: M36 | Thread pitch: 1.5 mm | Cylinder bore: ø160 mm | Max load: 55000 N | Eccentricity: 3 mm
JAF20-8-100Mounting: Flange | Thread size: M8 | Thread pitch: 1 mm | Cylinder bore: ø20 mm | Max load: 1100 N | Eccentricity: 0.5 mm
JAF25-10-150Mounting: Flange | Thread size: M10 | Thread pitch: 1.5 mm | Cylinder bore: ø25 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JAF32-10-100Mounting: Flange | Thread size: M10 | Thread pitch: 1 mm | Cylinder bore: ø32 mm | Max load: 2500 N | Eccentricity: 0.5 mm
JAF40-12-125Mounting: Flange | Thread size: M12 | Thread pitch: 1.25 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAF40-12-150Mounting: Flange | Thread size: M12 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAF40-12-175Mounting: Flange | Thread size: M12 | Thread pitch: 1.75 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAF50-16-150Mounting: Flange | Thread size: M16 | Thread pitch: 1.5 mm | Cylinder bore: ø50 mm | Max load: 11000 N | Eccentricity: 1 mm
JAF63-16-200Mounting: Flange | Thread size: M16 | Thread pitch: 2 mm | Cylinder bore: ø50, ø63 mm | Max load: 11000 N | Eccentricity: 1 mm
JAF80-20-250Mounting: Flange | Thread size: M20 | Thread pitch: 2.5 mm | Cylinder bore: ø80 mm | Max load: 18000 N | Eccentricity: 1.25 mm
JAF100-24-300Mounting: Flange | Thread size: M24 | Thread pitch: 3 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JAF100-27-150Mounting: Flange | Thread size: M27 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 28000 N | Eccentricity: 2 mm
JAF125-27-200Mounting: Flange | Thread size: M27 | Thread pitch: 2 mm | Cylinder bore: ø125 mm | Max load: 28000 N | Eccentricity: 2 mm
JAF160-33-200Mounting: Flange | Thread size: M33 | Thread pitch: 2 mm | Cylinder bore: ø160 mm | Max load: 55000 N | Eccentricity: 3 mm
JAL20-8-125Mounting: Foot | Thread size: M8 | Thread pitch: 1.25 mm | Cylinder bore: ø20 mm | Max load: 1000 N | Eccentricity: 0.5 mm
JAL30-10-125Mounting: Foot | Thread size: M10 | Thread pitch: 1.25 mm | Cylinder bore: ø25, ø32 mm | Max load: 2000 N | Eccentricity: 0.5 mm
JAL40-14-150Mounting: Foot | Thread size: M14 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAL63-18-150Mounting: Foot | Thread size: M18 | Thread pitch: 1.5 mm | Cylinder bore: ø50, ø63 mm | Max load: 9000 N | Eccentricity: 1 mm
JAL80-22-150Mounting: Foot | Thread size: M22 | Thread pitch: 1.5 mm | Cylinder bore: ø80 mm | Max load: 14000 N | Eccentricity: 1.25 mm
JAL100-26-150Mounting: Foot | Thread size: M26 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 22000 N | Eccentricity: 2 mm
JAL140-30-150Mounting: Foot | Thread size: M30 | Thread pitch: 1.5 mm | Cylinder bore: ø125, ø140 mm | Max load: 36000 N | Eccentricity: 2.5 mm
JAL160-36-150Mounting: Foot | Thread size: M36 | Thread pitch: 1.5 mm | Cylinder bore: ø160 mm | Max load: 55000 N | Eccentricity: 3 mm
JAL20-8-100Mounting: Foot | Thread size: M8 | Thread pitch: 1 mm | Cylinder bore: ø20 mm | Max load: 1000 N | Eccentricity: 0.5 mm
JAL25-10-150Mounting: Foot | Thread size: M10 | Thread pitch: 1.5 mm | Cylinder bore: ø25 mm | Max load: 2000 N | Eccentricity: 0.5 mm
JAL32-10-100Mounting: Foot | Thread size: M10 | Thread pitch: 1 mm | Cylinder bore: ø32 mm | Max load: 2000 N | Eccentricity: 0.5 mm
JAL40-12-125Mounting: Foot | Thread size: M12 | Thread pitch: 1.25 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAL40-12-150Mounting: Foot | Thread size: M12 | Thread pitch: 1.5 mm | Cylinder bore: ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAL40-12-175Mounting: Foot | Thread size: M12 | Thread pitch: 1.75 mm | Cylinder bore: ø32, ø40 mm | Max load: 4400 N | Eccentricity: 0.75 mm
JAL50-16-150Mounting: Foot | Thread size: M16 | Thread pitch: 1.5 mm | Cylinder bore: ø50 mm | Max load: 9000 N | Eccentricity: 1 mm
JAL63-16-200Mounting: Foot | Thread size: M16 | Thread pitch: 2 mm | Cylinder bore: ø50, ø63 mm | Max load: 9000 N | Eccentricity: 1 mm
JAL80-20-250Mounting: Foot | Thread size: M20 | Thread pitch: 2.5 mm | Cylinder bore: ø80 mm | Max load: 14000 N | Eccentricity: 1.25 mm
JAL100-24-300Mounting: Foot | Thread size: M24 | Thread pitch: 3 mm | Cylinder bore: ø100 mm | Max load: 22000 N | Eccentricity: 2 mm
JAL100-27-150Mounting: Foot | Thread size: M27 | Thread pitch: 1.5 mm | Cylinder bore: ø100 mm | Max load: 22000 N | Eccentricity: 2 mm
JAL125-27-200Mounting: Foot | Thread size: M27 | Thread pitch: 2 mm | Cylinder bore: ø125 mm | Max load: 28000 N | Eccentricity: 2 mm
JAL160-33-200Mounting: Foot | Thread size: M33 | Thread pitch: 2 mm | Cylinder bore: ø160 mm | Max load: 55000 N | Eccentricity: 3 mm
