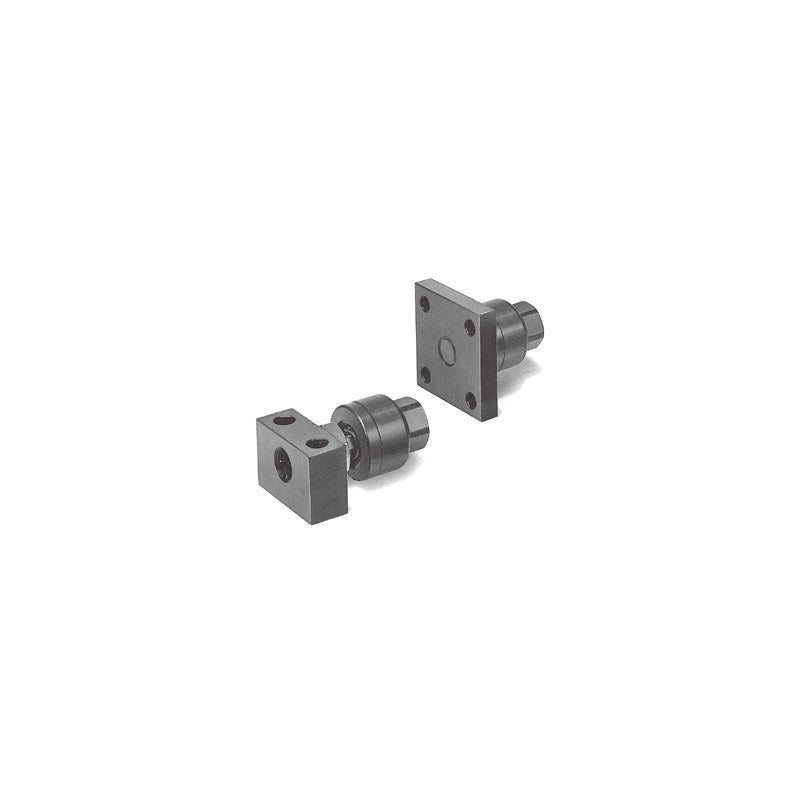

SMC JAH Floating Joint (Medium Load Type, Hydraulic Cylinders)

SMC JAH Floating Joint (Medium Load Type, Hydraulic Cylinders)

SMC JAH series medium-load floating joint for ø40 to ø100 hydraulic cylinders up to 7 MPa, in basic, flange and foot mounting types.

Key features

  • Absorbs eccentricity and parallelism errors between hydraulic cylinder and driven object
  • Basic (JAH), flange (JAHF) and foot (JAHL) mounting types
  • Rod threads M16x1.5 to M48x1.5 (standard) and M24x2, M30x2, M42x3 (semi-standard)
  • Max. tensile/compressive force up to 71,000 N; swing angle ±5°
  • High-temperature version -5 to 100°C available as suffix -X11

Specifications

Operating pressure Hydraulic cylinder 7 MPa or less
Swing angle ±5°
Operating temperature -5 to 60°C
Mounting types Basic, flange, foot
Material Chromium molybdenum steel / carbon steel, black zinc chromated
Source SMC Korea catalog CAT.KS20-248A (SMCKR_JT_JC_JA_JAH_JB_JS.pdf), p. 1151-1153 (PDF p. 21-23)
JAH40-16-150 Mounting: Basic | Thread: M16x1.5 | Cylinder bore: ø40 mm | Max load: 11000 N | Eccentricity: 1.25 mm | Grade: Standard
JAH50-20-150 Mounting: Basic | Thread: M20x1.5 | Cylinder bore: ø50 mm | Max load: 18000 N | Eccentricity: 2 mm | Grade: Standard
JAH63-24-150 Mounting: Basic | Thread: M24x1.5 | Cylinder bore: ø63 mm | Max load: 28000 N | Eccentricity: 2 mm | Grade: Standard
JAH80-30-150 Mounting: Basic | Thread: M30x1.5 | Cylinder bore: ø80 mm | Max load: 54000 N | Eccentricity: 2.5 mm | Grade: Standard
JAH100-39-150 Mounting: Basic | Thread: M39x1.5 | Cylinder bore: ø100 mm | Max load: 71000 N | Eccentricity: 3 mm | Grade: Standard
JAH100-48-150 Mounting: Basic | Thread: M48x1.5 | Cylinder bore: ø100 mm | Max load: 71000 N | Eccentricity: 3 mm | Grade: Standard
JAH63-24-200 Mounting: Basic | Thread: M24x2 | Cylinder bore: ø63 mm | Max load: 28000 N | Eccentricity: 2 mm | Grade: Semi-standard
JAH80-30-200 Mounting: Basic | Thread: M30x2 | Cylinder bore: ø80 mm | Max load: 54000 N | Eccentricity: 2.5 mm | Grade: Semi-standard
JAH100-42-300 Mounting: Basic | Thread: M42x3 | Cylinder bore: ø100 mm | Max load: 71000 N | Eccentricity: 3 mm | Grade: Semi-standard
JAHF40-16-150 Mounting: Flange | Thread: M16x1.5 | Cylinder bore: ø40 mm | Max load: 9000 N | Eccentricity: 1.25 mm | Grade: Standard
JAHF50-20-150 Mounting: Flange | Thread: M20x1.5 | Cylinder bore: ø50 mm | Max load: 14000 N | Eccentricity: 2 mm | Grade: Standard
JAHF63-24-150 Mounting: Flange | Thread: M24x1.5 | Cylinder bore: ø63 mm | Max load: 22000 N | Eccentricity: 2 mm | Grade: Standard
JAHF80-30-150 Mounting: Flange | Thread: M30x1.5 | Cylinder bore: ø80 mm | Max load: 36000 N | Eccentricity: 2.5 mm | Grade: Standard
JAHF100-39-150 Mounting: Flange | Thread: M39x1.5 | Cylinder bore: ø100 mm | Max load: 55000 N | Eccentricity: 3 mm | Grade: Standard
JAHF100-48-150 Mounting: Flange | Thread: M48x1.5 | Cylinder bore: ø100 mm | Max load: 55000 N | Eccentricity: 3 mm | Grade: Standard
JAHF63-24-200 Mounting: Flange | Thread: M24x2 | Cylinder bore: ø63 mm | Max load: 22000 N | Eccentricity: 2 mm | Grade: Semi-standard
JAHF80-30-200 Mounting: Flange | Thread: M30x2 | Cylinder bore: ø80 mm | Max load: 36000 N | Eccentricity: 2.5 mm | Grade: Semi-standard
JAHF100-42-300 Mounting: Flange | Thread: M42x3 | Cylinder bore: ø100 mm | Max load: 55000 N | Eccentricity: 3 mm | Grade: Semi-standard
JAHL40-16-150 Mounting: Foot | Thread: M16x1.5 | Cylinder bore: ø40 mm | Max load: 9000 N | Eccentricity: 1.25 mm | Grade: Standard
JAHL50-20-150 Mounting: Foot | Thread: M20x1.5 | Cylinder bore: ø50 mm | Max load: 14000 N | Eccentricity: 2 mm | Grade: Standard
JAHL63-24-150 Mounting: Foot | Thread: M24x1.5 | Cylinder bore: ø63 mm | Max load: 22000 N | Eccentricity: 2 mm | Grade: Standard
JAHL80-30-150 Mounting: Foot | Thread: M30x1.5 | Cylinder bore: ø80 mm | Max load: 36000 N | Eccentricity: 2.5 mm | Grade: Standard
JAHL100-39-150 Mounting: Foot | Thread: M39x1.5 | Cylinder bore: ø100 mm | Max load: 55000 N | Eccentricity: 3 mm | Grade: Standard
JAHL100-48-150 Mounting: Foot | Thread: M48x1.5 | Cylinder bore: ø100 mm | Max load: 55000 N | Eccentricity: 3 mm | Grade: Standard
JAHL63-24-200 Mounting: Foot | Thread: M24x2 | Cylinder bore: ø63 mm | Max load: 22000 N | Eccentricity: 2 mm | Grade: Semi-standard
JAHL80-30-200 Mounting: Foot | Thread: M30x2 | Cylinder bore: ø80 mm | Max load: 36000 N | Eccentricity: 2.5 mm | Grade: Semi-standard
JAHL100-42-300 Mounting: Foot | Thread: M42x3 | Cylinder bore: ø100 mm | Max load: 55000 N | Eccentricity: 3 mm | Grade: Semi-standard
